Garland  |  Signature  |  SKU: SUMG-200-SIGNATURE

Garland SUMG-200-SIGNATURE Signature Convection Ovens

$12,316.00
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Cutsheet Cutsheet Owner's manual 2025 school packages Parts manual
Related Searches
Convection Ovens Ovens

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

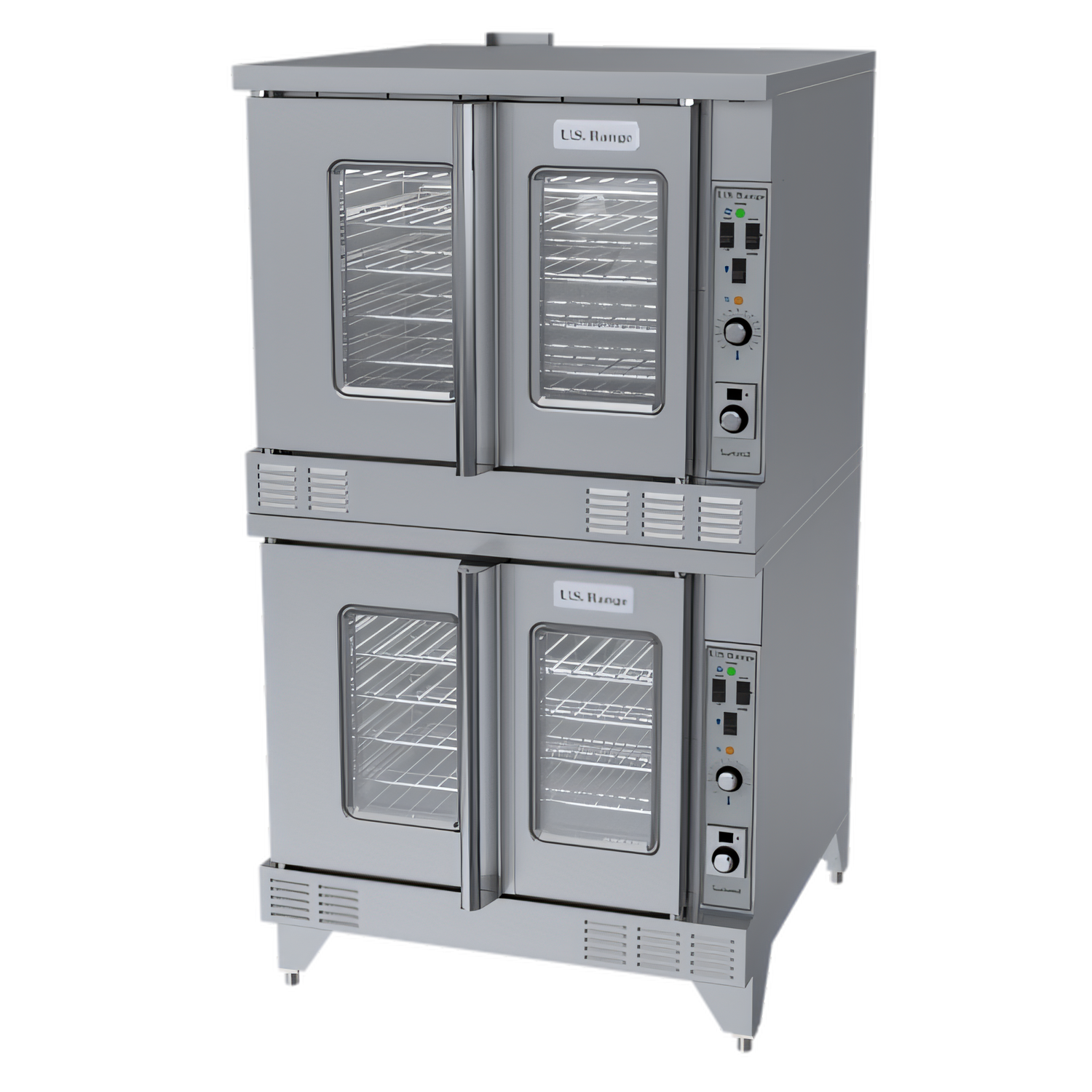

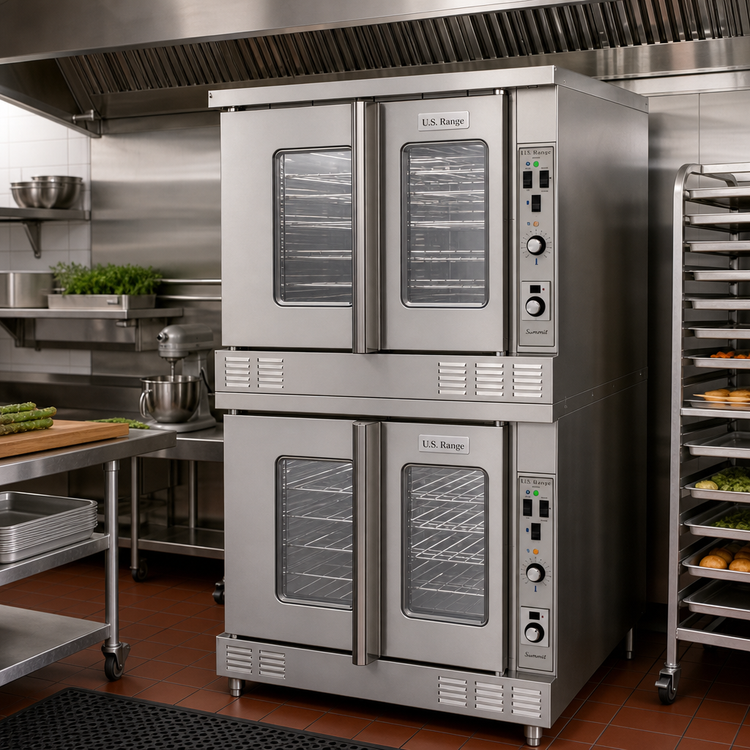

Garland Signature Summit Series Double-Deck Gas Convection Oven

Model SUMG-200 | 106,000 BTU Total Output

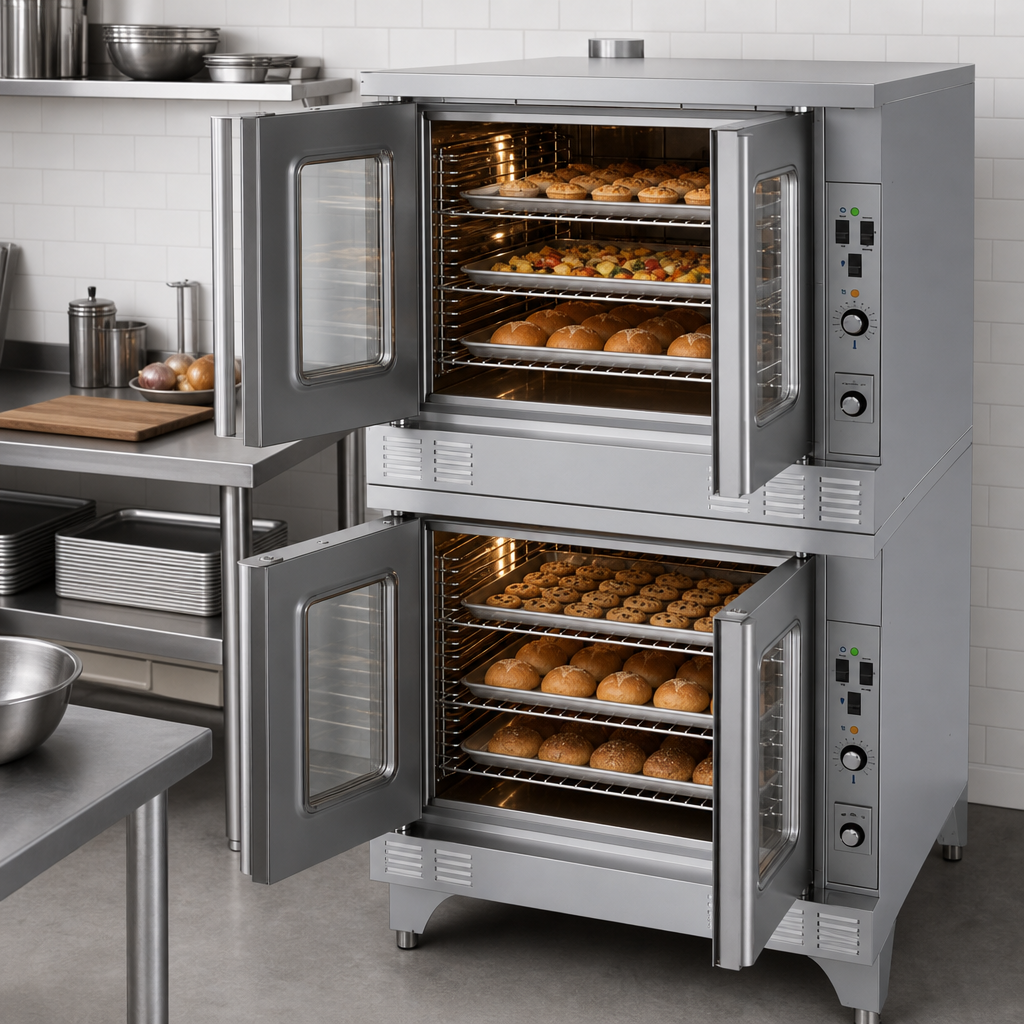

Built for high-volume, high-precision kitchens, the Signature Summit Series stacks two full-size convection ovens into one rugged footprint—delivering Garland’s legendary bake quality while doubling your production capacity.

Key Features
  • Dual cavities, 53,000 BTU each (total 106,000 BTU).

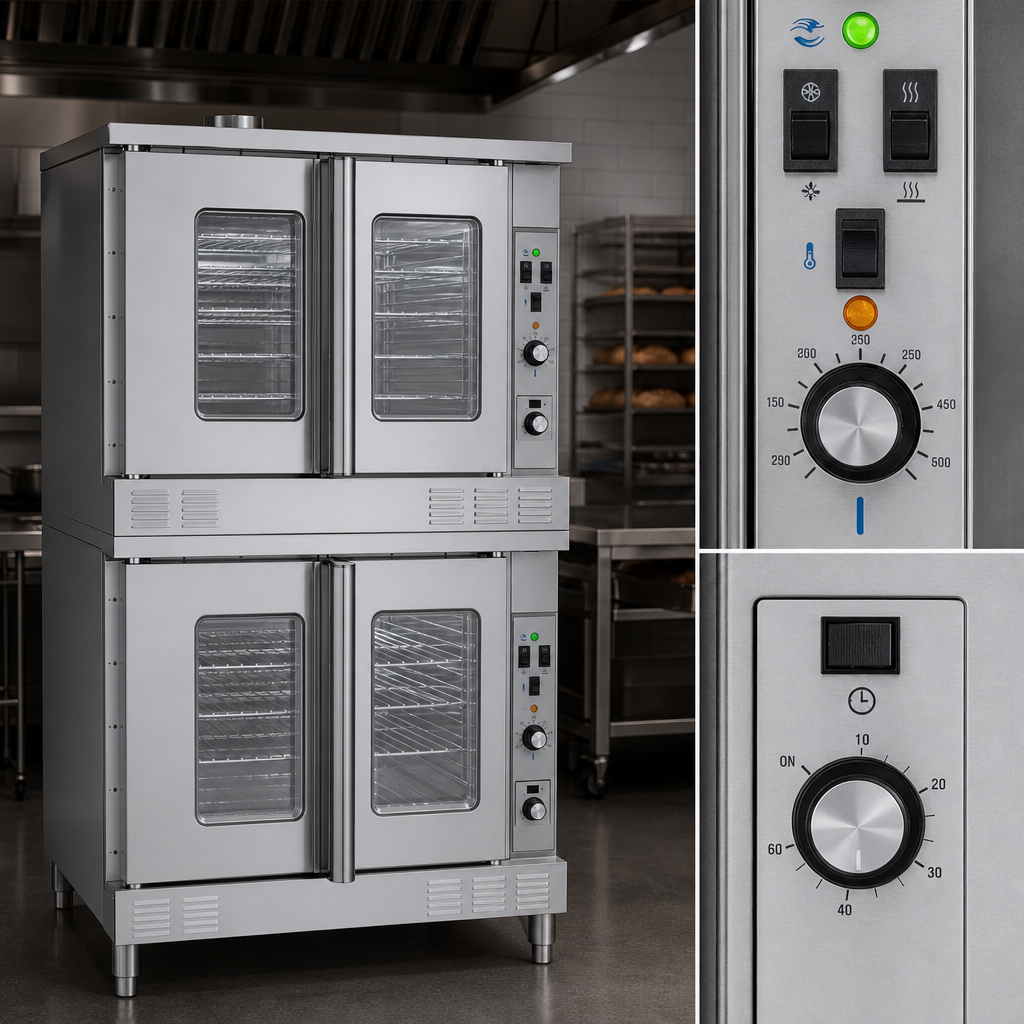

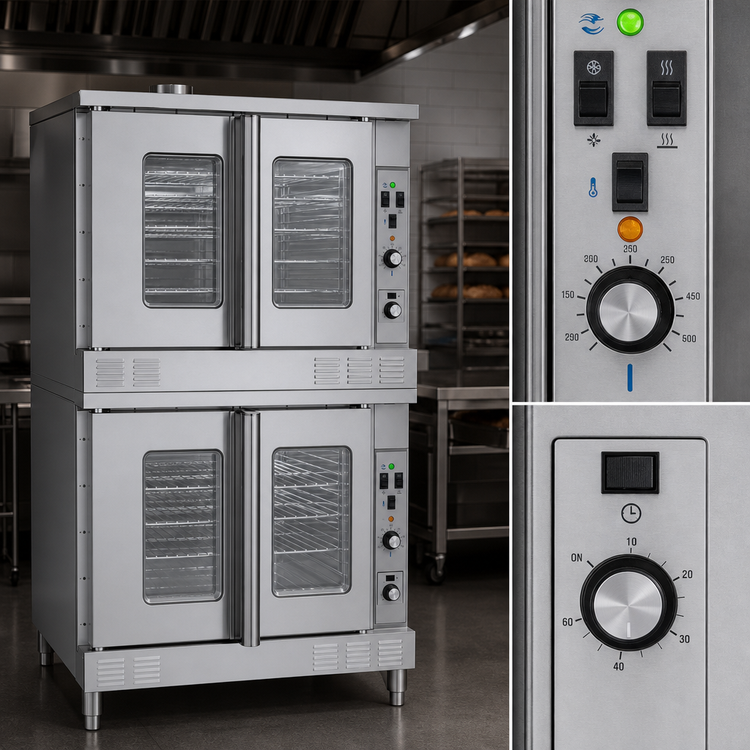

  • Solid-state controls with 60-minute electro-mechanical timer; 150 – 500 °F range.
  • 0.6 HP two-speed fan motor for rapid, even heat circulation.
  • Direct spark ignition with 100 % safety shut-off.
  • (10) chrome-plated racks (5 per deck) on 13-position guides—load full-size sheet pans left-to-right.
  • 60/40 dependent doors with double-pane thermal window and interior lighting.
  • Durable stainless steel front, sides, top and 6-1/2" adjustable legs.
  • Porcelain-enameled cavities with coved corners for quick, wipe-clean maintenance.
  • Certified UL, cUL Gas-Fired & NSF for commercial foodservice safety.
Performance You Can Trust

Garland’s patented serpentine air-baffling channels heat evenly across every rack, so pan rotation is a thing of the past. Combined with the 24"-high chamber—4" taller than conventional ovens—you’ll enjoy up to 20 % more capacity per bake without sacrificing consistency.

Specifications
Fuel Natural or Propane Gas
Total Input 106,000 BTU /hr (31.06 kW)
Temp. Range 150 °F – 500 °F (65 °C – 260 °C)
Oven Interior (each) 29" W × 24" H × 24" D (736 × 610 × 610 mm)
Exterior Dimensions 38" W × 41-1/4" D × 70-1/2" H (965 × 1048 × 1791 mm)
Gas Connection 1" NPT rear manifold
Operating Pressure Natural 4" WC | Propane 10" WC
Electrical 120 V, 60 Hz, 1 Φ, 9.8 A per deck (NEMA 5-15P cord & plug included)
Net Weight ≈ 1030 lb (465 kg)
Certifications UL, cUL, NSF
What’s Included
  • (10) chrome racks
  • Interior lights in each deck
  • 6-1/2" stainless steel legs with adjustable feet
  • User & installation manuals
Popular Options & Accessories
  • 208 V or 240 V convection motor
  • Stainless steel solid doors
  • Extra oven racks
  • Swivel or low-profile casters with front brakes
  • Open base stand with rack guides & shelf
  • Gas flex hose with quick-disconnect & restraining device
  • Stainless back enclosure & removable drip pan

Warranty: 1-year parts & labor, plus 5-year door warranty (excluding glass). Ovens supplied with casters must be installed with an approved restraining device.

Important: This appliance is intended for commercial use only and is not approved for residential installation.

Features & Specs

Manufacturer

Garland

Brand_name

Signature

Certifications

NSF, UL

Height

70.5in

Width

38.0in

Depth

41.25in

Shipping Weight

1030.0lbs

Type

standard

Interior Finish

porcelain interior

Deck Qty

2 decks

Exterior Finish

stainless steel front, top & sides

Size

full/standard size

Capacity per Compartment

5 pan capacity, per compartment

Control Type

solid state controls

Base

legs

Specifications

Signature Summit Series Convection Oven, gas, double-deck, solid state controls with 150° - 500° F, electromechanical thermostat and 60 minute timer, (5) chrome plated (13) position oven racks per deck, electronic spark ignition, dependant 60/40 doors with double paned thermal windows, stainless steel front, sides, top, 6-1/2" legs, porcelain cavity, 106,000 BTU, UL, cUL, NSF (USRange)
