Garland SUMG-100 US Range Summit Ovens Convection Ovens
$6,280.00
Unit price
/
Unavailable
Description

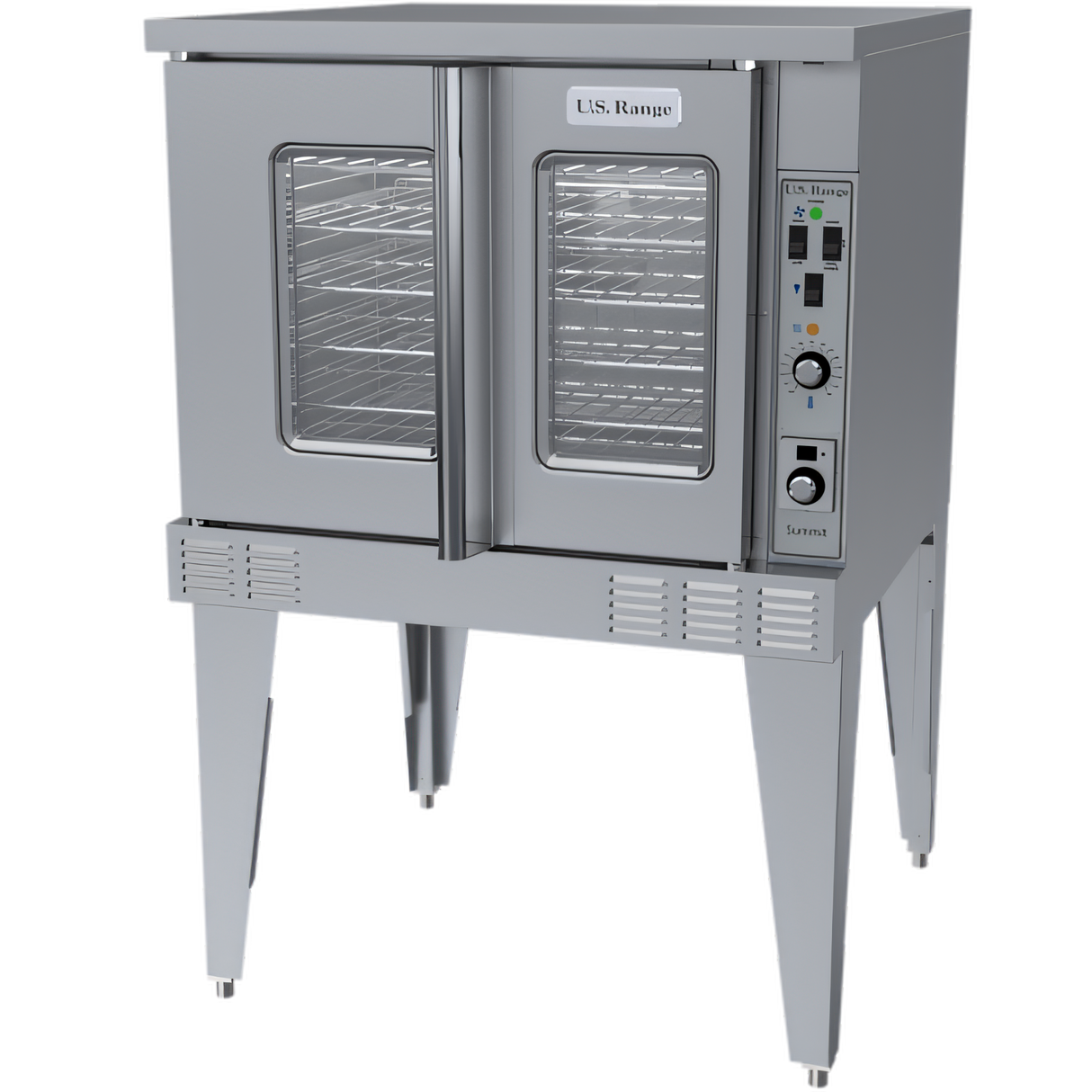

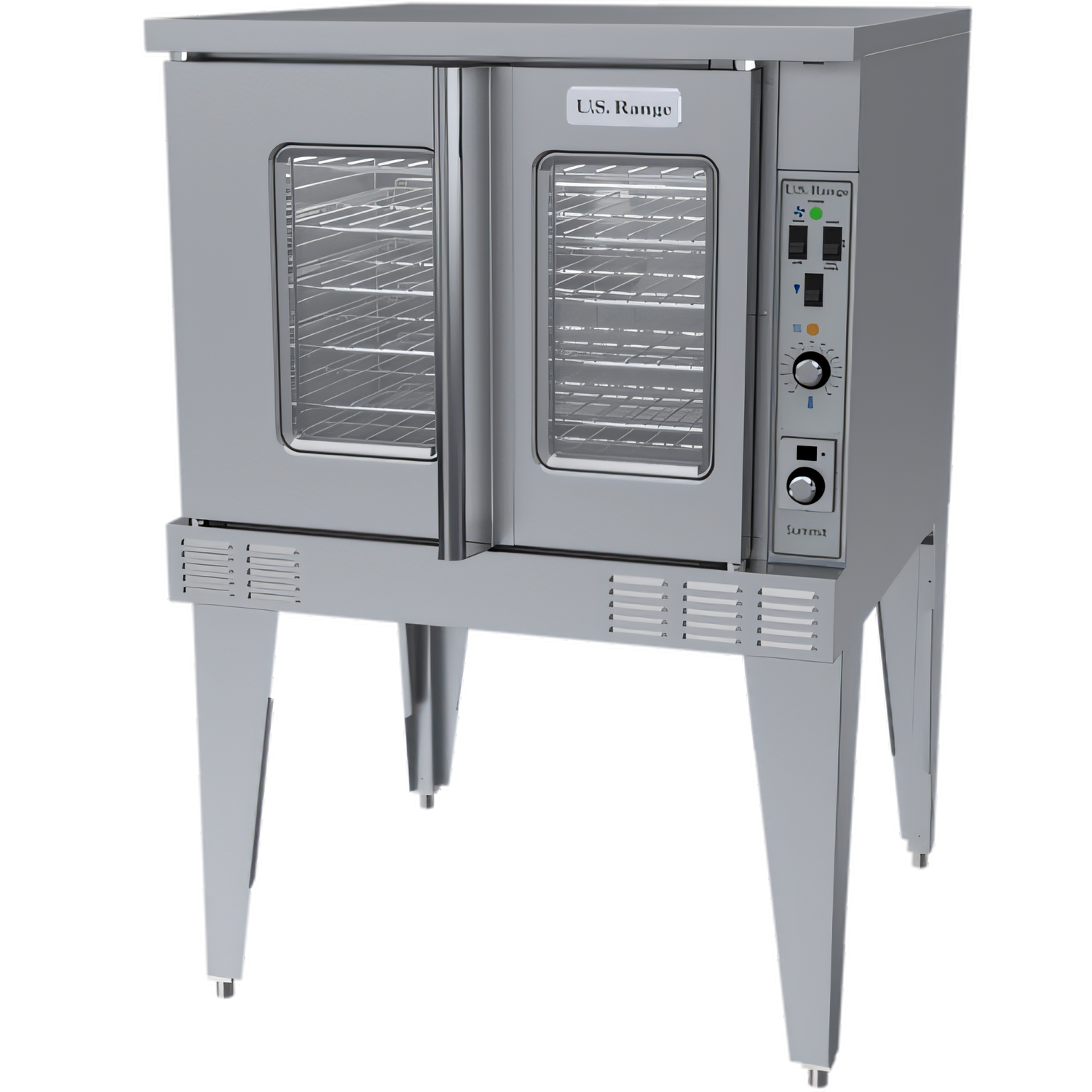

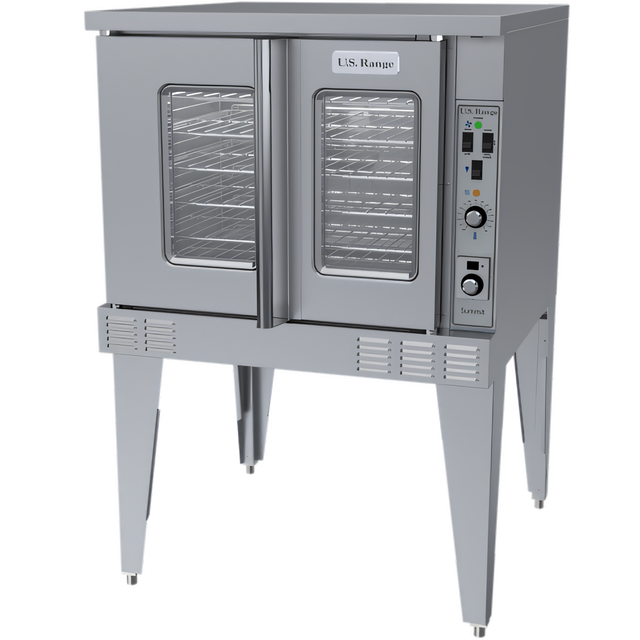

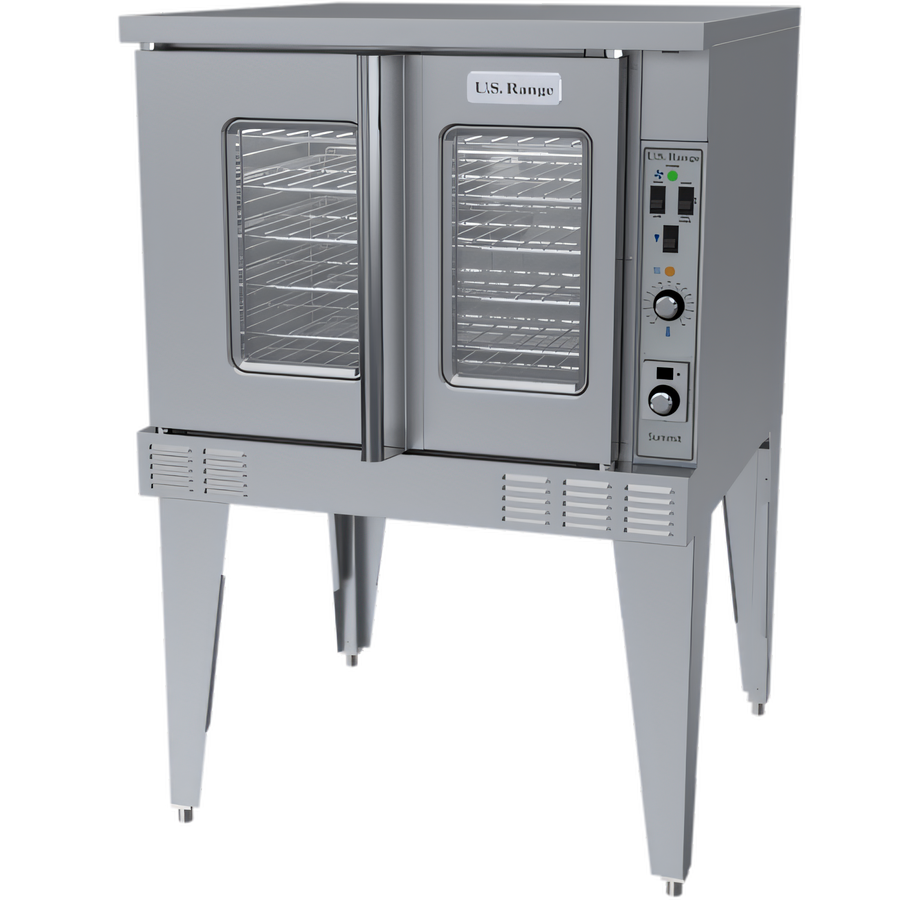

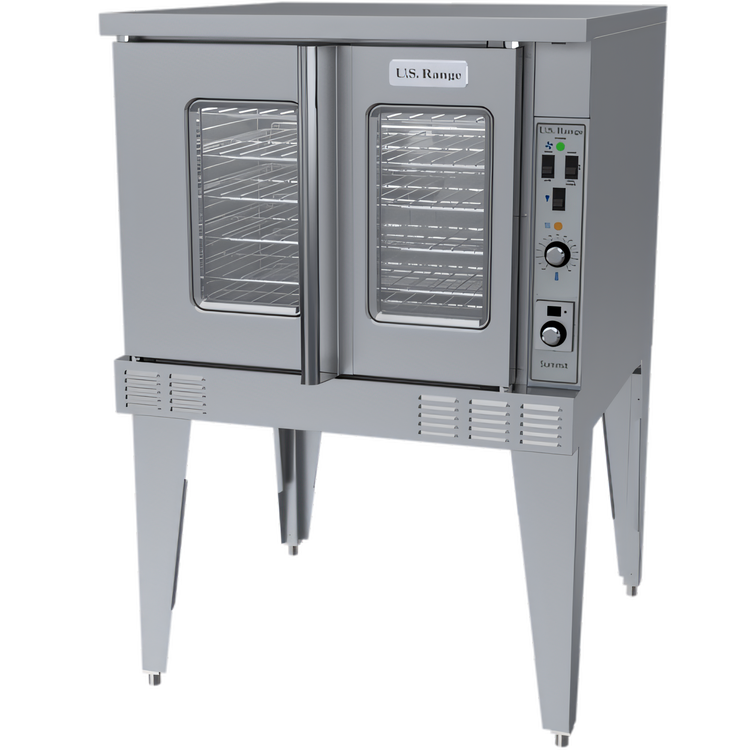

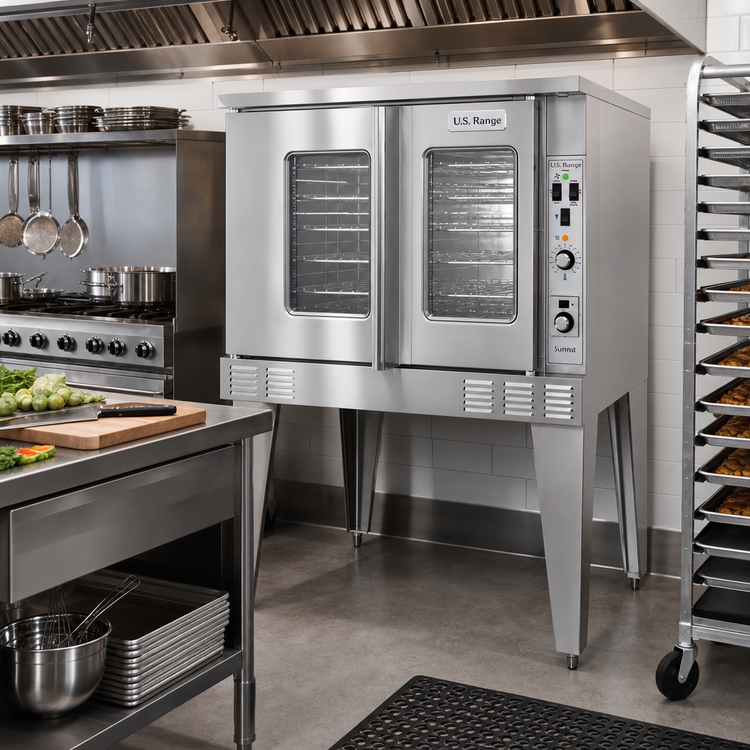

U.S. Range Summit Series Gas Convection Oven
Single-Deck | Model SUMG-100Built for high-volume commercial kitchens, the Garland U.S. Range Summit gas convection oven combines 53,000 BTU of heating power with a precision solid-state control system to give you faster baking, roasting and re-thermalizing—batch after batch.
Key Features

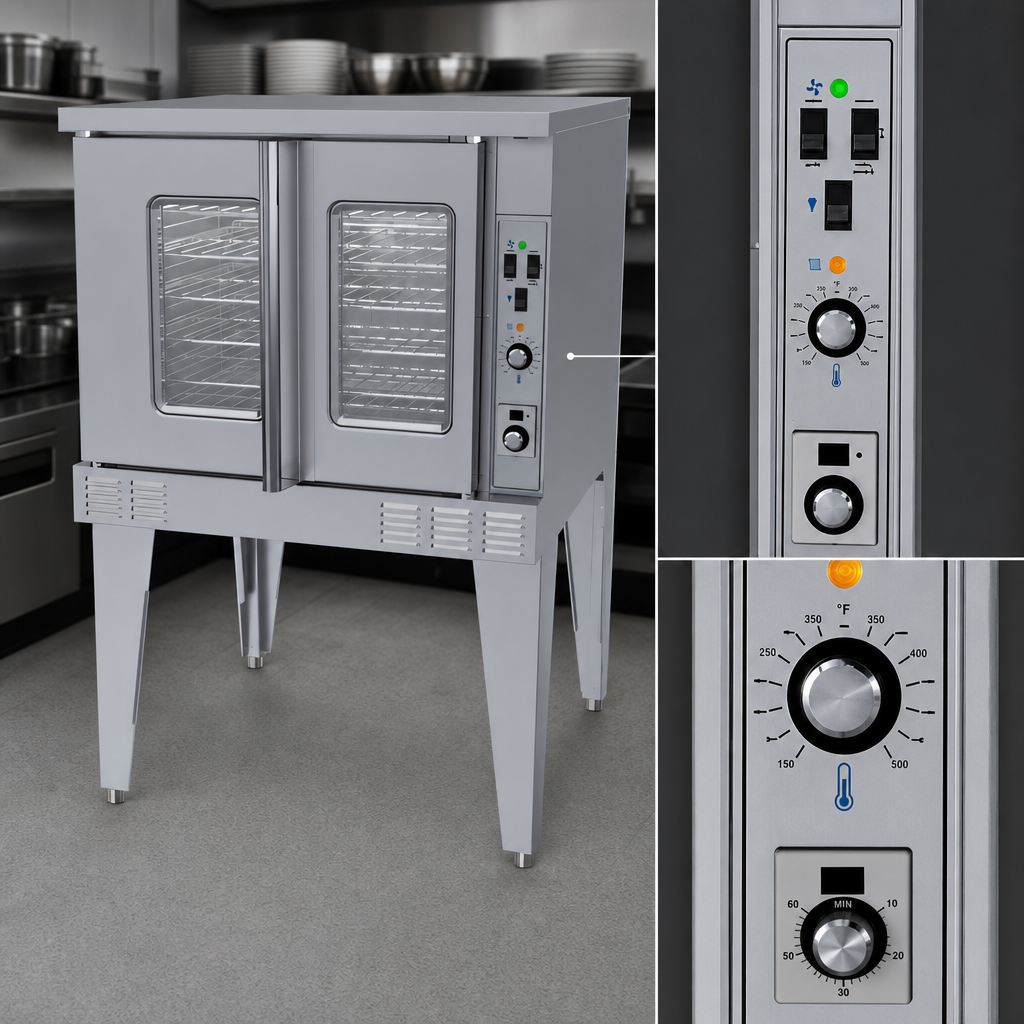

- Wide 150 °F – 500 °F (65 °C – 260 °C) temperature range with 60-minute electromechanical timer

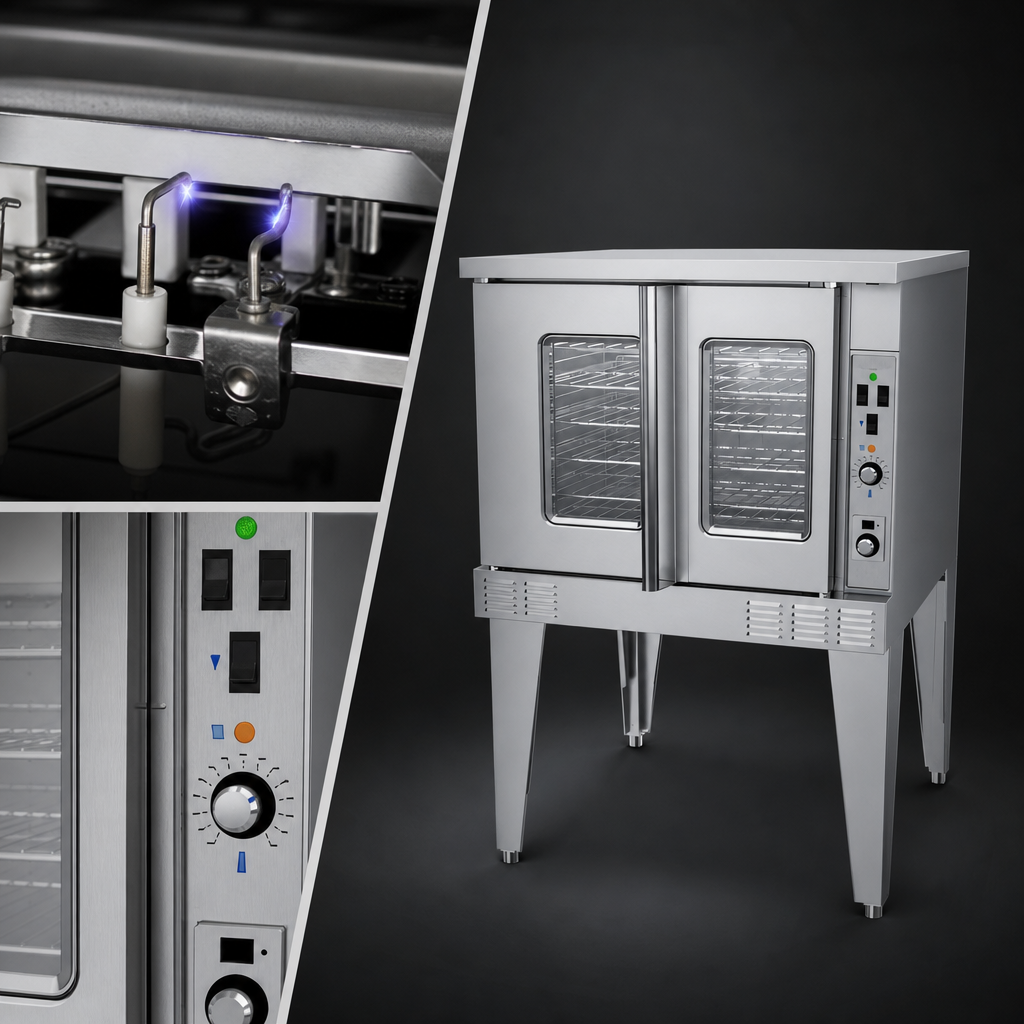

- Direct-spark ignition and 100 % safety shut-off for reliable, worry-free starts
- 53,000 BTU (15.53 kW) straight-tube burner paired with a 0.6 HP, two-speed fan for rapid heat recovery
- Five chrome-plated racks on 13-position guides—accommodates five full-size sheet pans
- 60/40 dependent doors with double-pane thermal windows and bright interior lighting
- Sleek stainless steel front, sides, top and heavy-duty 25-1⁄2 in. legs
- Seamless porcelain-enameled cavity with coved corners for quick cleanup
- Field convertible for Natural or Propane gas service
- UL, cUL Gas-Fired and NSF certified
Performance Specifications
| Model | SUMG-100 (Single Deck) |
|---|---|
| Heat Input | 53,000 BTU/hr | 15.53 kW |
| Temperature Range | 150 °F – 500 °F |
| Oven Interior (W × H × D) | 29 × 24 × 24 in (736 × 610 × 610 mm) |
| Exterior (W × H × D) | 38 × 57.5 × 41.25 in (965 × 1461 × 1048 mm) |
| Fan Motor | 0.6 HP, 2-speed, 120 V/1 Ph, 9.8 A (NEMA 5-15P plug included) |
| Gas Connection | 3/4 in NPT rear; 4 "WC Natural or 10 "WC Propane |
| Rack Capacity | 5 full-size (18 × 26 in) sheet pans |
| Shipping Weight | ≈ 515 lb (233 kg) |
What’s Included
- (5) chrome-plated oven racks
- Set of 25-1⁄2 in stainless steel legs with adjustable feet
- User, installation & service manuals
- 1-year parts & labor warranty plus 5-year door warranty (USA & Canada)
Popular Options & Accessories
- Swivel or low-profile casters with front brakes
- Additional oven racks
- Stainless steel solid doors
- 208 V or 240 V fan motor
- Open base with rack guides & shelf
- Direct-connect vent or stainless rear enclosure
- Gas flex hose with quick disconnect & restraining device
Important: This appliance is for commercial use only and must be installed in
accordance with all local codes by qualified personnel. Ovens supplied with casters require an
approved restraining device.
Garland/US Range reserves the right to change specifications without notice.
Features & Specs
Features & Specs
Manufacturer
Garland
Brand_name
US Range Summit Ovens
Certifications
NSF, UL
Height
57.5in
Width
38.0in
Depth
41.25in
Shipping Weight
515.0lbs
Interior Finish
porcelain interior
Control Type
solid state controls
Exterior Finish
stainless steel front, top & sides
Deck Qty
1 deck
Capacity per Compartment
5 pan capacity, per compartment
Type
standard
Base
legs
Size
full/standard size
Specifications
Summit Series Convection Oven, gas, single-deck, solid state controls with 150° - 500° F, electromechanical thermostat and 60 minute timer, (5) chrome plated (13) position oven racks per deck, electronic spark ignition, dependant 60/40 doors with double paned thermal windows, stainless steel front, sides, top, 25-1/2" legs, porcelain cavity, 53,000 BTU, UL, cUL, NSF (USRange)
