Garland SUMG-100-QS Quick Ship Convection Ovens
Description

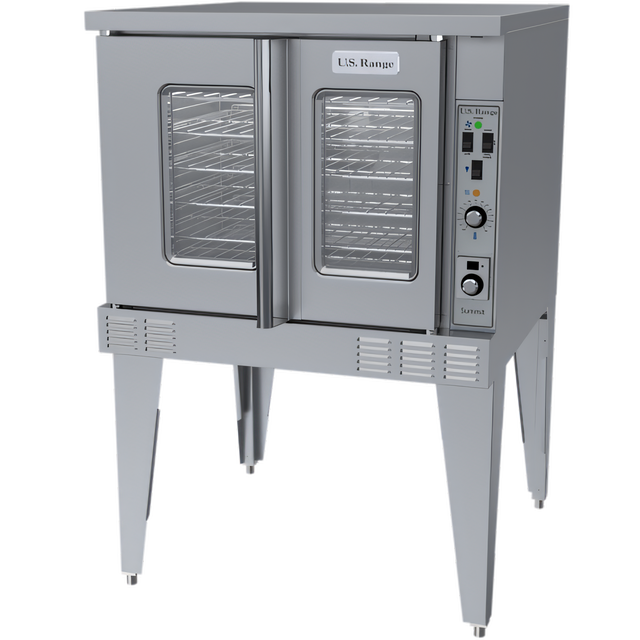

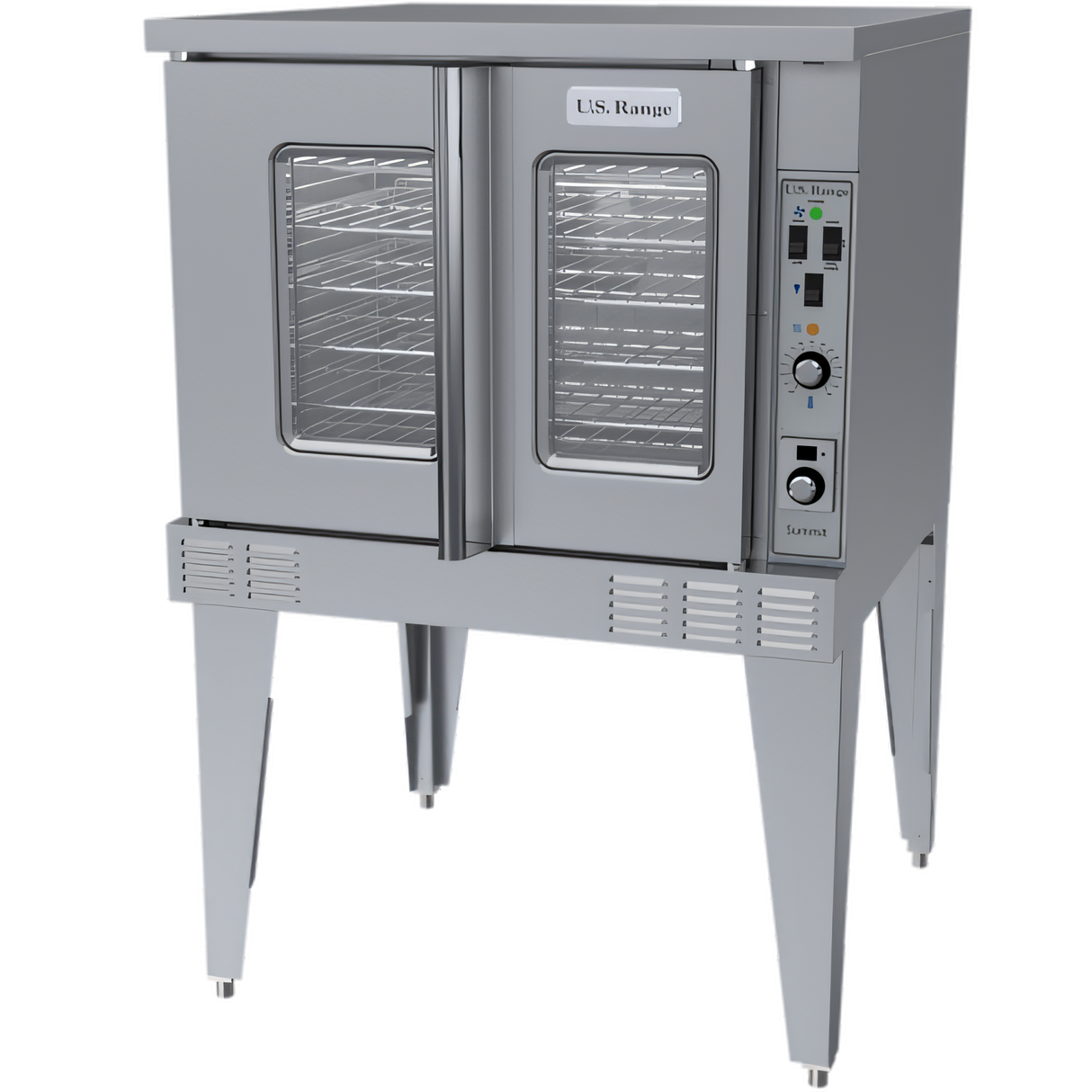

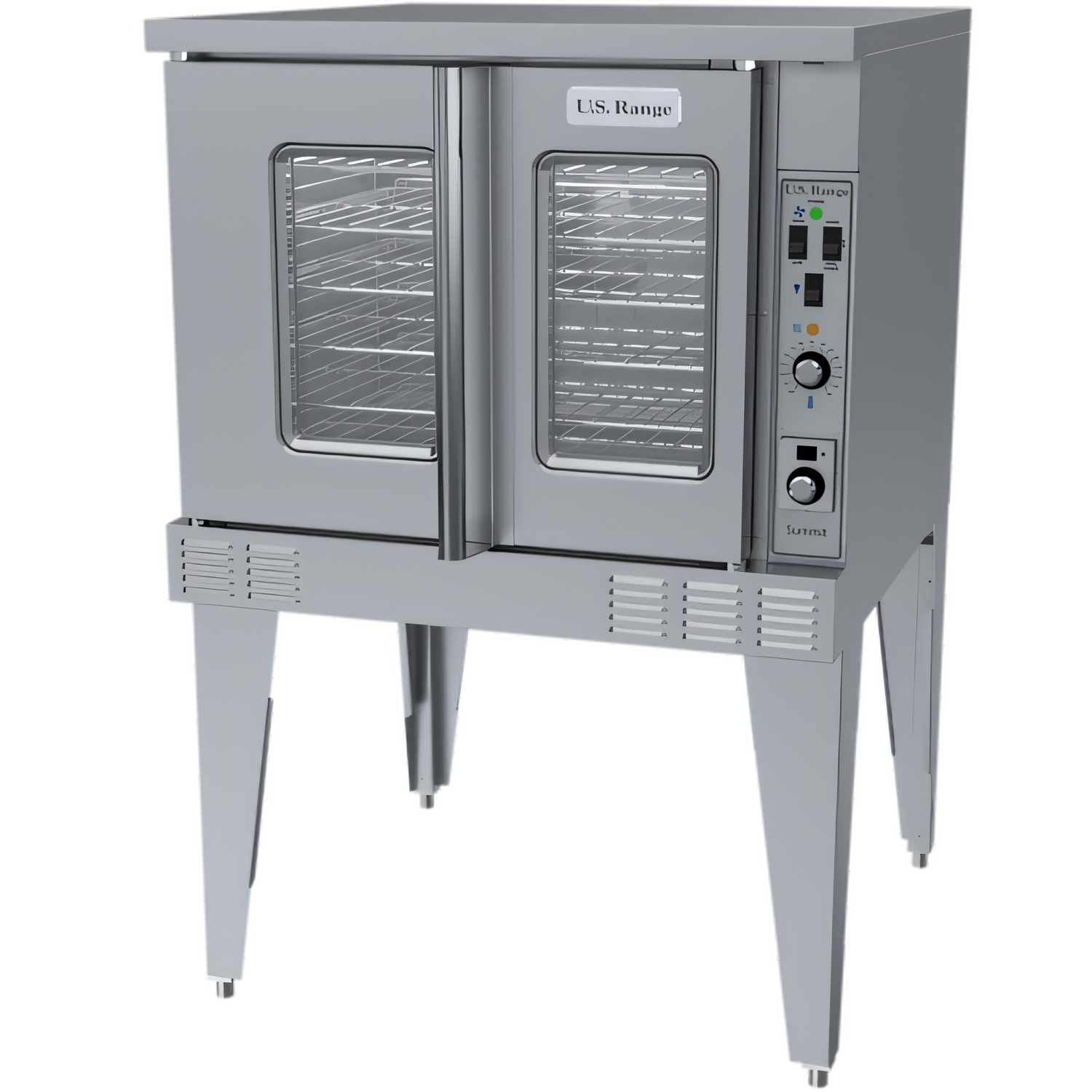

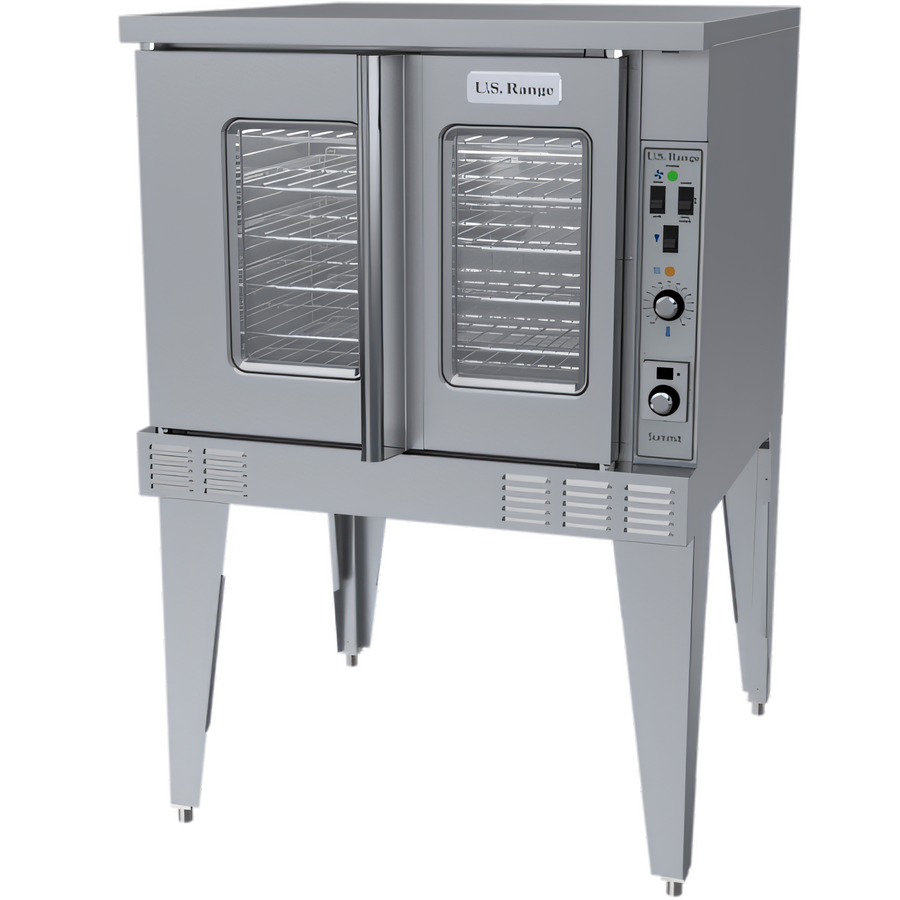

Summit Series “Quick Ship” Gas Convection Oven – Single Deck
53,000 BTU • solid-state controls • 5-pan capacityNeed a full-size convection oven fast? Garland’s Quick Ship configuration puts the legendary Summit performance in your kitchen with the shortest lead-time in the line. Built for demanding, high-volume operations, this single-deck model delivers even bakes, rapid recovery and years of trouble-free service—all in a 38" footprint that slips easily onto most cook lines.
Key advantages

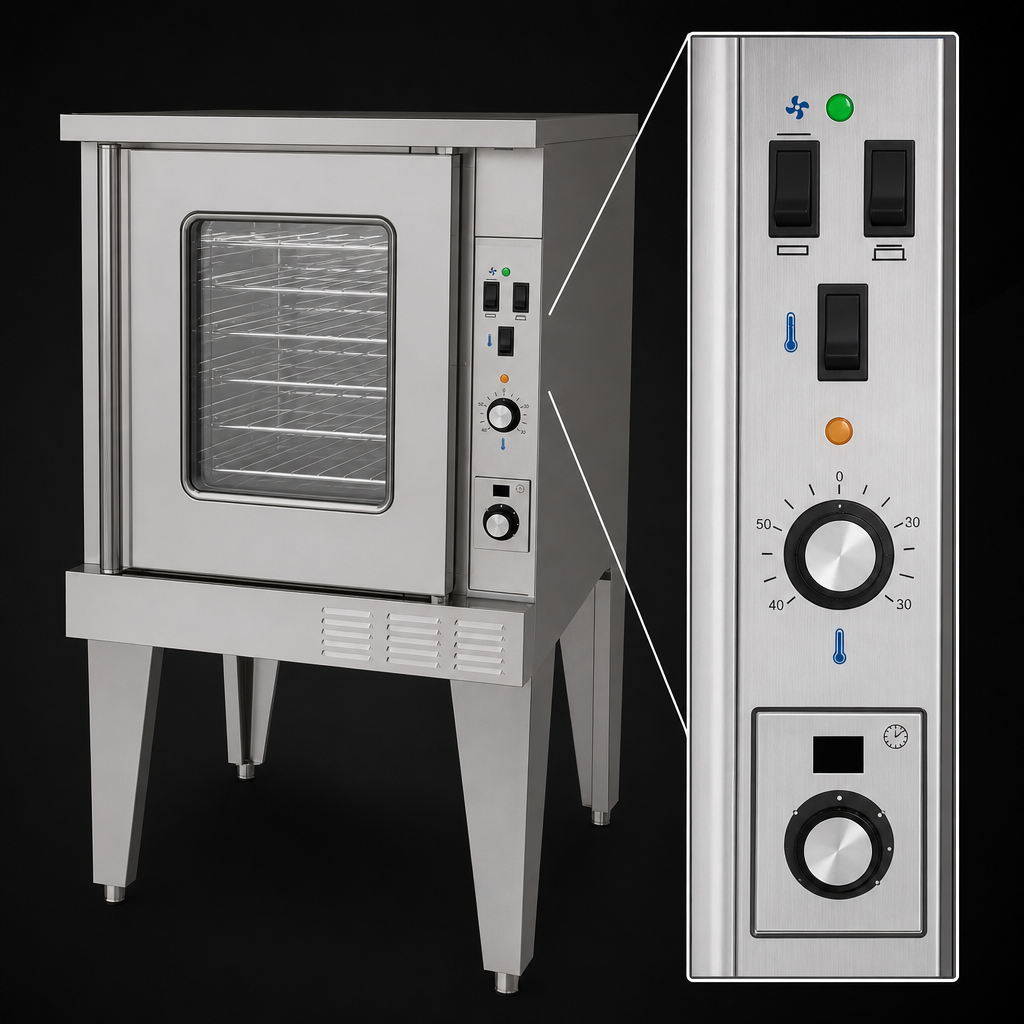

- Solid-state temperature control (150 – 500 °F) with electromechanical 60-minute timer

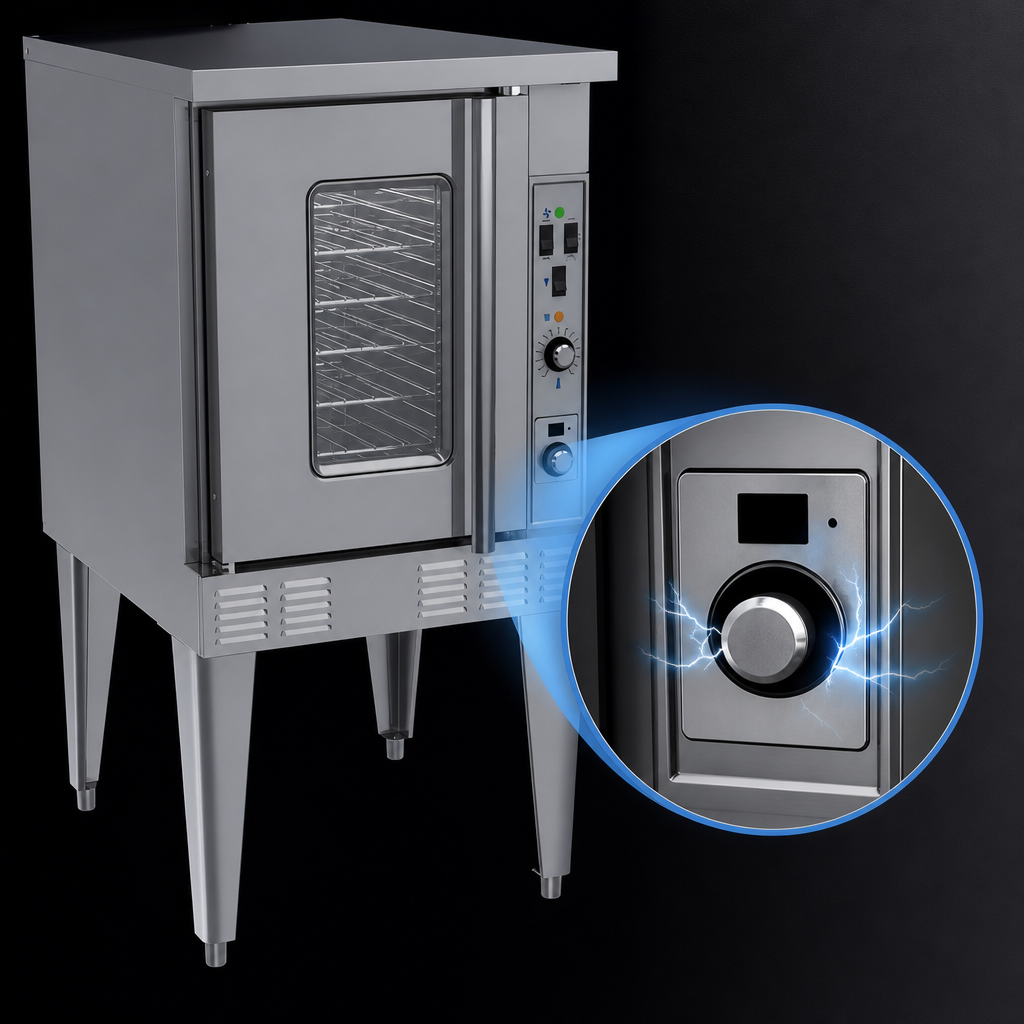

- Electronic spark ignition & 100 % flame-failure safety shut-off
- Two-speed, 0.6 HP convection fan for gentle or high-velocity airflow
- Porcelain-enameled oven cavity with coved corners for quick wipe-downs
- Five chrome-plated racks on a 13-position guide—loads up to five full-size sheet pans
- 60/40 dependent doors: left door features a double-pane thermal window; right door is solid stainless
- Bright interior light for effortless product checks
- Stainless steel front, sides, top and 25-1/2" legs—built to handle real-world abuse
- Factory tuned for natural or propane gas (specify at order)
- UL, cUL & NSF listed for worry-free code compliance
At-a-glance specifications
| Model | Summit Series SUMG-100 QS (Quick Ship) |
|---|---|
| Heat input | 53,000 BTU/hr (15.53 kW) |
| Temperature range | 150 – 500 °F (66 – 260 °C) |
| Oven interior (W × H × D) | 29" × 24" × 24" (736 × 610 × 610 mm) |
| Exterior (W × D × H) | 38" × 41-1/4" × 57-1/2" (965 × 1048 × 1461 mm) (with legs) |
| Gas connection | 3/4" NPT; 4" WC Natural / 10" WC Propane |
| Electrical | 120 V, 1-ph, 9.8 A, 6 ft cord & NEMA 5-15P plug (fan & controls) |
| Rack capacity | 5 full-size sheet pans (5 racks included) |
| Construction | All stainless exterior; porcelain interior; 25-1/2" stainless legs |
| Warranty | 1-year parts & labor • 5-year door (excludes glass) |
| Certifications | UL, cUL, NSF |
Quick Ship models are pre-configured for fastest delivery. If you need windows in both doors, casters, 208/240 V motors or other options, please contact us for lead-time and pricing.
