Garland SUME-200 US Range Summit Ovens Convection Ovens
Description

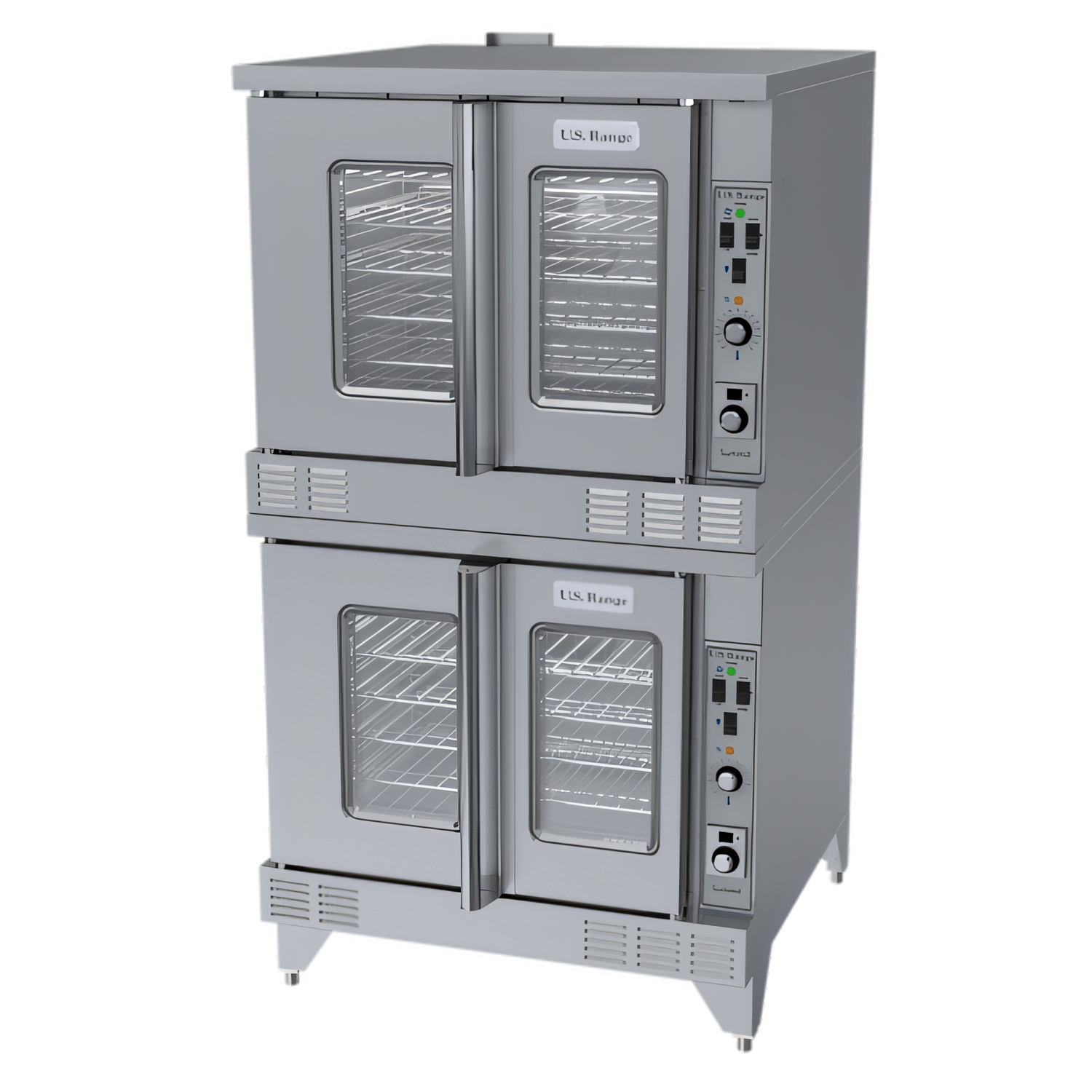

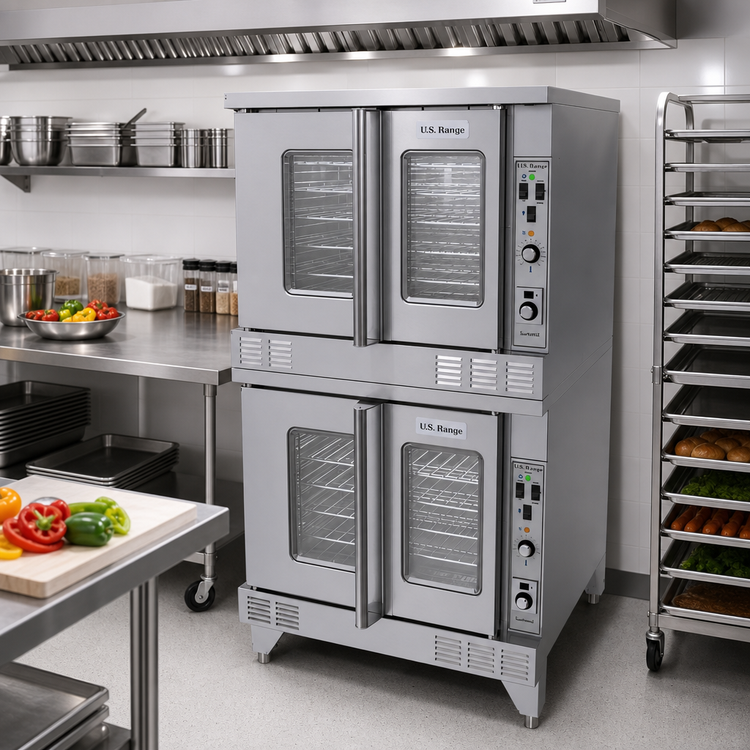

U.S. Range Summit Series Double-Deck Electric Convection Oven
Model SUME-200 | 20.8 kW • Solid-State Controls • UL, cUL & NSF ListedEngineered for the busiest commercial kitchens, the two-cavity Summit Series delivers the throughput of a full baking line in less than 40 inches of floor space. With precision solid-state controls, a powerful two-speed fan system and Garland’s legendary build quality, every batch bakes faster, more evenly and more reliably.
Why It Stands Out

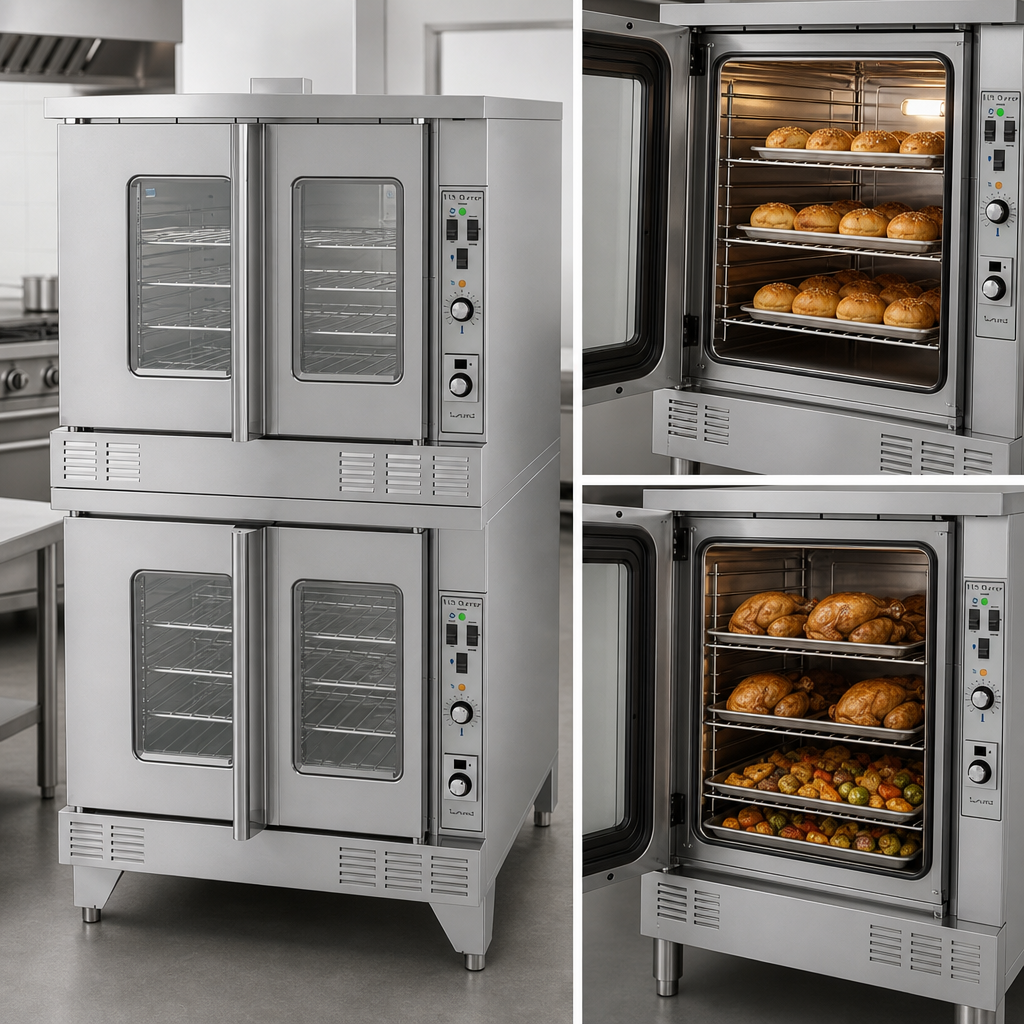

- Twice the Capacity: Independent full-size cavities—each 29" W × 24" H × 24" D— handle 10 sheet pans at once (5 per deck).

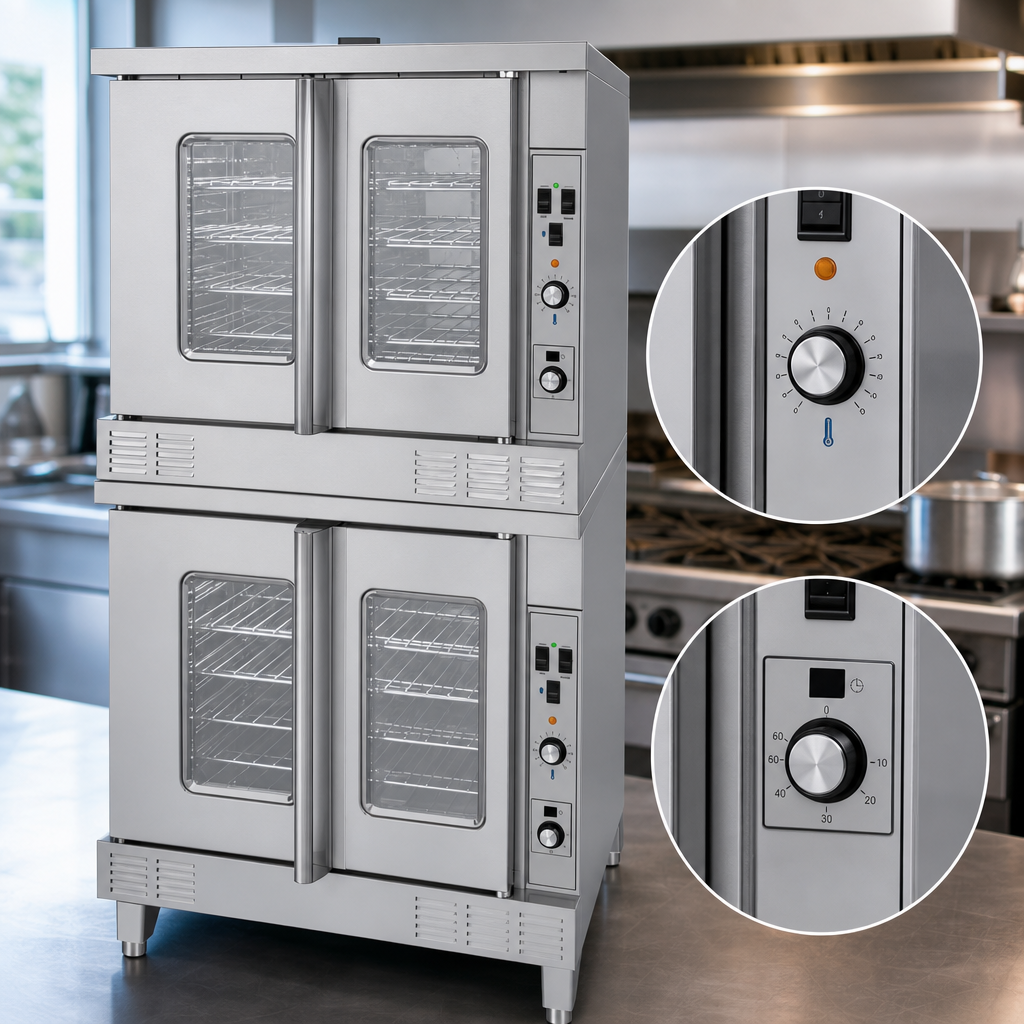

- Solid-State Precision: Simple dial controls set temperatures from 150 – 500 °F with an electro-mechanical 60-minute timer and audible alert.
- Two-Speed 0.6 HP Fan: High for rapid roasting and low for delicate baking—both deliver even heat via Garland’s serpentine airflow system.
- 60/40 Dependent Doors: Smooth-action “safety door” design lets you open the small right door for quick checks or swing both doors wide with one hand. Double-pane thermal windows and interior lights keep an eye on the bake.
- Rugged From the Frame Up: Stainless-steel front, sides, top and 6-1/2" legs stand up to daily abuse; porcelain-enameled cavities wipe clean fast.
- 13-Position Rack Guides: Fine-tune pan height for perfect browning—five chrome-plated racks are included per deck.
- Certified & Warranty-Backed: UL, cUL & NSF listings plus a 1-year parts & labor warranty and 5-year door warranty (USA & Canada).
At-a-Glance Specs
| Configuration | Double-deck, independent cavities (stacked) |
|---|---|
| Interior (each deck) | 29" W × 24" H × 24" D (736 × 610 × 610 mm) |
| Overall Dimensions | 38" W × 70-1/2" H × 41-1/4" D (965 × 1791 × 1048 mm) |
| Power Requirement | 20.8 kW total (10.4 kW per cavity) • 208/240/460 V, 3-ph See amp chart in manual; each deck requires a separate feed. |
| Temperature Range | 150 – 500 °F (66 – 260 °C) |
| Fan Motor | 0.6 HP, two-speed (1725/1140 RPM) |
| Included Racks | 5 chrome racks per deck (10 total) |
| Door Style | 60/40 dependent doors with double-pane windows & interior lighting |
| Shipping Weight | Approx. 1,030 lb (465 kg) |
| Listings | UL, cUL, NSF |
Popular Options
- Solid stainless-steel doors (no windows)
- Extra chrome oven racks
- Standard or low-profile locking swivel casters
- Open stainless base with rack guides & shelf
- Back stainless enclosure panel
- 460 V, 3-phase configuration
- Removable stainless-steel drip pan
Need help sizing or configuring your Summit oven? Contact Garland or your authorized food-service dealer for expert assistance.
