Garland SUME-200-SIGNATURE HIGH VOLTAGE Signature Convection Ovens
Description
Garland Signature Summit Series Double-Deck Electric Convection Oven
Model SUME-200 | 20.8 kW | Solid-State ControlsTwice the capacity in the same 38" footprint—Garland’s Signature Summit Series delivers two independent, full-size convection ovens stacked on a single stainless-steel chassis. Expect the even bake, rugged build and easy service access that have made Garland the go-to choice for high-volume kitchens, bakeries, hotels and K-12 foodservice.
Key advantages

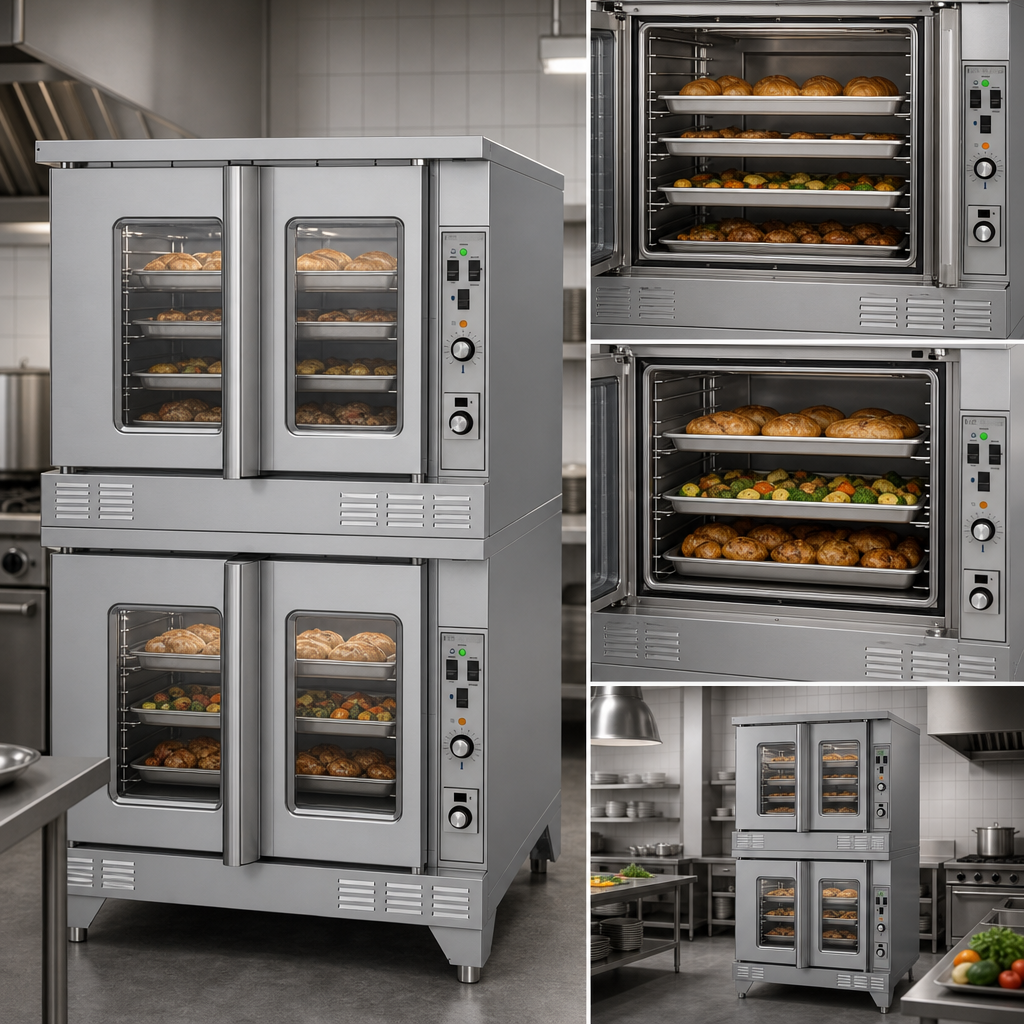

- Two × 24"-high cavities—20 % more usable height than typical competitive ovens.
- 5 chrome-plated racks per deck on 13-position guides (10 racks included).
- 150 – 500 °F (65 – 260 °C) solid-state thermostat with 60-minute electromechanical timer.
- 0.6 HP two-speed fan motor produces Garland’s patented serpentine airflow for faster heat-up and recovery.
- 60/40 dependent doors with a double-pane thermal window and interior lighting—check bakes without dropping the temp.
- Porcelain-enameled, coved-corner interior wipes clean in seconds.
- All-stainless exterior and adjustable 6-1/2" legs built for years of heavy service.
- UL, cUL & NSF listed and proudly manufactured in North America.
Performance highlights
- Total input: 20.8 kW (10.4 kW per cavity).
- Independent power connections let you service one deck without shutting down the other.
- Front-mounted control panel speeds up field service.
- Full-length positive door latch maintains a tight seal and reduces heat loss.
Technical specifications
| Configuration | Double-deck, electric |
|---|---|
| Interior (per deck) | 29" W × 24" H × 24" D (736 × 610 × 610 mm) |
| Included racks | 5 chrome racks per deck (13 positions) |
| Temperature range | 150 °F – 500 °F (65 °C – 260 °C) |
| Heat input | 10.4 kW per deck / 20.8 kW total |
| Fan motor | 0.6 HP, two-speed (1725/1140 rpm) |

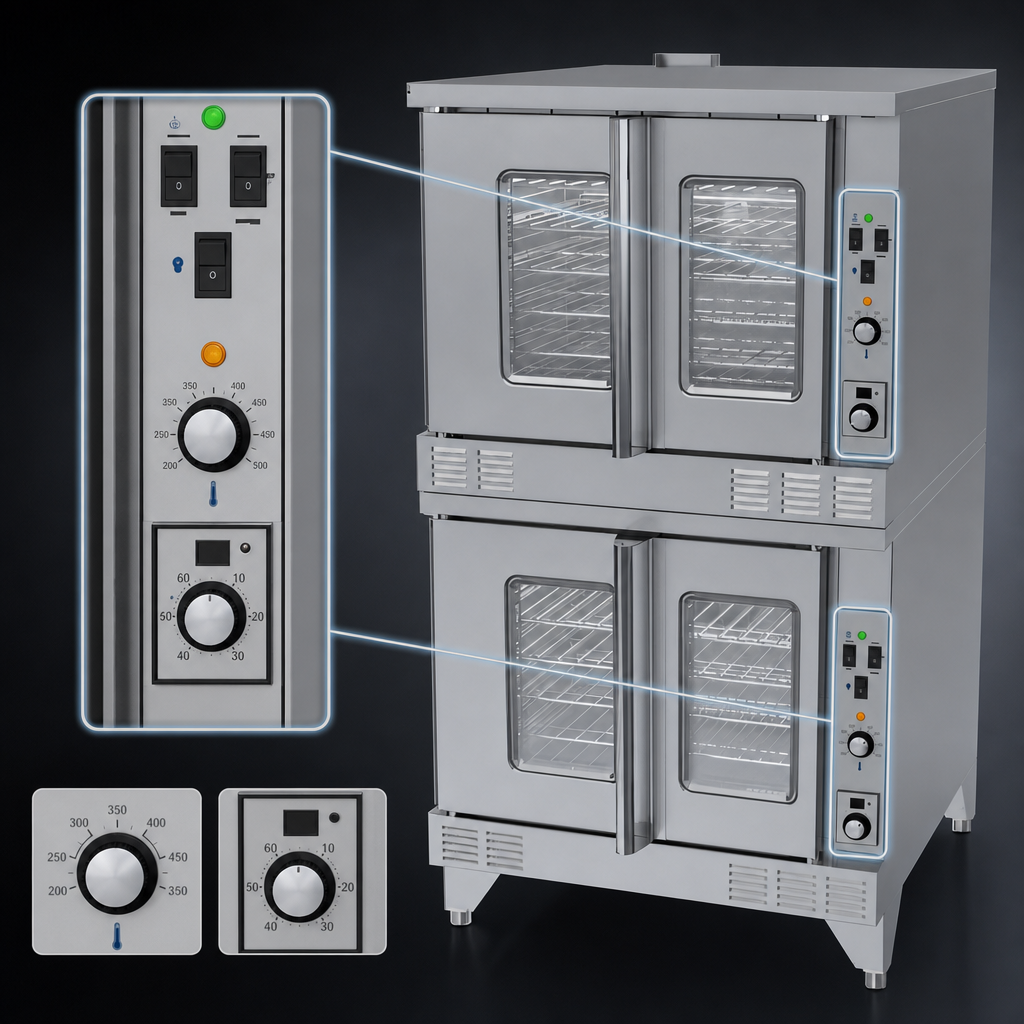

| Controls | Solid-state thermostat, 60-min timer, Hi/Lo fan, oven lights |
| Electrical options | 208 V or 240 V, 1 ø/3 ø • 460 V, 3 ø |
| Exterior dimensions | 38" W × 41-1/4" D × 70-1/2" H (965 × 1048 × 1791 mm) |
| Shipping weight | Approx. 1,030 lb (465 kg) |
| Clearances | Sides 1" (25 mm) • Back 3" (76 mm) |
| Certifications | UL, cUL, NSF |
| Warranty | 1-yr parts & labor + 5-yr limited door (excludes glass) |
Nominal amps (per deck): 208 V/3 ø—X 50 A, Y 43 A, Z 30 A • 240 V/3 ø—X 30 A, Y 28 A, Z 26 A • 460 V/3 ø—X 24 A, Y 14 A, Z 13 A.
Optional accessories
- Locking swivel or low-profile casters
- Additional chrome oven racks
- Stainless steel solid doors
- Open rack base with undershelf
- Stainless steel back enclosure & removable drip pan
