Garland SUME-100-SIGNATURE Signature Convection Ovens
Description

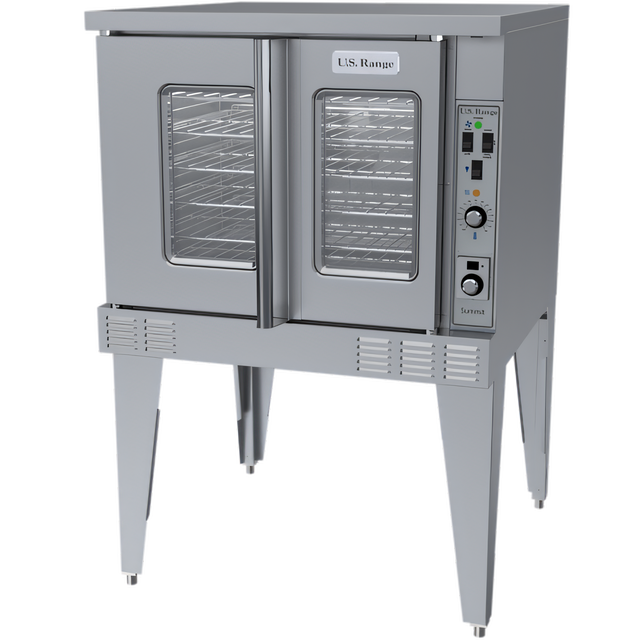

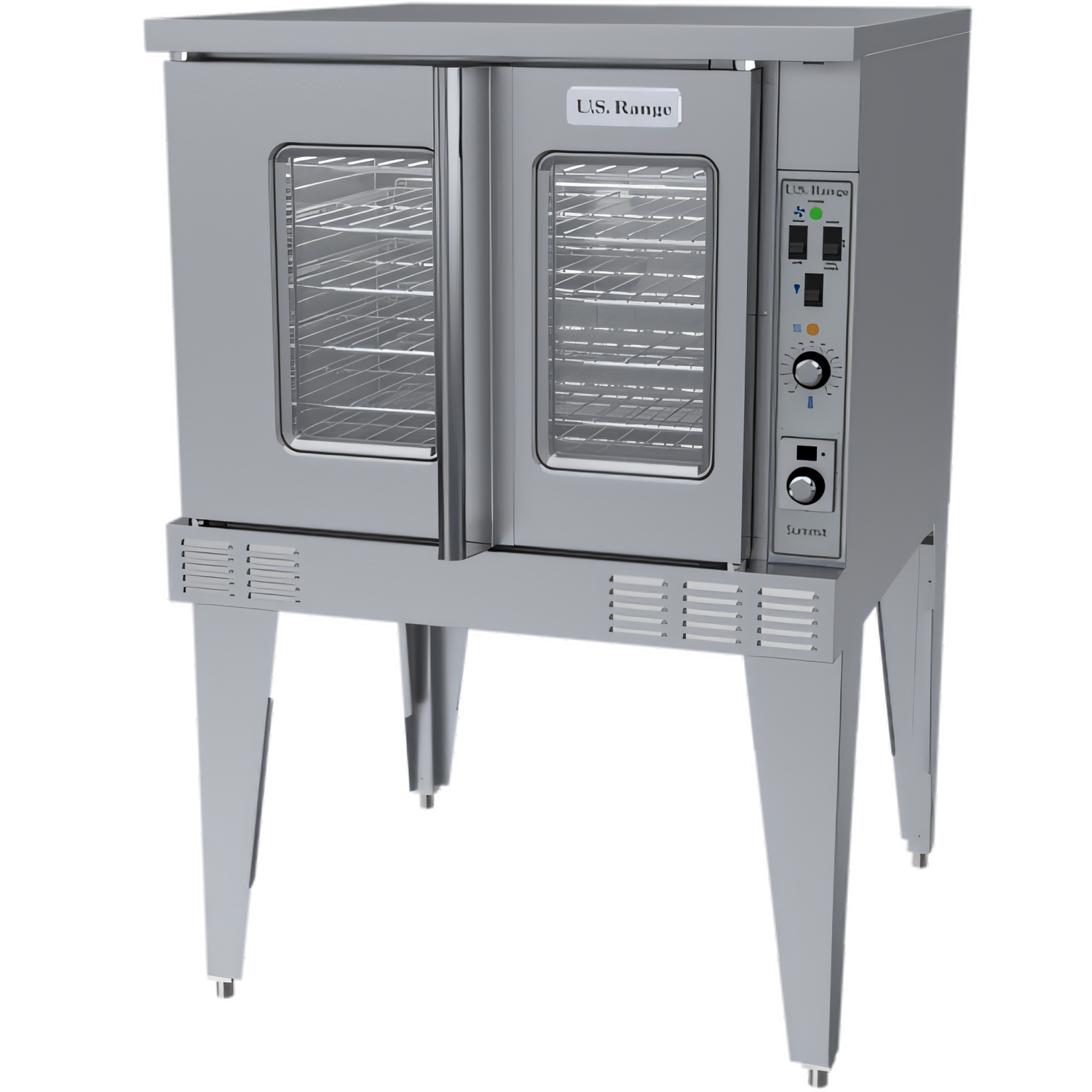

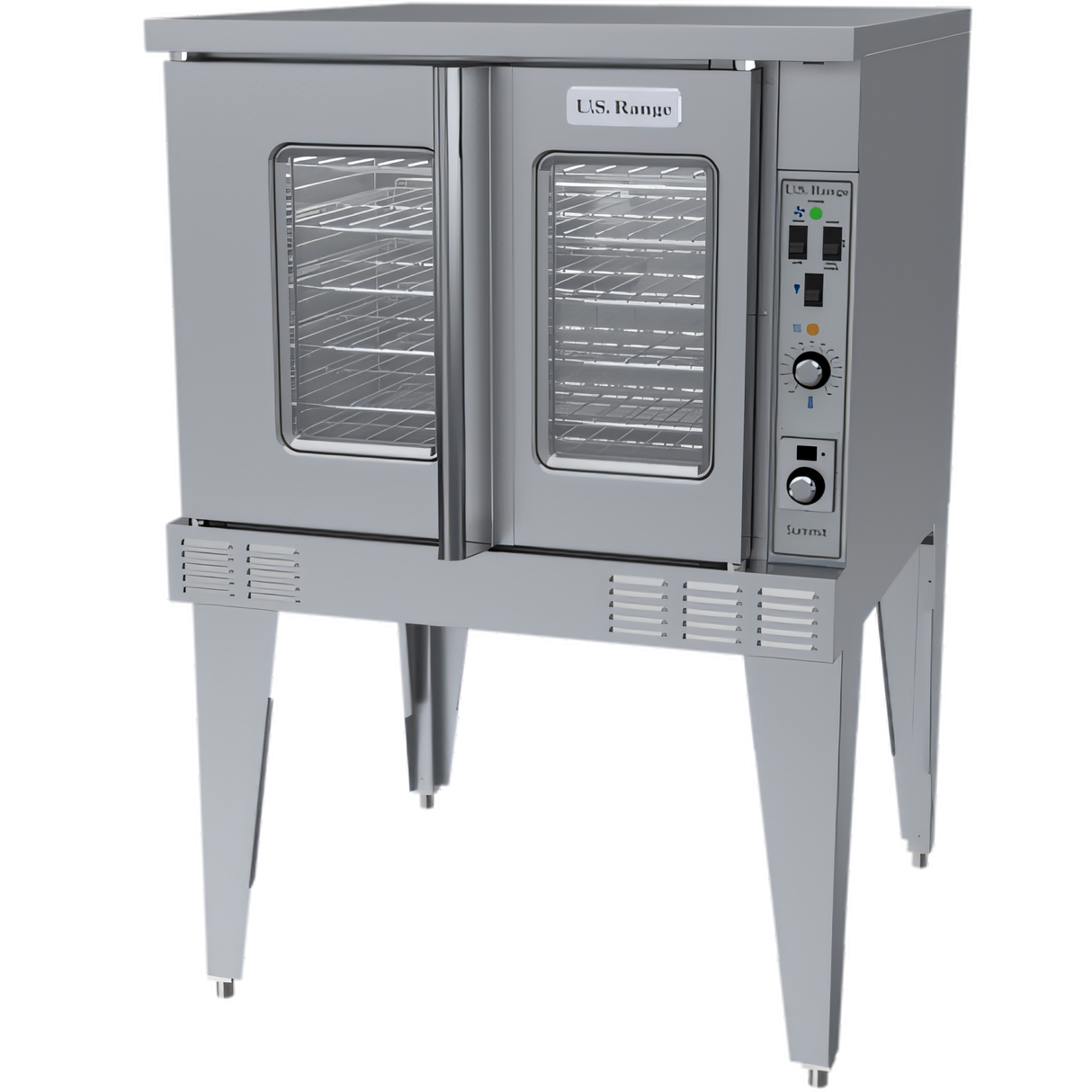

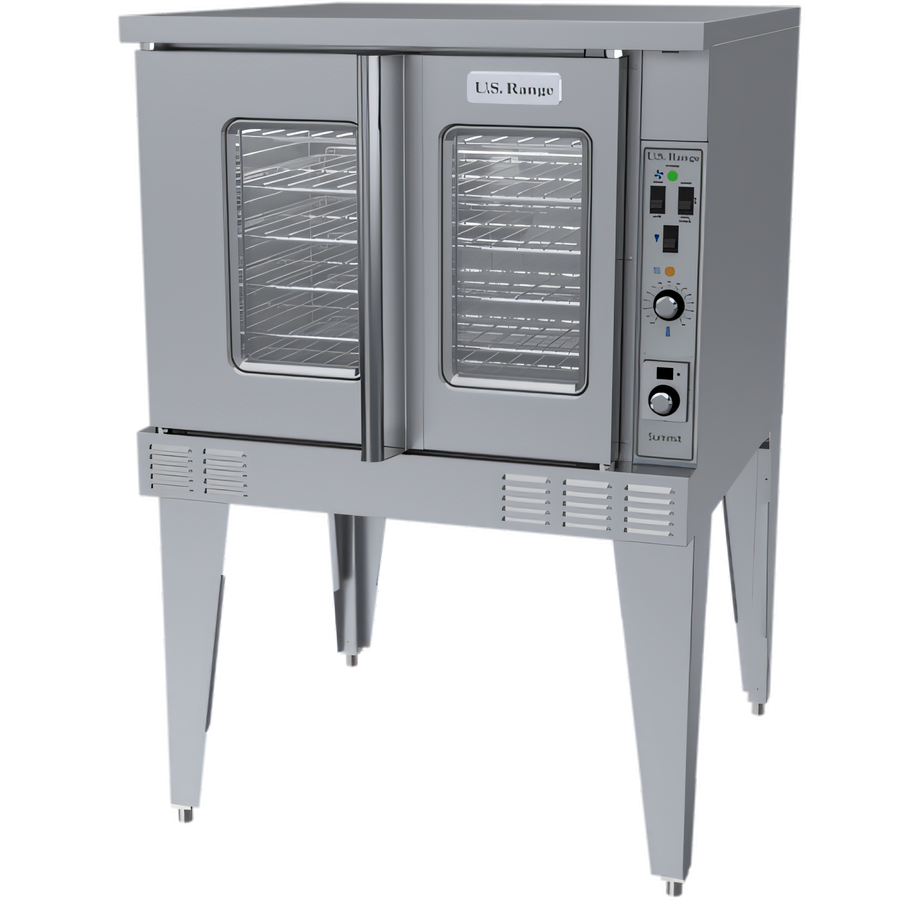

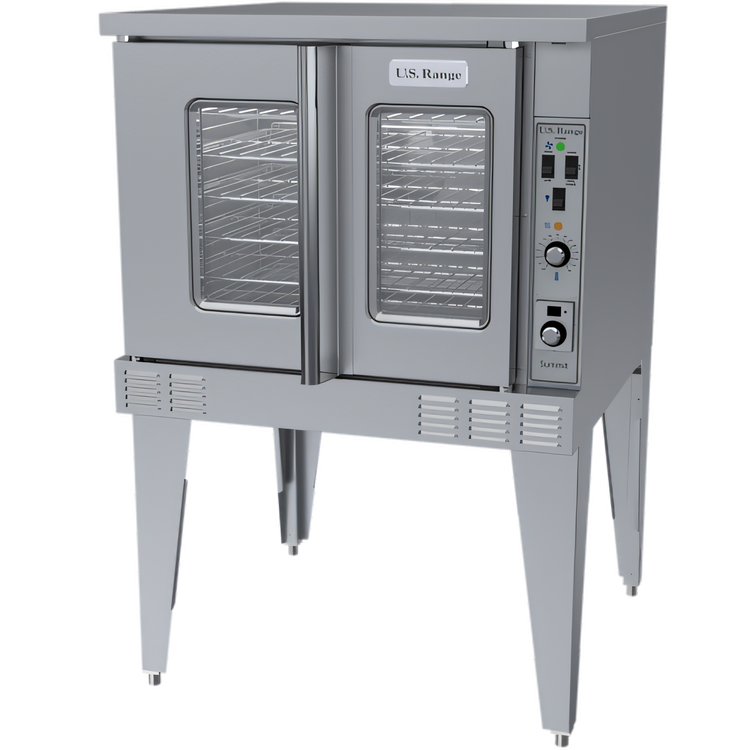

Garland Signature Summit Series Electric Convection Oven – Single Deck

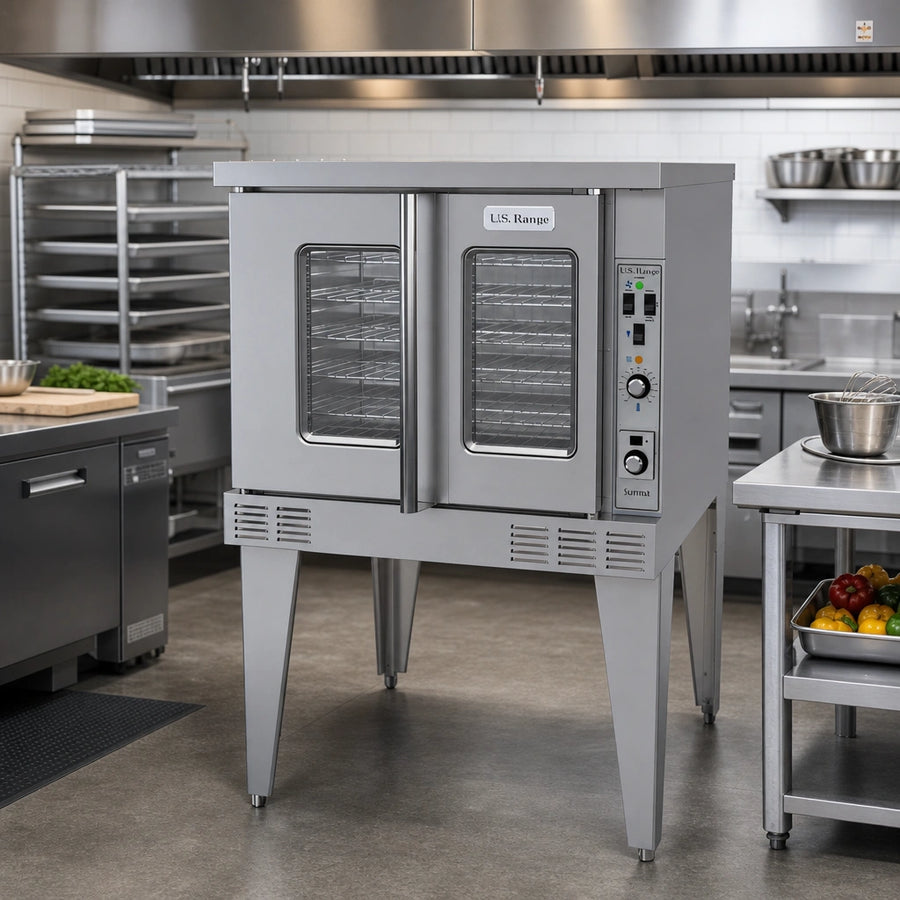

Model SUME-100 | 10.4 kW full-size ovenBuilt on the legendary U.S. Range platform, the Signature Summit Series single-deck convection oven delivers the even bake, rugged durability, and easy-to-use controls professional kitchens demand. From bakeries and schools to high-volume restaurants, this powerhouse keeps your production moving—batch after perfectly-browned batch.
Top Features

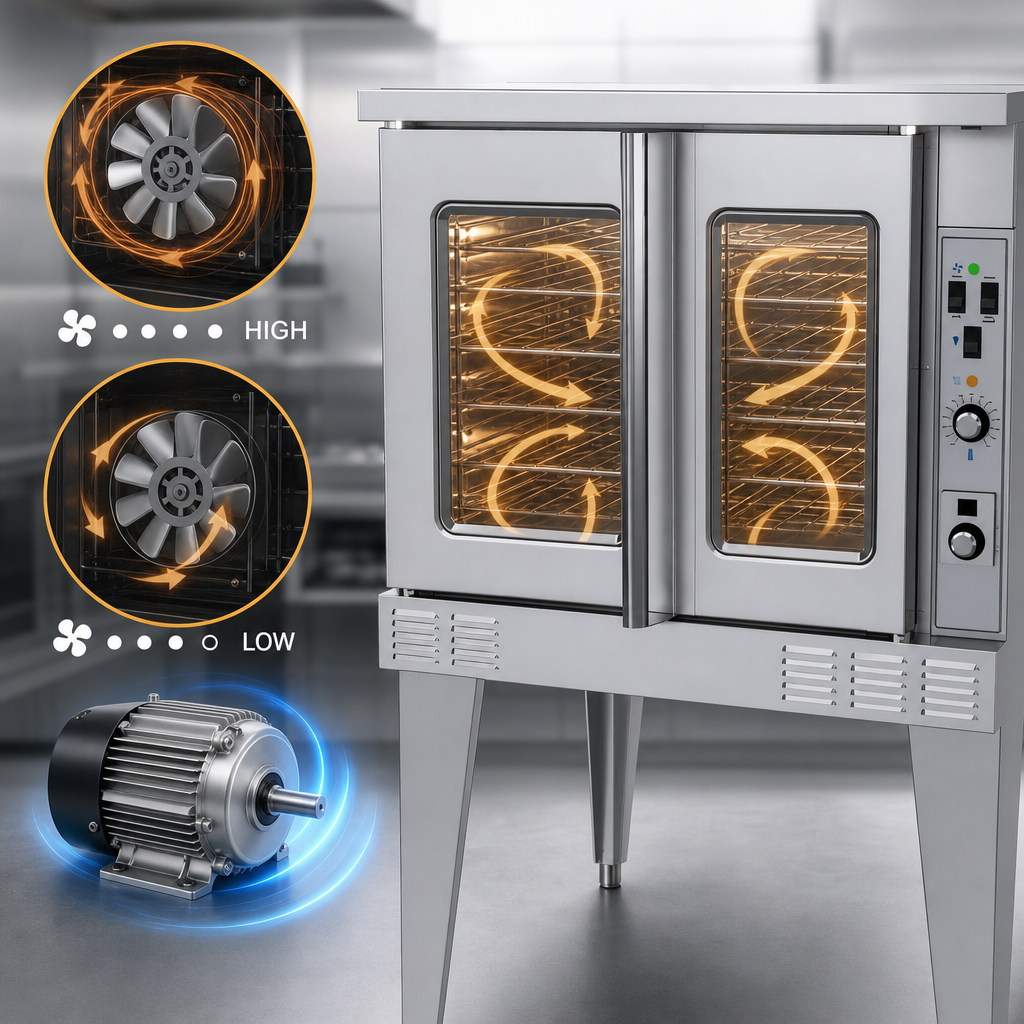

- 10.4 kW heat load partnered with a 0.6 HP two-speed fan for rapid heat-up and recovery.

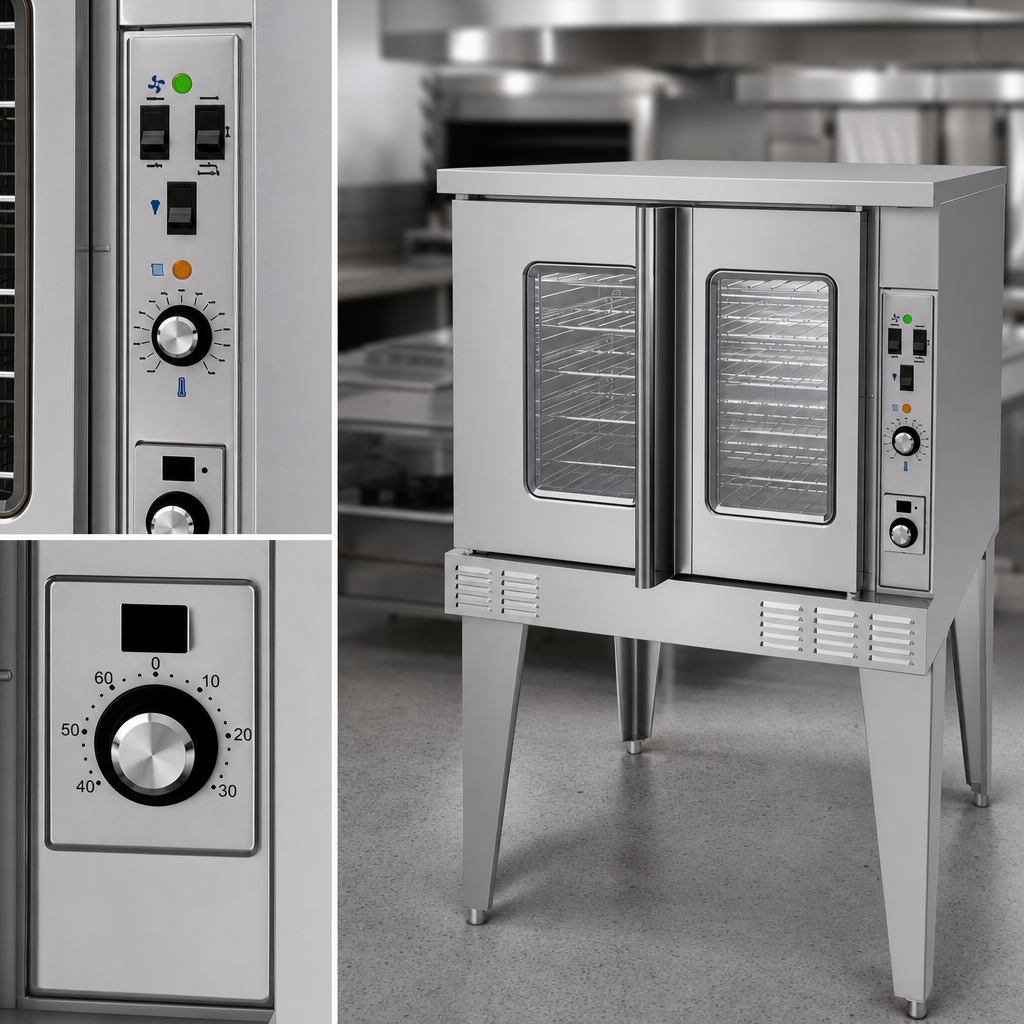

- Solid-state temperature control (150 – 500 °F / 65 – 260 °C) with 60-minute electro-mechanical timer.
- Five chrome-plated racks on a 13-position guide—holds five full-size 18 × 26 in sheet pans.
- 60/40 dependent doors with double-pane thermal windows for one-hand operation and clear visibility.
- Stainless-steel front, sides, top and 25-1/2 in legs built to stand up to years of heavy use.
- Porcelain-enameled interior with coved corners for quick, effortless cleaning.
- Interior halogen lighting and positive-seal door latch to keep heat in and energy costs down.
- Certified UL, cUL & NSF for worry-free code compliance.
Why You’ll Love It
- Engineered air-baffling system ensures uniform results—no pan rotation needed.
- Front-mounted controls and service components simplify maintenance and reduce downtime.
- Upgradeable with casters, extra racks and more to match your kitchen’s workflow.
Technical Specifications
| Oven capacity | 5 full-size (18 × 26 in) sheet pans |
|---|---|
| Rack guides | 13 positions, chrome plated |
| Heat input | 10.4 kW |
| Fan motor | 0.6 HP, 2-speed (high / low) |
| Temperature range | 150 – 500 °F (65 – 260 °C) |
| Timer | 60-minute electro-mechanical |
| Interior (W × H × D) | 29 × 24 × 24 in (736 × 610 × 610 mm) |
| Exterior (W × H × D) | 38 × 57-1/2 × 41-1/4 in (965 × 1461 × 1048 mm) incl. motor & legs |
| Electrical | 208 V or 240 V, 1- or 3-phase (see amperage chart) |
| Certifications | UL, cUL, NSF |
Nominal Amperage per Line
| Voltage / Phase | Amps |
|---|---|
| 208 V / 1 Ø | 50 A |
| 240 V / 1 Ø | 43 A |
| 208 V / 3 Ø | 30 A (per line) |
| 240 V / 3 Ø | 28 A (per line) |
| 460 V / 3 Ø | 14 A (per line) |
Options & Accessories
- Extra chrome oven racks
- Swivel casters with front brakes (standard or low-profile)
- Stainless-steel solid doors
- Stainless back enclosure
- Open base with rack guides & shelf
- Removable stainless-steel drip pan
Units supplied with casters must be installed with an approved restraining device. Commercial use only—this appliance is not rated for residential installation.
