Garland  |  Signature  |  SKU: SUME-100-SIGNATURE HIGH VOLTAGE

Garland SUME-100-SIGNATURE HIGH VOLTAGE Signature Convection Ovens

$6,104.00
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Cutsheet Cutsheet Parts manual 2025 school packages Owner's manual
Related Searches
Convection Ovens Ovens

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

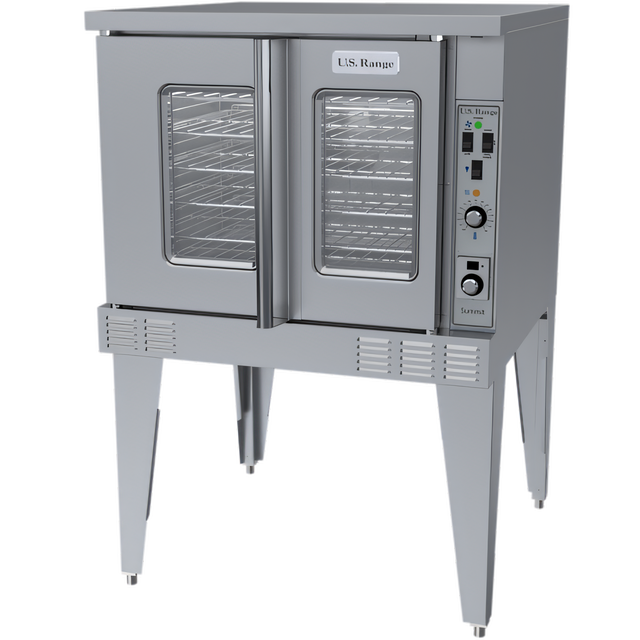

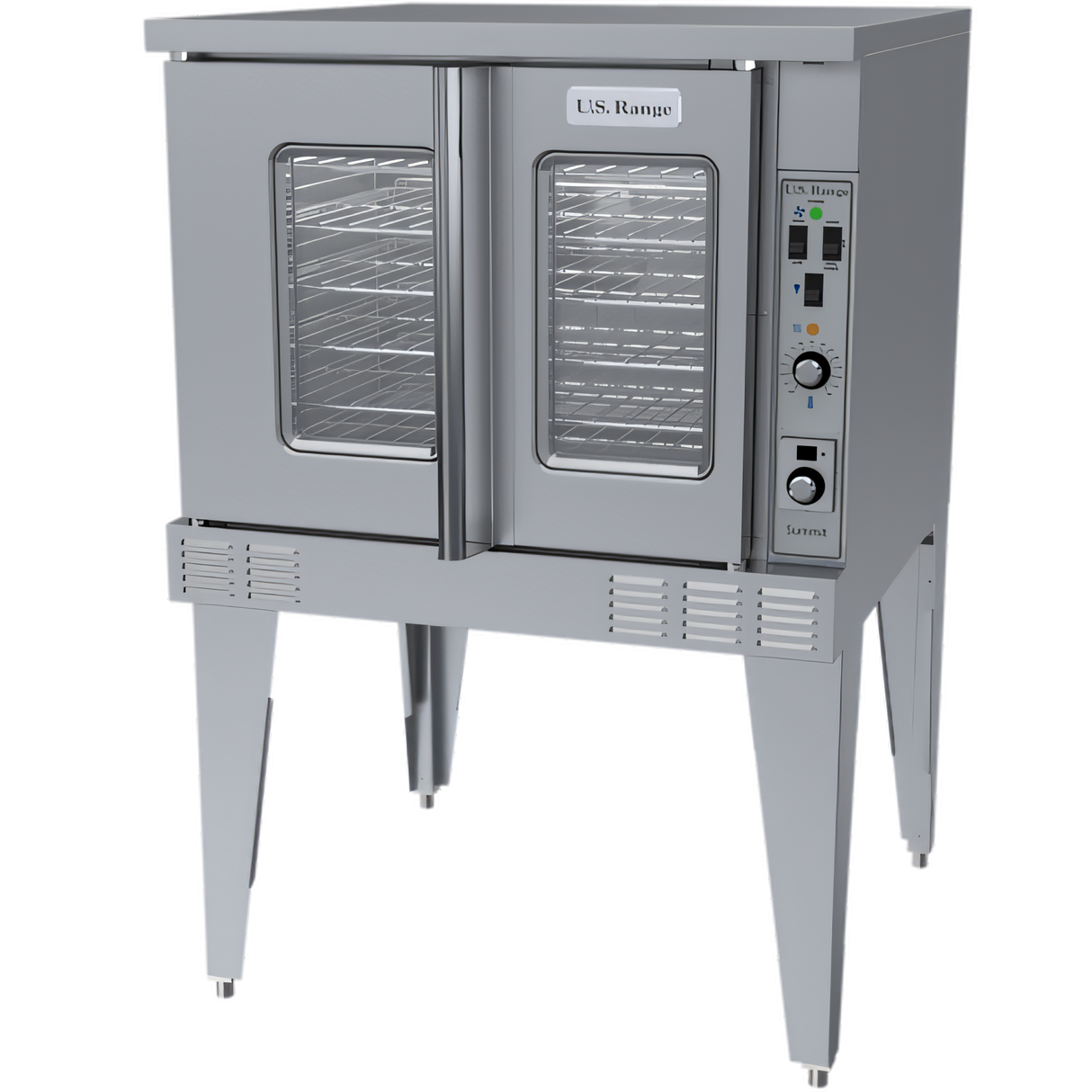

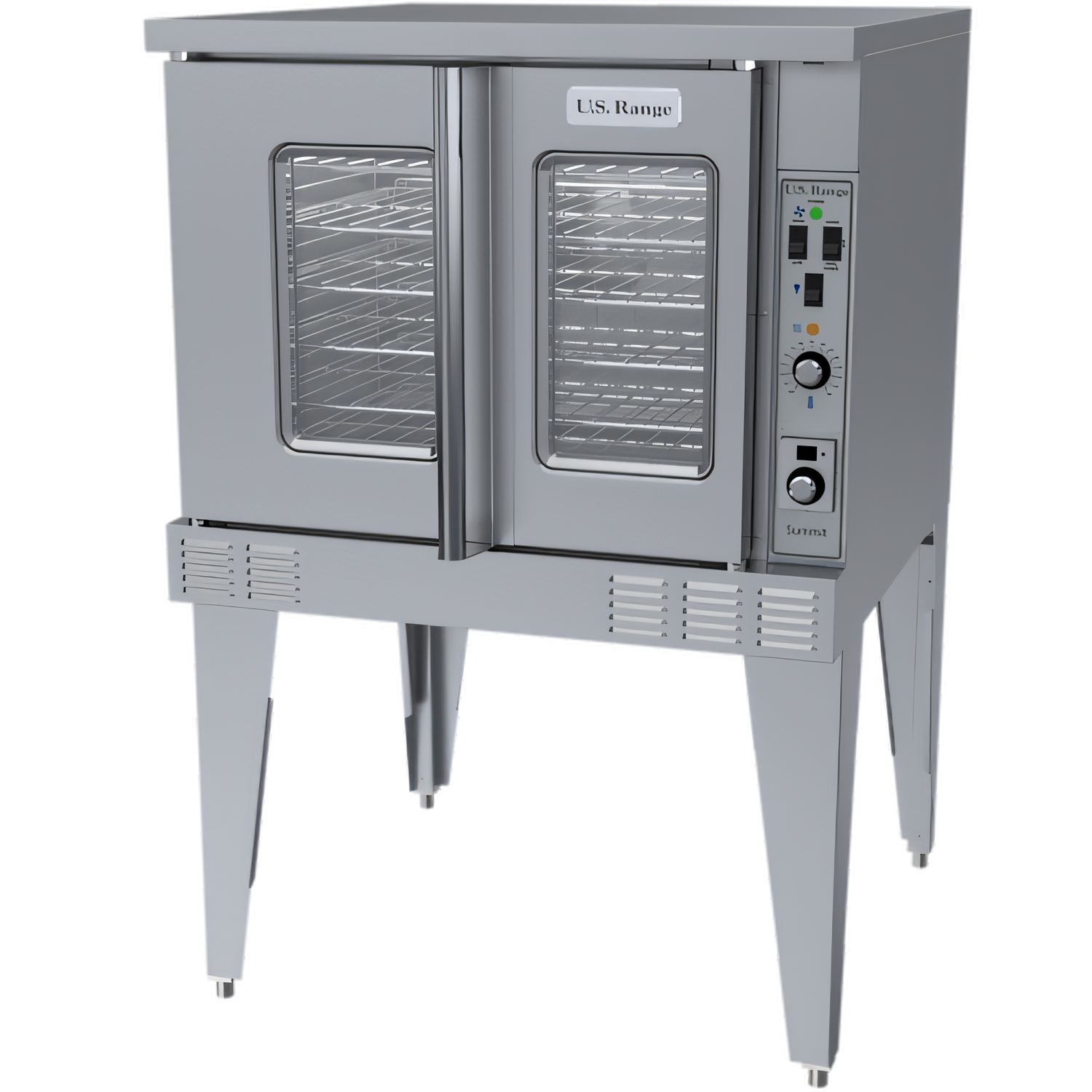

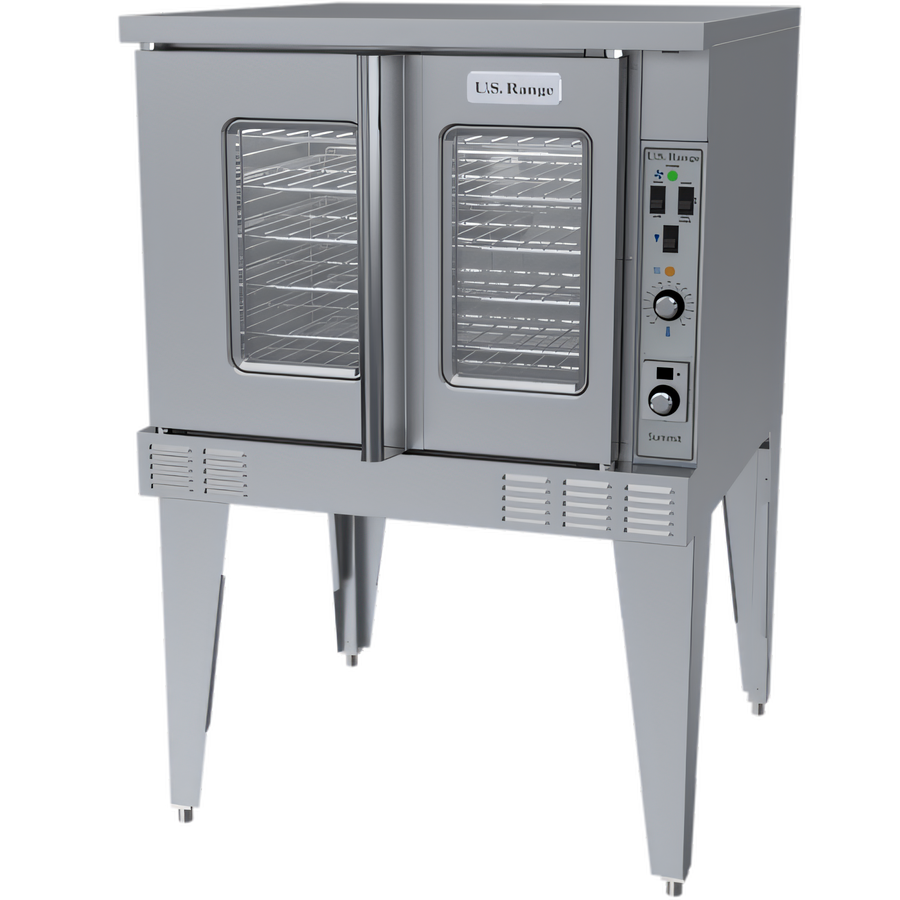

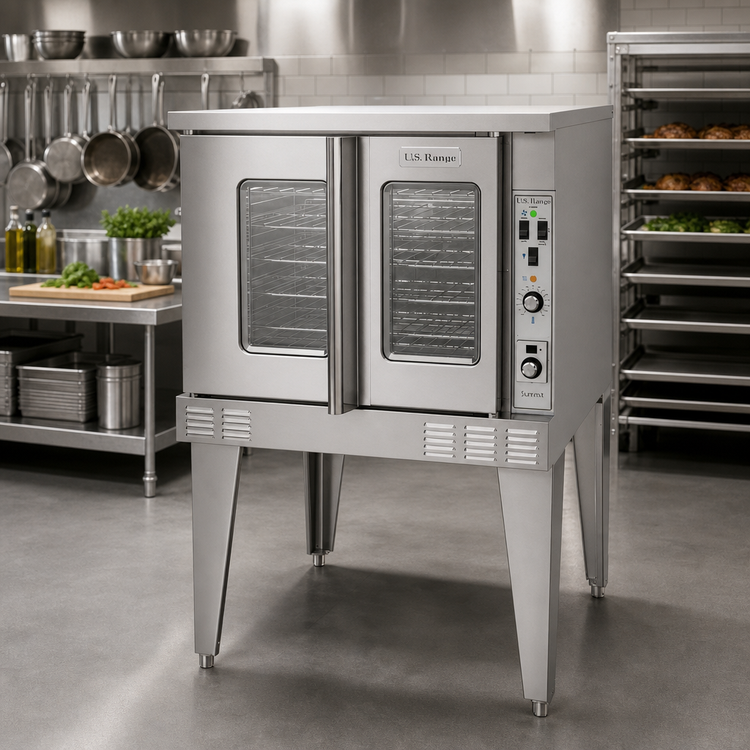

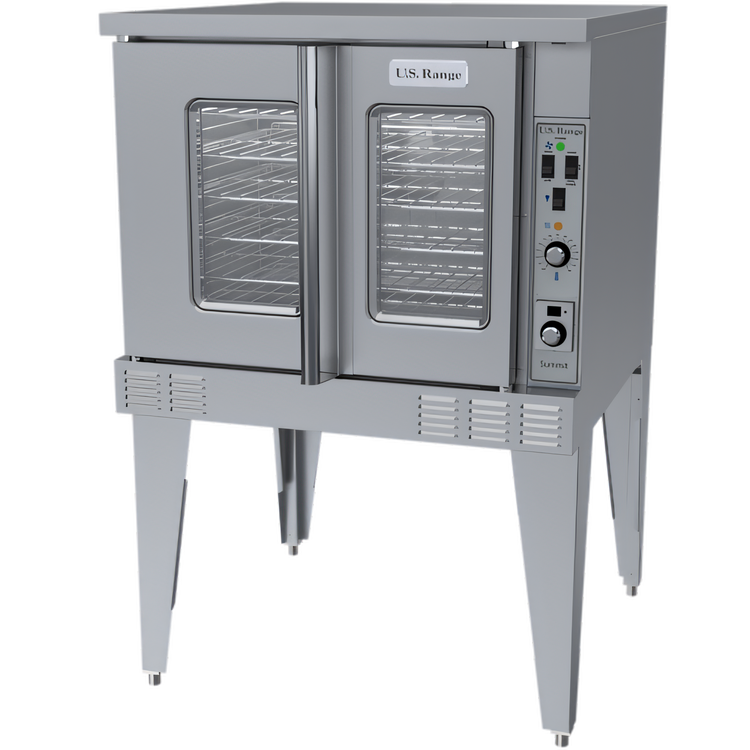

Garland “Signature” Summit Series Electric Convection Oven – Single Deck

Model equivalent: SUME-100 | 10.4 kW | Full-Size, Standard Depth

Built for high-volume kitchens that refuse to compromise on consistency, the Garland Signature Summit Series combines heavy-duty construction with precision solid-state controls. From bakeries to school cafeterias, enjoy faster recovery, even airflow, and effortless cleaning in a footprint that drops straight into your existing cook line.

Performance & Convenience

  • 10.4 kW electric heat—no flue, no gas line, just powerful, reliable output.

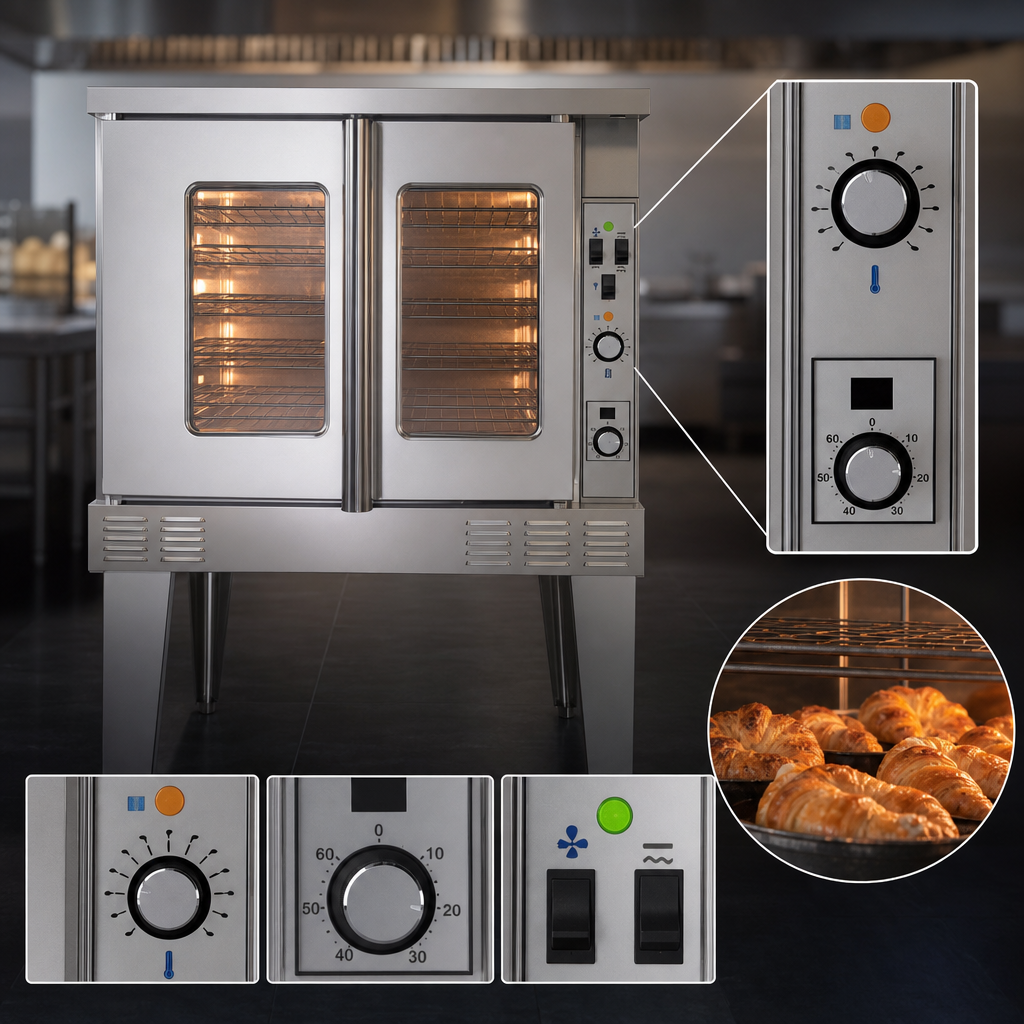

  • Solid-state temperature control from 150-500 °F (65-260 °C) with an electro-mechanical 60-minute timer.

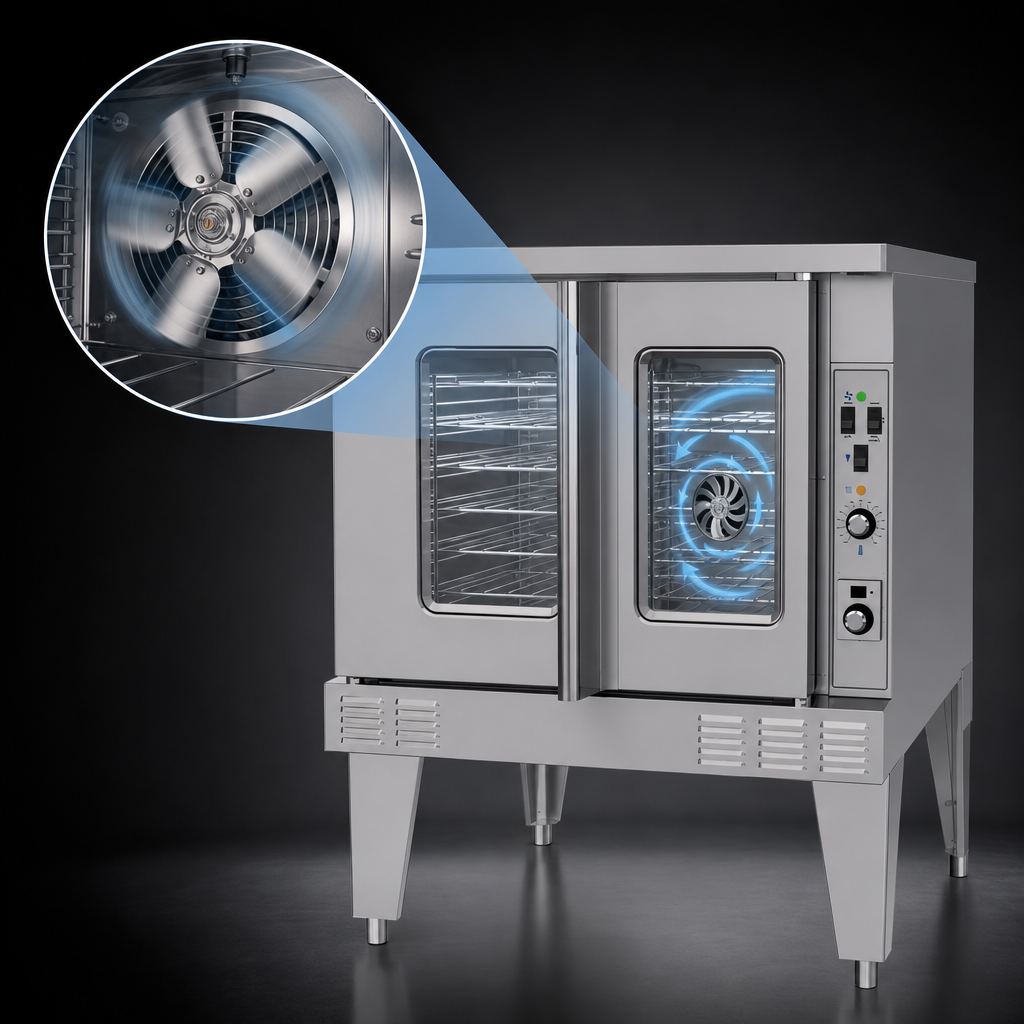

  • 0.6 HP two-speed fan (high/low) delivers balanced airflow for perfectly even bakes.
  • Five chrome-plated racks on 13-position guides—load up to five full-size sheet pans at once.
  • 60/40 dependent doors with double-pane thermal window (left) and interior lighting for quick visual checks.
  • Stainless steel front, sides, top & 25-1/2" legs stand up to daily abuse and wipe clean in seconds.
  • Porcelain-enameled cavity with coved corners prevents food build-up and speeds sanitation.
  • UL, cUL & NSF listed for worry-free code compliance.

Key Specifications

Power Input 10.4 kW electric element
Voltage / Amps (1 Ph) 208 V – 50 A  |  240 V – 43 A
Voltage / Amps (3 Ph) 208 V – 30/30/28 A  |  240 V – 26/26/24 A  |  460 V – 14/14/13 A
Interior Capacity 29" W × 24" H × 24" D (736 × 610 × 610 mm)
Exterior Dimensions 38" W × 41-1/4" D × 57-1/2" H (965 × 1048 × 1461 mm)
height includes standard 25-1/2" legs
Fan Motor 0.6 HP, 2-speed, 1,725/1,140 rpm
Rack Positions / Supplied Racks 13 / 5 chrome plated
Door Design 60/40 dependent, positive-seal latch, double-pane window (left)
Certifications UL, cUL, NSF

Popular Options (sold separately)

  • Swivel or low-profile casters with front brakes
  • Additional chrome racks
  • Stainless steel solid doors
  • Open base with rack guides & shelf
  • Back enclosure (stainless steel)
  • 460 V, 3-phase configuration
  • Removable stainless steel drip pan
Important: This unit is intended for commercial use only and must be installed by qualified personnel in accordance with all local electrical codes. Ovens supplied with casters require an approved restraining device.

Garland® reserves the right to modify specifications without notice. Images are for illustration purposes; actual product may vary.

Features & Specs

Manufacturer

Garland

Brand_name

Signature

Certifications

NSF, UL

Height

57.5in

Width

38.0in

Depth

41.25in

Shipping Weight

515.0lbs

kW (per deck)

6.0 - 10.99 kW

Exterior Finish

stainless steel front, top & sides

Interior Finish

porcelain interior

Type

standard

Base

legs

Size

full/standard size

Capacity per Compartment

5 pan capacity, per compartment

Control Type

solid state controls

Deck Qty

1 deck

Specifications

Signature Summit Series Convection Oven, electric, single-deck, solid state controls with 150° - 500° F, electromechanical thermostat and 60 minute timer, (5) chrome plated (13) position oven racks per deck, dependant 60/40 doors with double paned thermal windows, stainless steel front, sides, top, 25-1/2" legs, porcelain cavity, 10.4kW, UL, cUL, NSF (USRange)
