Key specifications

Phase
1-Phase / 3-Phase
Dimensions
36.0"W × 34.25"D × 47.0"H
Type
Range
Style
Standard Oven
Installation Type
Floor Model
Material
Stainless Steel
Spec sheet
Garland SKU: SS686

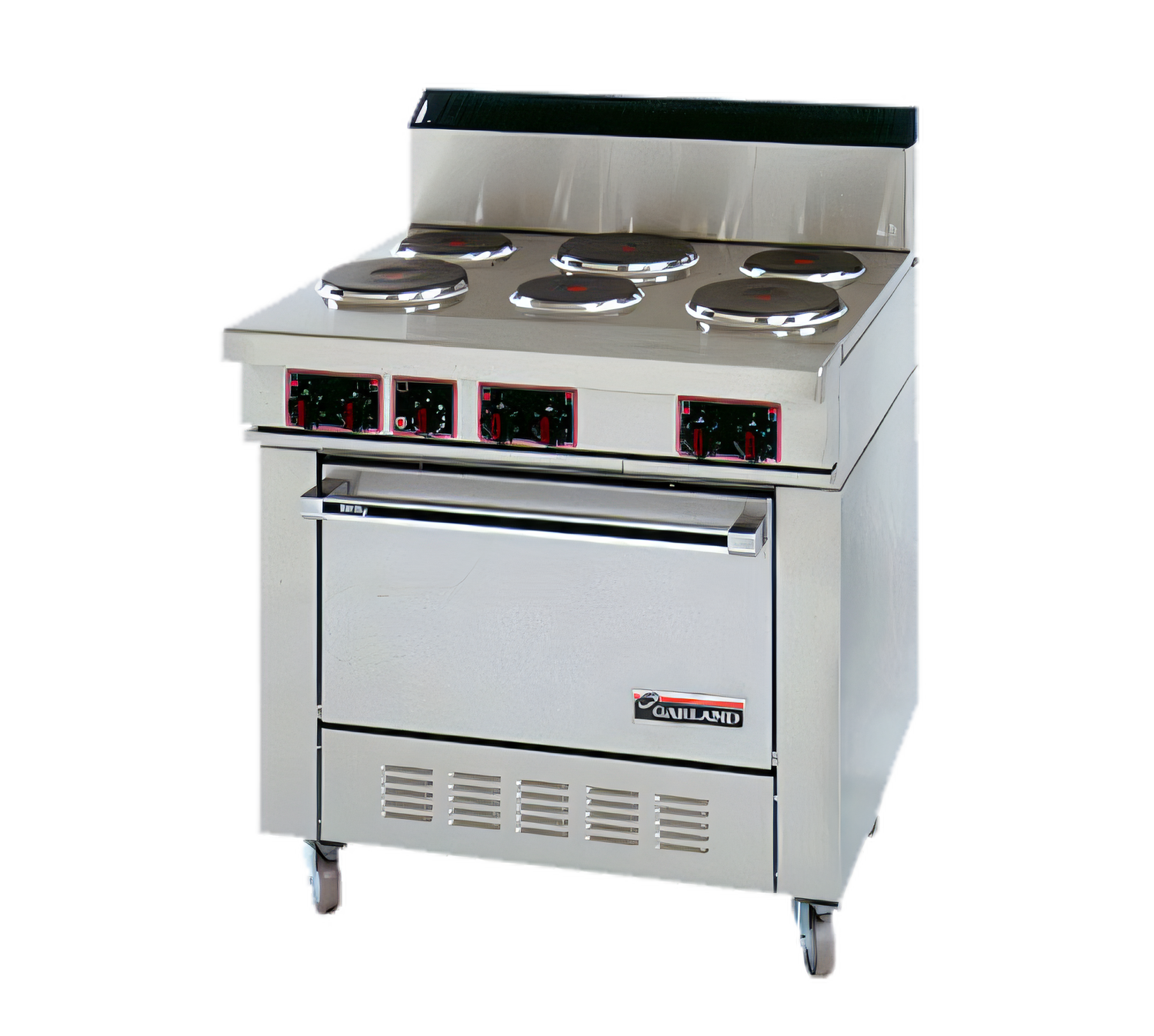

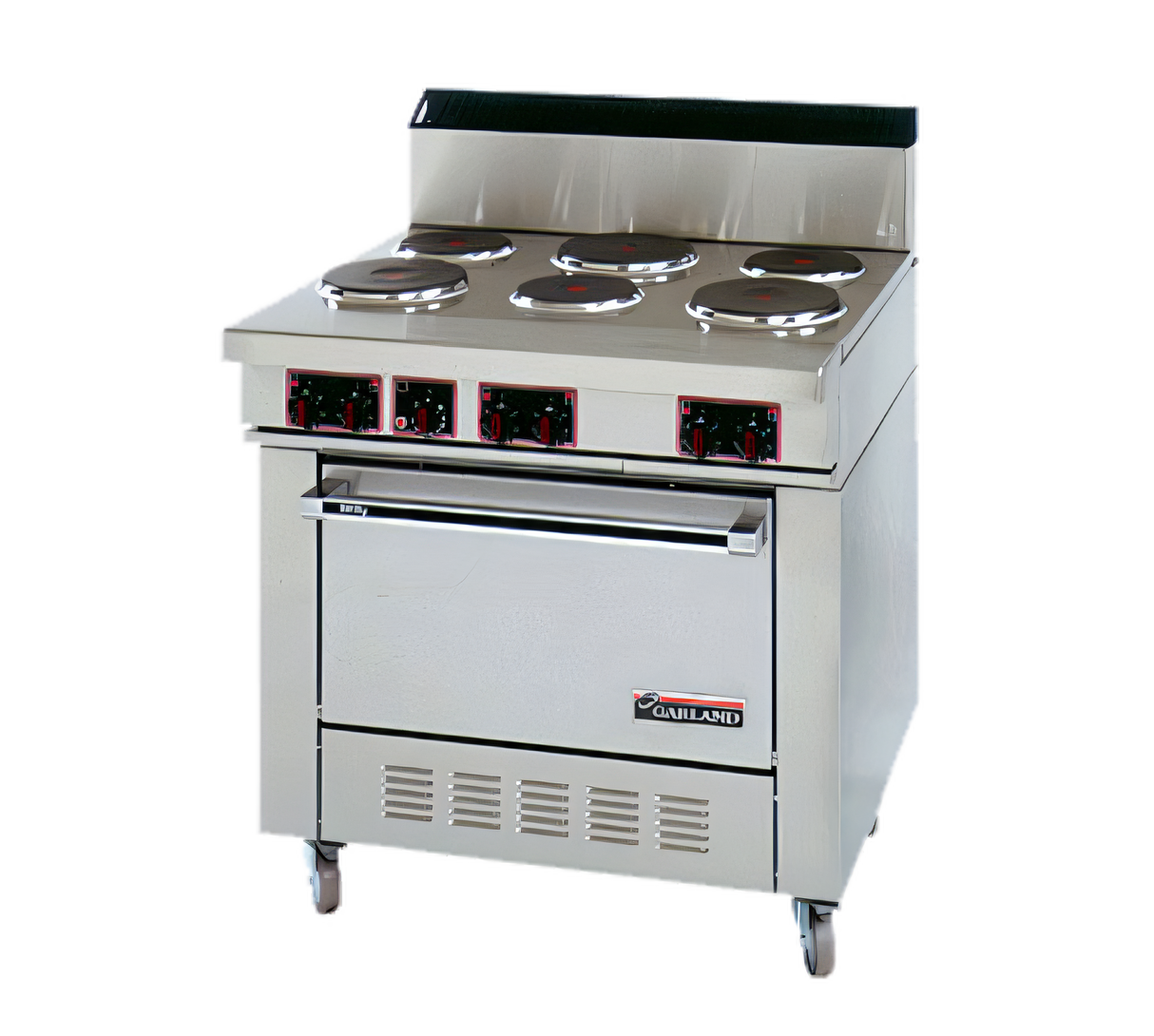

Garland Sentry SS686 36-Inch Electric Range, 6 Elements, Oven

$8,560.35
/each
Estimated to ship in 16–19 business days
ElectricalRequired
Oven
Griddle width
Griddle position
Salamander Broilers

Need something else? Contact us.

Included: Garland warranty One-year limited warranty on parts and labor

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $792/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Range
Style Standard Oven
Installation Type Floor Model
Material Stainless Steel
Finish Stainless Steel
Interior Finish Porcelain
Size 36 Inches
Heating Element Count 6
Element Type Sealed High-Performance
Backguard Height 10 in
Leg Height 6 in
Rack Positions 4
Oven Rack Count 1
Temperature Range 150°F to 550°F
Voltage 208/240/400/415 Volts
Phase 1-Phase / 3-Phase
Watts 19 kW

Description

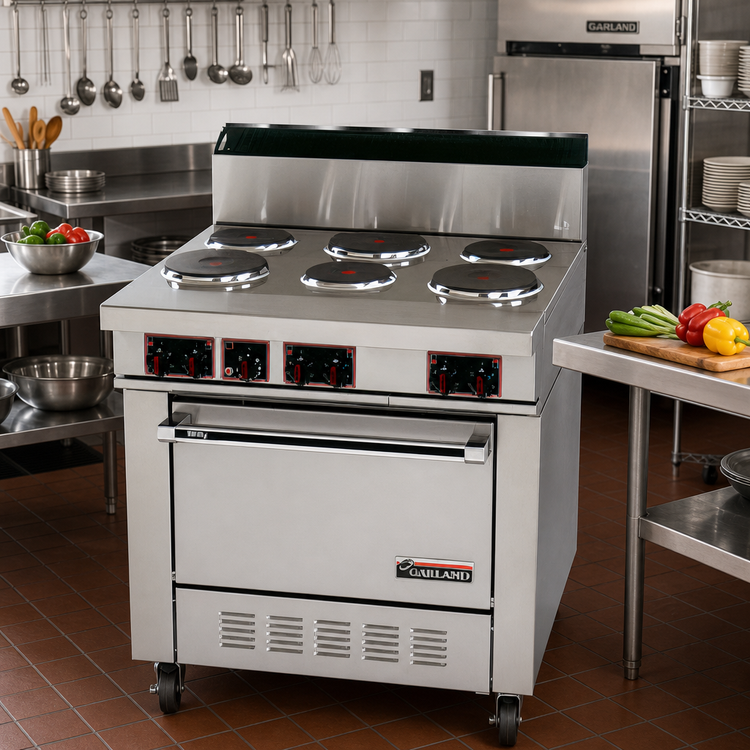

The Garland Sentry SS686 is a 36-inch electric restaurant range with six individually controlled, high-performance sealed elements and a full-size standard oven.

It has an all-stainless-steel exterior, a 10-inch stainless steel backguard, adjustable 6-inch stainless steel legs, and a 19 kW total load.

  • Cooking surface: Six sealed elements with overheat protection.
  • Oven: Porcelain interior, removable four-position rack guides, and one oven rack.
  • Controls: Electro-mechanical oven thermostat with a 150°F to 550°F range.

Overall Dimensions:

36.0"W x 34.25"D x 47.0"H

Product Weight:

385.0 lb

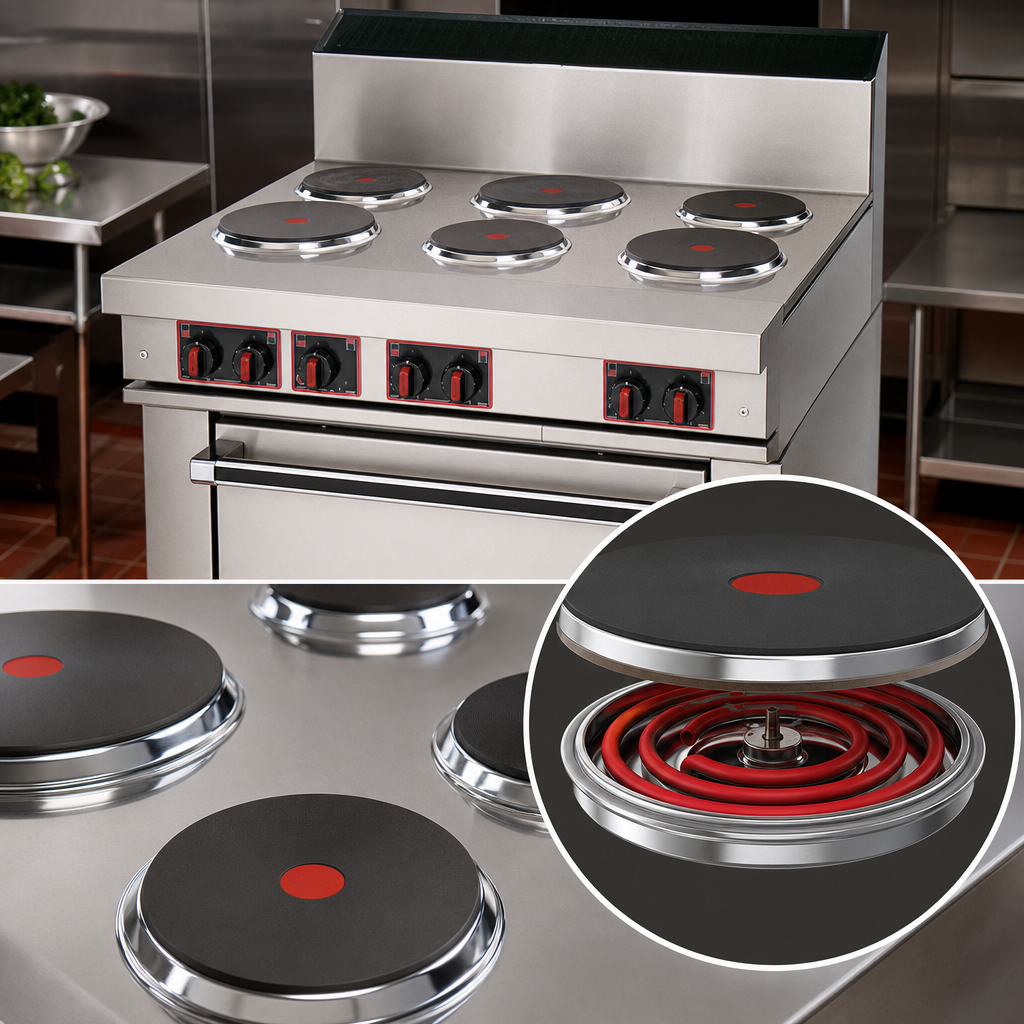

Sealed Heating Elements

Six high-performance sealed elements are individually controlled and include overheat protection.

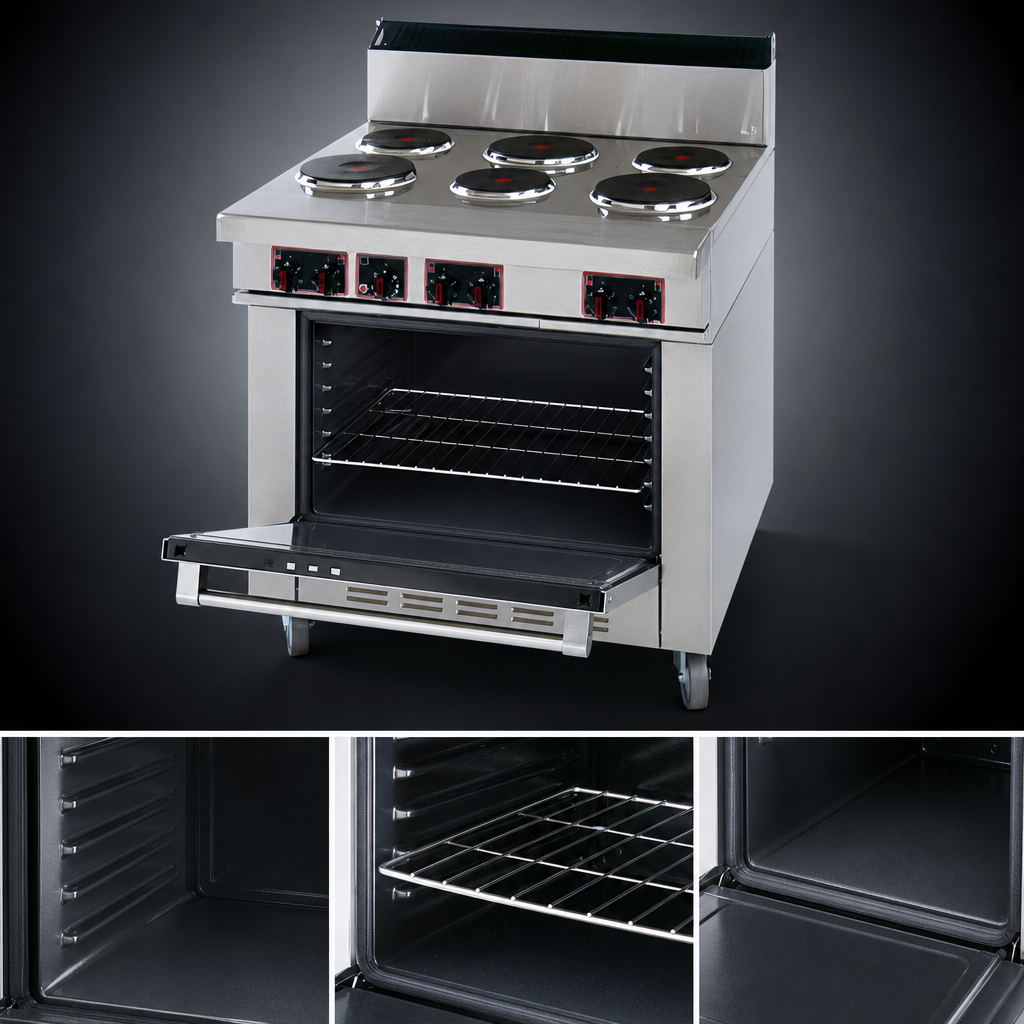

Full-Size Standard Oven

The oven has a porcelain interior, removable four-position rack guides, and one oven rack.

Oven Thermostat

An electro-mechanical thermostat provides a 150°F to 550°F temperature range.

Stainless Steel Exterior

The range has an all-stainless-steel exterior and adjustable 6-inch stainless steel legs.

Backguard

A 10-inch stainless steel backguard includes a slotted black enameled angled cap.

Cool-Touch Handle

The standard oven includes a cool-touch door handle.

Frequently Asked Questions

The SS686 has six high-performance sealed elements with individual controls.
It has one full-size standard oven with a porcelain interior finish.
The electro-mechanical oven thermostat has a range of 150°F to 550°F.
The range is 36 inches wide, 34.25 inches deep, and 47 inches high.
The SS686 has a one-year limited warranty on parts and labor in the USA and Canada.
