Garland SER-686 Sentry Salamander Broilers
Garland SER-686 Sentry Salamander Broilers is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Garland SER-686 Sentry Salamander Broilers
Description

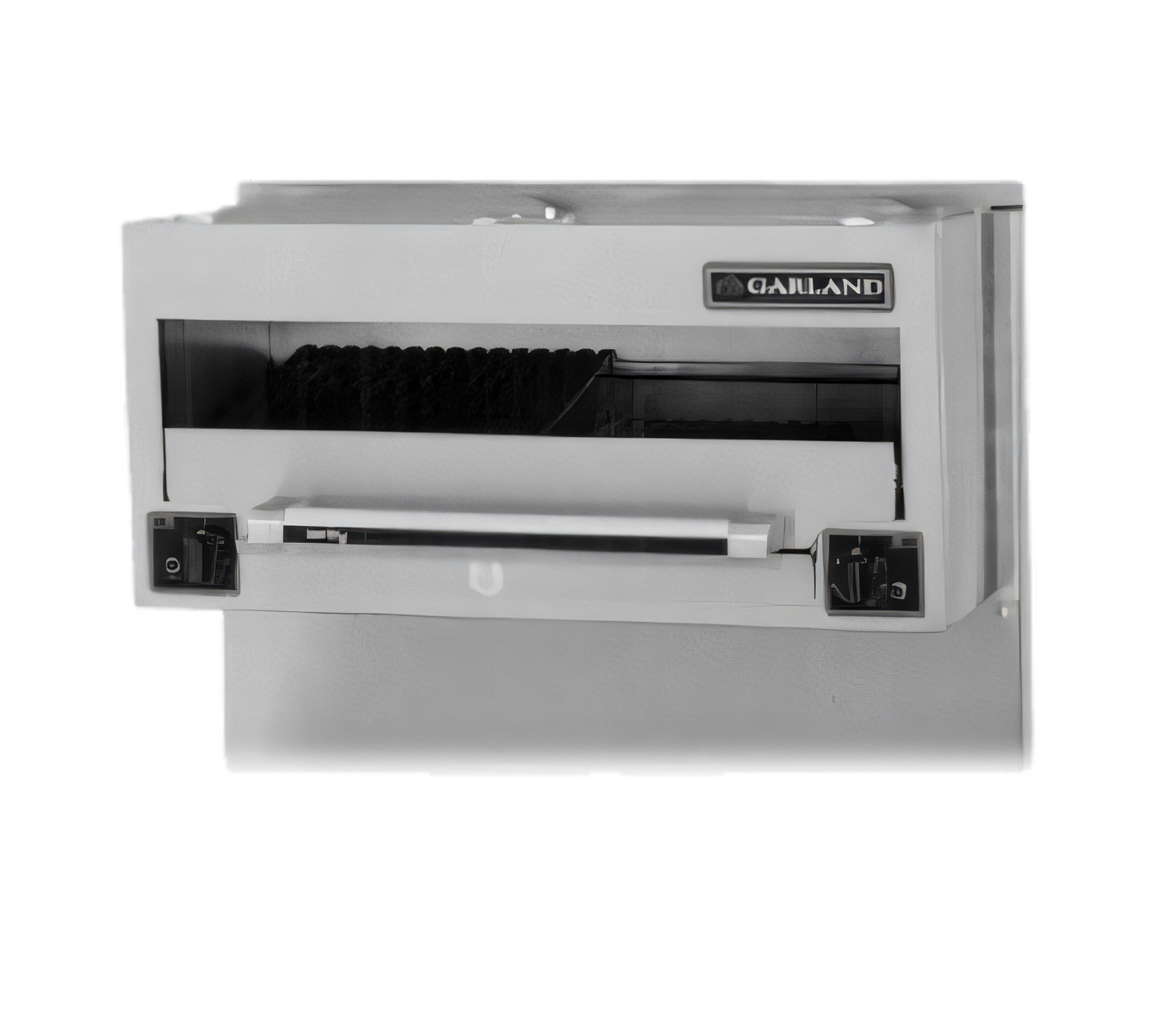

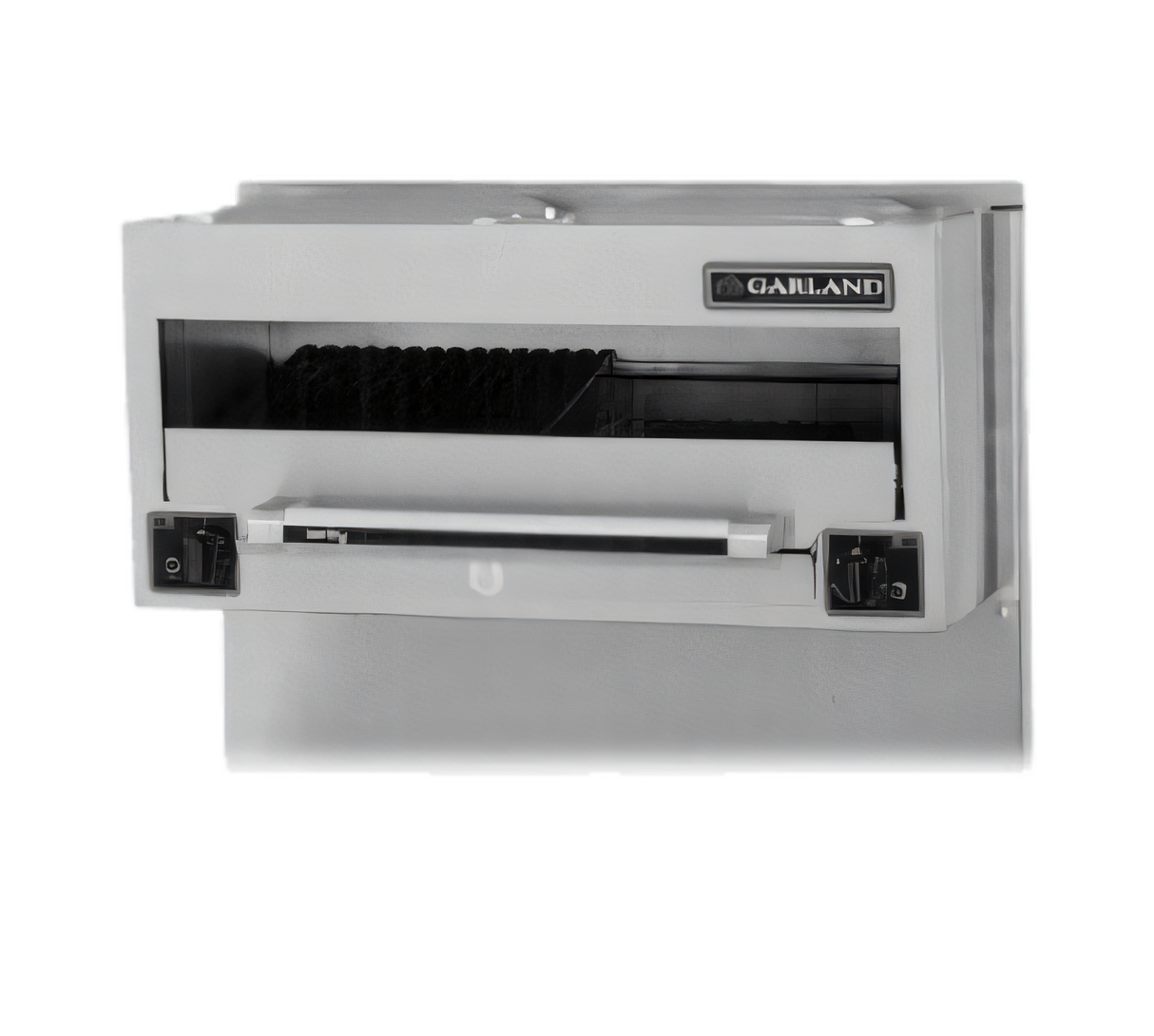

Garland Sentry Electric Salamander Broiler – 34" Range-Mount
7 kW • Dual-Zone Sun Ray Elements • Fits 36" Restaurant RangesGive every dish the perfect golden finish with the Garland Sentry salamander. Designed to sit neatly above a 36" Garland range, this heavy-duty electric broiler delivers rapid, even top-heat for melting cheese, glazing meats, caramelising desserts and more – all without tying up your primary oven.
Why You’ll Love It
- Dual Sun Ray™ zones – six metal-sheath elements (3 per side) provide independent left/right control for maximum flexibility.

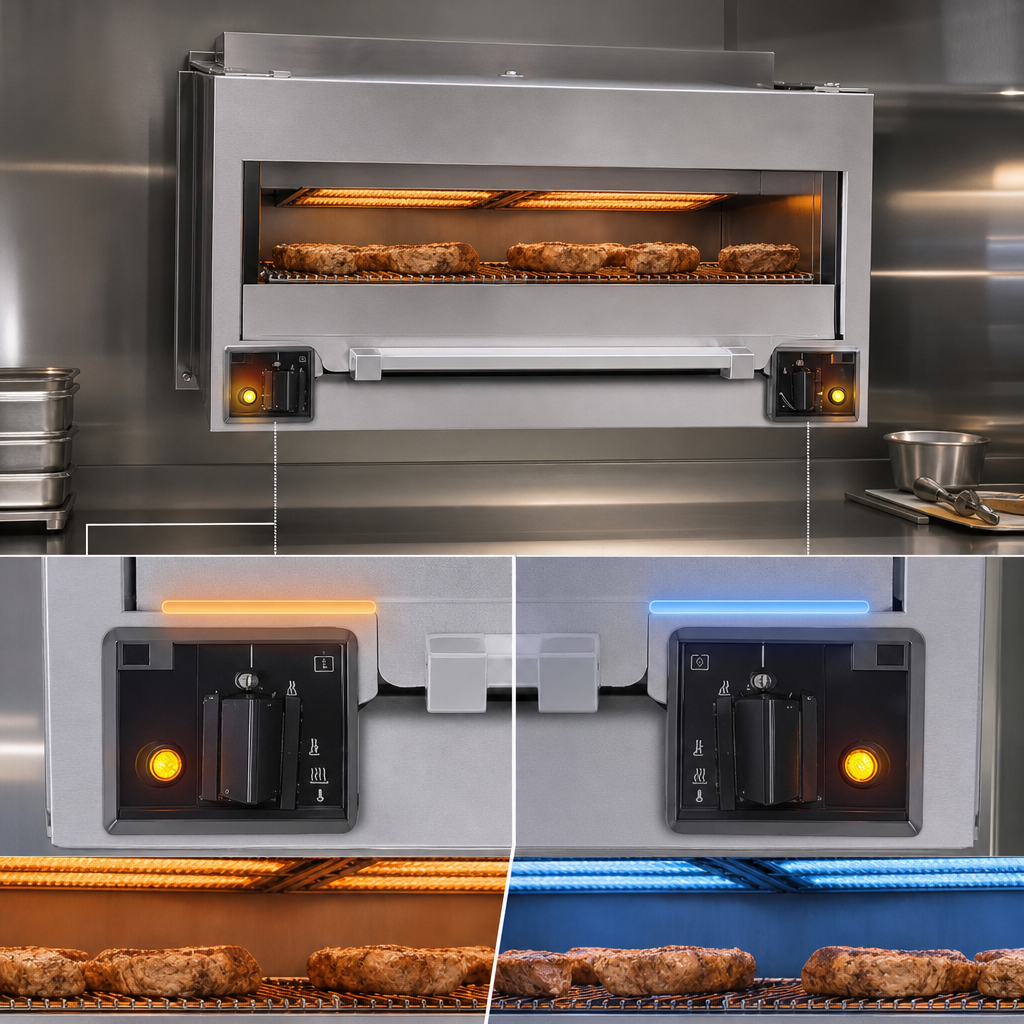

- Three-heat switches on each side (high / medium / low) let you fine-tune output and save energy between rushes.
- Fixed-position broiling rack with flat or easy-view tilt setting; rolls in and out effortlessly for safe loading.
- Generous cooking surface 14 ⅛" × 29 ⅛" (359 × 740 mm) handles multiple plates at once.
- Heavy-gauge stainless-steel front, sides and top stand up to the busiest kitchens and wipe clean fast.
- Heat-resistant, cool-touch handle keeps hands safe during plate changes.
- Removable full-width grease pan for quick daily maintenance.

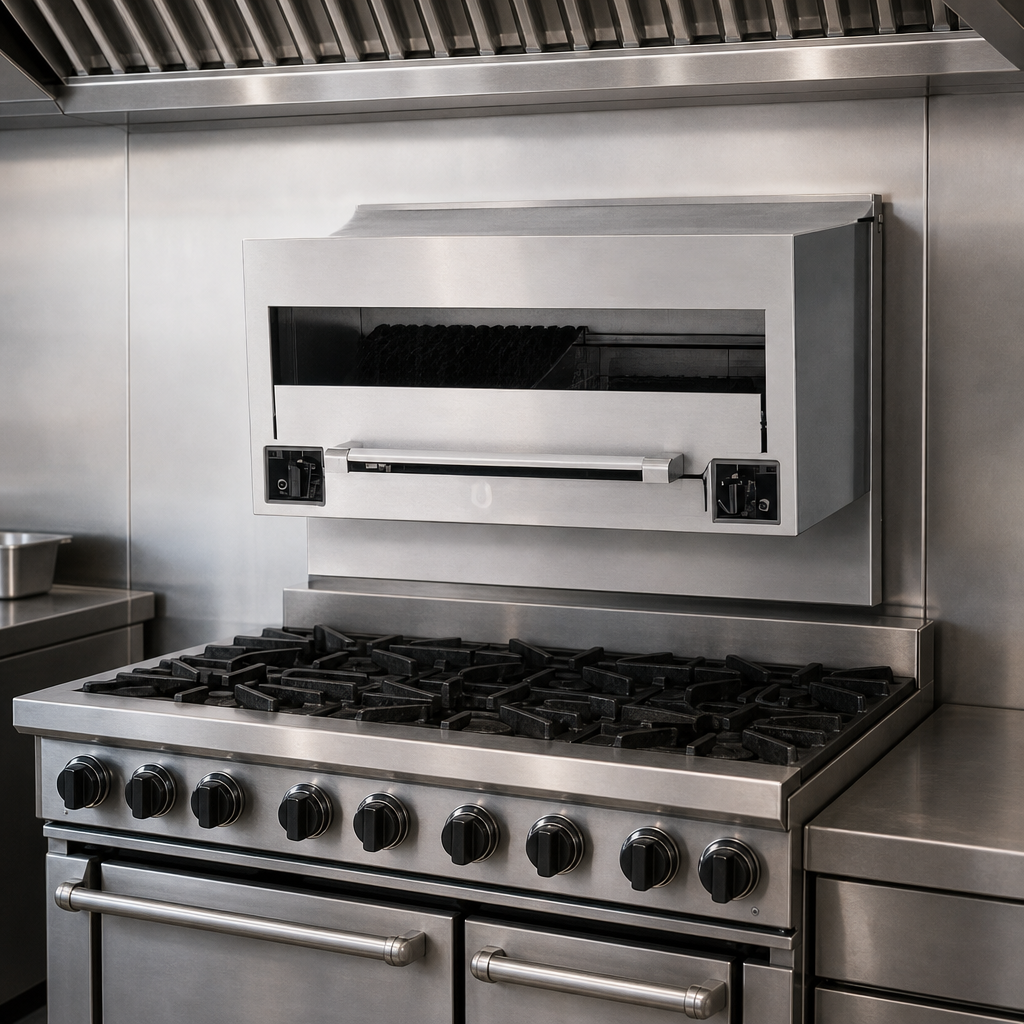

- Factory-matched to Garland 36" ranges for a seamless “one-piece” cooking suite.
Technical Specifications
| Model | Sentry (S680 Series Range-Mount) |
|---|---|
| Overall width | 34" / 864 mm |
| Overall depth | 18" / 457 mm (20 ¼" / 514 mm to rack handle) |
| Overall height | 16 ¼" / 413 mm (34 ¼" / 870 mm from range top to salamander top) |
| Cooking surface (W × D) | 29 ⅛" × 14 ⅛" / 740 × 359 mm |
| Total power | 7 kW (3.5 kW per zone) |
| Typical amp draw* | 34 A @ 208 V 1 Ph • 29 A @ 240 V 1 Ph • 25 A @ 240 V 3 Ph |
| Electrical connection | Hard-wired; rear cable entrance (3" / 76 mm from back) |
| Net weight | Approx. 176 lb / 80 kg |
| Construction | Stainless steel exterior & interior components |
| Warranty | 1-year parts & labour (USA & Canada) |
| Certifications | cULus • NSF |
*When ordered with a Garland range, the salamander is factory-wired for single-phase interconnection. For alternate voltages or wall/counter mounting kits, please contact us.
