Garland

Garland Master Series 34-Inch Range-Mount Infrared Salamander Broiler, Natural Gas, 40,000 BTU

SKU: MSTSR16M
$4,148.55
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

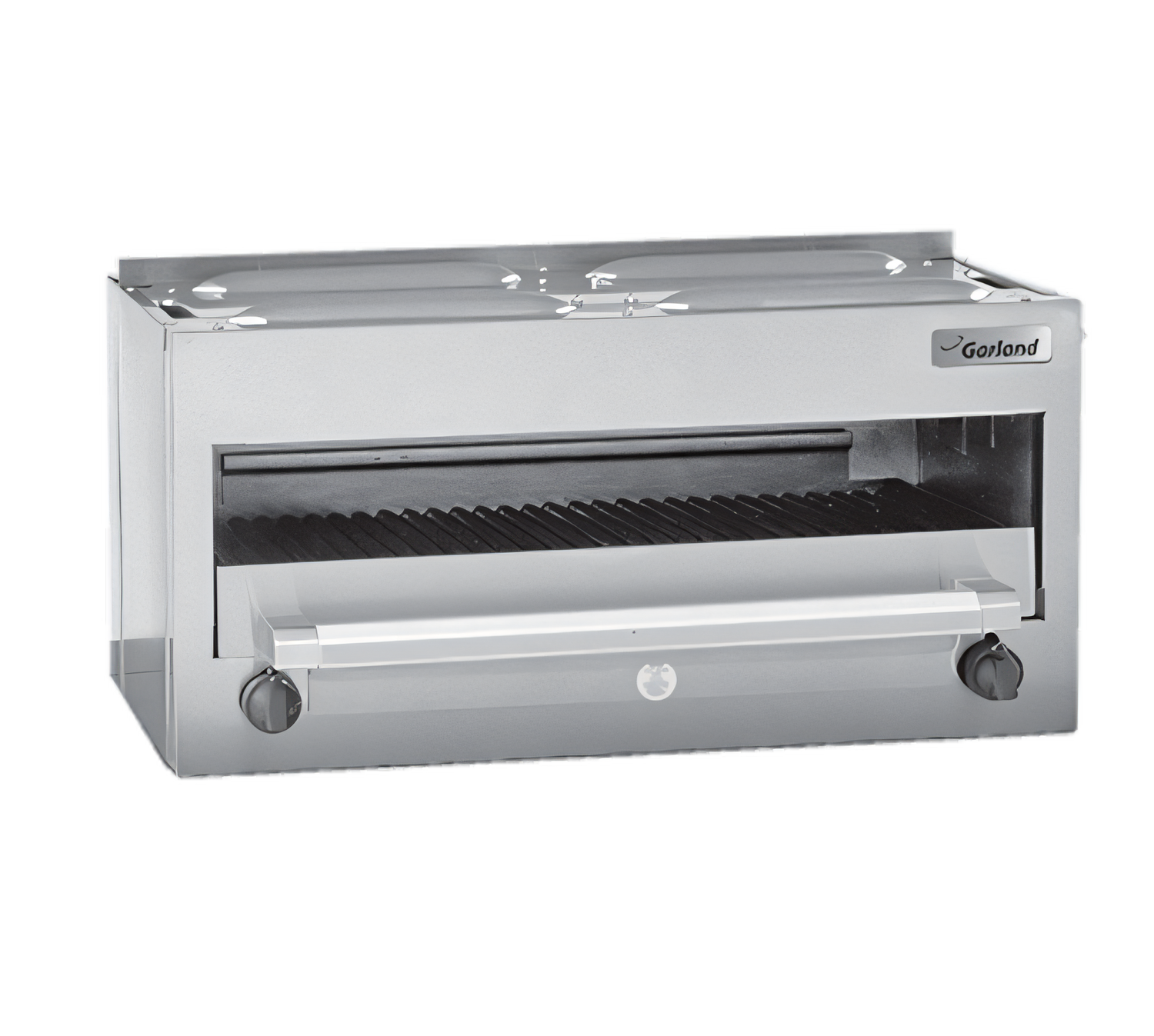

Garland Master Series 34-Inch Range-Mount Infrared Salamander Broiler, Natural Gas, 40,000 BTU

Flame-failure protection, Hi-Lo valve controls, stainless steel construction

Built for high-output finishing, this 34-inch gas salamander broiler combines dual infrared burners, flame-failure protection, and an adjustable pullout rack for precise control.

  • 34-inch range-mount salamander broiler designed for finishing, browning, and glazing.
  • Two 20,000 BTU atmospheric infrared burners provide 40,000 BTU total output.
  • Hi-Lo valve controls let cooks fine-tune heat on each burner.
  • Flame-failure protection adds an important safety safeguard.
  • Adjustable pullout broiling rack offers flat or tilt positions for flexible use.
  • Stainless steel construction with heat shields supports demanding commercial kitchens.
  • Large-capacity removable grease pan helps simplify cleanup.

Overall Dimensions:

34.0"W x 20.25"D x 35.63"H

Product Weight:

210.0 lb

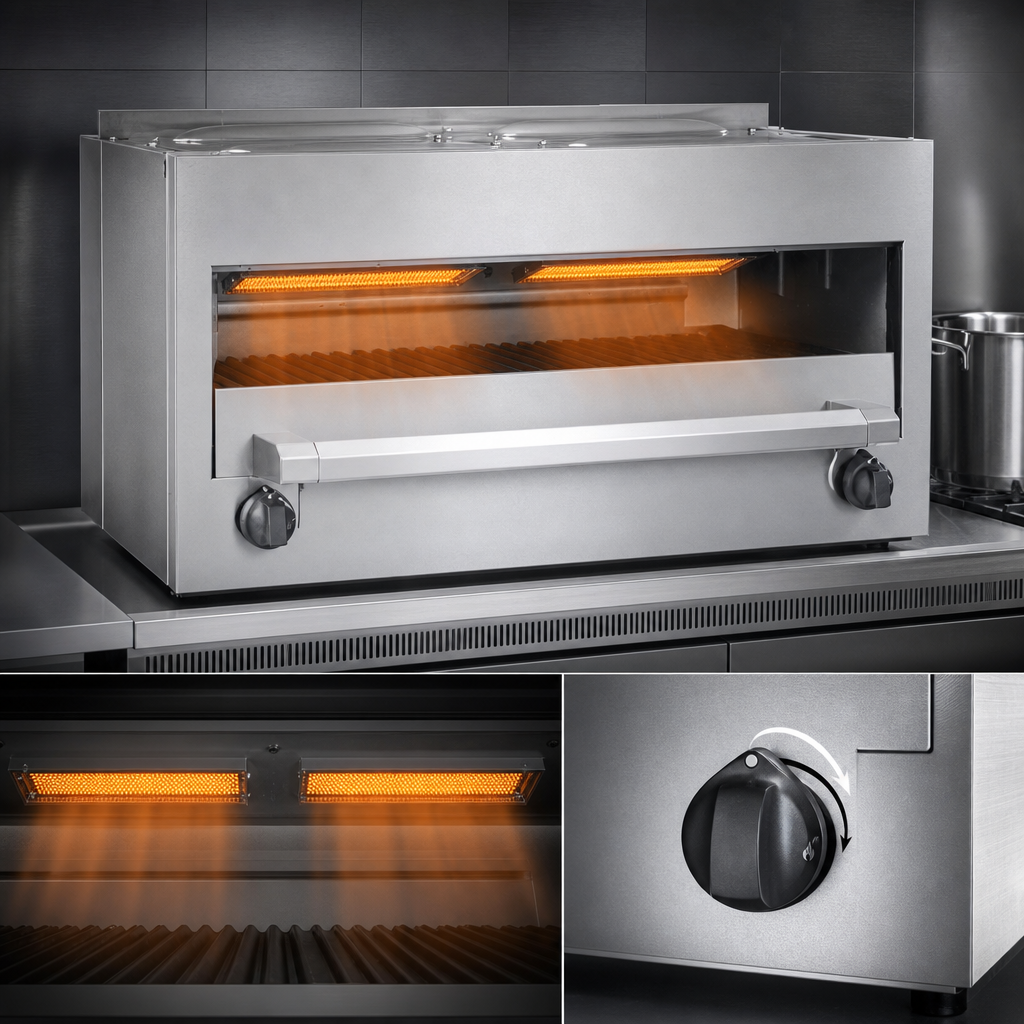

Dual Infrared Burners

Two atmospheric infrared burners deliver intense broiling heat and are independently controlled with Hi-Lo valves.

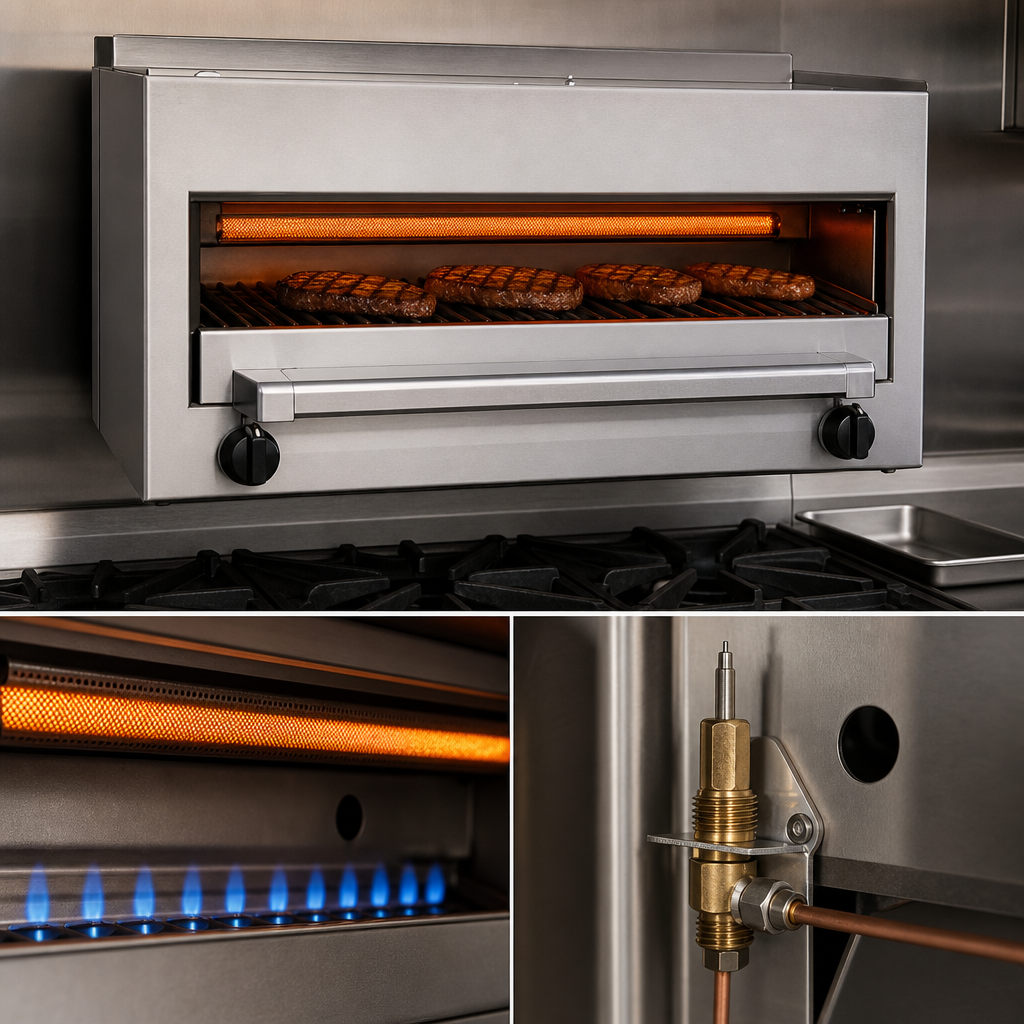

Flame-Failure Protection

Built-in flame-failure protection helps shut off gas flow if a burner flame is lost.

Adjustable Pullout Broiling Rack

Fixed-position rack rolls in and out and can be set to flat or easy-view tilt positions.

Removable Grease Pan

Large-capacity grease pan removes for easier cleanup and grease management.

Stainless Steel Construction

Stainless steel front, sides, top, backsplash, and bottom with heat shields for durability.

Top Gas Inlet

Uses a 1/2 Inch NPT top gas inlet for range-mount and wall-mount applications.

Type Infrared
Style Salamander Broiler
Mounting Type Range-Mount
Controls Hi-Lo Valve
BTU 40,000 BTU
Gas Type Natural Gas
Gas Connection Size 1/2 Inch NPT
Gas Inlet Pressure 7 Inches W.C.
Material Stainless Steel
Finish Stainless Steel
Shipping Width 34 Inches
Shipping Depth 21 Inches
Shipping Height 36 Inches
Shipping Weight 210 lb.
Selling Unit Each
Units Per Case 1

Frequently Asked Questions

It uses two atmospheric infrared burners, each rated at 20,000 BTU.
Yes. Flame-failure protection is included on all burners.
Yes. The pullout broiling rack can be set to flat or easy-view tilt positions.
It uses a 1/2 Inch NPT top gas inlet for range-mount and wall-mount models.
The documentation lists a natural gas manifold operating pressure of 4 Inches W.C. and a minimum supply pressure of 7 Inches W.C.
Yes. The unit includes a large-capacity removable grease pan to help collect drippings.
