Garland MST42-6R-E Master Gas Ranges
Description

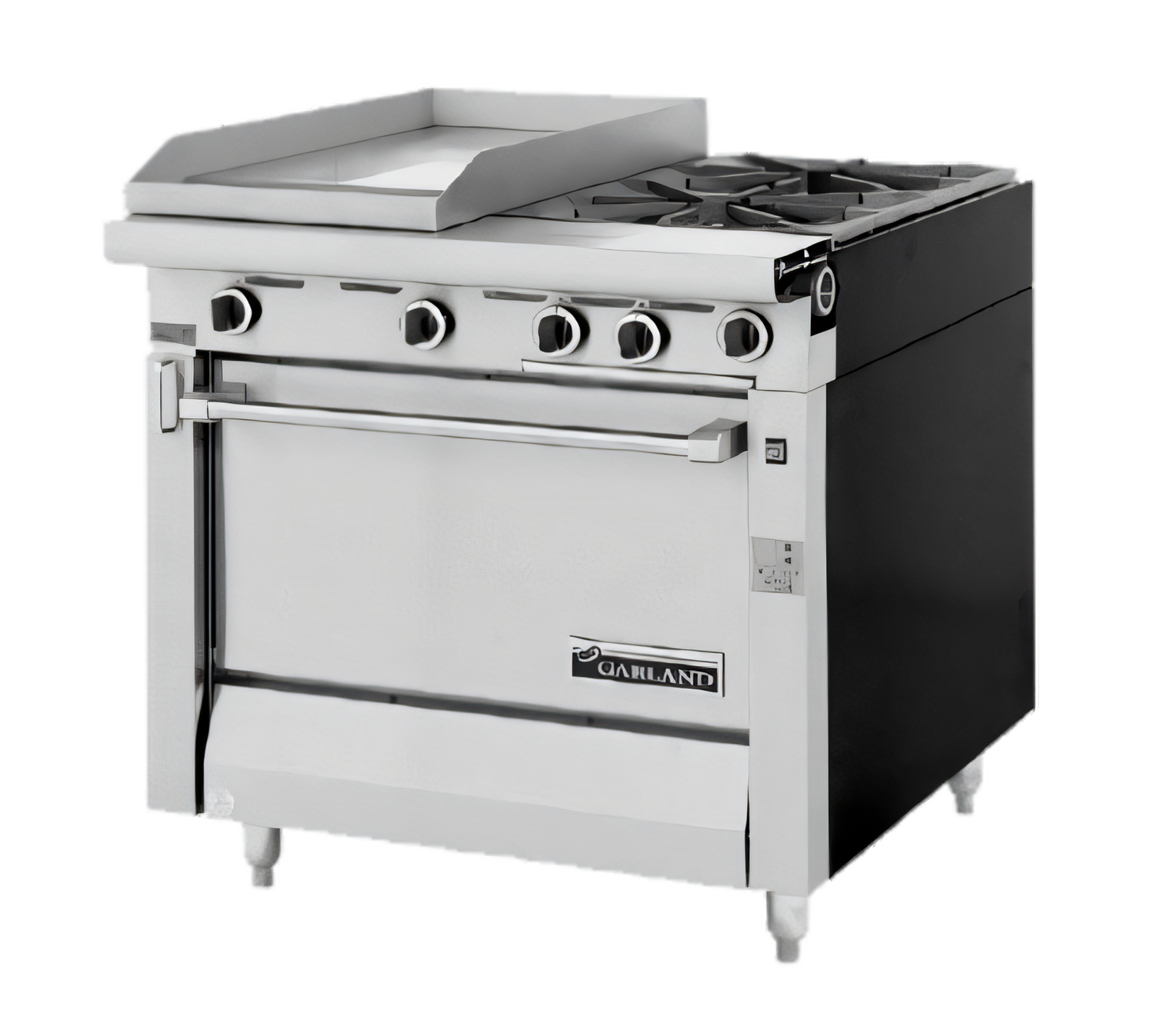

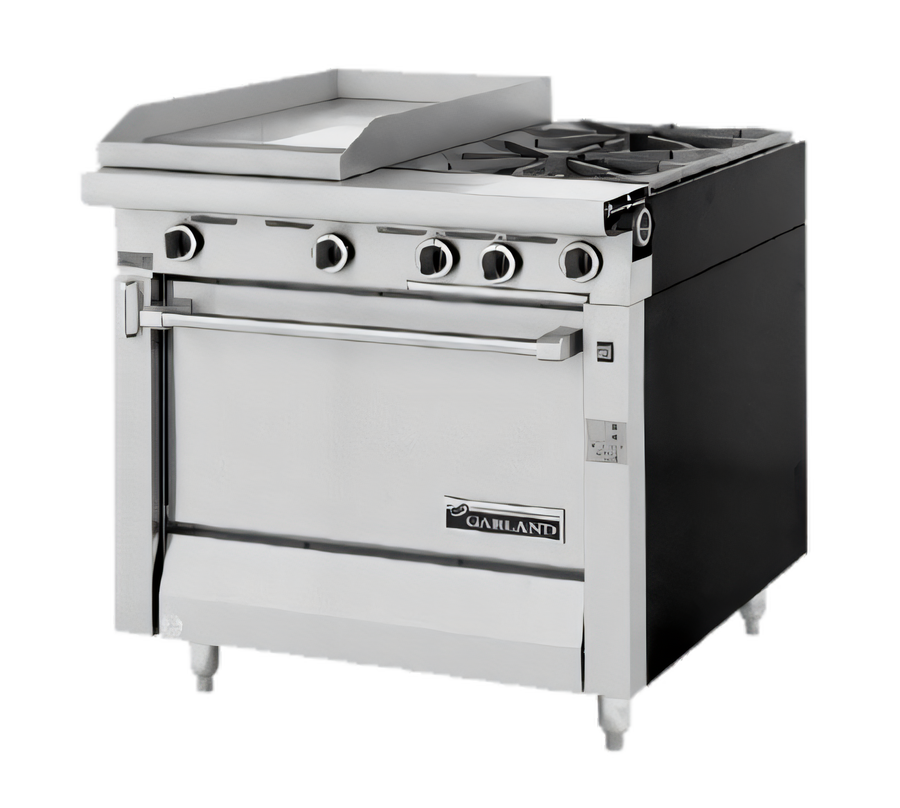

Garland Master Series Heavy-Duty Gas Range – 34" Combination Top
Model MST42-6R-E • 140,000 BTU • Natural or PropaneBuilt to power through the busiest meal-periods, the Garland Master Series MST42-6R-E combines two 35,000 BTU Starfire® open burners, a 17" even-heat hot top and a full-size oven in one ultra-durable 34" footprint. Electric spark ignition and Sentry flame-failure protection come standard on every burner, giving chefs instant starts and peace of mind service after service.
Key Advantages
- 2 × 35,000 BTU cast-iron Starfire open burners for intense, even heat
- 17" (432 mm) even-heat hot top with 27,000 BTU “H” style burner—perfect for large stock-pots & sauté pans
- 40,000 BTU standard oven with porcelainized interior and snap-action thermostat 150-500 °F (66-260 °C)
- Electric spark ignition & Sentry total flame-failure protection on all pilots and burners
- Stainless steel front, sides & door resist dents, scratches and corrosion
- 6" (152 mm) chrome-plated adjustable legs level the unit on any floor
- Front 1-1/4" NPT gas connection; optional rear connection available
- Independently certified: NSF, CE, CSA Flame & CSA Star
Chef-Focused Performance
- Cast-iron ring grates lift off for fast cleaning and easy access to burners
- Wide 7-1/2" stainless steel front rail keeps hot platters safely off the deck
- Aluminized steel radiation baffle under hot top distributes heat evenly—no “hot spots”
- Removable stainless steel drip trays under open burners simplify daily maintenance
Specifications
| Overall width | 34" / 864 mm |
|---|---|
| Overall depth | 38" / 965 mm (incl. 7-1/2" front rail) |
| Height w/ legs | 36-3/8" / 924 mm |
| Height w/o legs | 30-3/8" / 772 mm |
| Total input | 140,000 BTU/hr |
| Open burners | 2 × 35,000 BTU (70,000 BTU) |
| Hot top burner | 27,000 BTU |
| Standard oven burner | 40,000 BTU (natural) or 35,000 BTU (LP) |
| Gas inlet | 1-1/4" NPT front (rear optional) |
| Operating pressure | Natural 6" WC • Propane 10" WC |
| Electrical | 120 VAC, 60 Hz, 0.1 A (spark ignition) |
| Oven interior (W × D × H) | 26-1/4" × 29" × 13-1/2" (667 × 737 × 343 mm) |
| Shipping weight | Approx. 445 lb / 202 kg |
Popular Options & Accessories
- 10", 17" or 33" stainless steel backguards
- Single or double-deck tubular high shelves
- Polyurethane swivel casters with front brakes
- Common front rail for battery installations (up to 102")
- Stainless steel oven interior & extra oven racks
Gas ratings are for installations up to 2,000 ft (610 m) above sea level. Specify altitude & gas type when ordering.
