Description

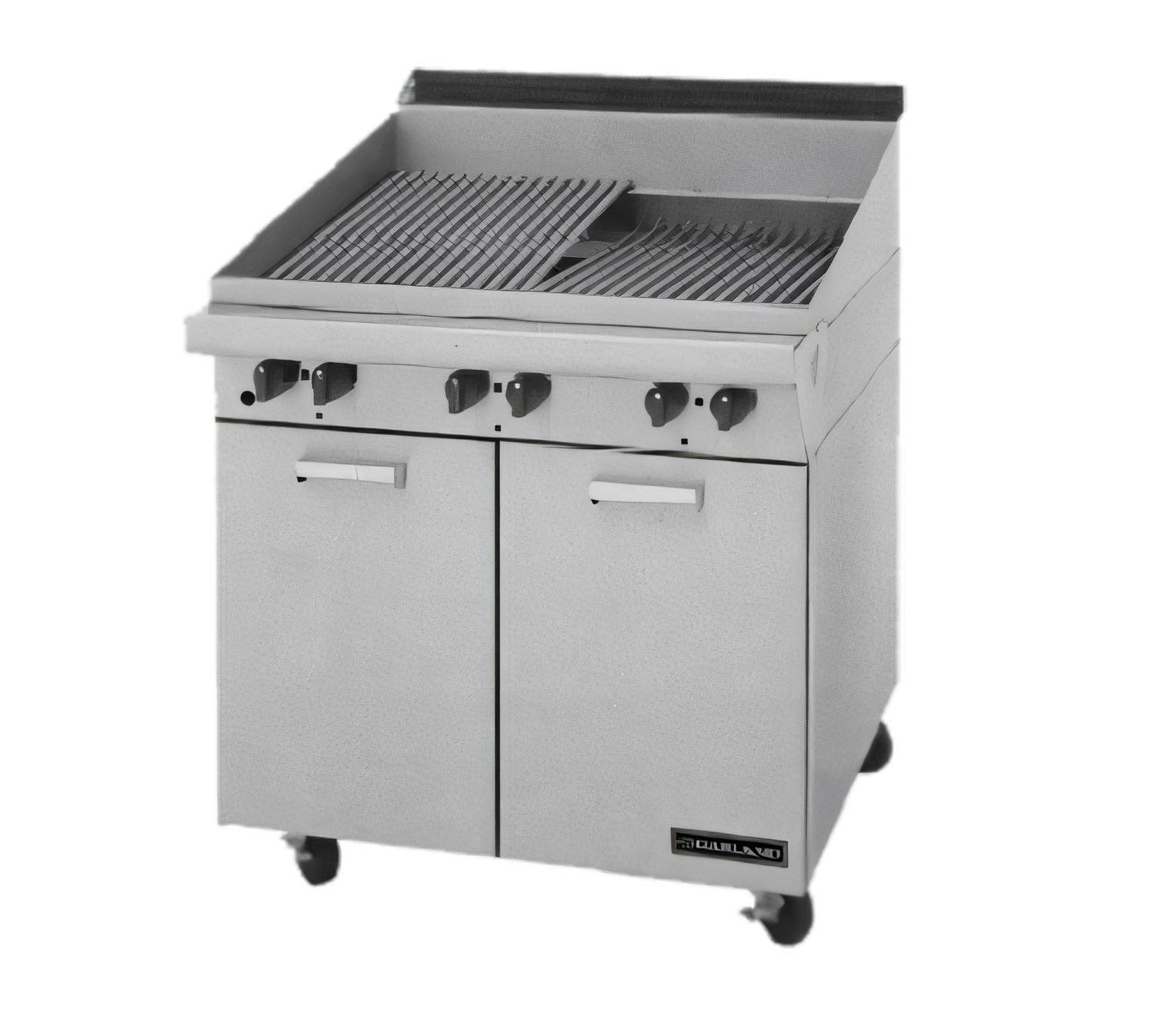

Master Series 34" Modular Char-Broiler – 90,000 BTU

Garland Model MST34BT | Heavy-Duty Range-Match

Bring genuine steak-house performance to your cook-line with the Garland Master Series 34 inch modular char-broiler. Designed to drop straight onto any Master battery or modular stand, this unit unleashes a blistering 90,000 BTU of even, briquette-balanced heat while its dual-sided cast-iron grates deliver picture-perfect sear marks—shift after shift.

Why You’ll Love It

  • Six 15,000 BTU burners (90,000 BTU total) for fast recovery and high production.
  • Long-life ceramic briquettes distribute heat evenly and tame flare-ups.
  • Dual-sided cast-iron grates: wide-bar “board” side for steaks, fine diamond side for burgers & veggies.
  • Grates mount flat or tilted to control grease runoff and product finish.
  • Reliable piezo spark ignition with standing pilots—no matches needed.
  • Sentry flame-failure valves on every burner meet CE, CSA Flame & CSA Star standards.
  • Rugged stainless-steel front & sides clean quickly and stand up to daily abuse.
  • Full-length, easy-pull grease drawer speeds end-of-shift clean-up.
  • Ships with 6″ (152 mm) adjustable legs for perfect leveling on your suite or stand.
  • NSF, CE, CSA Flame & CSA Star listed for hassle-free code approval.

At-a-Glance Specs

Model MST34BT (modular top)
Cooking width 34″ / 864 mm
Cooking depth 31-1/2″ / 800 mm grate area
Overall depth 38″ / 965 mm
Heat input 90,000 BTU/h (26.4 kW) – natural or propane
Burners 6 × 15,000 BTU cast-iron, Hi-Lo valves
Gas connection 1-1/4″ NPT front manifold (rear kit optional)
Operating pressure Natural 6″ WC | Propane 10″ WC
Certifications NSF, CE, CSA Flame, CSA Star

Perfect For

  • Steak & chop houses
  • High-volume casual dining
  • Hotel & banquet kitchens
  • Gourmet burger concepts
  • Any Master Series battery needing char-broiler power

Garland Master Series equipment is engineered for commercial use only and must be installed beneath a properly sized ventilation hood. A matching back-guard is required—see accessories below.

Popular Accessories

  • Stainless-steel back-guard – 10″, 17″ or 33″ heights
  • Modular stand or storage base
  • Rear gas connection kit, regulators & shut-off valves
  • Polyurethane swivel casters with front brakes
  • Gas flex hose & quick-disconnect with restraining cable
Important: Units fitted with casters must be secured with an approved restraining device to maintain warranty and meet local codes.

Need help building your ideal Master Series lineup? Call our specialists at 1-800-424-2411.

Features & Specs

Manufacturer

Garland

Brand_name

Master

Certifications

NSF, CE, CSA Star, CSA Flame

Height

24.0in

Width

34.0in

Depth

38.0in

Shipping Weight

390.0lbs

Exterior Finish

stainless steel front & sides

Top

(1) charbroiler

Base

modular

Specifications

Master Series Heavy Duty Range, gas, 34", modular, charbroiler, briquettes, flat/tilt grates, spark ignition, pilot valve with flame fail, stainless steel front & sides, 6" legs, 90,000 BTU, CE, CSA Flame, CSA Star, NSF (Garland)
