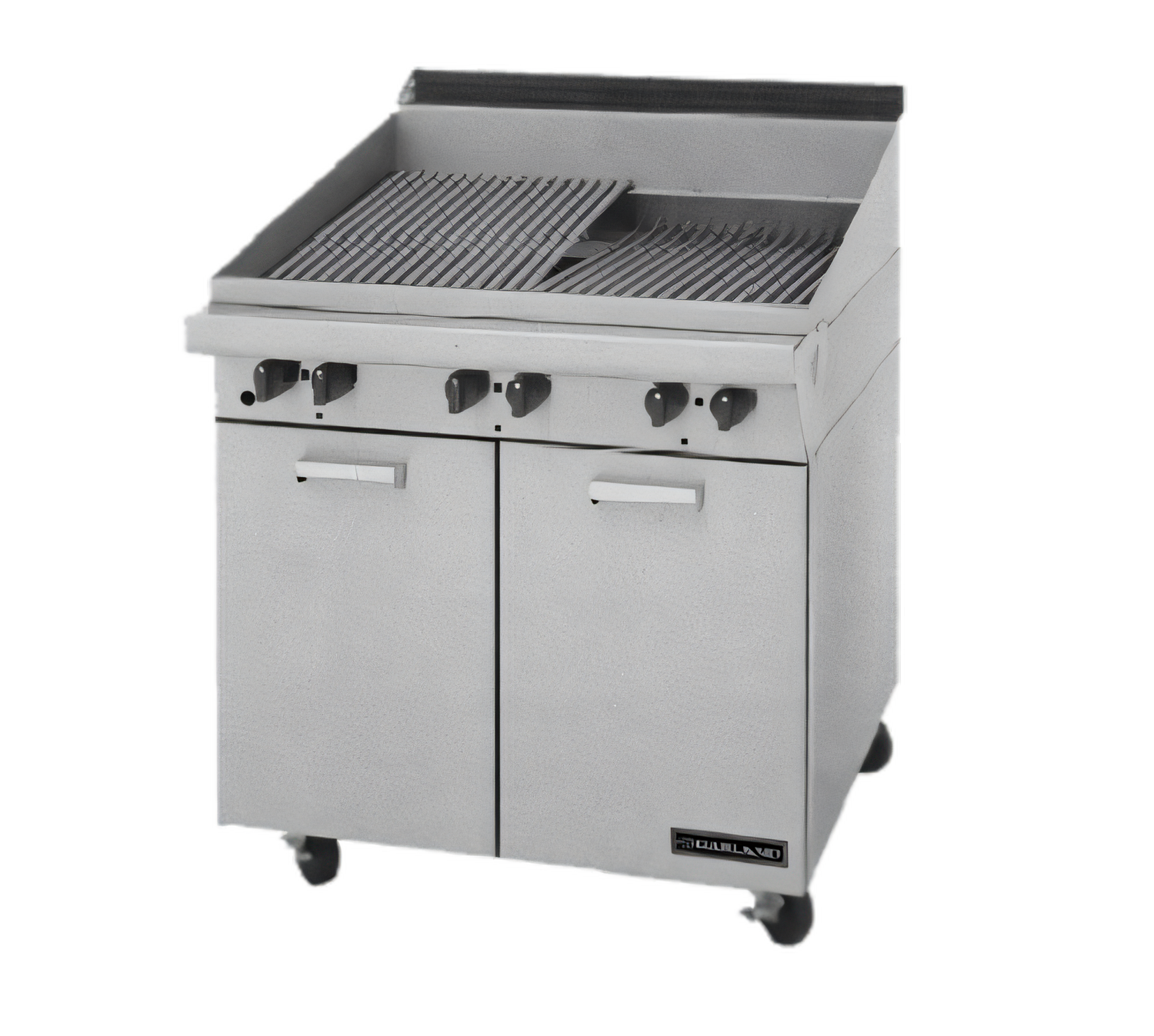

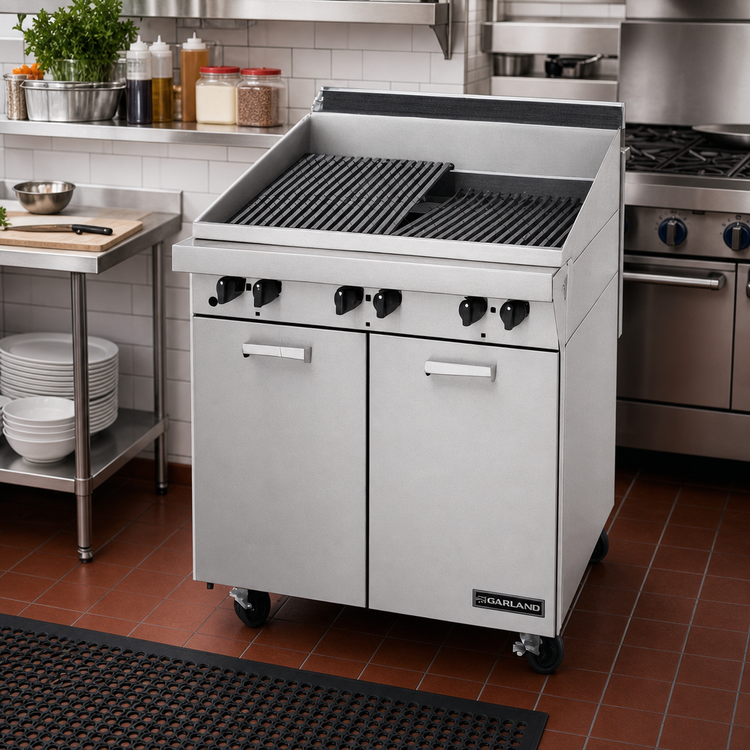

Garland Master Series 34" Gas Charbroiler — MST34B
90,000 BTU | Flat/Tilt Grates | Storage BaseTurn out perfectly char-marked steaks, chops and vegetables shift after shift with the Garland Master Series MST34B. This heavy-duty, range-match charbroiler couples a generous 34 inch grill with 90,000 BTU of searing power, all wrapped in the rugged stainless construction that has made Garland a back-of-house legend.
Key Performance Features

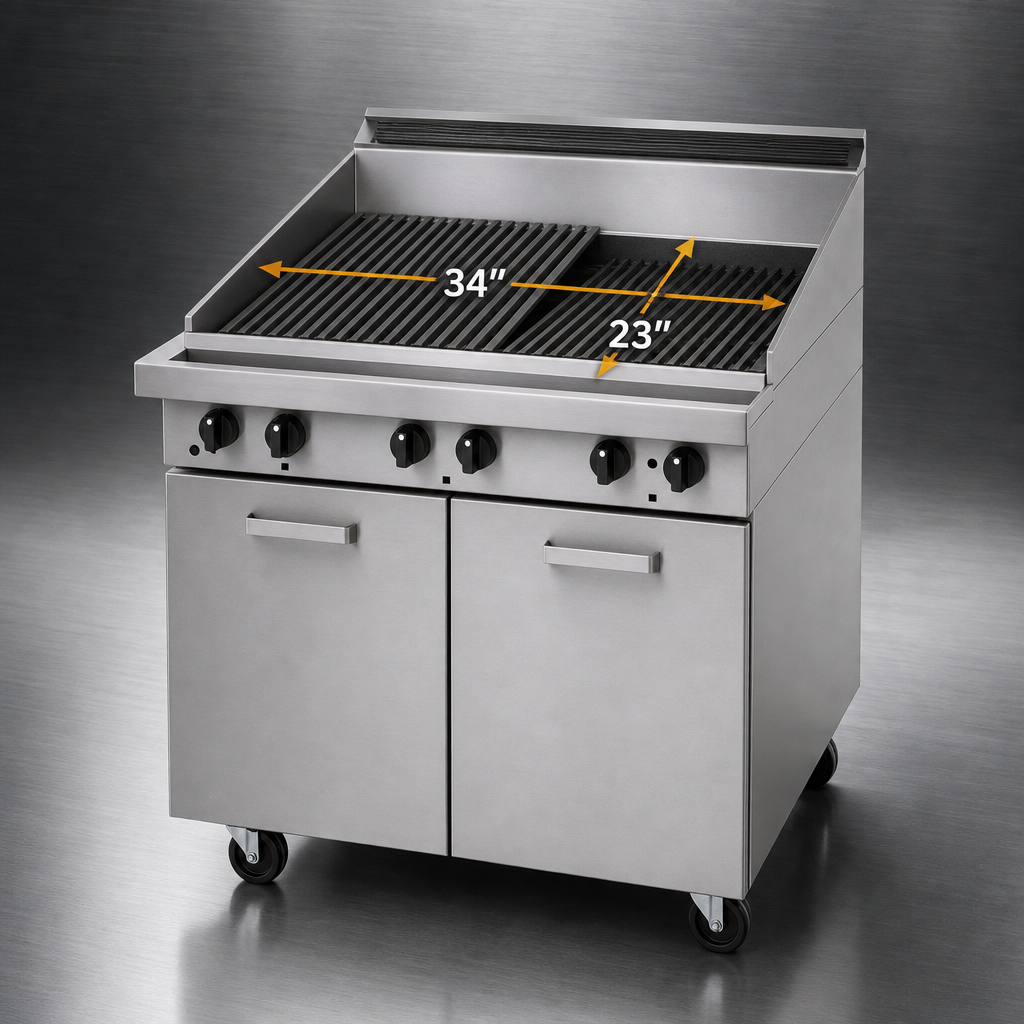

- 34" W × 23" D (864 × 584 mm) broiling zone handles high-volume service.
- Six independently controlled 15,000 BTU burners (90,000 BTU total) with Hi-Lo valves.

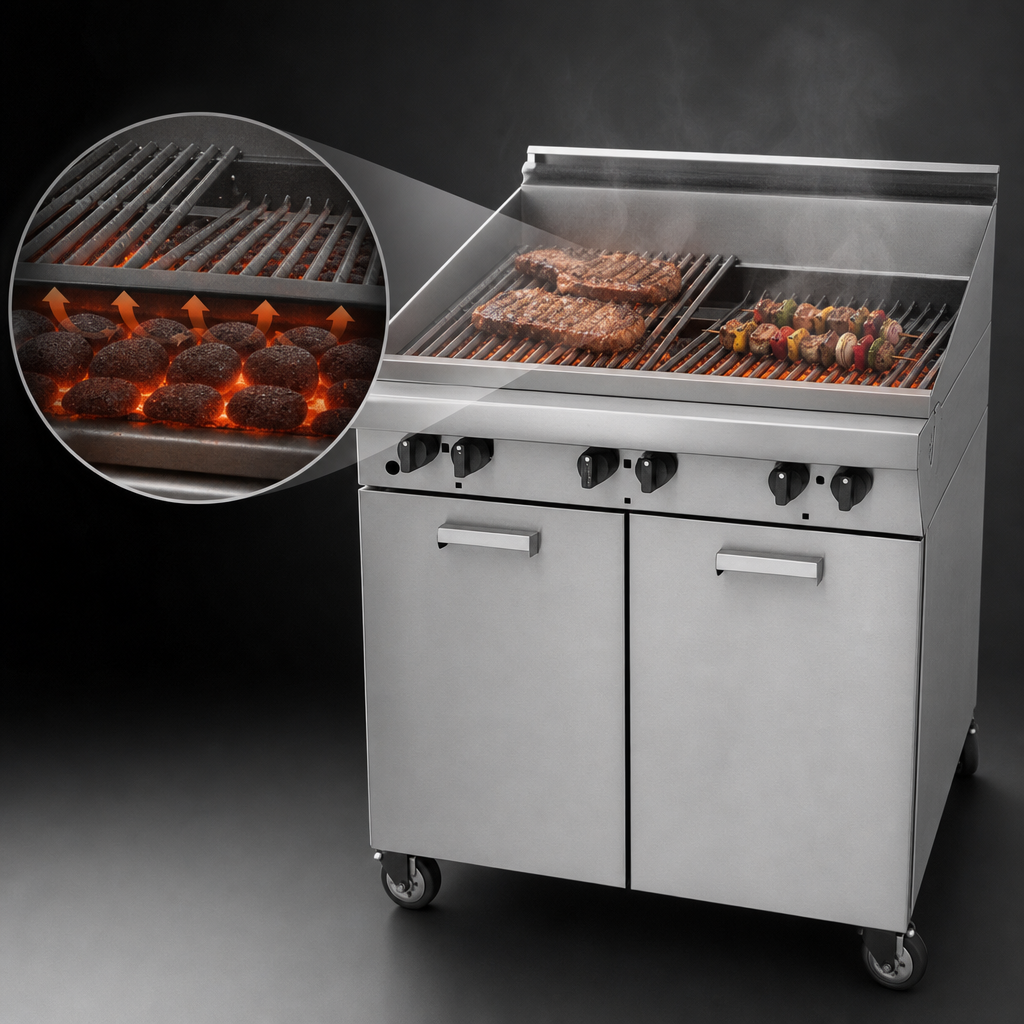

- Heavy-weight ceramic briquettes deliver even, steakhouse-quality radiant heat.
- Reversible cast-iron grates:
- ½" (13 mm) rounded bar side for bold branding.
- Fine diamond pattern for delicate items.
- Flat or tilt grate positions to fine-tune grease runoff and heat intensity.
- Piezo electric spark ignition & constant pilots with Sentry flame-failure protection.
- Full-width grease drawer plus roomy aluminized-steel storage cabinet (twin doors).
- Stainless-steel front, sides and rail with 6" (152 mm) adjustable chromed legs.
- Front 1-¼" NPT gas manifold for quick hook-up; optional rear connection available.
Technical Specifications
| Model | MST34B (Master Series Range-Match Charbroiler) |
|---|---|
| Total Input | 90,000 BTU/hr | 26.4 kW |
| Burners | 6 × 15,000 BTU cast-iron tube burners |
| Grill Area | 34" W × 23" D (864 × 584 mm) |
| Overall Dimensions | 34" W × 38" D × 37 ⅞" H (864 × 965 × 962 mm) |
| Gas Connection | 1-¼" NPT (Natural 6" WC / LP 10" WC) |
| Ignition | Piezo electric spark & standing pilots with flame-fail safety |
| Construction | Stainless front & sides, aluminized interior, cast-iron grates |
| Base | Full storage cabinet, two stainless hinged doors |
| Legs | 6" (152 mm) adjustable chromed steel |
| Certifications | NSF, cULus, CE |
Factory-Fit Options & Accessories
- Rear gas connection (¾" NPT) and in-line gas regulators.
- 10", 17" or 33" stainless backguards for suite or island installation.
- Polyurethane swivel casters with front brakes (includes restraining device).
- Stainless main back, end caps and covers for finished end-of-line appearance.
- Steel diamond grates in lieu of cast iron for extra-fine branding.
Need help tailoring a Master Series lineup? Talk to our equipment specialists for a custom quote.
Installation note: Garland Master Series appliances are engineered for commercial kitchens only.
Professional installation in non-combustible surroundings and, when casters are fitted, an approved
restraining device are mandatory.
Specifications are subject to change without notice.
$8,775.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Garland Master MST34BE gas charbroiler: 34" grill, 90,000 BTU, flat/tilt grates, briquette system, electric spark ignition, stainless steel, storage base.
Manufacturer
Garland
Brand name
Master
Height
46.25in
Width
34.0in
Depth
38.0in
Shipping Weight
510.0lbs
Base
cabinet(s)
Exterior Finish
stainless steel front & sides
Top
(1) charbroiler
Specifications
Master Series Charbroiler, gas, 34" W x 23" D grill area, briquettes, flat/tilt grates, electric spark ignition, pilot valve with flame fail, storage base, stainless steel front and sides (stainless steel exposed sides on batteries), 6" legs, 90,000 BTU (Garland)
