Garland  |  Master  |  SKU: MST24BT

Garland MST24BT Master Gas Ranges

$8,251.00
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Cutsheet Cutsheet Check list Owner's manual
Related Searches
Commercial Gas Ranges Commercial Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

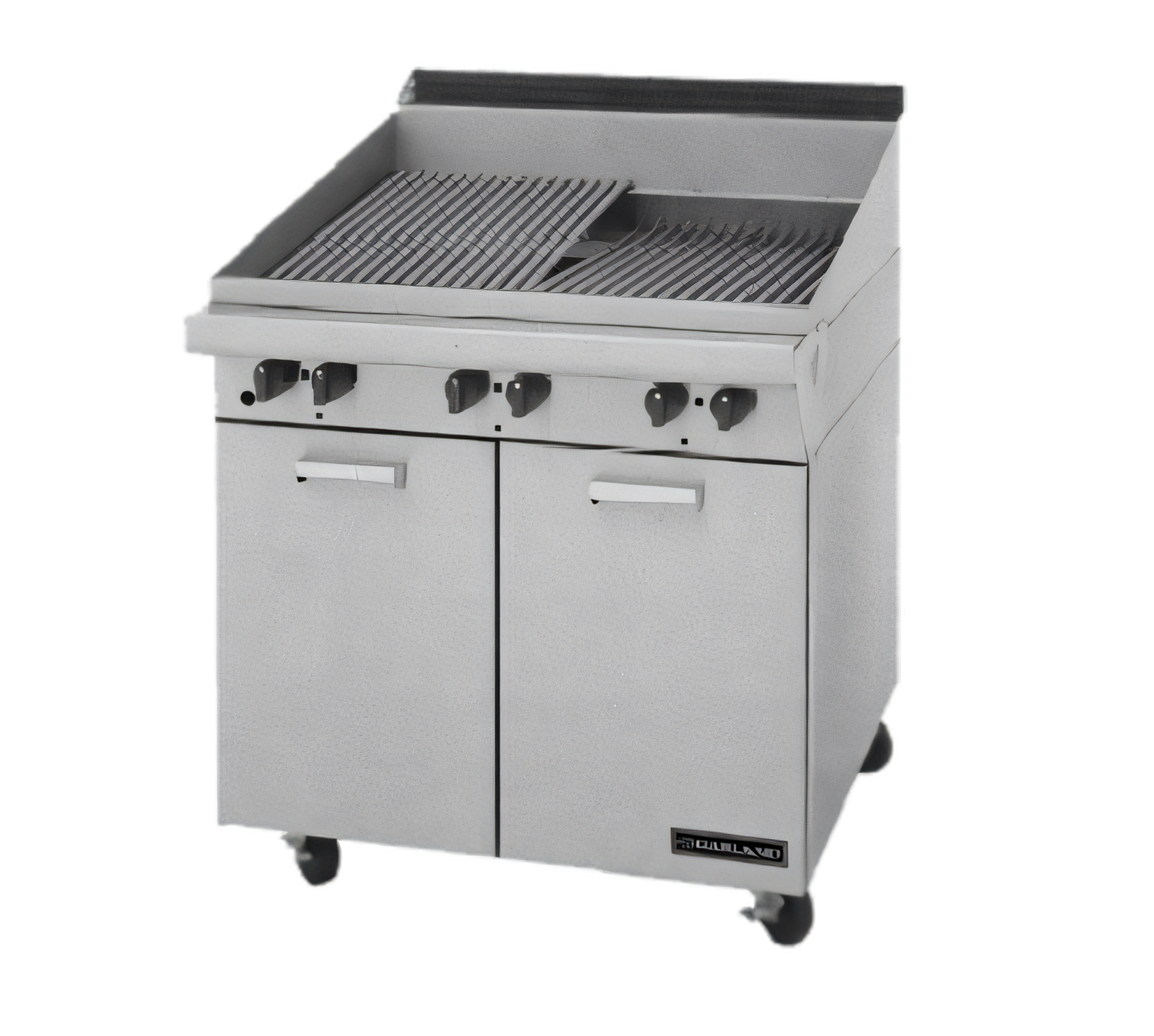

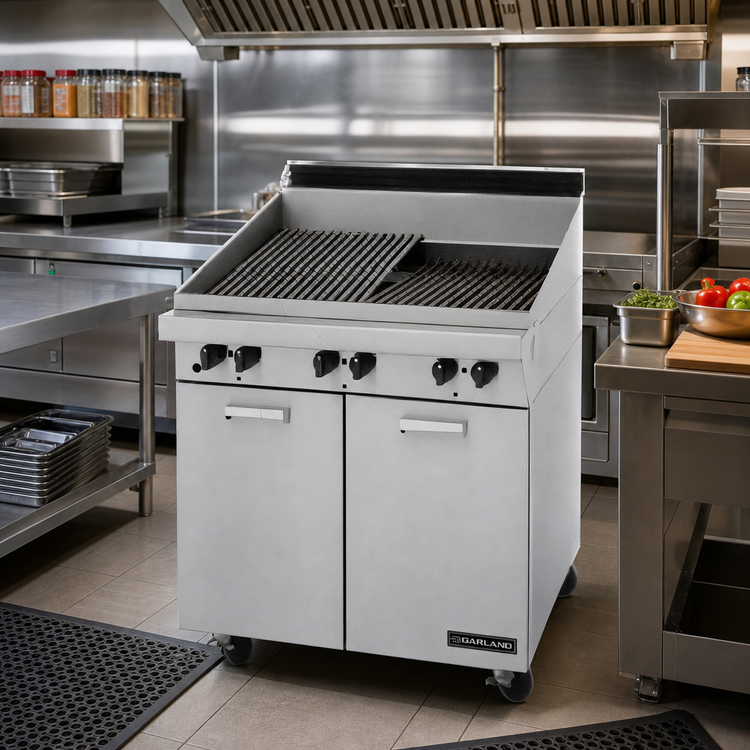

Master Series 24" Heavy-Duty Modular Charbroiler

Garland MST24BT | 60,000 BTU Gas

Combine blazing heat with rock-solid durability. The Garland Master Series 24" modular charbroiler brings steak-house performance to any professional cookline, delivering flawless sear marks, consistent heat distribution and quick, reliable ignition—all inside the legendary Master Series platform you already trust.

Key Features
  • 60,000 BTU total output from four 15,000 BTU burners
  • Piezo spark ignition with always-on pilots for instant lighting
  • Sentry™ total flame-failure protection on every burner
  • Dual-sided, ½" (13 mm) cast-iron grates:
    • Rounded-bar side for bold “board brand” grill marks
    • Diamond-fine side for delicate items & uniform branding

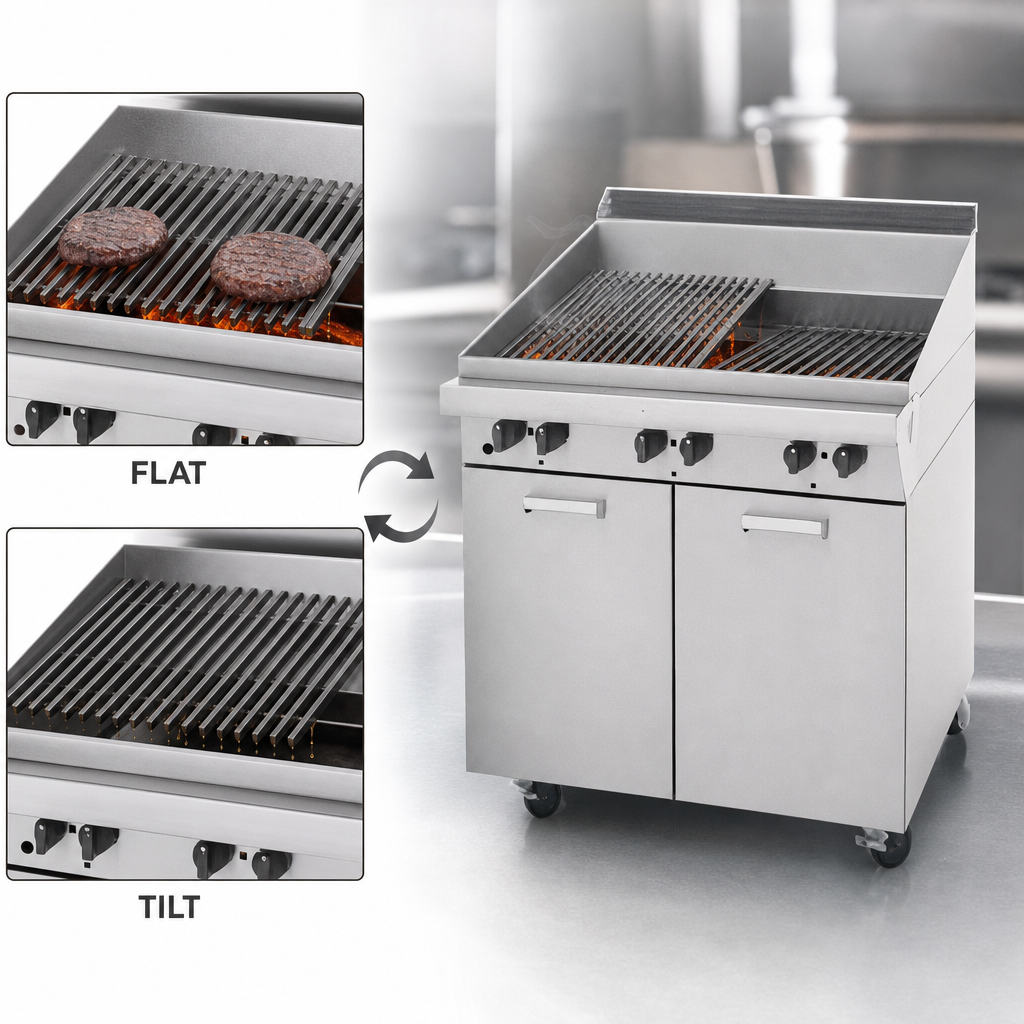

  • Grate frames slide to flat or 5° tilt for optimal grease drainage

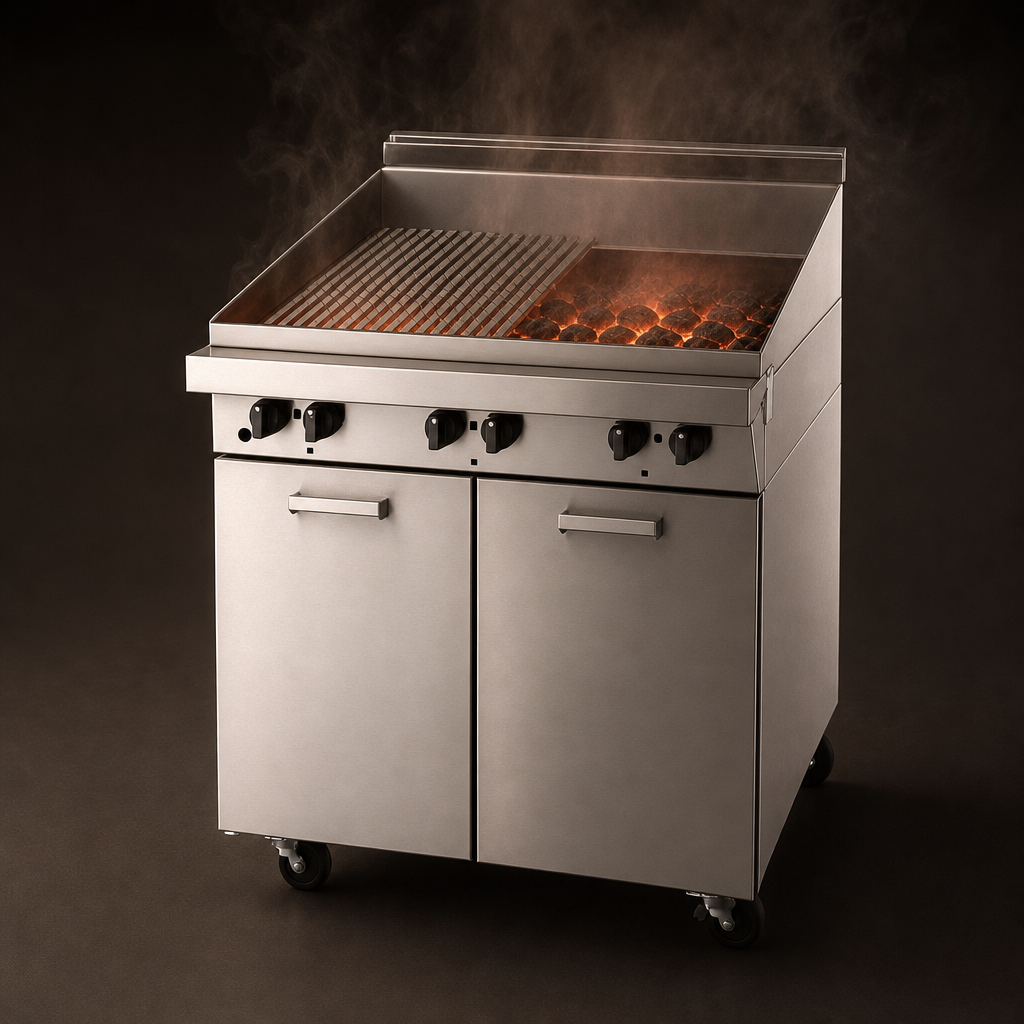

  • High-mass ceramic briquettes even out heat & reduce flare-ups
  • Stainless-steel front and sides—easy to clean, built to last
  • 1-1/4" NPT front gas manifold; rear connection available
  • 6" (152 mm) chromed adjustable legs for stand-alone mounting
  • 14-1/2" (368 mm) cook-surface height when set on a refrigerated or storage base
Range-Match Versatility
  • Aligns flush with other Master Series components for a seamless cookline
  • Shared front rail & bull-nose simplify cleaning and keep plates/pans within reach
  • Extensive factory options: rear gas, backguards, end caps, casters & more
  • Supported worldwide by Garland’s industry-leading parts & service network
Certifications
  • NSF
  • CE
  • CSA Flame & CSA Star
Specifications
Model MST24BT (modular top)
Cooking width 24" / 610 mm
Total input 60,000 BTU/h (17.6 kW)
Burners 4 × 15,000 BTU atmospheric
Gas inlet 1-1/4" NPT front (rear optional)
Ignition Piezo spark with standing pilots
Flame safety Sentry total flame-failure device
Heat medium Ceramic briquettes
Grates Dual-sided cast iron, flat or tilt positions
Construction Stainless-steel front & sides; aluminized steel interior
Legs 6" (152 mm) adjustable chromed steel
Net weight ≈ 230 lb / 105 kg
Clearances 0" sides & rear (non-combustible surfaces)
Installation note: Units mounted on casters or refrigerated bases must be secured with an approved restraining device. Specify gas type (Natural or LP) and any optional rear connections or accessories when ordering.

Garland equipment is engineered for commercial kitchens and is not intended for residential use.

Features & Specs

Manufacturer

Garland

Brand_name

Master

Certifications

NSF, CE, CSA Star, CSA Flame

Height

24.0in

Width

24.0in

Depth

38.0in

Shipping Weight

230.0lbs

Base

modular

Exterior Finish

stainless steel front & sides

Top

(1) charbroiler

Specifications

Master Series Heavy Duty Range, gas, 24", modular, charbroiler, briquettes, flat/tilt grates, spark ignition, pilot valve, flame failure device, stainless steel front and sides, 6" legs, 60,000 BTU, CE, CSA Flame, CSA Star, NSF (Garland)
