Garland MST24BE Master Gas Ranges
Garland MST24BE Master Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Description

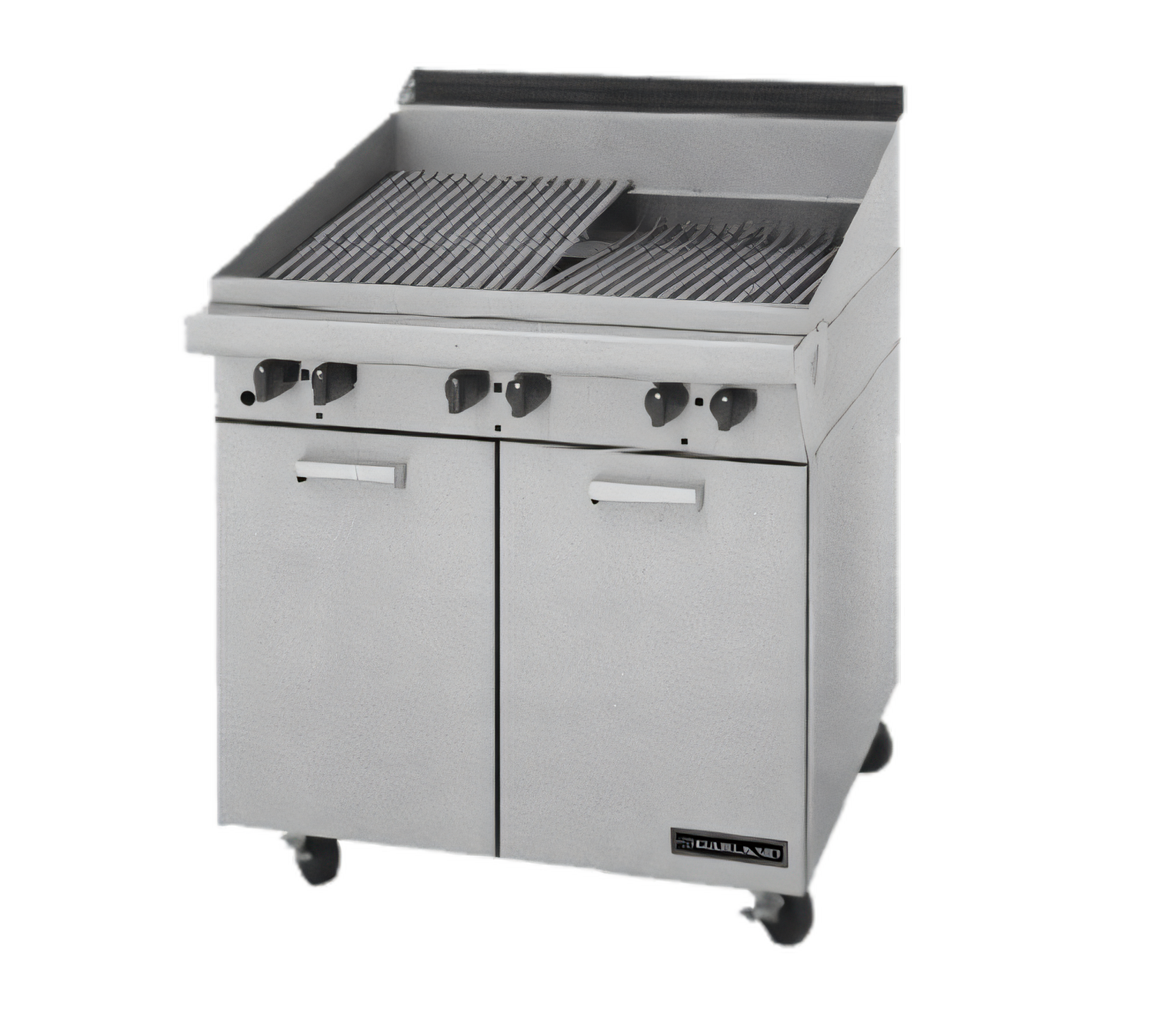

Garland Master Series 24" Gas Charbroiler – 60,000 BTU
Model MST24BE | Range-Match with Storage BaseBuilt for chefs who demand power, precision and rock-solid reliability, the 24-inch Garland Master Series charbroiler turns every dish into a show-stopper. A ceramic-briquette burner system, reversible cast-iron grates and electric spark ignition give you the control you need to sear, caramelise and finish with confidence—service after service.
Key Performance Advantages
- 60,000 BTU of searing heat – four 15,000 BTU cast-iron burners blanket the 552 in² grill surface.

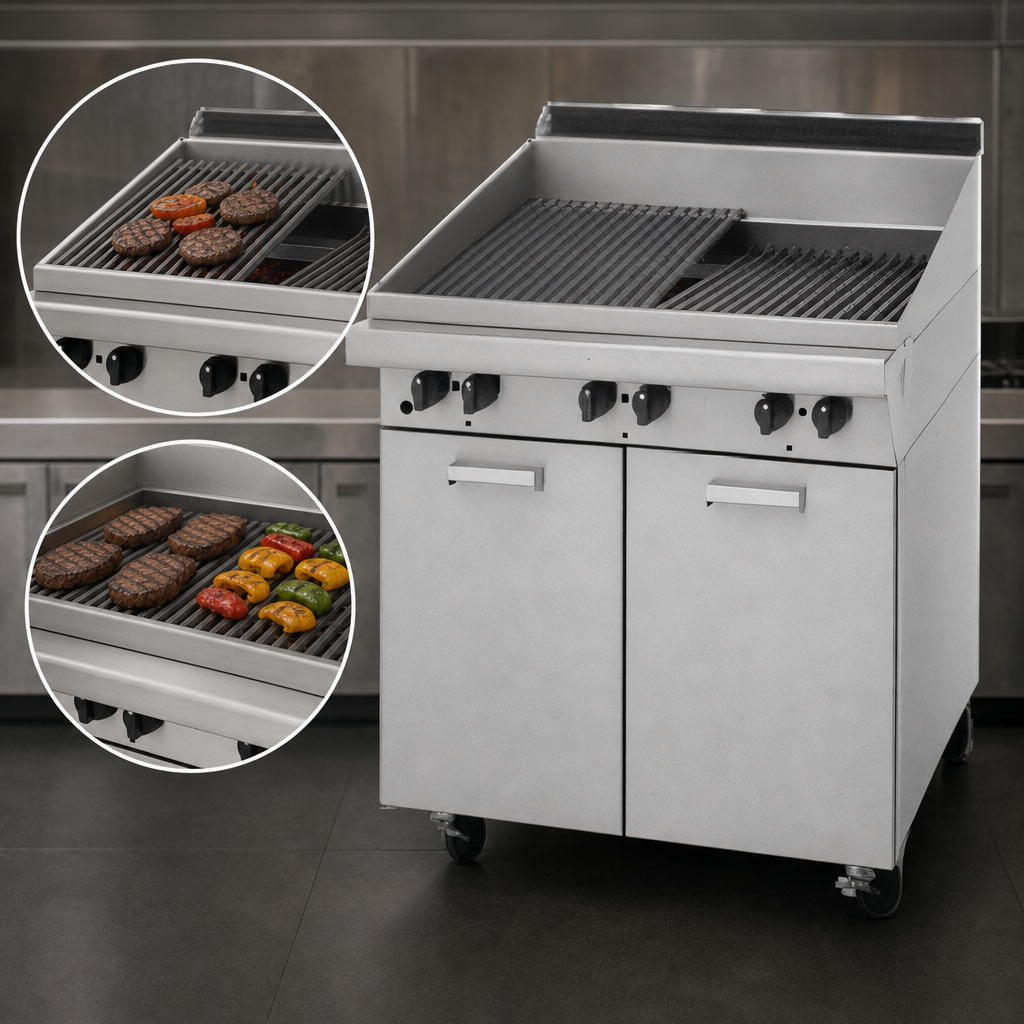

- Reversible dual-texture grates – diamond-fine side for delicate items; ½" rounded bars for big grill marks.
- Flat or 3-position tilt – slide rack sections to manage fat runoff or boost presentation.
- Electric spark ignition – 120 V push-button lighting keeps pilots lit and hands safe.
- Sentry flame-failure protection – automatic gas shut-off if pilots extinguish.

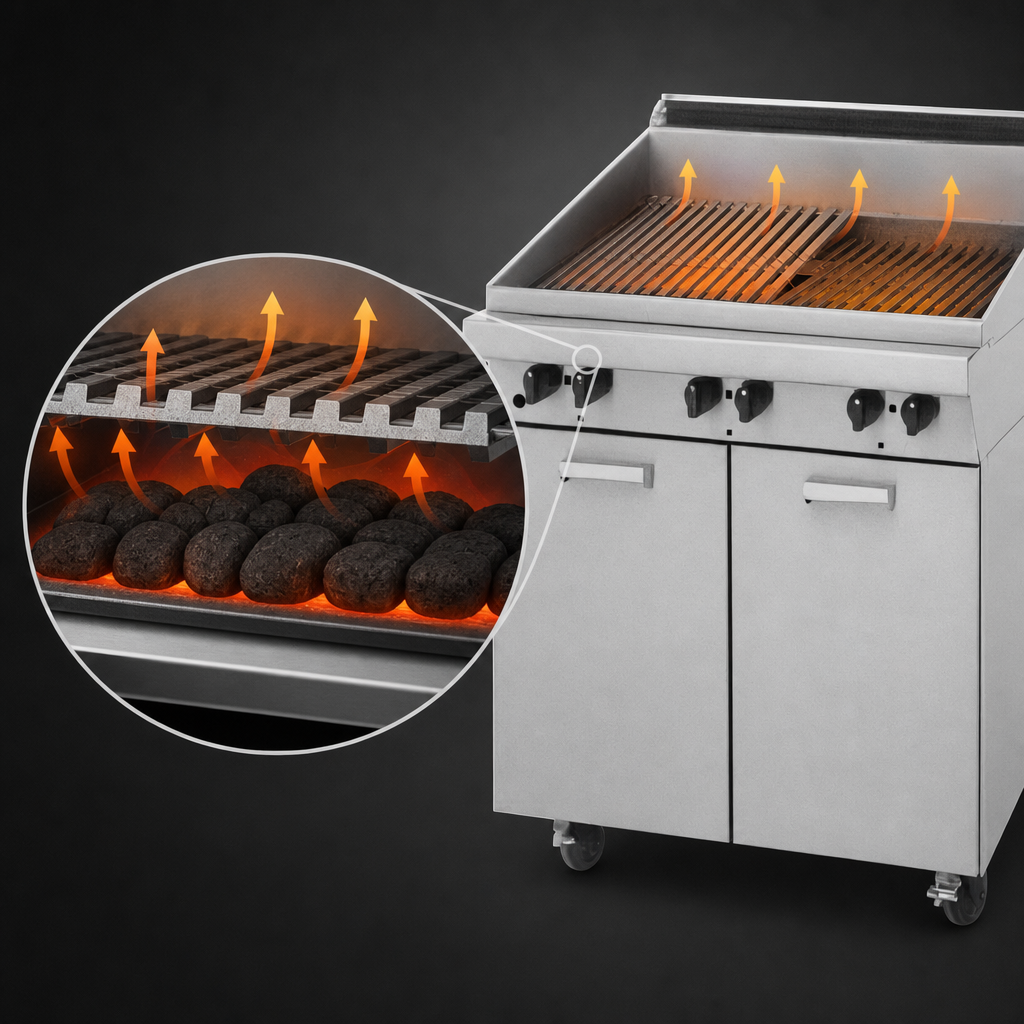

- Heavy-weight briquettes – absorb and radiate heat for even temperatures and char-grilled flavour.
- Chef-friendly maintenance – full-length front grease drawer removes in seconds.
Standard Features
- Cooking surface: 24" W × 23" D (552 in² / 0.36 m²)
- Stainless-steel front, sides and front rail
- Aluminised-steel storage base with twin stainless doors
- 6" (152 mm) adjustable chromed legs
- 1-1/4" NPT front gas manifold (optional rear connection)
- Large-capacity ceramic briquettes (included)
- Field convertible for Natural (6" WC) or LP gas (10" WC)
- NSF & CE compliant for commercial kitchens
Technical Specifications
Model | MST24BE |
---|---|
Total Input | 60,000 BTU /hr (17.6 kW) |
Burners | 4 × 15,000 BTU cast-iron |
Cooking Surface | 24" W × 23" D |
Overall Dimensions | 24" W × 34" D × 40-1/4" H (610 × 864 × 1,022 mm) |
Working Height | 37-7/8" (962 mm) on standard legs |
Gas Connection | 1-1/4" NPT (front) |
Electrical | 120 V, 60 Hz, 1 ph, 1 A (spark ignition) |
Shipping Weight | 330 lb (150 kg) |
Garland Master Series equipment is designed for commercial use only. Casters, backguards and rear gas connections are available separately.
