Garland MST17BT Master Gas Ranges
Description

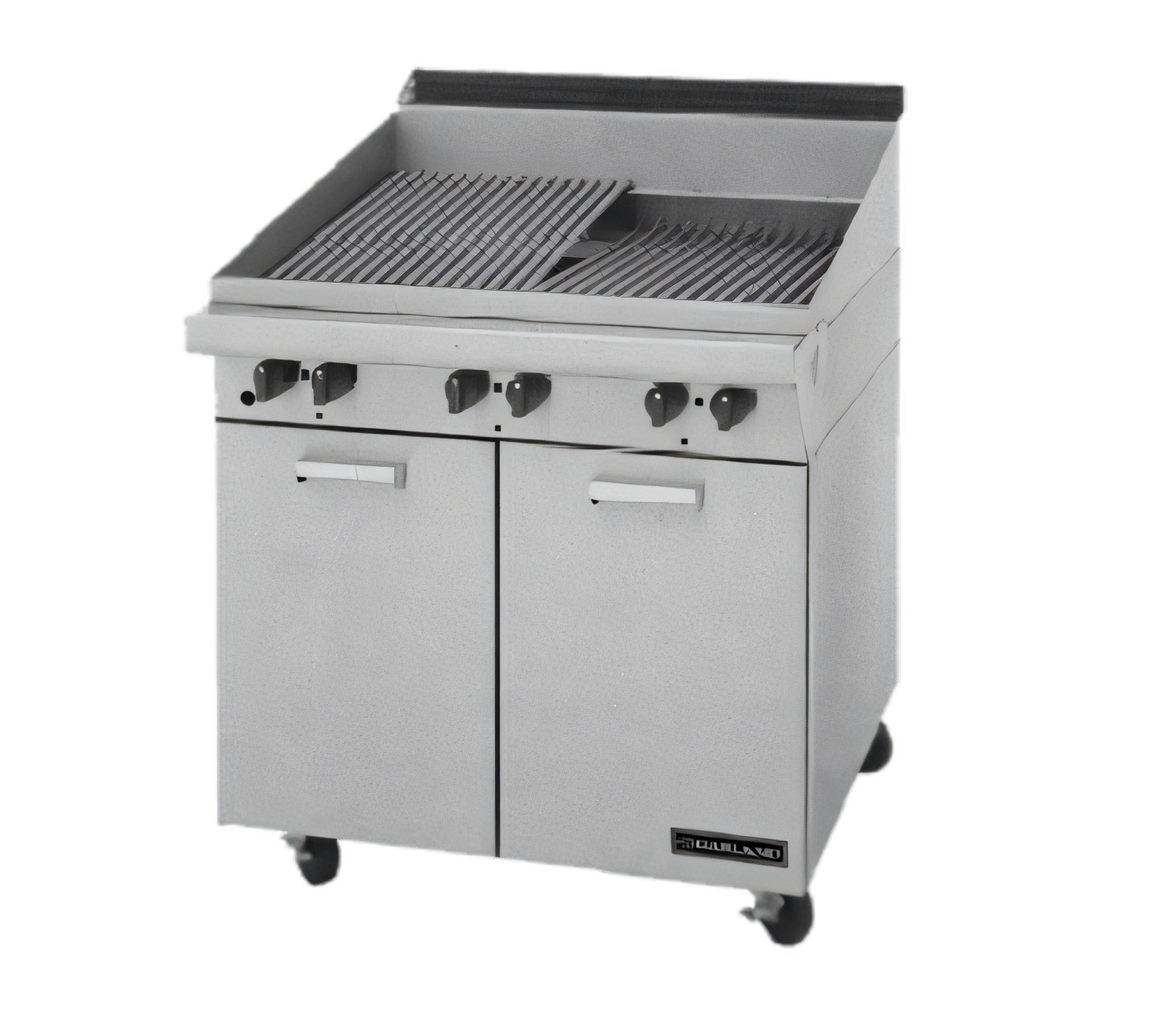

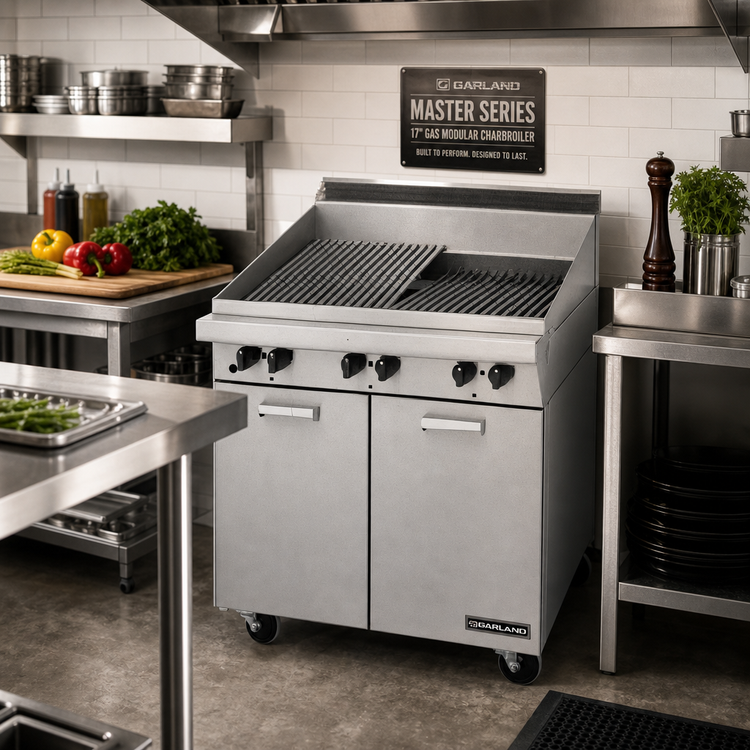

Master Series 17" Modular Gas Charbroiler
Model MST17BT | 45,000 BTUEngineered for the Garland Master Series line-up, the compact 17-inch MST17BT drops directly on any matching refrigerated, freezer or storage base and turns out true charbroiled flavour shift after shift. Three powerful burners, heavy ceramic briquettes and reversible cast-iron grates give chefs the control and heat they need in a fraction of the footprint.
Key performance advantages
- 45,000 BTU (13.2 kW) total input from 3 × 15,000 BTU burners

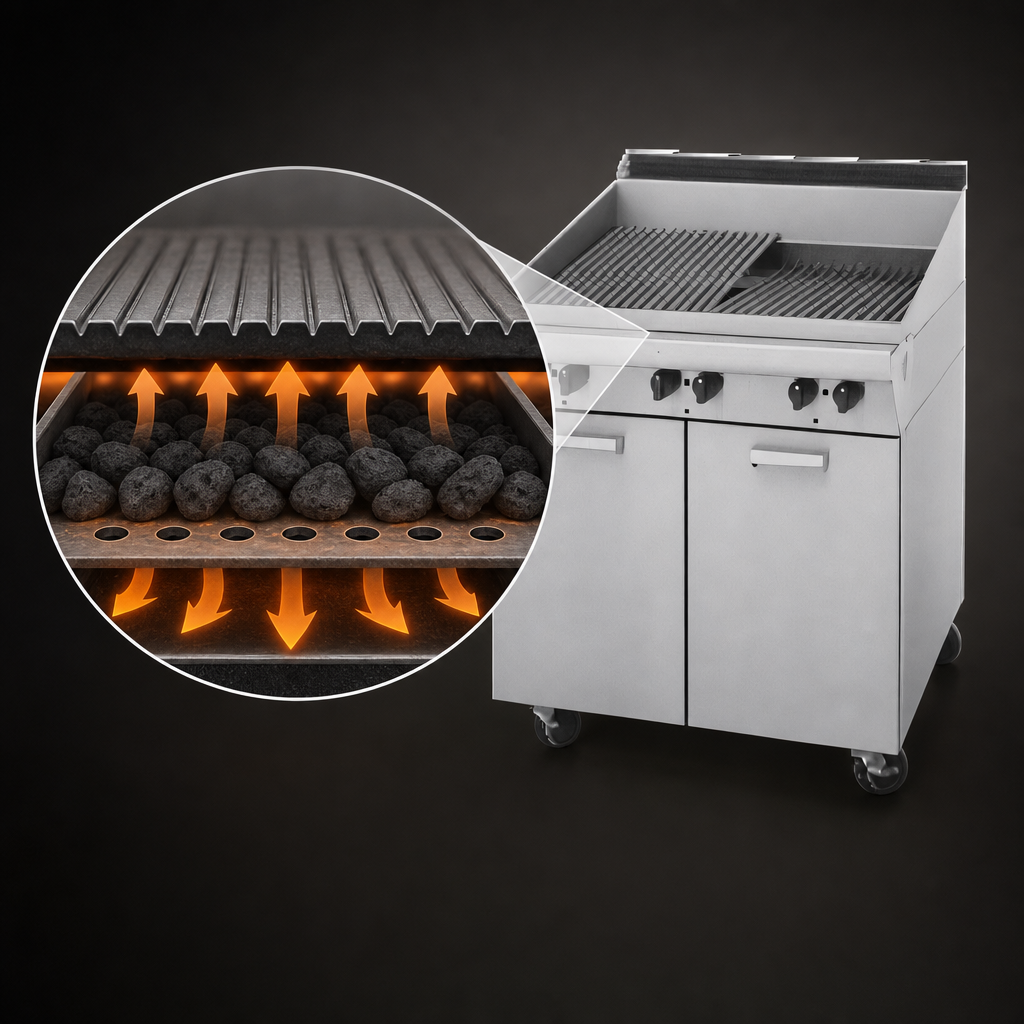

- Heavy-duty ceramic briquettes create even, radiant heat and authentic char flavour

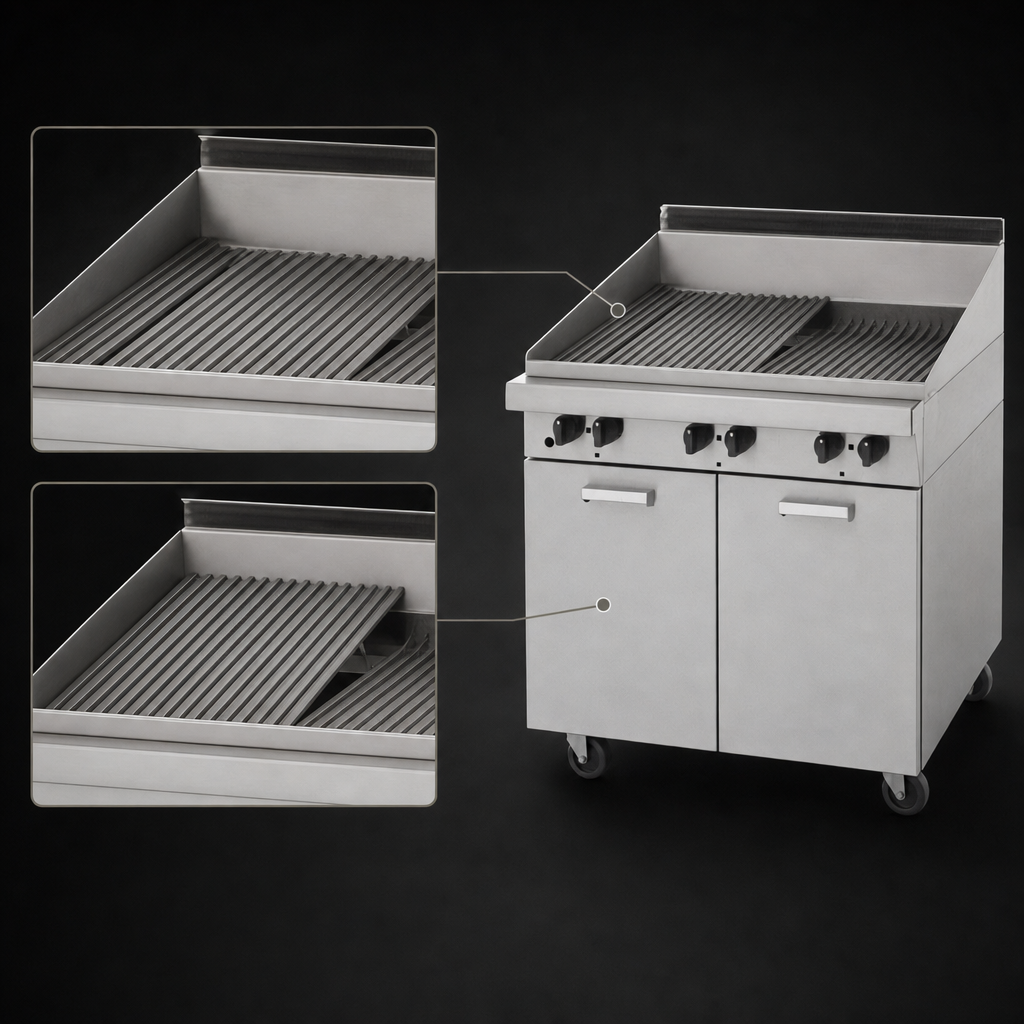

- Dual-sided, reversible cast-iron grates – flat rounded bars on one side, fine diamond pattern on the other
- Grate sections lift out and lock flat or tilted for fast fat run-off
- Piezo spark ignition with constant pilots for instant lighting
- Sentry total flame-failure device on every burner for safety & compliance
- Full-length front grease drawer speeds clean-up and reduces downtime
- Rugged stainless-steel front and sides hold up to daily abuse and make wipe-downs easy
- 1¼" NPT front gas manifold; optional ¾" rear gas connection available
- Modular, low-profile design (14 ½" to cooking surface) keeps the cookline ergonomic
Technical specifications
| Width | 17" (432 mm) |
|---|---|
| Depth | 38" (965 mm) |
| Height to cooking surface | 14 ½" (368 mm) |
| Total heat input | 45,000 BTU / 13.2 kW |
| Burner control | Individual Hi-Lo valves |
| Gas connection | 1 ¼" NPT (front); rear connection option |
| Operating pressure | Natural 6" WC | LP 10" WC |
| Grate material | Dual-sided cast iron, removable |
| Heat media | Ceramic briquettes (included) |
| Shipping weight | 135 lb / 60 kg |
| Certifications | NSF, CE, CSA Flame, CSA Star |
Popular options & accessories
- 10", 17" or 33" stainless-steel backguard
- ¾" rear gas connection with regulator & shut-off valve
- Polyurethane swivel casters with front brakes
- Stainless-steel main back, end caps & covers
- Diamond-pattern steel grates (in lieu of cast iron)
Garland equipment is designed for commercial use only. Installation must conform to local codes, and a gas-line restraining device is required when the unit is mounted on casters.
