Garland MST17BE Master Gas Ranges
$5,449.00
Unit price
/
Unavailable
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Garland MST17BE Master Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Garland MST17BE Master Gas Ranges
$5,449.00
Unit price
/
Unavailable
Description
Garland Master Series 17" Gas Charbroiler — 45,000 BTU
Model MST17B | Heavy-Duty Range-Match Char-Broiler with Storage BaseSlide steak-house firepower into the smallest footprint on your line. At just 17 inches wide, the Garland Master Series charbroiler pairs blistering 45,000 BTU performance with the rugged construction you count on from the industry’s flagship range platform.
Performance & Productivity
- Compact powerhouse – 17" cabinet gives you true char flavor without sacrificing station space.
- Three 15,000 BTU burners – independent Hi-Lo valves let you zone-cook steaks, seafood & veg at once.

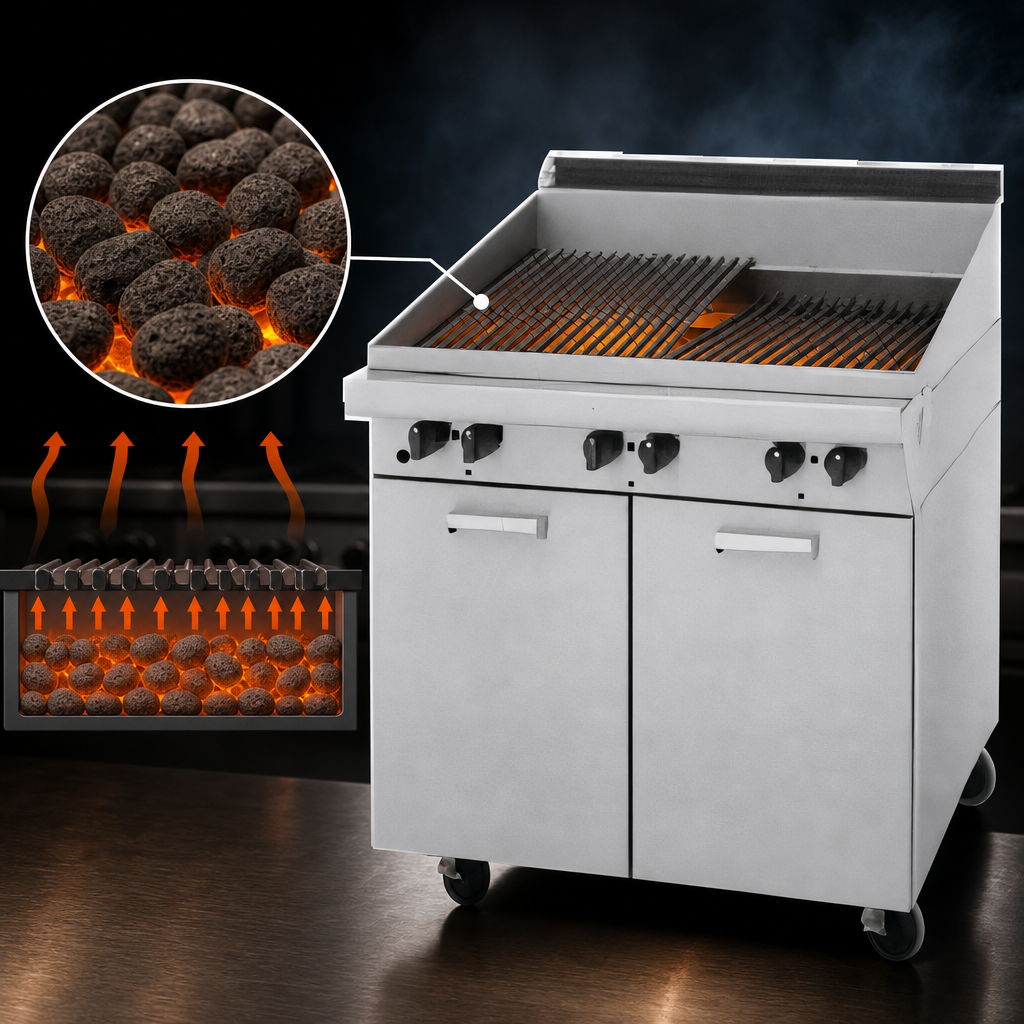

- Ceramic briquette bed – tames flare-ups and spreads heat edge to edge for even results.
- Dual-sided cast-iron grates – ½" rounded bars for delicate proteins; flip to a diamond pattern for bold grill marks.

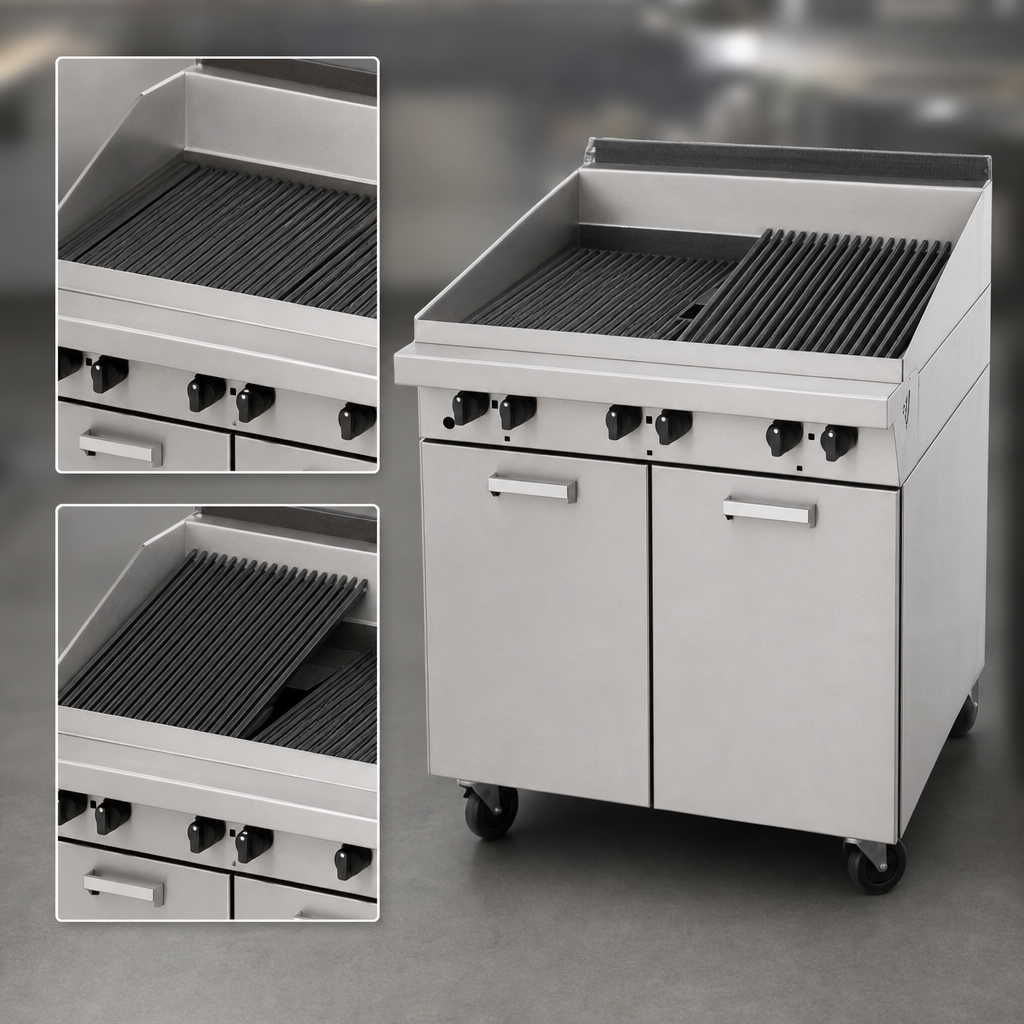

- Flat or tilt grate positions – switch instantly to drain away fat or lock in juices.
- One-touch ignition & safety – piezo electric spark lights pilots fast; Sentry flame-failure shuts off gas if a flame is lost.
Built for the Rush
- Stainless steel front & sides stand up to daily abuse and wipe clean in seconds.
- Full-length grease drawer and removable grates streamline end-of-shift clean-up.
- 6" (152 mm) adjustable chromed legs level the unit on uneven floors.
- Integrated double-door storage base keeps sheet pans, utensils and seasonings right where you need them.
- 1-¼" NPT front gas manifold standard; rear connection kits and regulators available.
Key Specifications
| Cooking surface | 17" W × 23" D (432 × 584 mm) |
|---|---|
| Total input | 45,000 BTU/h | 13.2 kW |
| Burners | 3 × 15,000 BTU cast-iron, individually controlled |
| Gas type | Natural or Propane (specify at order) |
| Operating pressure | 6" WC Natural / 10" WC LP |
| Gas connection | 1-¼" NPT front manifold (rear optional) |
| Overall dimensions | 17" W × 34" D × 37-7/8" H (432 × 864 × 962 mm) including legs |
| Grates | Reversible cast iron; flat or tilt positions |
| Ignition | Piezo electric spark with constant pilots & flame-failure protection |
| Certifications | NSF | CE | cULus |
Popular Options & Accessories
- Rear gas connection kit & gas regulator
- 10", 17" or 33" stainless steel backguard
- Polyurethane swivel casters (set of 4) with front brakes
- Quick-disconnect gas hose with restraining device
Commercial Use Only: Garland Master Series equipment is engineered for professional kitchens and is not intended for residential installation.
Need a different width or a modular top? Explore the full Garland Master Series line or contact us for a custom battery configuration.
Features & Specs
Features & Specs
Manufacturer
Garland
Brand_name
Master
Height
46.25in
Width
17.0in
Depth
38.0in
Shipping Weight
235.0lbs
Base
storage base
Exterior Finish
stainless steel front & sides
Top
(1) charbroiler
Specifications
Master Series Charbroiler, gas, 17" W x 23" D grill area, briquettes, flat/tilt grates, reversible grates, electric spark ignition, pilot valve with flame fail, storage base, stainless steel front and sides (stainless steel exposed sides on batteries), 6" legs, 45,000 BTU (Garland)
