Garland MST17B Master Gas Ranges
Description

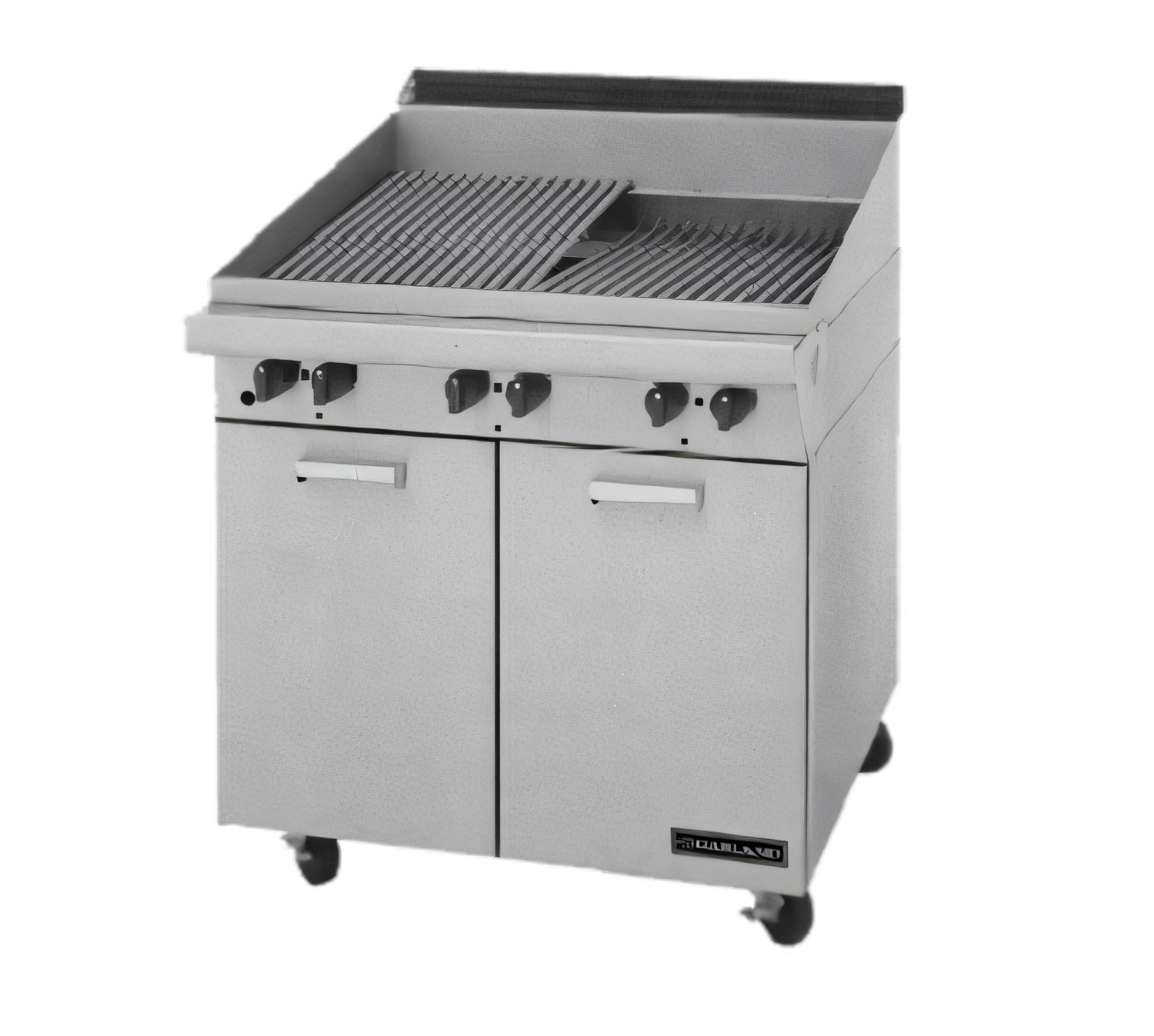

Garland Master Series 17" Gas Charbroiler – 45,000 BTU
Model MST17B | Range-Match Heavy-Duty Char-BroilerSear steaks, burgers and vegetables to perfection without giving up precious line space. The 17-inch Garland Master Series Charbroiler delivers full-size performance in a compact footprint, pairing flawlessly with any Master Series range battery or standing proudly on its own storage base.
Key Features
- 45,000 BTU total output from three 15,000 BTU burners for lightning-fast preheat and recovery.
- Heavy-duty, dual-sided cast-iron grates: rounded bars for delicate items, diamond pattern for deep, signature grill marks.

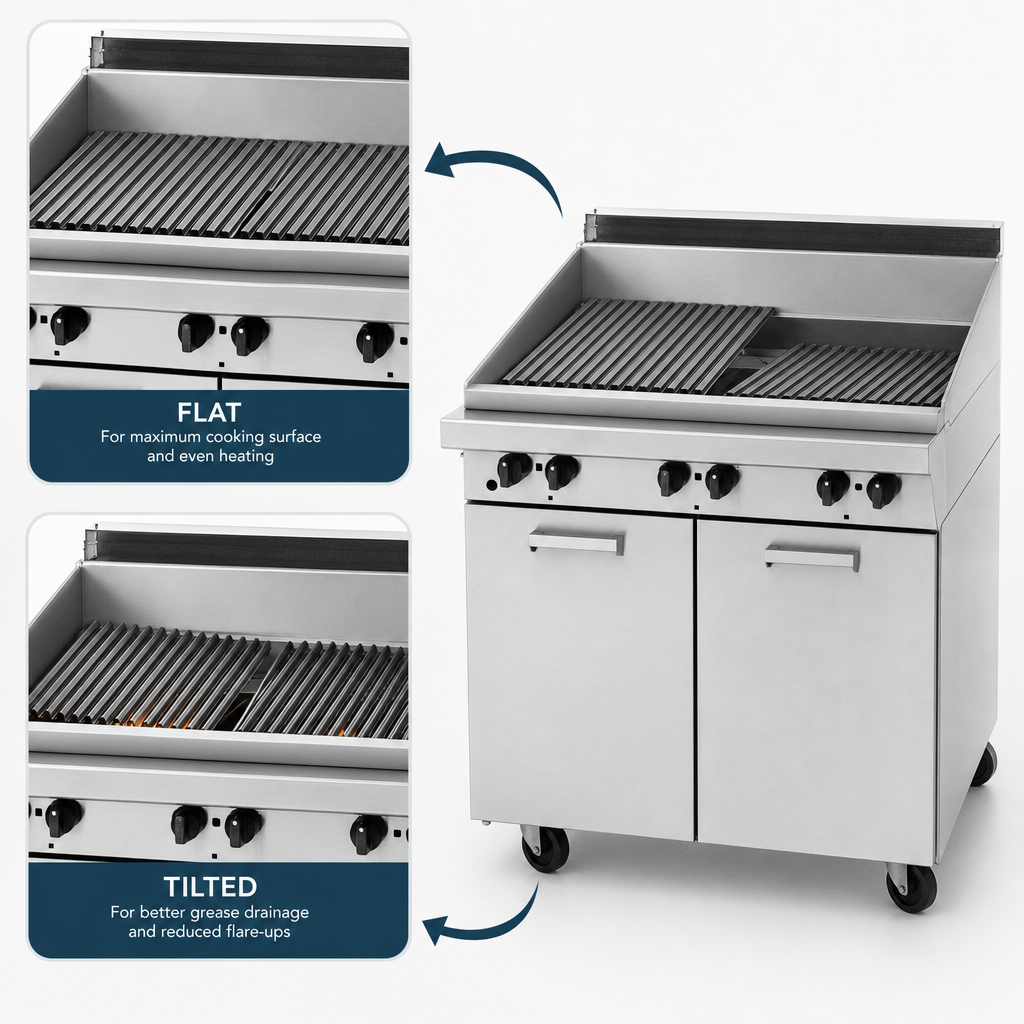

- Grate sections adjust flat or in a forward tilt to drain excess grease away from food.

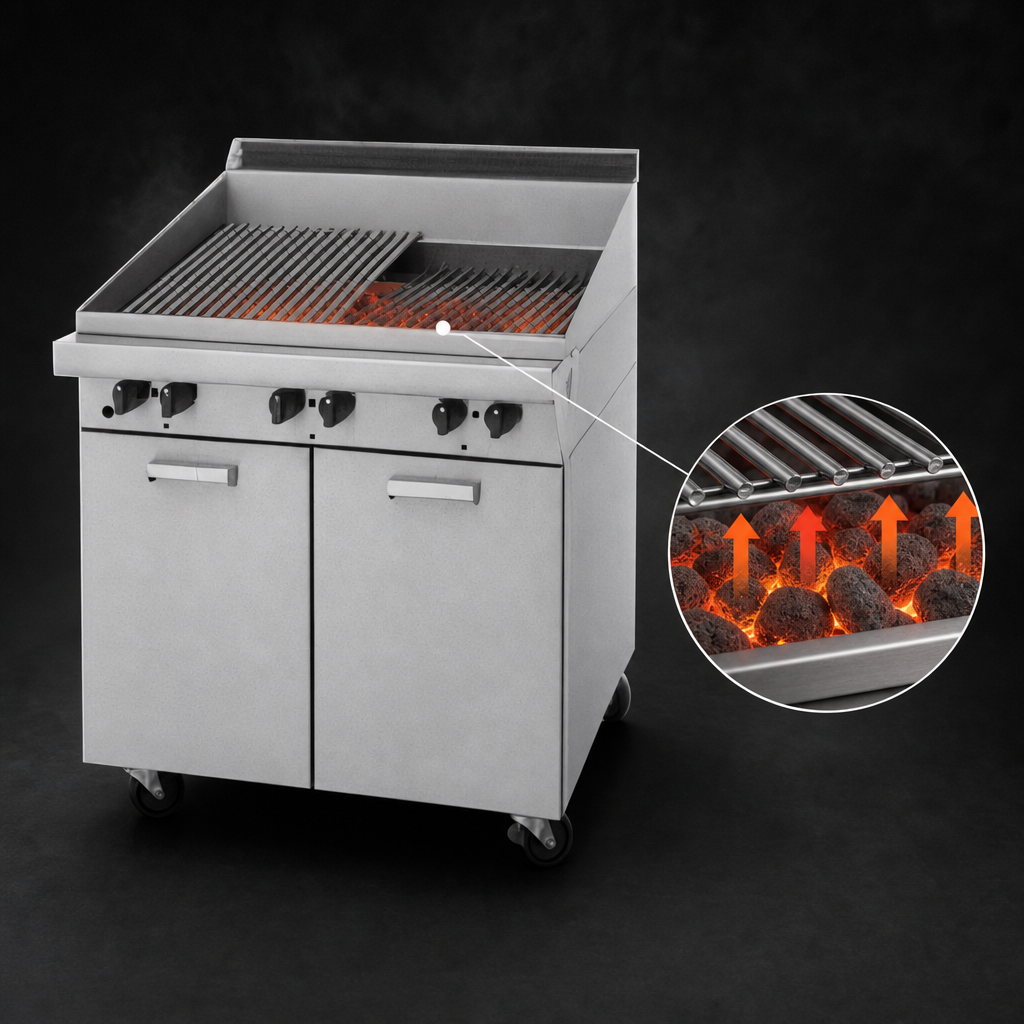

- Ceramic briquette bed spreads heat evenly and minimizes flare-ups.
- Piezo spark ignition with standing pilots plus Sentry™ total flame-failure protection on every burner.
- Individual front-mounted Hi-Lo valves for precise zone control.
- Full-length, easy-pull grease drawer keeps the cookline clean and safe.
- Rugged stainless-steel front, sides and rail; aluminized-steel storage base for pans, tools or supplies.
- 6" (152 mm) adjustable chrome legs standard; optional casters available.
- 1-1/4" NPT front gas manifold (rear connection kit optional).
Technical Specifications
| Cooking surface (W × D) | 17" × 23" (432 × 584 mm) |
|---|---|
| Total BTU/hr | 45,000 BTU (13.2 kW) |
| Burner zones | 3 atmospheric tube burners @ 15,000 BTU each |
| Fuel | Natural gas (field-convertible to LP) |
| Operating pressure | Natural 6" WC | Propane 10" WC |
| Gas connection | 1-1/4" NPT (front, standard) |
| Overall dimensions (W × D × H) | 17" × 34" × 37-7/8" (432 × 864 × 962 mm) |
| Working height | 31-1/2" (800 mm) to grate surface |
| Grease management | Removable full-length stainless drawer |
| Certifications | NSF, CE, CSA |
| Shipping weight | 235 lb (107 kg) |
Popular Options & Accessories
- Stainless-steel backguard – 10", 17" or 33" high
- Rear gas connection kit (3/4" NPT) & gas regulator
- Gas flex hose with quick disconnect & restraining device
- Non-marking swivel casters with front brakes
- 6" stainless-steel adjustable legs
Questions about configuration or lead time? Call Garland Customer Service at 1-800-424-2411 — we’re here to help.
