Key specifications
- BTU
- 40,000 BTU
- Gas Type
- Natural Gas
- Dimensions
- 34.0"W × 20.25"D × 17.0"H
- Type
- Salamander Broiler
- Style
- Infrared
- Installation Type
- Countertop
Garland Master MSRCM 34-inch Infrared Salamander Broiler
- Countertop
- Range mount
- Range mount with backriser
- Fixed-position roll-in/roll-out
- Adjustable 2-position pullout
Questions before you buy?
Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.
Specifications
Description

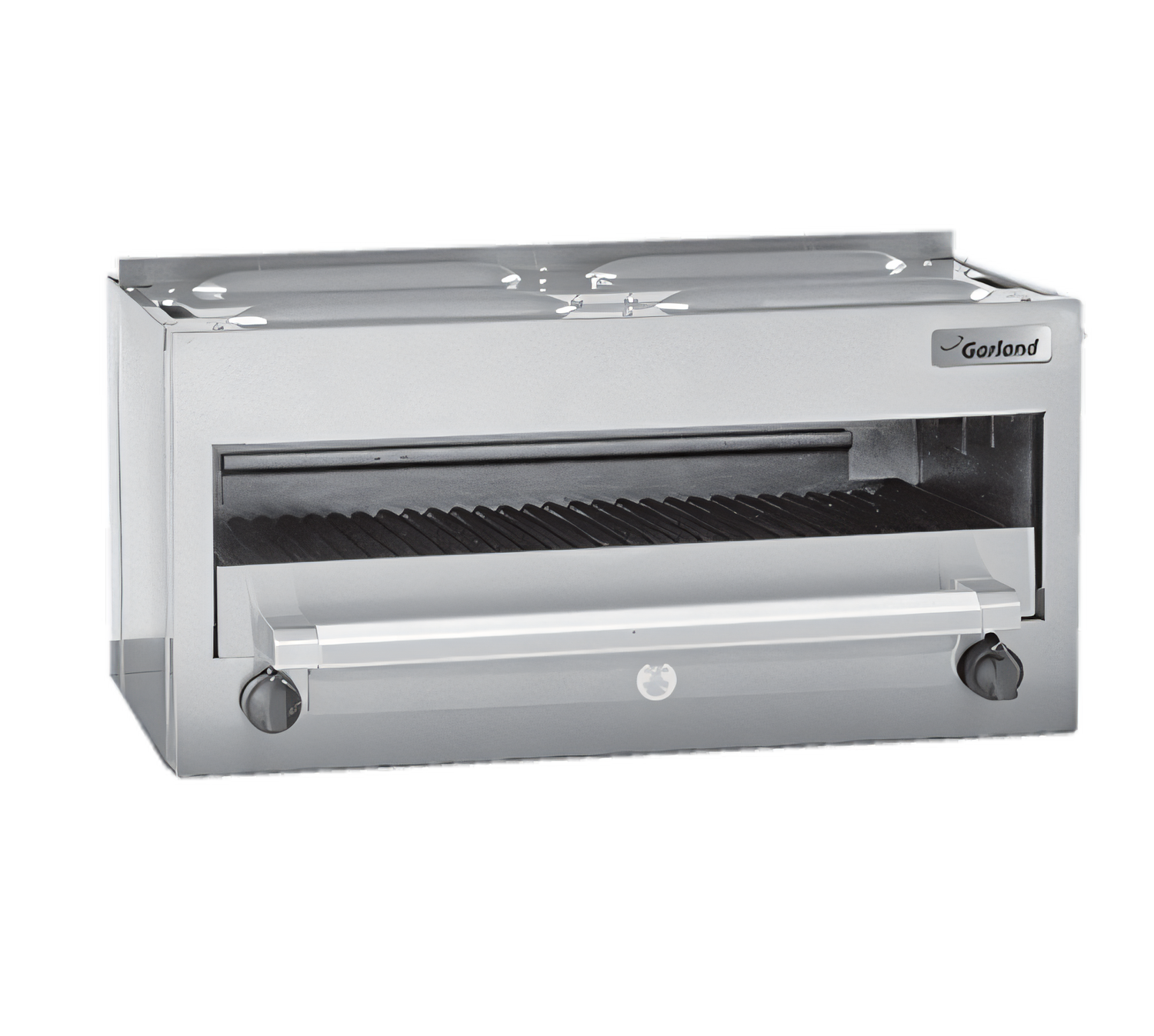

The Garland Master MSRCM is a 34-inch countertop salamander broiler with two 20,000 BTU infrared burners and Hi-Lo valve controls.
- Fixed-position broiling rack rolls in and out and supports flat or tilt positions.
- Removable grease pan simplifies grease collection.
- Stainless steel front, sides, and top with 4-inch legs.
- Natural gas input is rated at 40,000 BTU.
Overall Dimensions:
34.0"W x 20.25"D x 17.0"HProduct Weight:

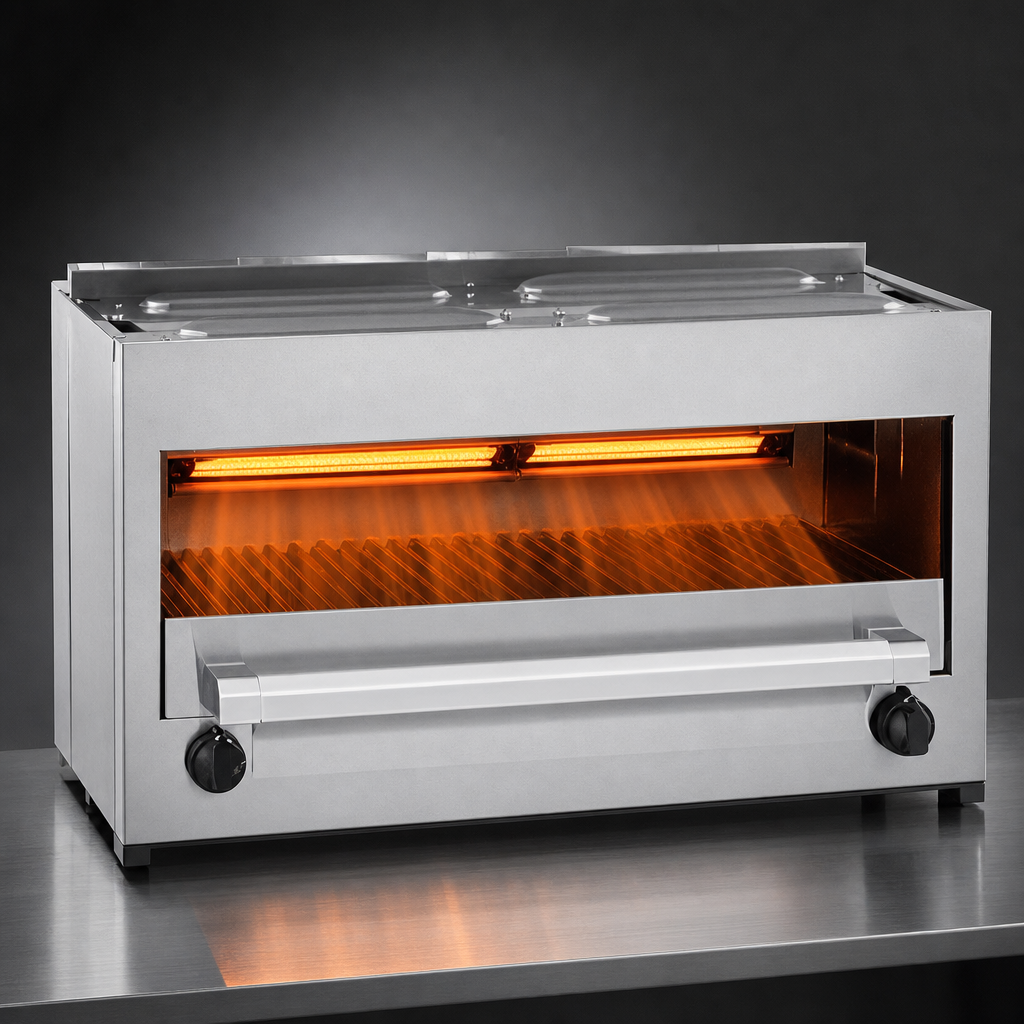

170.0 lbInfrared Burners
Two 20,000 BTU atmospheric infrared burners provide a total input of 40,000 BTU.

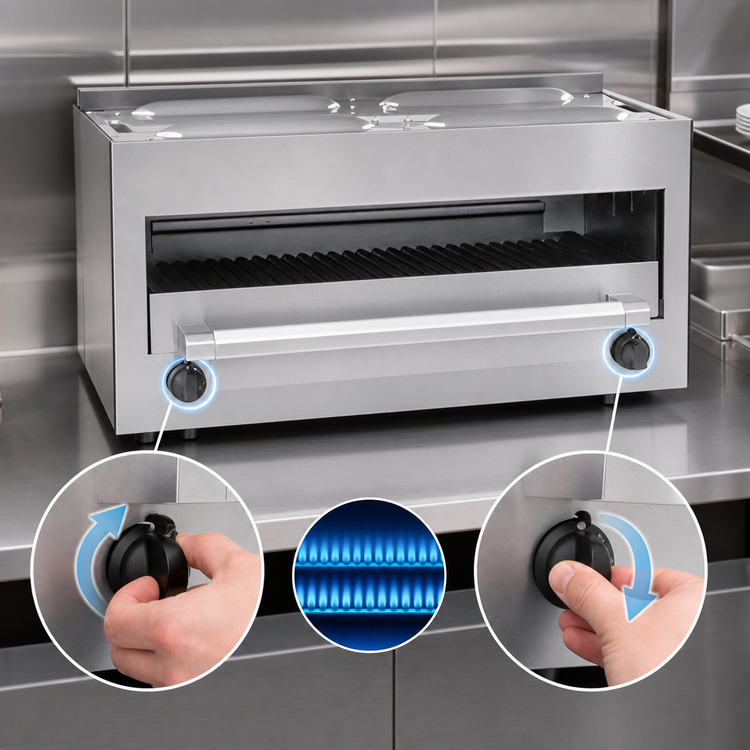

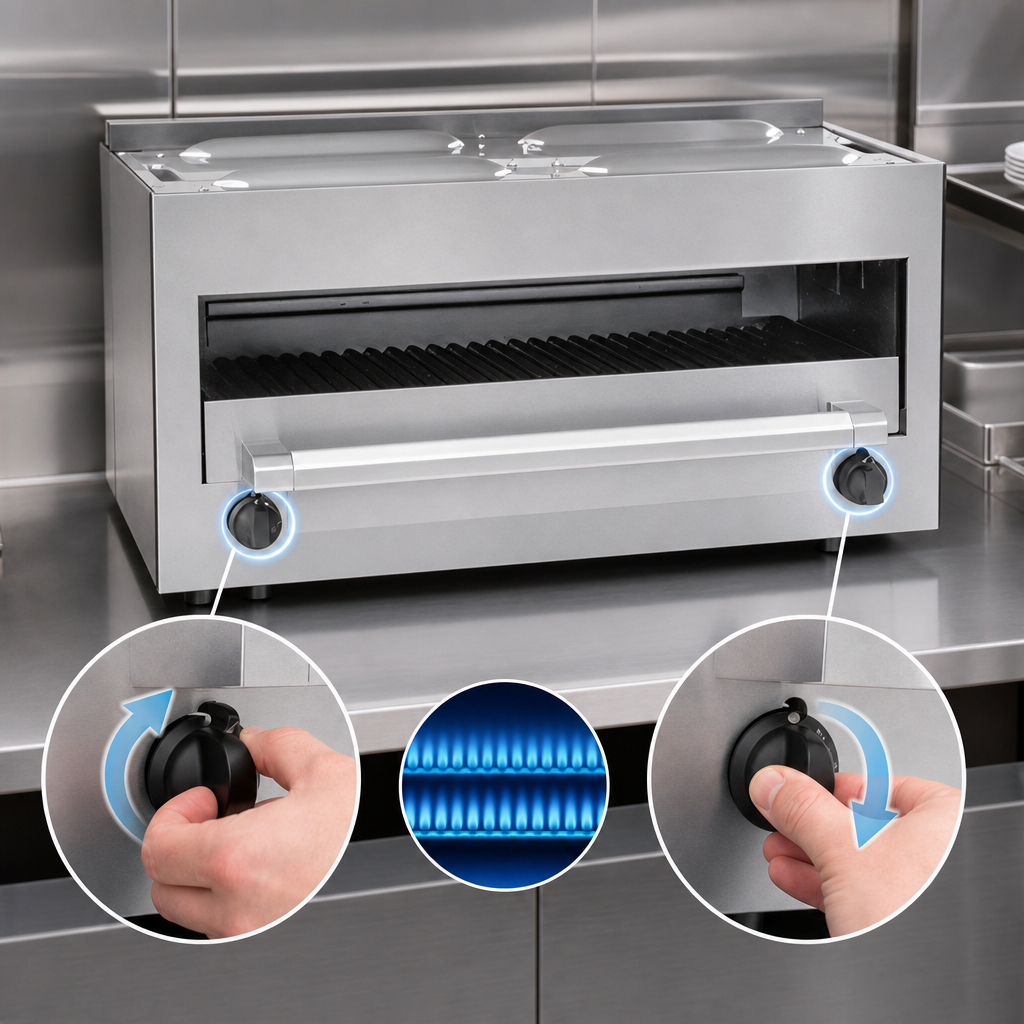

Hi-Lo Valve Controls
Each burner is controlled with a Hi-Lo valve.
Fixed-Position Broiling Rack
The rack rolls in and out and supports flat or tilt positions.
Removable Grease Pan
The removable grease pan collects grease below the broiling area.
Stainless Steel Construction
The front, sides, and top are stainless steel.
Pilot Valve
The unit includes a pilot valve.
Countertop Installation
The MSRCM is designed for countertop installation and includes 4-inch legs.
