Garland MCO-GS-20M Master Convection Ovens
Description

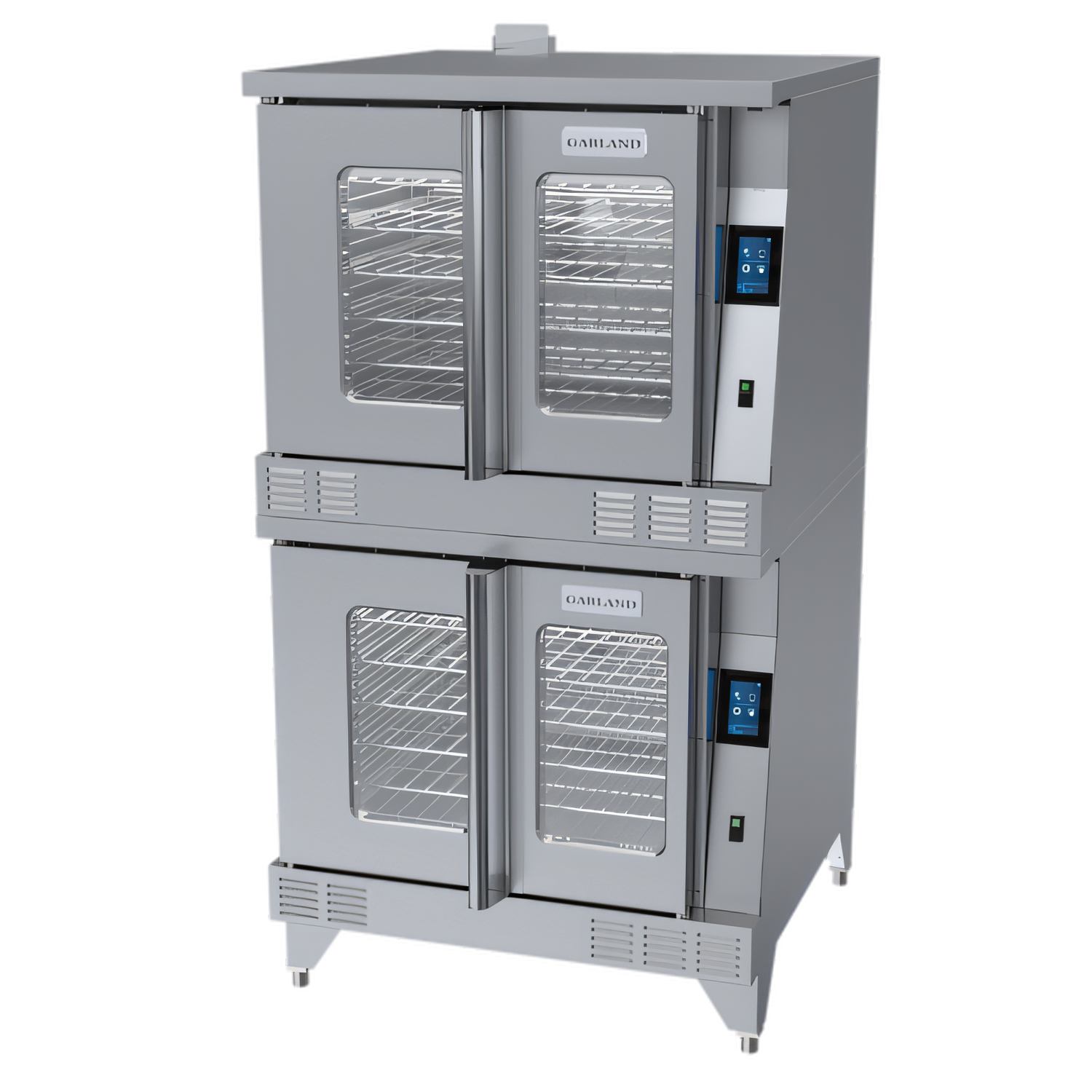

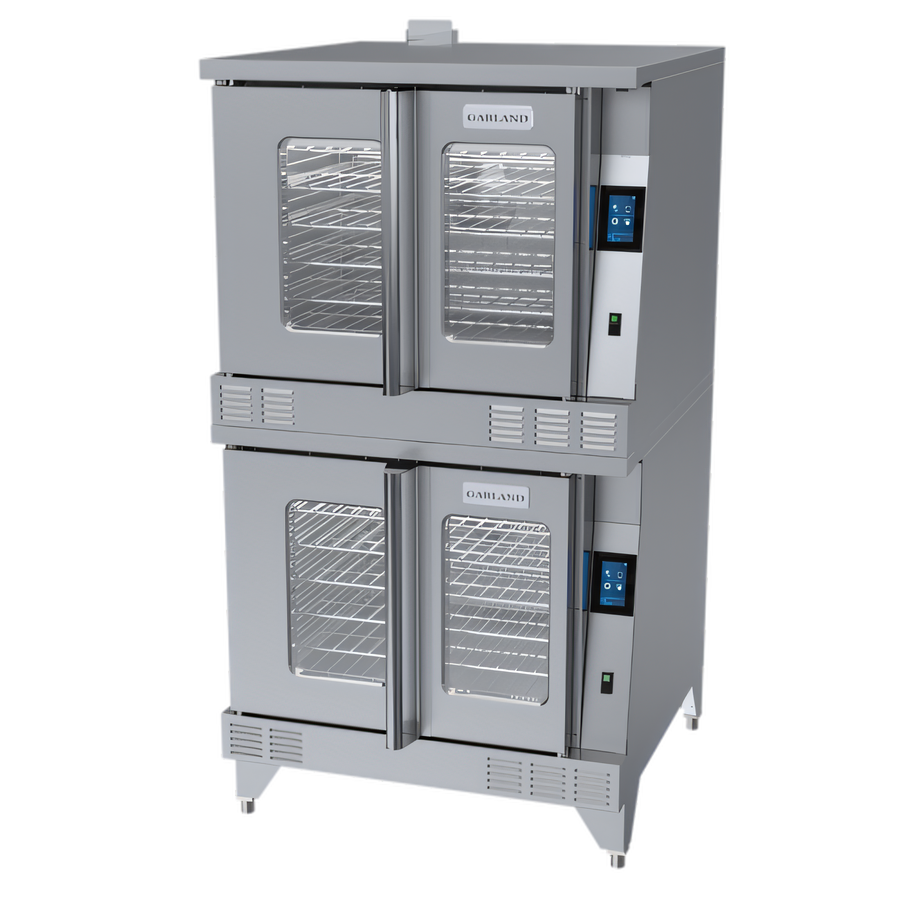

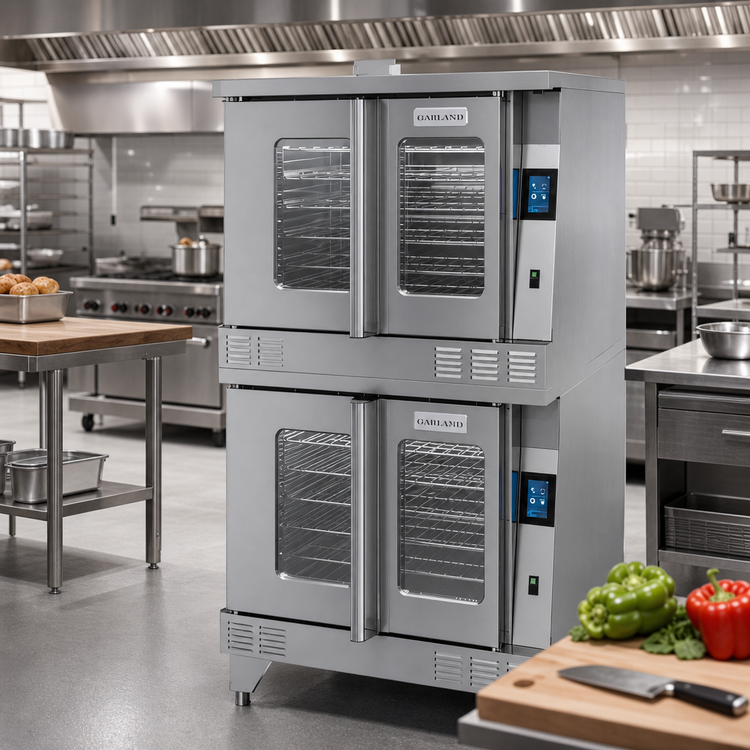

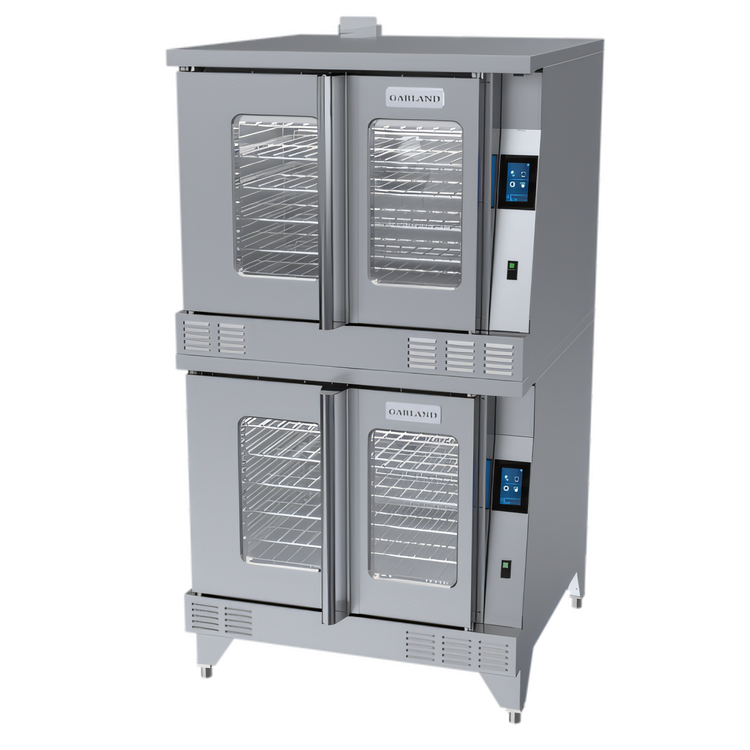

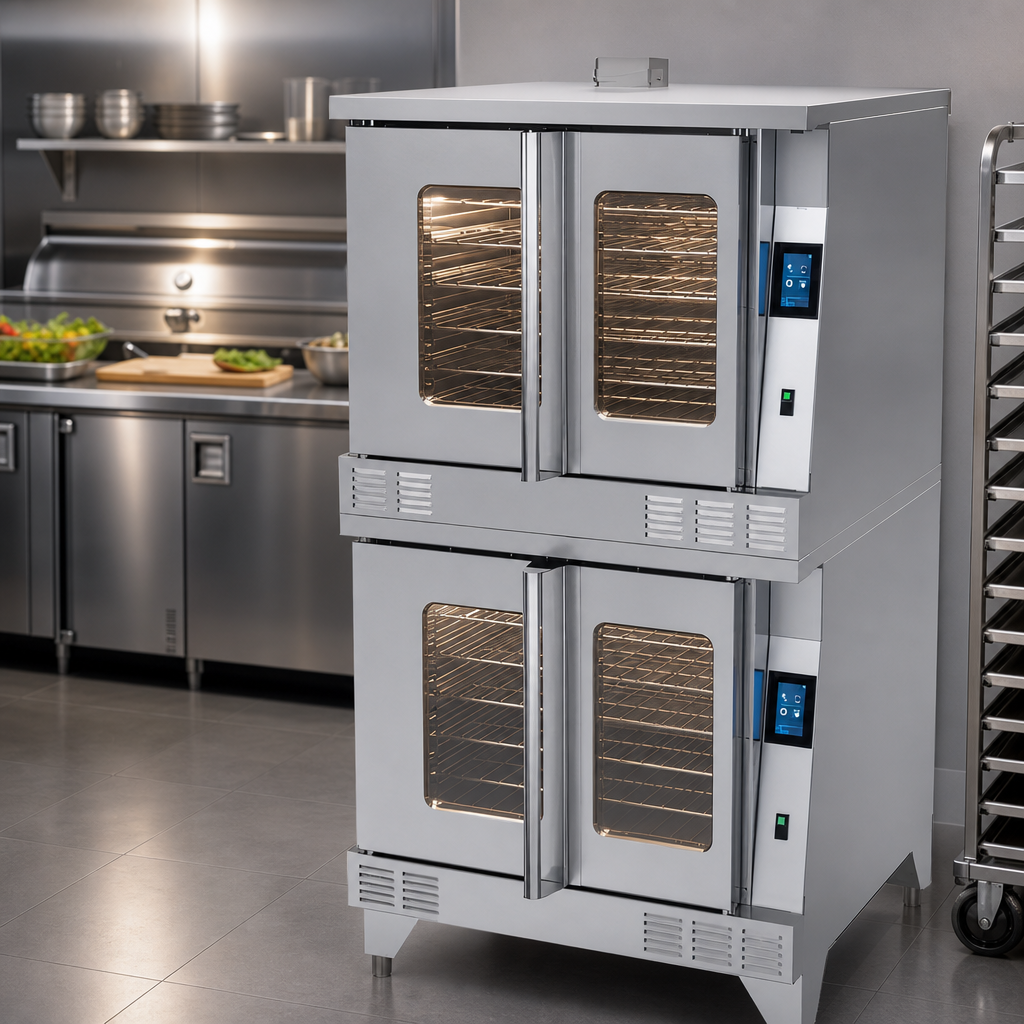

Garland Master Series Gas Convection Oven – Double-Deck, easyTouch™ 4.3" Control
Model MCO-GS-20M | 120,000 BTU | Standard DepthEngineered for demanding commercial kitchens, the Master Series double-deck convection oven delivers high-capacity baking with simple press-and-go operation. Two independent 60,000 BTU chambers, 24″ tall cooking cavities, and Garland’s energy-saving EnerLogic™ technology let you cook more product faster— all while maintaining consistent, even results every time.
Key Features

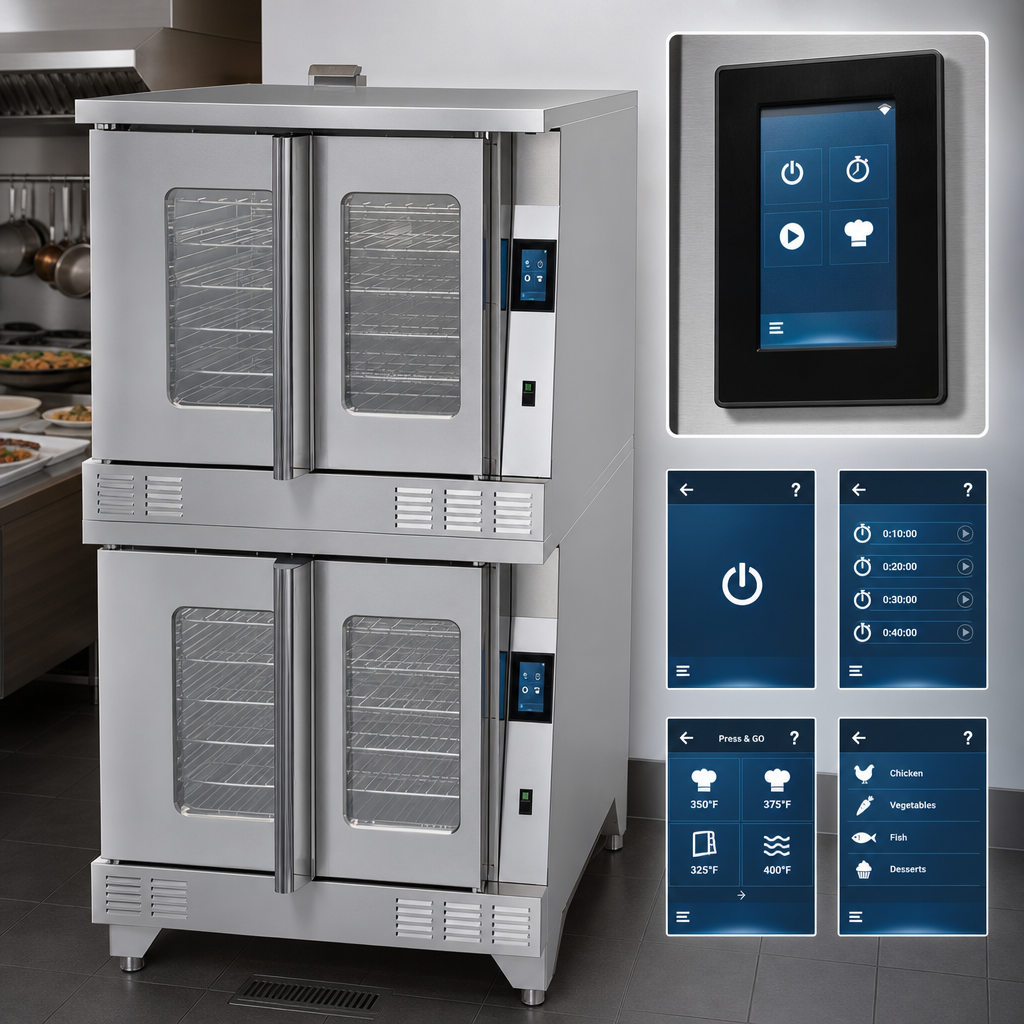

- easyTouch™ 4.3″ capacitive touchscreen with intuitive Press & Go interface, programmable recipes, timers & Cook’n’Hold mode
- 120,000 BTU total output (60,000 BTU per cavity) with direct-spark ignition and 100 % safety shut-off
- 0.6 HP, 2-speed fan motor in each oven for rapid heat-up, even airflow & fast recovery
- Extra-tall 24″ (610 mm) cooking chambers—20 % more vertical capacity than typical full-size ovens
- Six chrome-plated racks per cavity on 13-position guides handle sheet pans, hotel pans & more
- 60/40 dependent doors with patented Safety Door System, full-length positive closure & double-pane thermal windows
- Durable stainless-steel front, sides, top & 6-1/2″ legs; coved-corner porcelain interiors for easy clean-up
- EnerLogic™ technology optimizes burner cycling for reduced energy consumption without sacrificing performance
- Bright interior lighting keeps product visible without opening doors
At-a-Glance Specifications
| Oven type | Gas, forced-air convection, double deck |
|---|---|
| Control system | easyTouch™ 4.3″ touchscreen with Press & Go, Cook’n’Hold & recipe storage |
| Total heat input | 120,000 BTU (60,000 BTU per cavity) |
| Temperature range | 150 °F – 500 °F (66 °C – 260 °C) |
| Fan motor | 0.6 HP, 2-speed (high / low) per cavity |
| Rack capacity | 6 racks per cavity, 13 positions |
| Cavity size (WxHxD) | 29″ × 24″ × 24″ (736 × 610 × 610 mm) each |
| Exterior size (WxDxH) | 38″ × 41-1/4″ × 70-1/2″ (965 × 1048 × 1791 mm) |
| Gas connection | 1″ NPT rear manifold (natural or propane) |
| Electrical | 120 V, 1-phase, 9.8 A per deck (NEMA 5-15P cord included) |
| Shipping weight | ≈ 1,030 lb (465 kg) |
| Certifications | UL, cUL Gas-Fired, NSF |
Popular Options & Accessories
- 80,000 BTU high-output burner package (natural gas)
- Stainless-steel solid doors (no charge swap)
- Swivel or low-profile casters with front brakes
- Additional chrome racks or removable stainless drip pan
- Stainless open stand with rack guides & storage shelf
- 3/4″ gas flex hose with quick disconnect
- 208 V or 240 V single-phase motor kit
Garland equipment is designed for commercial use only and is not approved for residential installations.
