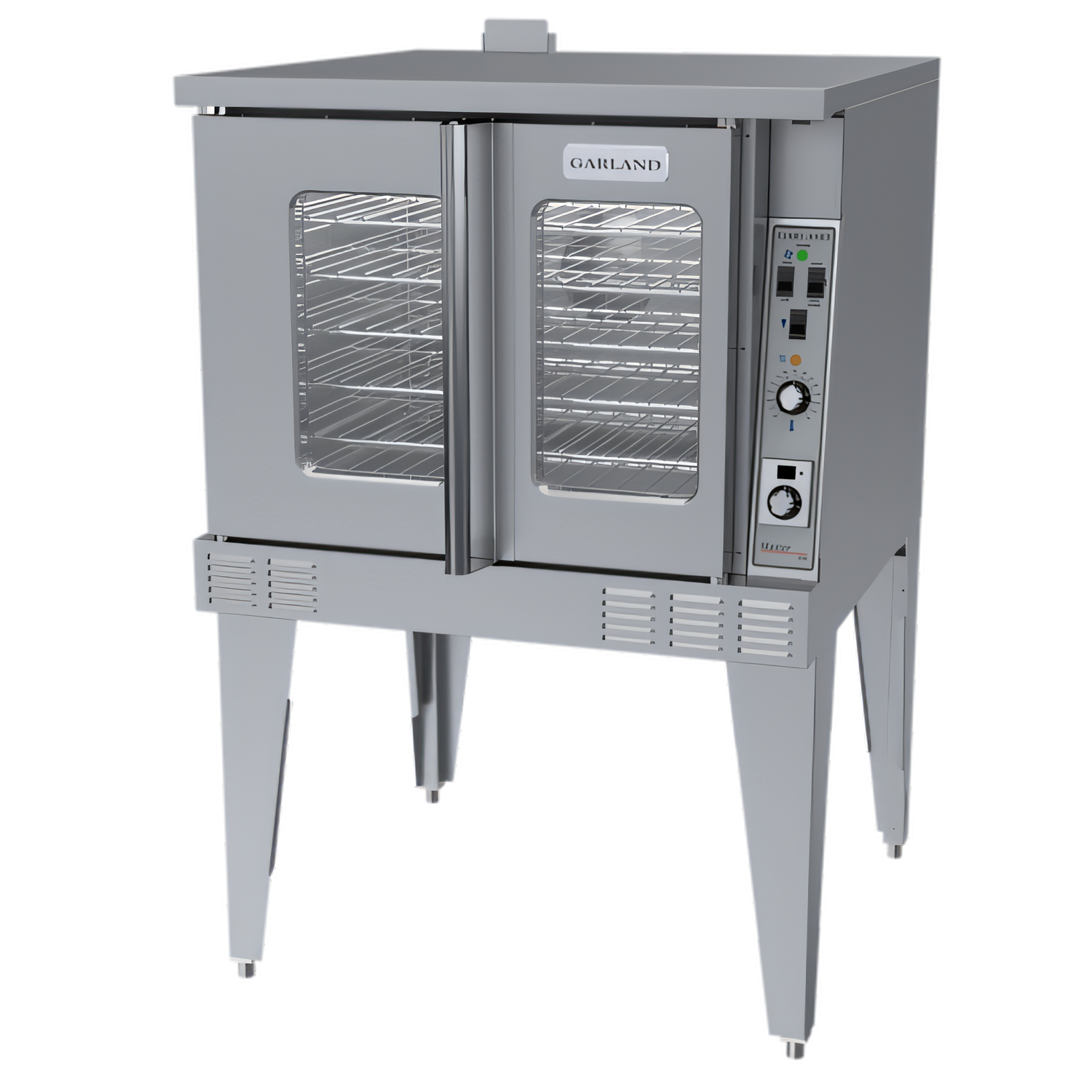

Garland MCO-GS-10-S Master Convection Ovens
Description
Master Series Gas Convection Oven – Single Deck
Model MCO-GS-10-S | 60,000 BTU | Natural or PropaneBuilt in North America for the rigours of today’s high-volume kitchens, the Garland Master Series MCO-GS-10-S delivers faster heat-up, unmatched reliability and a cavernous 24 inch cooking chamber—4 inches taller than most competing ovens—so you can bake, roast or re-thermalise more product in every batch without increasing cook time.
Key benefits

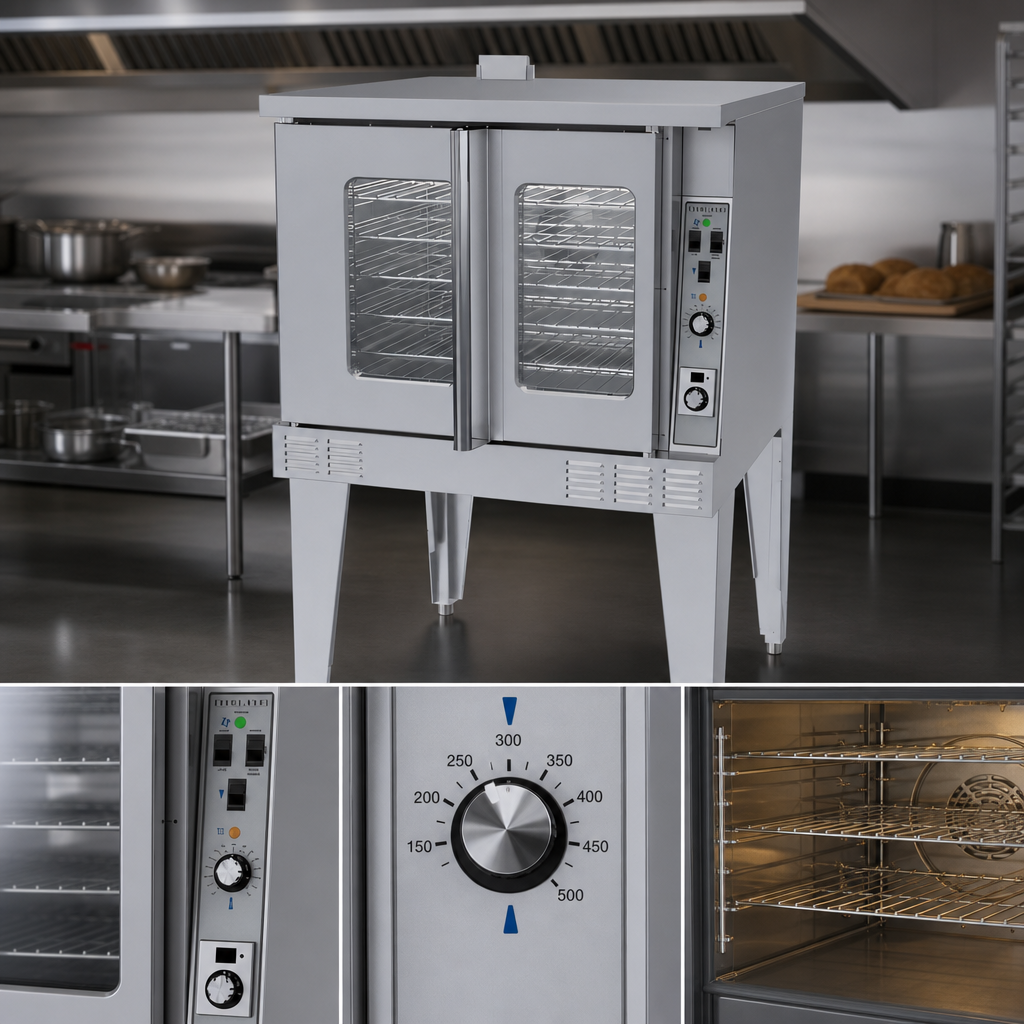

- Master 200 solid-state controls with 150 °F – 500 °F (66 °C – 260 °C) set-point and 60-minute digital timer.

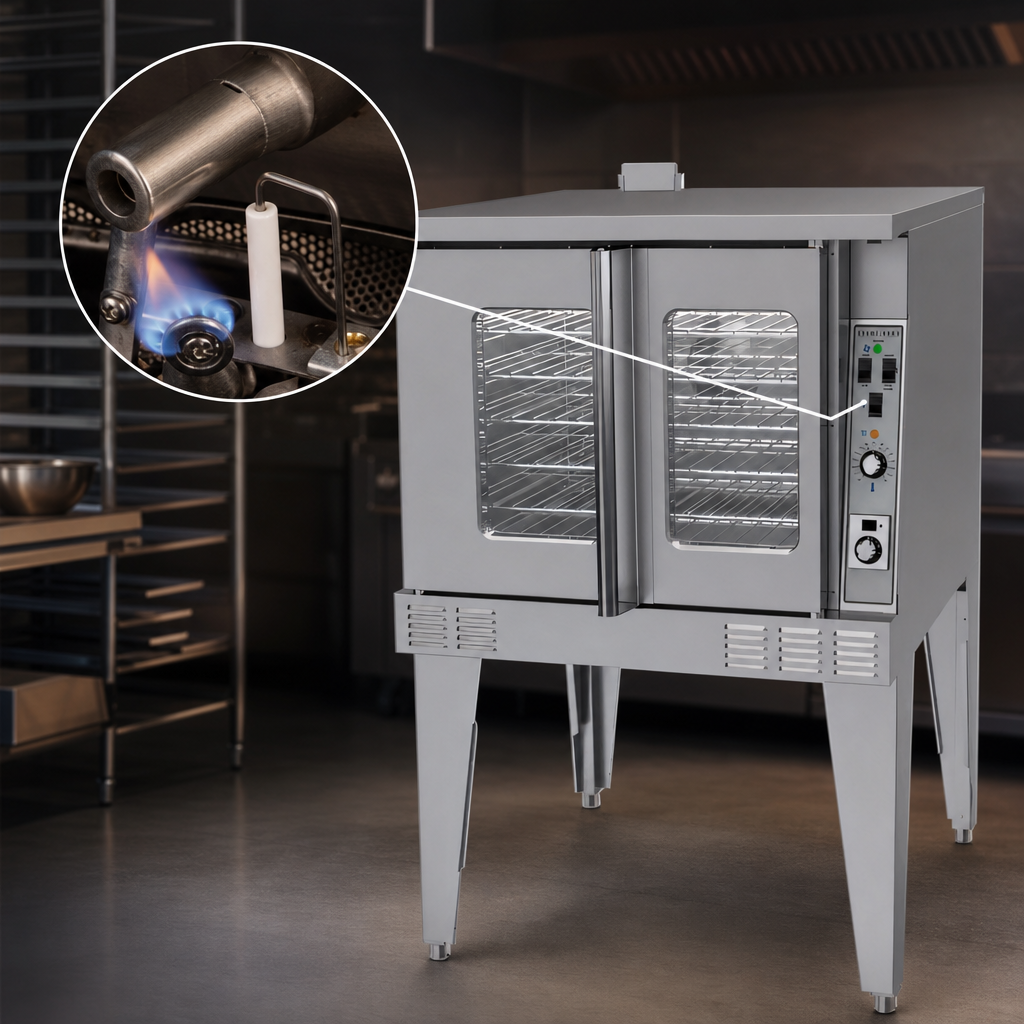

- 60,000 BTU/cavity burner with direct-spark electronic ignition and 100 % safety shut-off.
- .6 HP, two-speed fan motor (high/low) drives Garland’s serpentine airflow for faster heat recovery and even baking.
- Extra-tall 24" (610 mm) porcelain-enameled cavity with coved corners for easy wipe-clean sanitation.
- Six chrome-plated racks on 13-position guides accommodate virtually any pan size.
- 60/40 dependent doors with patented “Safety Door System,” double-pane thermal windows and full-length positive latch.
- All-stainless exterior (front, sides, top & 25-1/2" legs) stands up to the harshest commercial environments.
- Ships fully assembled, UL, cUL Gas-Fired and NSF listed.
At-a-glance specifications
| Fuel / Input | Natural or propane gas, 60,000 BTU (17.6 kW) |
|---|---|
| Control system | Master 200 solid-state, 150 °F – 500 °F + 60-min timer |
| Fan / Motor | Two-speed (.6 HP) convection fan |
| Oven interior (W × H × D) | 29" × 24" × 24" (736 × 610 × 610 mm) |
| Exterior (W × H × D) | 38" × 57-1/2" × 41-1/4" (965 × 1461 × 1048 mm) |
| Rack capacity | 6 racks standard, 13 positions |
| Door design | 60/40 dependent, double-pane windows |
| Gas connection | ¾" NPT, Natural 4.5" WC / Propane 10" WC |
| Electrical | 120 V, 1-phase, 9.8 A (cord & NEMA 5-15P plug supplied) |
| Certifications | UL Gas-Fired, cUL, NSF |
| Warranty | 2-year parts & 1-year labor, 5-year door (excl. glass) |
Included with every oven
- (6) chrome-plated racks
- 25-1/2" (648 mm) stainless steel legs with adjustable bullet feet
- Interior halogen lighting
- Operator’s manual & installation kit
Popular factory options
- 80,000 BTU burner upgrade (natural gas)
- Stainless steel solid doors (no charge)
- Extra oven racks
- Swivel casters with front brakes
- Stainless steel open stand with rack guides & shelf
- 208 V or 240 V single-phase motor
Garland equipment is engineered for commercial use only and is not approved for residential installation.
