Garland MCO-GD-20M Master Convection Ovens
Garland MCO-GD-20M Master Convection Ovens is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Garland MCO-GD-20M Master Convection Ovens
Description

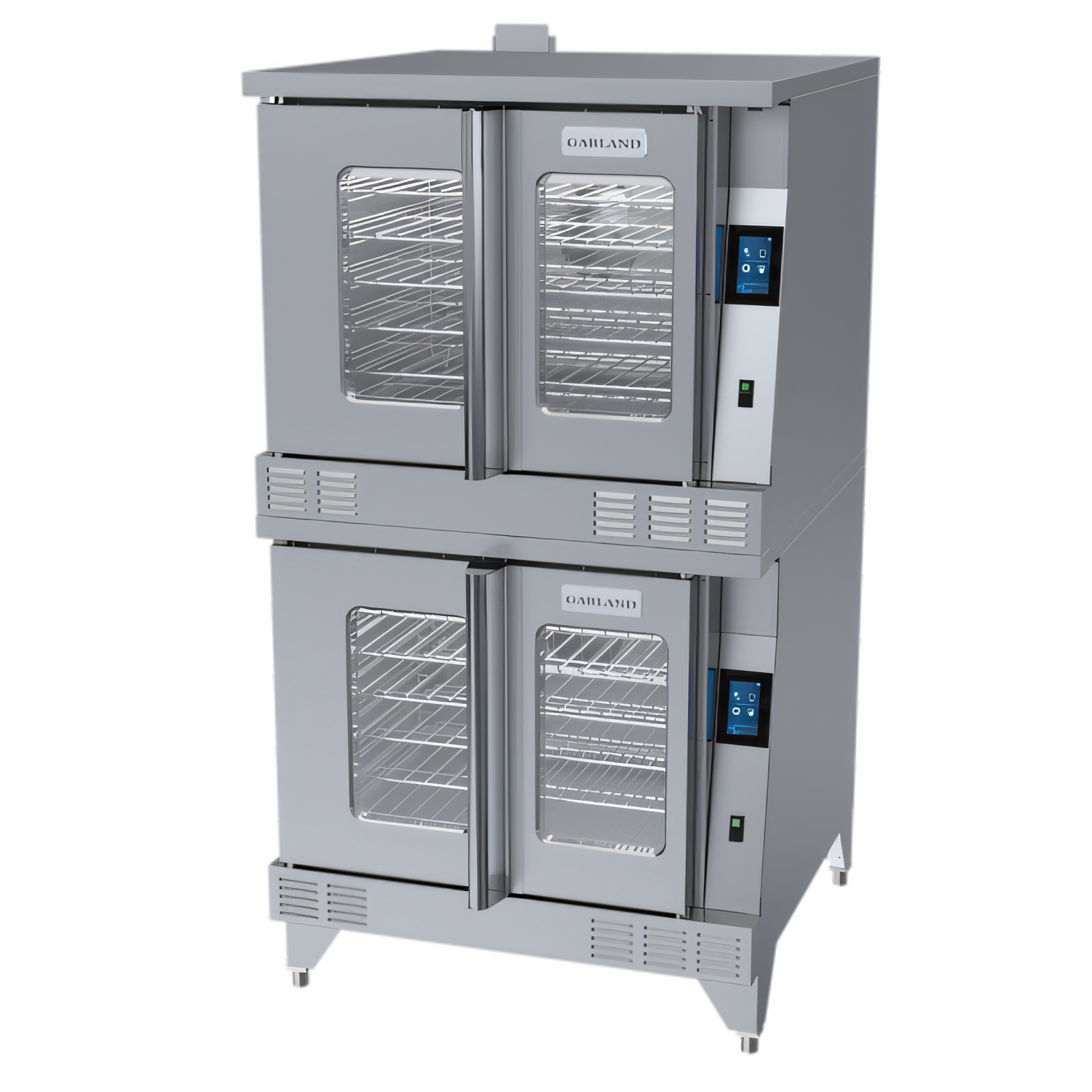

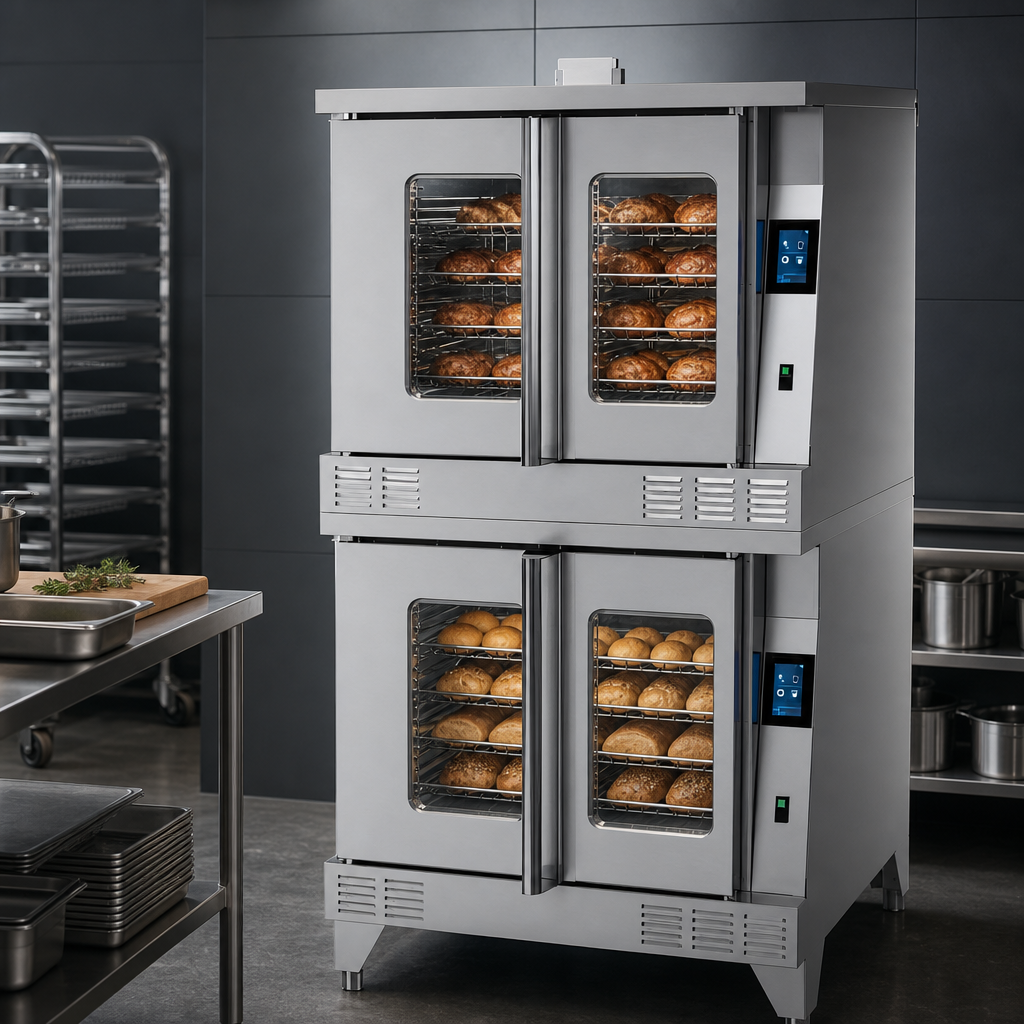

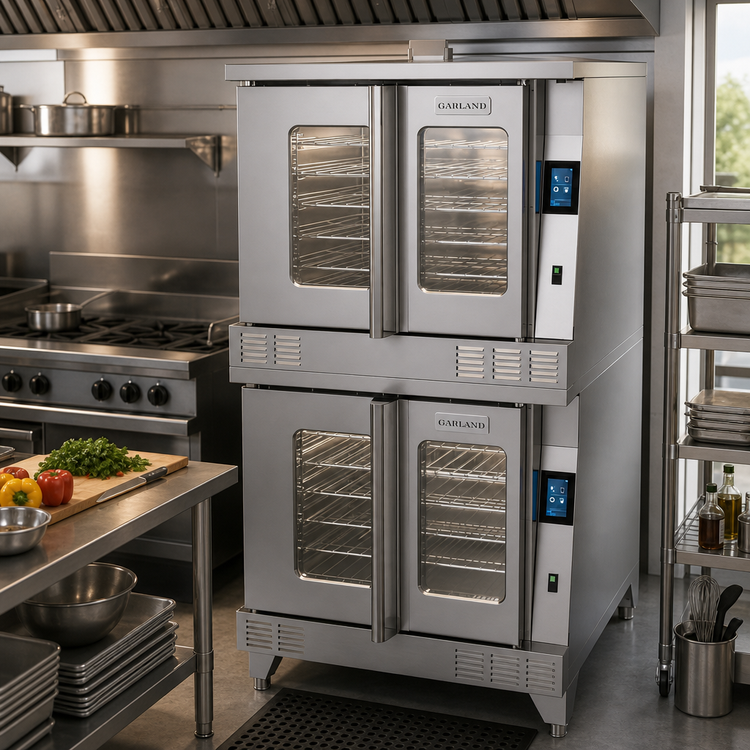

Master Series Double-Deck Gas Convection Oven – Deep Depth
Model MCO-GD-20M | easyTouch® 4.3″ Control | 120,000 BTUBuilt in North America for the busiest commercial kitchens, the Garland Master Series double-deck convection oven combines high-capacity baking with the intuitive easyTouch® digital controller. Two powerful 60,000 BTU chambers, each with a generous 24″ H x 29″ W x 28″ D porcelain cavity, deliver fast, even results while EnerLogic™ technology slashes energy costs. From high-volume schools to full-service restaurants, mastering the bake has never been easier.
Why You’ll Love It

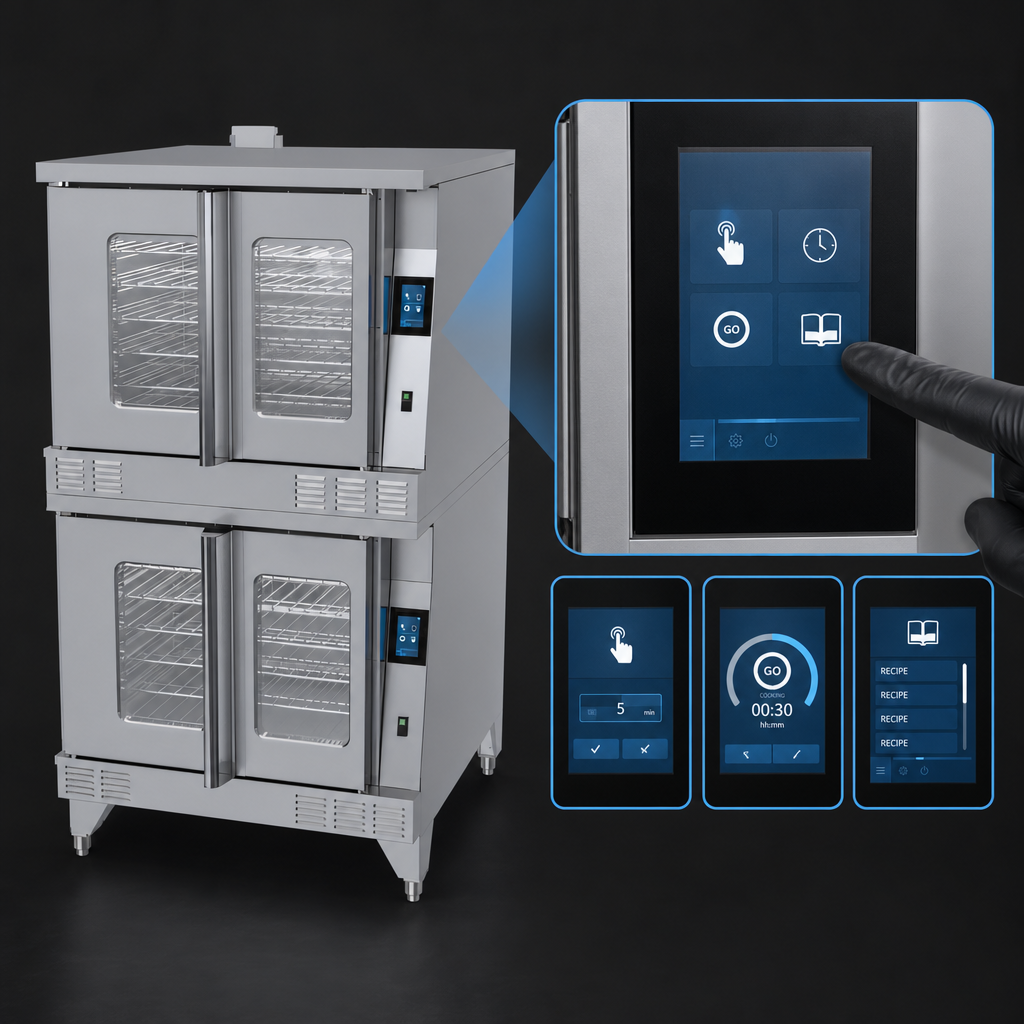

- easyTouch® 4.3″ full-color screen with Press&Go one-touch start, programmable recipes, timers & Cook’n’Hold.
- Dual-speed, 0.6 HP fan motor in each deck drives Garland’s serpentine airflow for perfectly even browning—no pan rotation required.
- Deep-depth 28″ interior accepts full-size sheet pans either way, giving you 20 % more capacity than 20″ ovens.
- Six chrome-plated racks per deck on 13-position guides for unmatched loading flexibility (12 racks total).
- 60/40 dependent stainless-steel doors with double-pane thermal windows and patented Safety Door System that stops the fan if opened beyond 3″.
- Porcelain-enameled, coved-corner cavities wipe clean fast and resist “bake-on” residue.
- Electronic spark ignition, 100 % gas safety shut-off, interior lighting and positive door latch for safe, worry-free operation.
- Rugged stainless front, sides, top & 6-½″ legs built for years of heavy-duty service.
- Field convertible for natural or propane gas; 120 V plug-in electrical connection for controls & motors.
- UL, cUL Gas-Fired & NSF listed for peace of mind everywhere in North America.
Performance & Technical Data
| Oven type | Gas, forced-air convection – double deck, deep depth |
|---|---|
| Total input | 120,000 BTU/h (35.2 kW) • Natural or propane |
| Controller | easyTouch® 4.3″ capacitive touchscreen, Press&Go presets, Cook’n’Hold, recipe storage |
| Cooking temperature | 150 °F – 500 °F (66 °C – 260 °C) |
| Fan motor | 0.6 HP, two-speed (high/low) per deck |
| Cavity size (each) | 29″ W x 24″ H x 28″ D (736 mm × 610 mm × 711 mm) |
| Rack capacity | 6 chrome racks on 13 positions per deck (12 racks supplied) |
| Exterior dimensions | 38″ W x 70-½″ H* x 44-½″ D (965 mm × 1791 mm × 1130 mm) |
| Electrical | 120 V / 1 Φ / 9.8 A per deck (line cord with NEMA 5-15P plug) |
| Gas connection | 1″ NPT rear manifold |
| Certifications | UL, cUL Gas-Fired, NSF |
| Warranty | 2-year parts & 1-year labor, plus 5-year door warranty (excludes glass) – USA & Canada |
*Height shown with standard 6-½″ adjustable legs. Optional casters and low-profile legs available.
Popular Options & Accessories
- 80,000 BTU high-output burner kit (per cavity)
- Solid stainless-steel doors (no window)
- Removable stainless drip pan
- Extra oven racks or solid rack guide shelf
- Swivel or low-profile casters with front brakes
- Open stainless base with rack guides & undershelf
- 3⁄4″ gas flex hose & quick-disconnect kit
