Garland MCO-GD-10-S Master Convection Ovens
Description

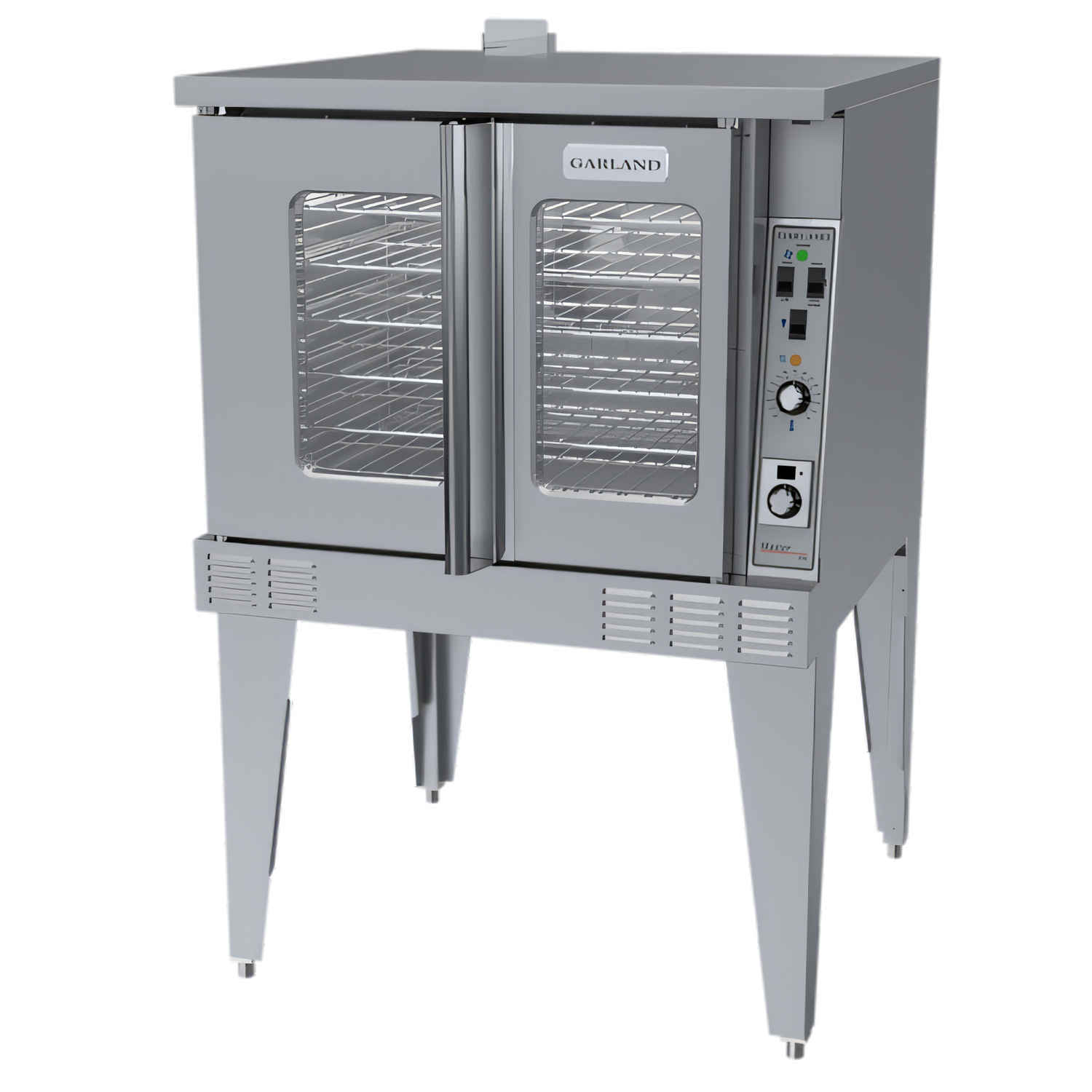

Garland Master Series “Master” Convection Oven
Single-Deck • Gas • Deep-Depth 43"Engineered for high-volume commercial kitchens that refuse to compromise on consistency, the Garland Master Series deep-depth convection oven packs a full 60,000 BTU of baking power into a rock-solid stainless-steel cabinet only 38" wide. Master 200 solid-state controls, a two-speed fan and a spacious 24" high cooking chamber give you the flexibility, capacity and even-heat performance you need to keep plates moving and profits growing.
Stand-Out Features

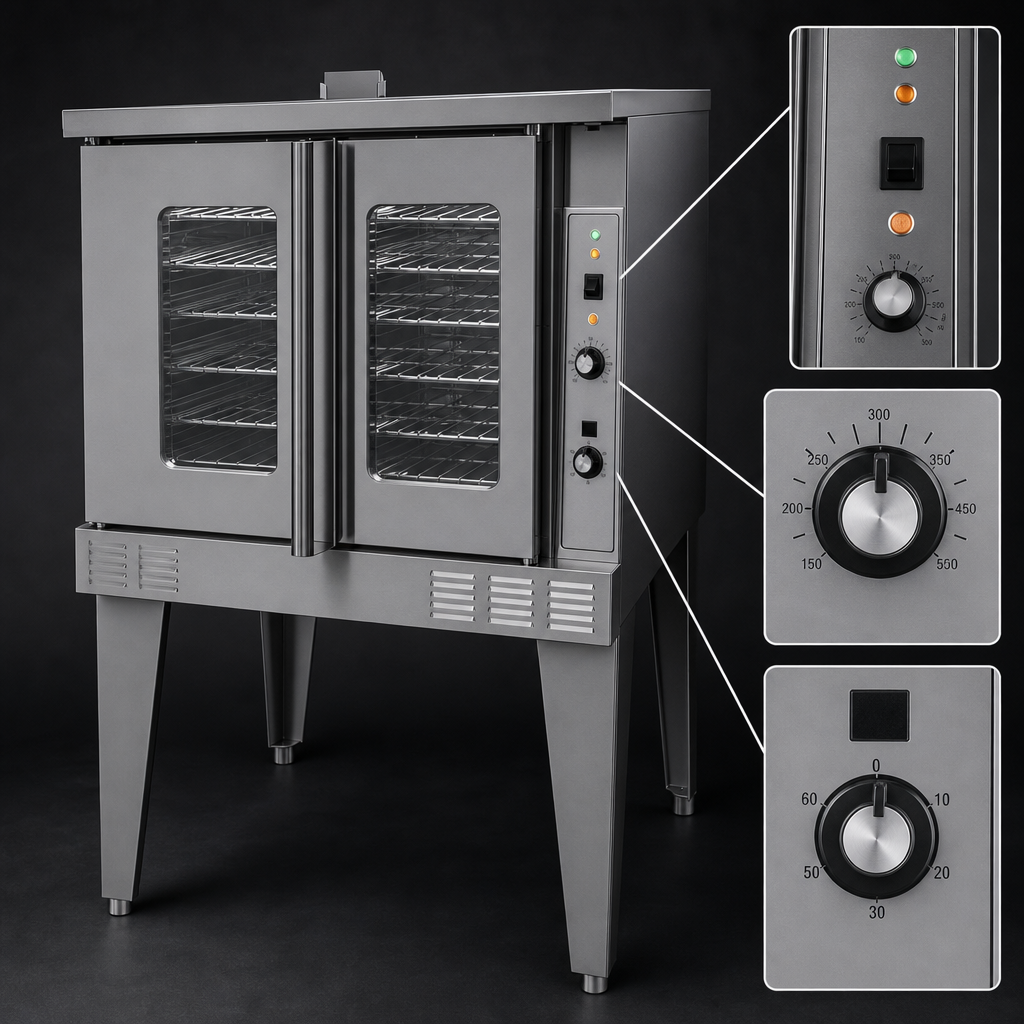

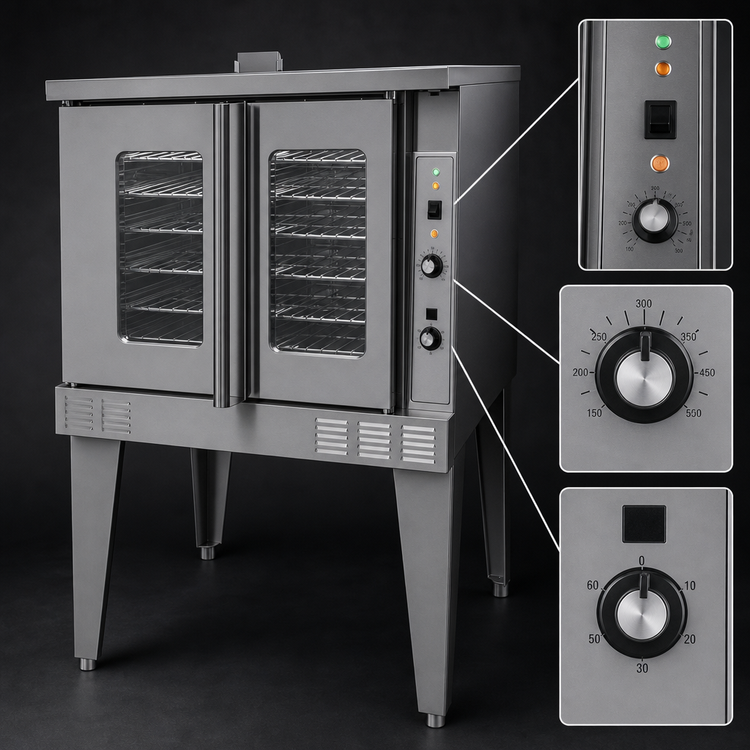

- Master 200 solid-state control: 150 °F – 500 °F range plus 1-hour digital timer.

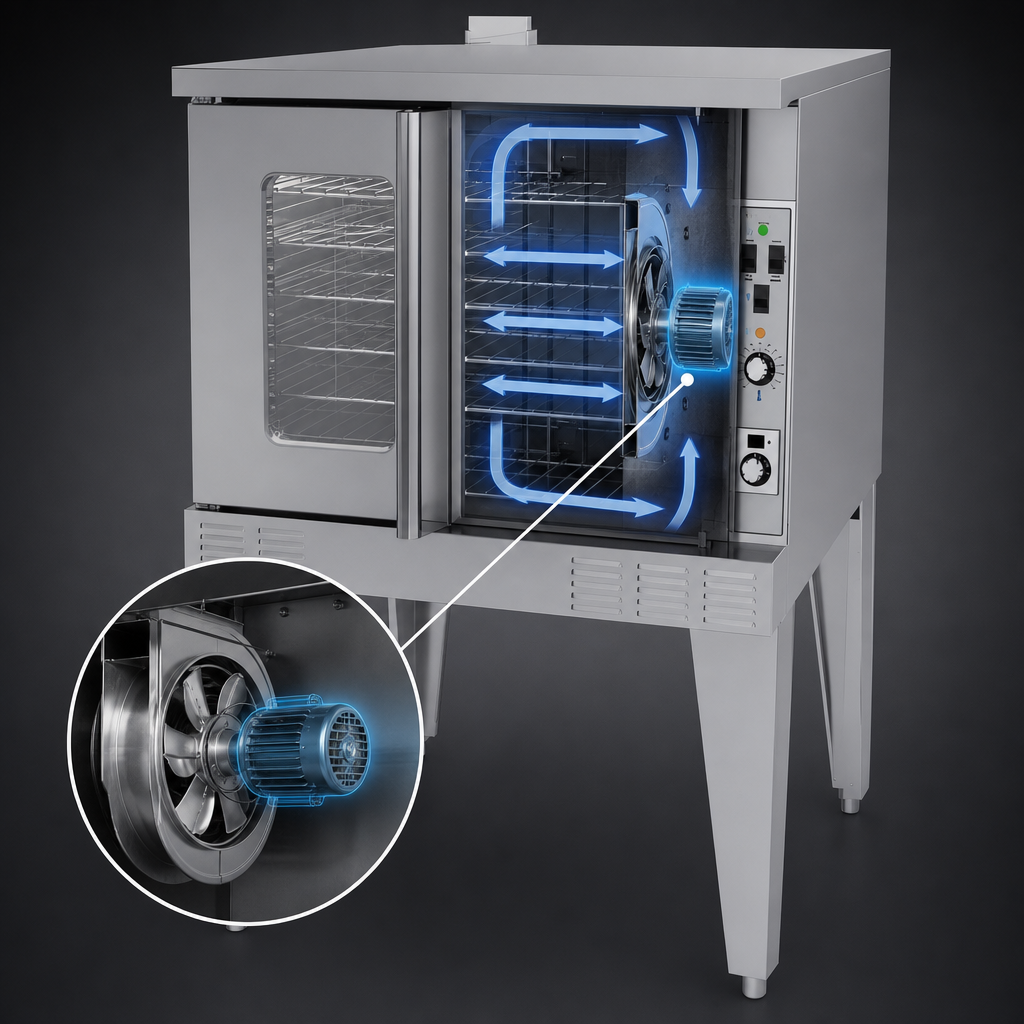

- Fast recovery two-speed fan (.6 HP) with direct-spark electronic ignition.
- Full 24" (610 mm) high porcelain-enameled cavity—4" taller than most ovens—for 20 % more output.
- Six chrome-plated racks on 13-position guides handle virtually any pan size.
- Dependable 60/40 dependent doors with double-pane thermal windows and patented Safety Door System that stops the fan when doors open more than 3".
- Deep-depth design (28" interior) fits full-size sheet pans either way for maximum capacity.
- All-stainless front, sides and top with 25-1/2" heavy-duty legs for a lifetime of rugged service.
- Field convertible natural/propane; factory-set for your fuel type.
Key Specifications
| Heat source | Gas, 60,000 BTU/hr (17.6 kW) | Natural or Propane |
|---|---|
| Control system | Master 200 solid-state, 150 – 500 °F (66 – 260 °C) + 60-min timer |
| Cooking cavity | 29" W × 24" H × 28" D (736 × 610 × 711 mm), porcelain with coved corners |
| Rack capacity | 6 supplied (chrome) on 13 positions | Fits 18" × 26" sheet pans front-to-back or left-to-right |
| Fan & motor | .6 HP, 2-speed (high 1725 RPM / low 1140 RPM) |
| Electrical | 115 V / 1 Ph / 9.8 A (NEMA 5-15P cord) or 208-240 V / 1 Ph / 5.2 A |
| Exterior (w/ legs) | 38" W × 57-1/2" H × 44-1/2" D (965 × 1461 × 1130 mm) |
| Shipping weight | ≈ 545 lb (245 kg) |
| Approvals | UL, cUL (Gas-Fired), NSF |
Ideal Applications
- Full-service & quick-service restaurants
- Institutional & school cafeterias
- Bakeries & commissaries needing deep-depth capacity
- Catering operations looking for consistent, high-volume throughput
Factory Options & Accessories
- 80,000 BTU burner package (natural gas) for even faster recovery – no extra charge
- Solid stainless doors (in lieu of windows)
- Extra oven racks
- Swivel or low-profile casters with front brakes
- Stainless open stand with rack guides & undershelf
- 3/4" gas flex hose & quick disconnect kit
Warranty & Service
2-year limited parts & 1-year labor warranty, plus a 5-year limited door warranty (excluding glass). Backed nationwide by Garland’s factory-authorized service network.
