Garland  |  Signature  |  SKU: MCO-ES-20-S-SIGNATURE

Garland MCO-ES-20-S-SIGNATURE Signature Convection Ovens

$10,923.00
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Cutsheet Cutsheet 2025 school packages Brochure
Related Searches
Convection Ovens Ovens

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

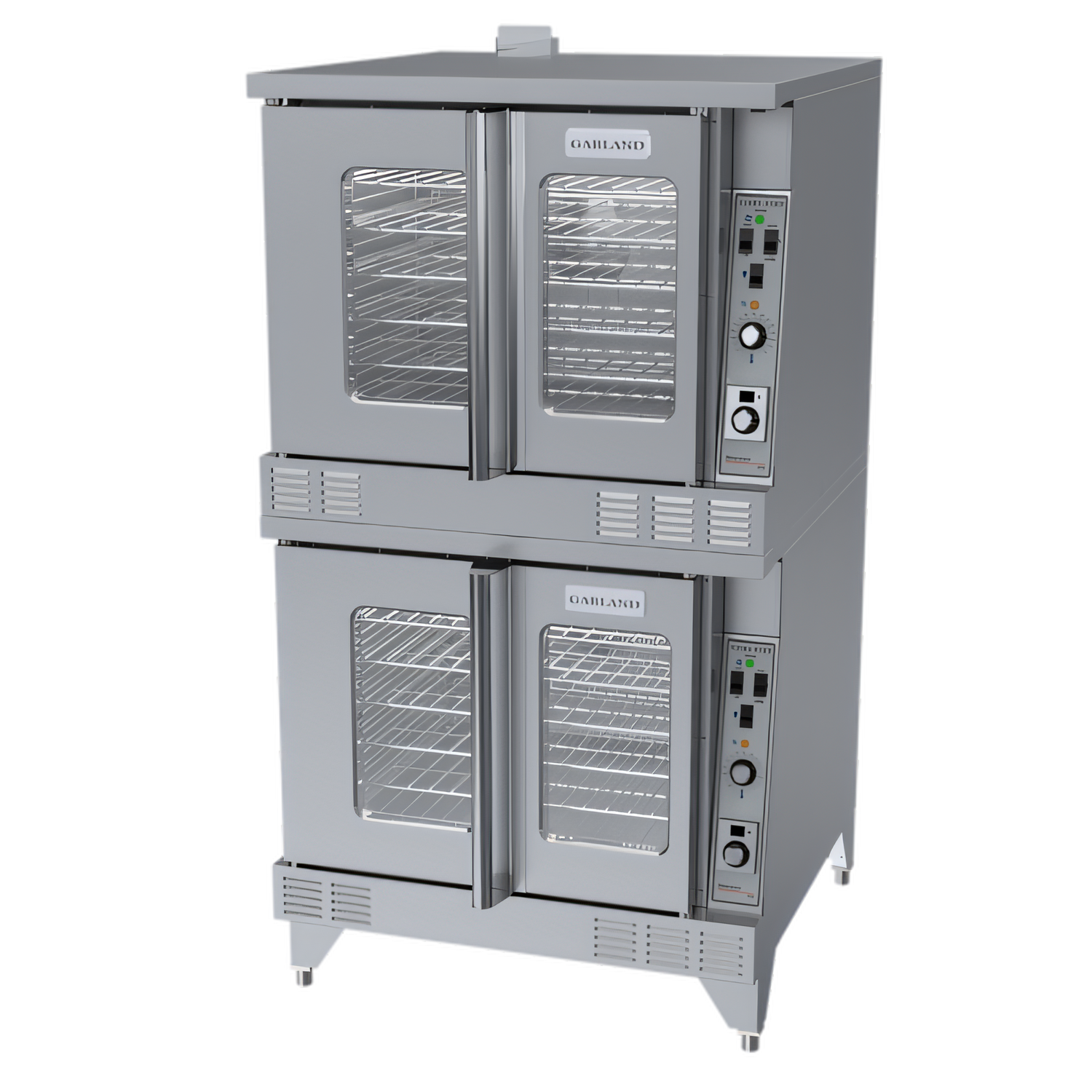

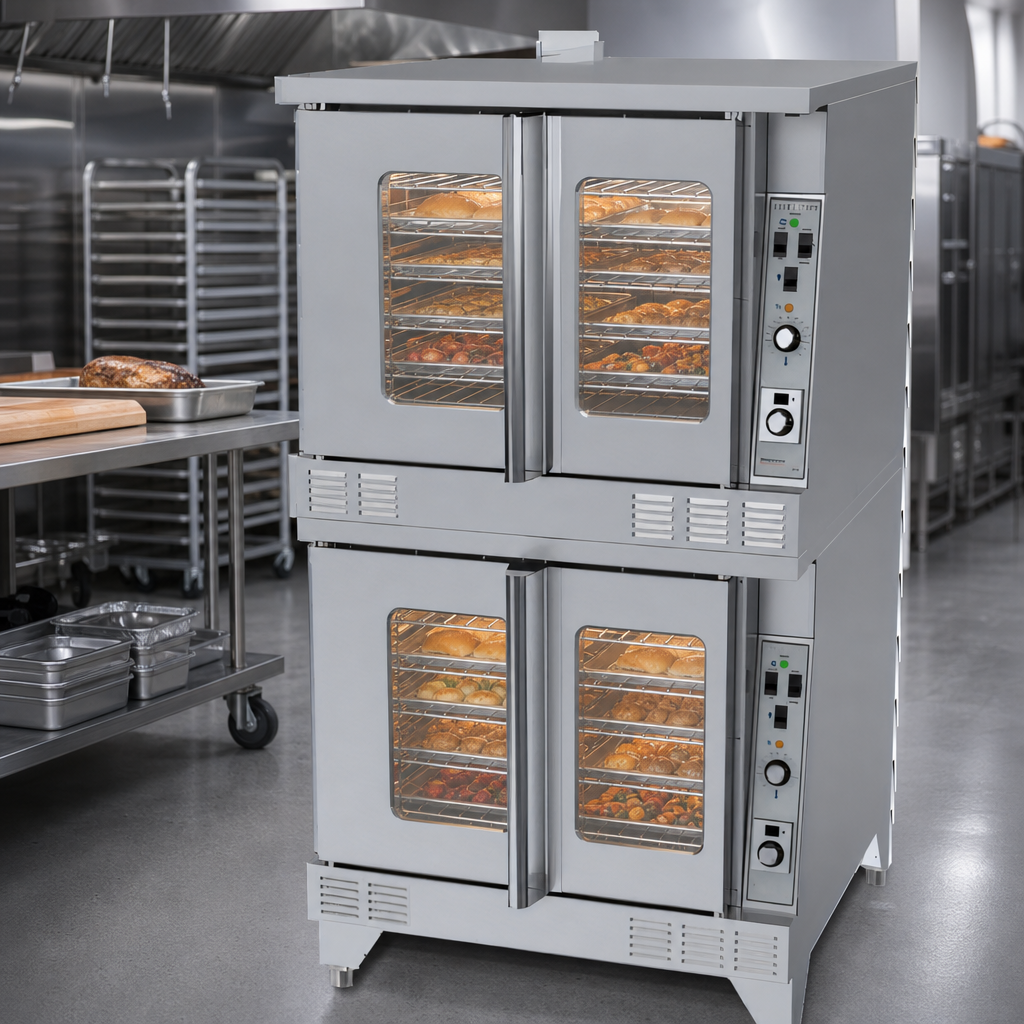

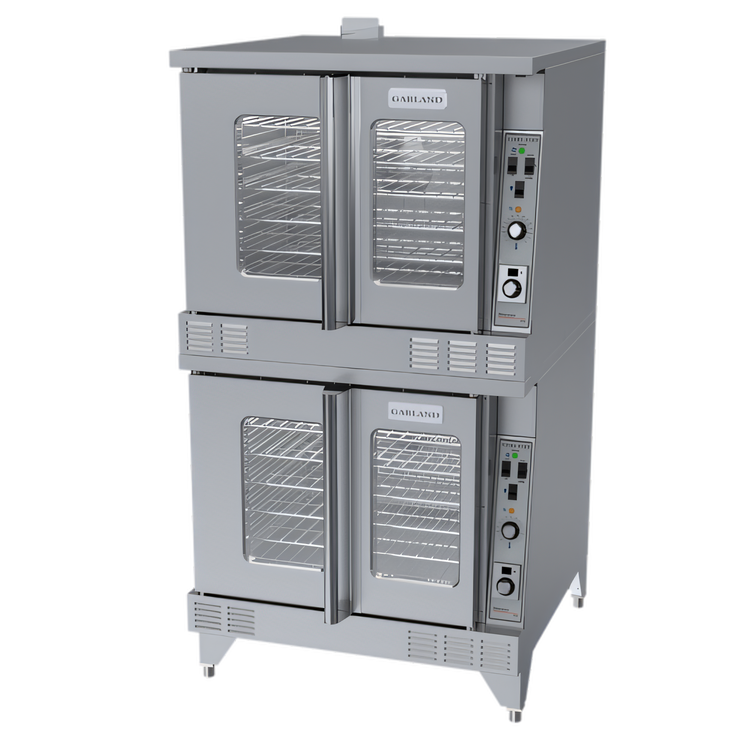

Signature Master Series Electric Convection Oven – Double Deck

20.8 kW total • Master 200 Solid-State Controls • cUL & NSF Listed

Bring Garland’s renowned bake to any high-volume kitchen with the Signature Master Series double-stack. Two full-size, 24 inch-high cavities—each driven by a hard-working 3/4 HP, two-speed blower—deliver unbeatable throughput, faster recovery, and beautifully even results tray after tray.

  • Double-deck, standard-depth design equals (12) full-size sheet pans of simultaneous capacity.

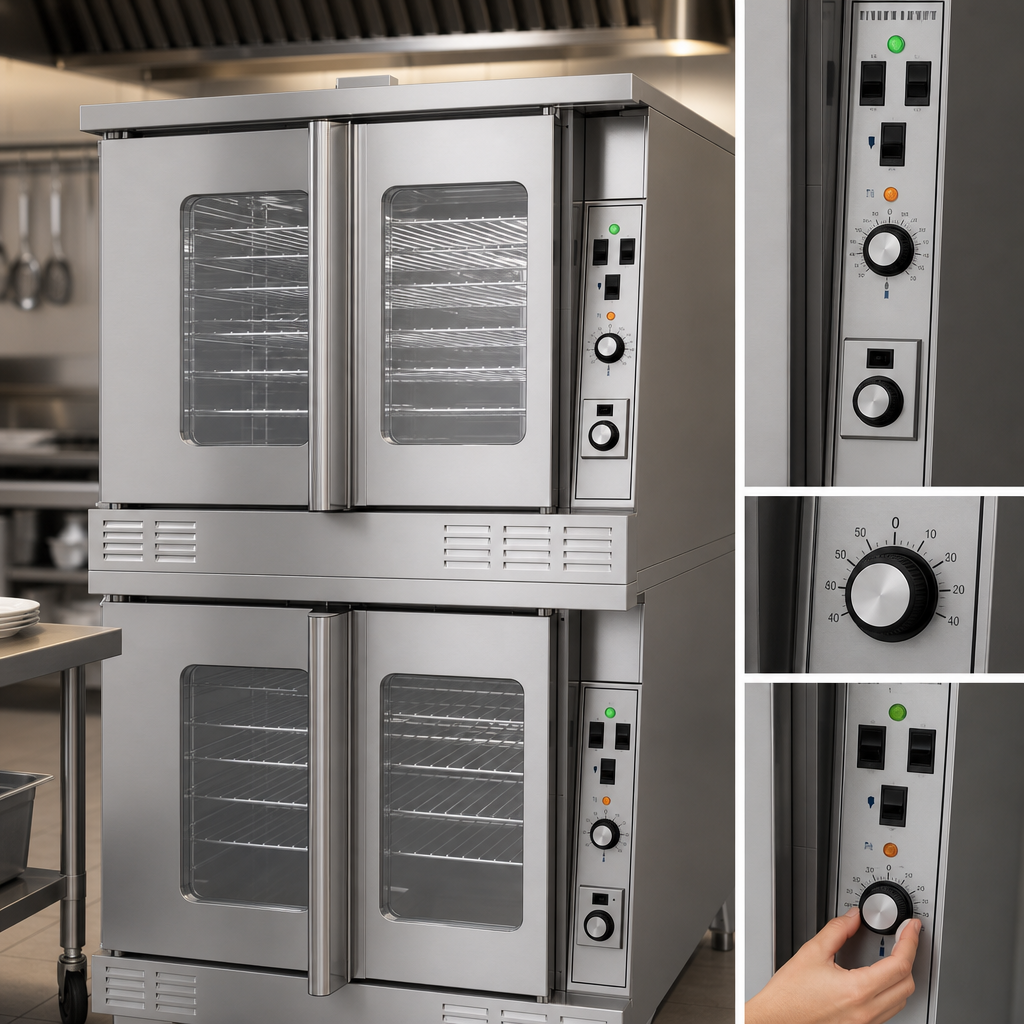

  • Master 200 solid-state controls: 150 °F–500 °F set point, 1-hour timer, and straightforward rotary dials.
  • Powerful 3/4 HP / 2-speed fan motor in each cavity bathes product in a high-velocity, serpentine airflow for uniform browning.
  • 24 in (610 mm) high cooking chamber—4 in taller than most ovens—adds an extra rack and boosts output by up to 20 %.
  • Six chrome-plated racks per cavity glide on 13-position guides for maximum loading flexibility.
  • 60/40 dependent stainless-steel doors with double-pane thermal windows & interior lighting for easy viewing.
  • Patented Safety Door System automatically stops the fan when doors open more than 3 in (76 mm).
  • Durable all-stainless exterior; porcelain-enameled, coved-corner interior wipes clean in seconds.
  • 6-1/2 in stainless legs standard; optional locking swivel casters available.

Technical Specifications

Oven configuration Electric, double deck, full-size, standard depth
Cavity dimensions (per oven) 29 in W × 24 in H × 24 in D (736 × 610 × 610 mm)
Exterior dimensions (stacked) 38 in W × 70.5 in H × 41.25 in D (965 × 1791 × 1048 mm) incl. 6.5 in legs
Rack capacity (6) racks per cavity, 13 positions – ships with 12 racks total
Total connected load 20.8 kW (10.4 kW per cavity)
Typical amperage 208 V/3 Ph: 50/43/30 A – 240 V/3 Ph: 30/28/26 A (per cavity)
460 V/3 Ph and 1-phase hookups available
Fan motor 3/4 HP, 2-speed (high / low) per cavity
Controls Master 200 solid-state thermostat & 60-minute electromechanical timer
Construction Stainless steel front, sides & top; porcelain enamel interior; heavy-duty welded doors
Certifications cULus, NSF

Popular Options & Accessories

  • Swivel casters with front brakes (low-profile set for double stacks)
  • Extra chrome oven racks
  • Stainless open base with undershelf
  • Back enclosure or direct-connect vent kit
  • 460 V, 3-phase factory wiring
Installation note: This appliance requires a permanent electrical connection by a licensed electrician and 1 in (25 mm) side / 6 in (152 mm) rear clearance from combustible walls.

Garland commercial products are engineered for professional kitchens and are not intended for residential use.

Features & Specs

Manufacturer

Garland

Brand_name

Signature

Certifications

NSF

Height

70.5in

Width

38.0in

Depth

41.25in

Shipping Weight

1030.0lbs

Size

full/standard size

Base

legs

Type

standard

Deck Qty

2 decks

Exterior Finish

stainless steel front, top & sides

Interior Finish

porcelain interior

kW (per deck)

11.0 - 15.99 kW

Capacity per Compartment

6 pan capacity, per compartment

Control Type

solid state controls

Specifications

Signature Master Series Convection Oven, electric, double-deck, standard depth 39", (2) speed 3/4 HP fan, Master 200 solid state controls with 1 hour timer, dependent 60/40 doors with windows, stainless steel front, sides & top, porcelain cavity, 24" cooking cavity height, with (6) chrome plated oven racks on 13-position rack guides, 6-1/2" legs, 20.8 kW (Garland), cUL, NSF
