Description

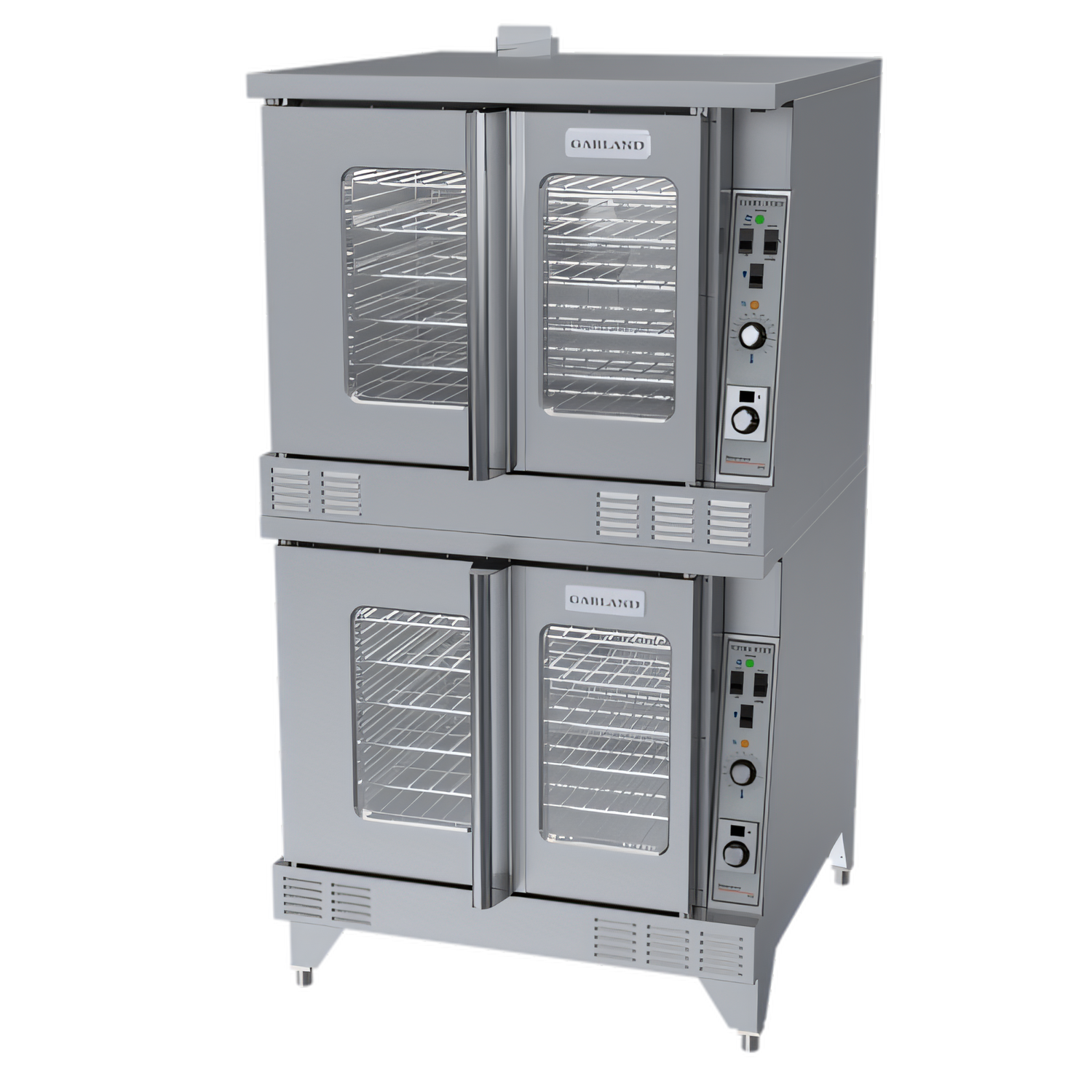

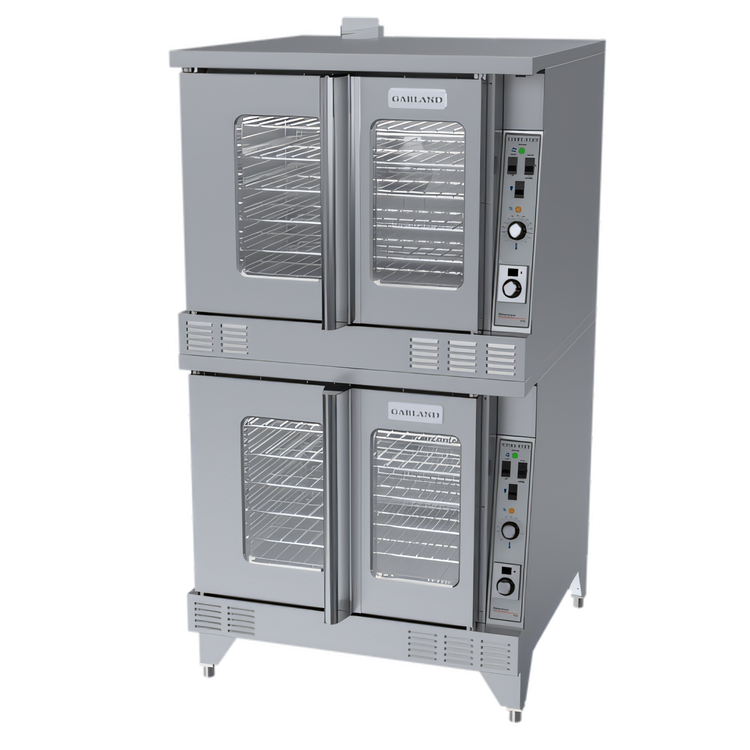

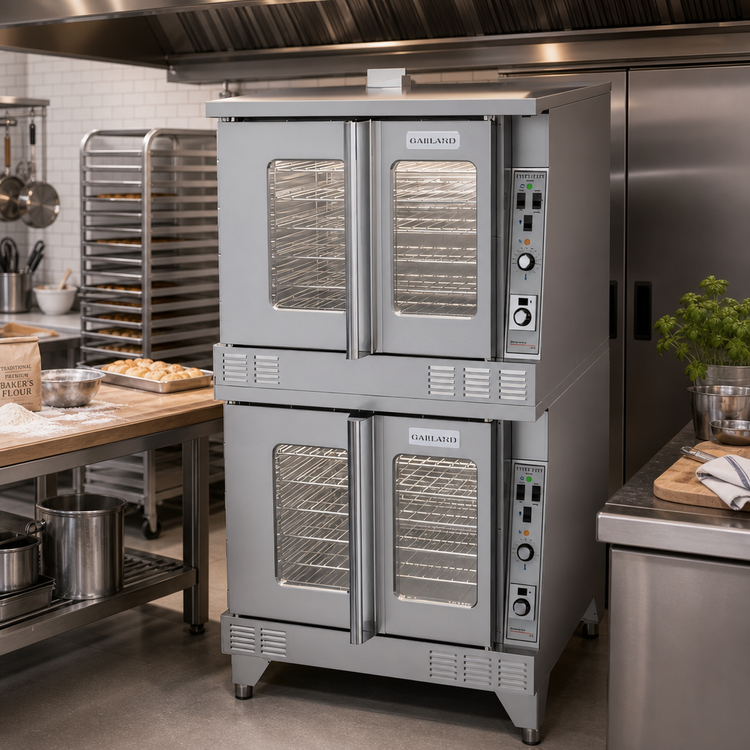

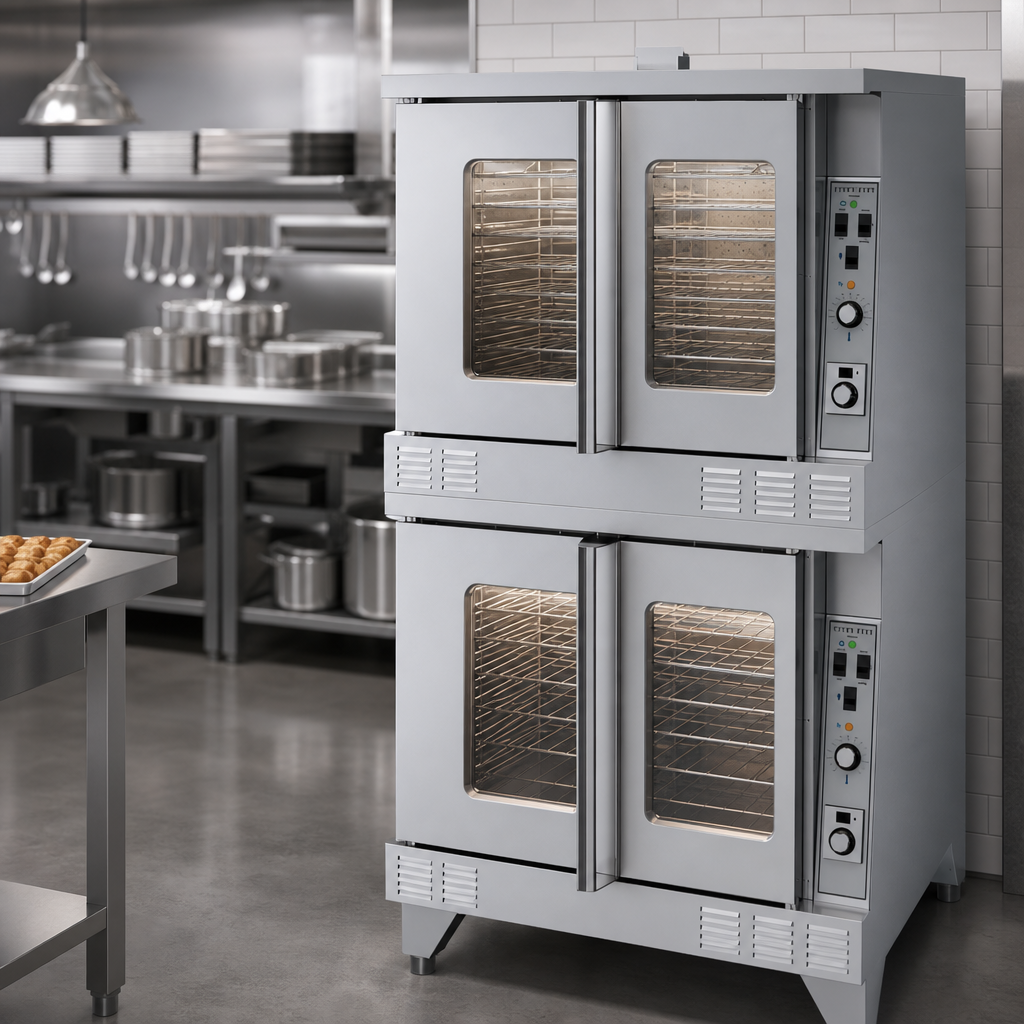

Garland Signature Master Series Double-Deck Electric Convection Oven

Model MCO-ES-20-S • Standard-Depth • Master 200 Solid-State Control

Twice the capacity in the same 38″ footprint. Garland’s Signature Master Series double-stack delivers the high-volume performance, rock-solid construction and perfectly even bake that professional kitchens demand day in and day out.

Key Performance Advantages

  • Two independent 10.4 kW cavities (20.8 kW total) for fast recovery and maximum throughput.

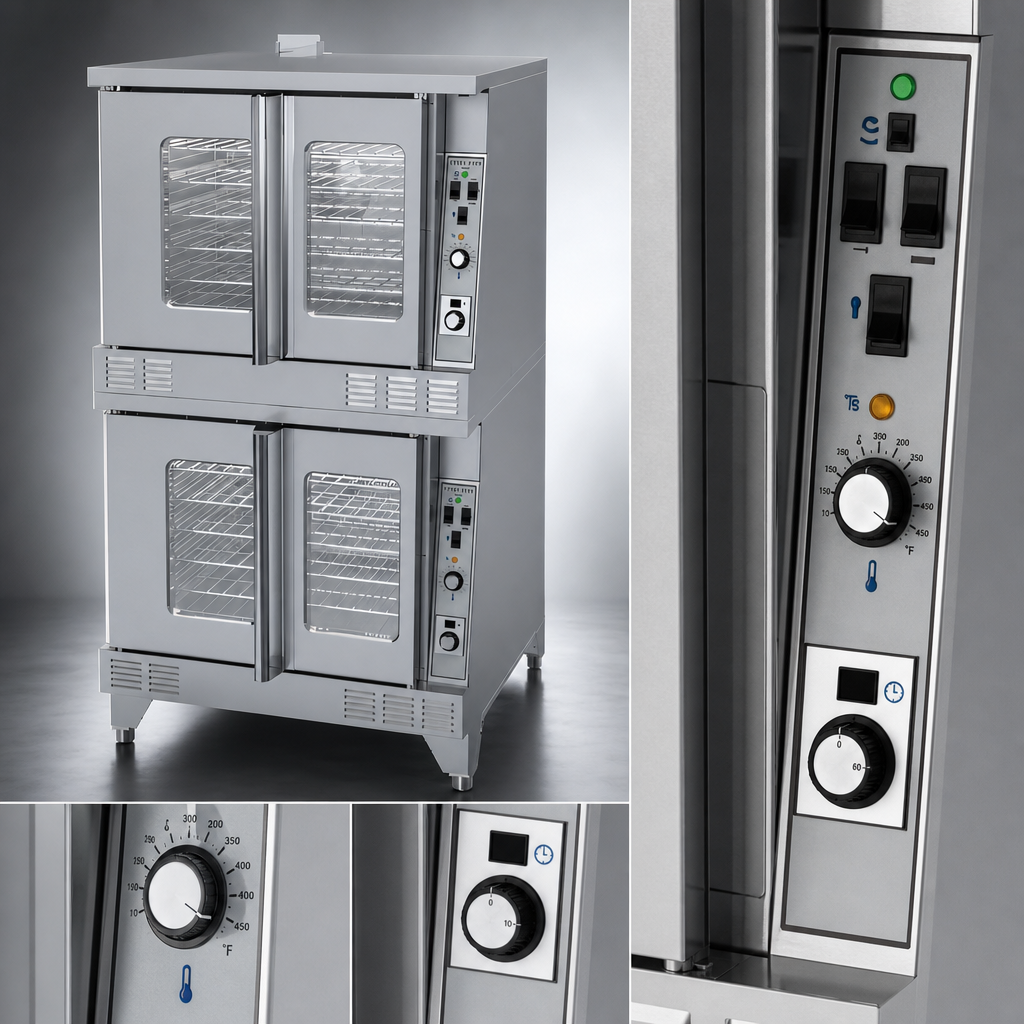

  • Master 200 solid-state controls: 150 – 500 °F (66 – 260 °C) temperature range with 60-minute timer.
  • Powerful 3/4 HP, two-speed fan in each cavity drives Garland’s serpentine airflow for a better bake—no pan rotation required.
  • Extra-tall 24″ (610 mm) porcelain cooking chamber with 13-position rack guide and six chrome racks per cavity.
  • Rugged stainless-steel front, sides, top and 6-1/2″ legs stand up to heavy commercial use.
  • 60/40 dependent doors with double-pane windows, positive-seal gasket and patented Safety Door System that stops the fan when doors open.
  • Coved-corner porcelain interior wipes clean in seconds and resists corrosion.
  • Bright interior lighting keeps product visible without opening the doors.
  • cULus & NSF listed for safety and sanitation in any professional kitchen.

Technical Specifications

Model MCO-ES-20-S (Signature Master Series)
Oven type Electric, full-size, standard depth, double deck
Heat load 10.4 kW per cavity / 20.8 kW total
Controls Master 200 solid-state; 150–500 °F; 60-min electromechanical timer; two-speed fan selector
Fan motor 0.75 HP (0.6 HP nominal) two-speed blower; automatic shut-off when doors open
Interior (per cavity) 29″ W × 24″ H × 24″ D (736 × 610 × 610 mm)
Exterior (overall) 38″ W × 70-1/2″ H × 41-1/4″ D (965 × 1 791 × 1 048 mm) on 6-1/2″ legs
Rack capacity 6 chrome racks included / 13 positions per cavity (fits full-size sheet pans)
Door style 60/40 dependent doors with double-pane windows and full-length stainless closure
Electrical 208, 240 or 460 V; 1- or 3-phase (see amp draw chart in manual)
Certifications cULus, NSF
Warranty 2-year parts & 1-year labor; 5-year limited door (excluding window)

Popular Options & Accessories

  • Swivel casters with front brakes (set of 4)
  • Additional chrome oven racks
  • Stainless-steel open base with rack guides and undershelf
  • Removable stainless-steel drip pan
  • Back enclosure or direct-connect vent kit
  • 460 V, 3-phase wiring

Need single-deck or deep-depth capacity? Ask our team about other Garland Master Series configurations.

Features & Specs

Manufacturer

Garland

Brand_name

Signature

Certifications

NSF

Height

70.5in

Width

38.0in

Depth

41.25in

Shipping Weight

1030.0lbs

Size

full/standard size

Deck Qty

2 decks

Type

standard

Base

legs

Exterior Finish

stainless steel front, top & sides

Interior Finish

porcelain interior

kW (per deck)

11.0 - 15.99 kW

Capacity per Compartment

6 pan capacity, per compartment

Control Type

solid state controls

Specifications

Signature Master Series Convection Oven, electric, double-deck, standard depth 39", (2) speed 3/4 HP fan, Master 200 solid state controls with 1 hour timer, dependent 60/40 doors with windows, stainless steel front, sides & top, porcelain cavity, 24" cooking cavity height, with (6) chrome plated oven racks on 13-position rack guides, 6-1/2" legs, 20.8 kW (Garland), cUL, NSF
