Garland MCO-ES-10-S-SIGNATURE Signature Convection Ovens
Description

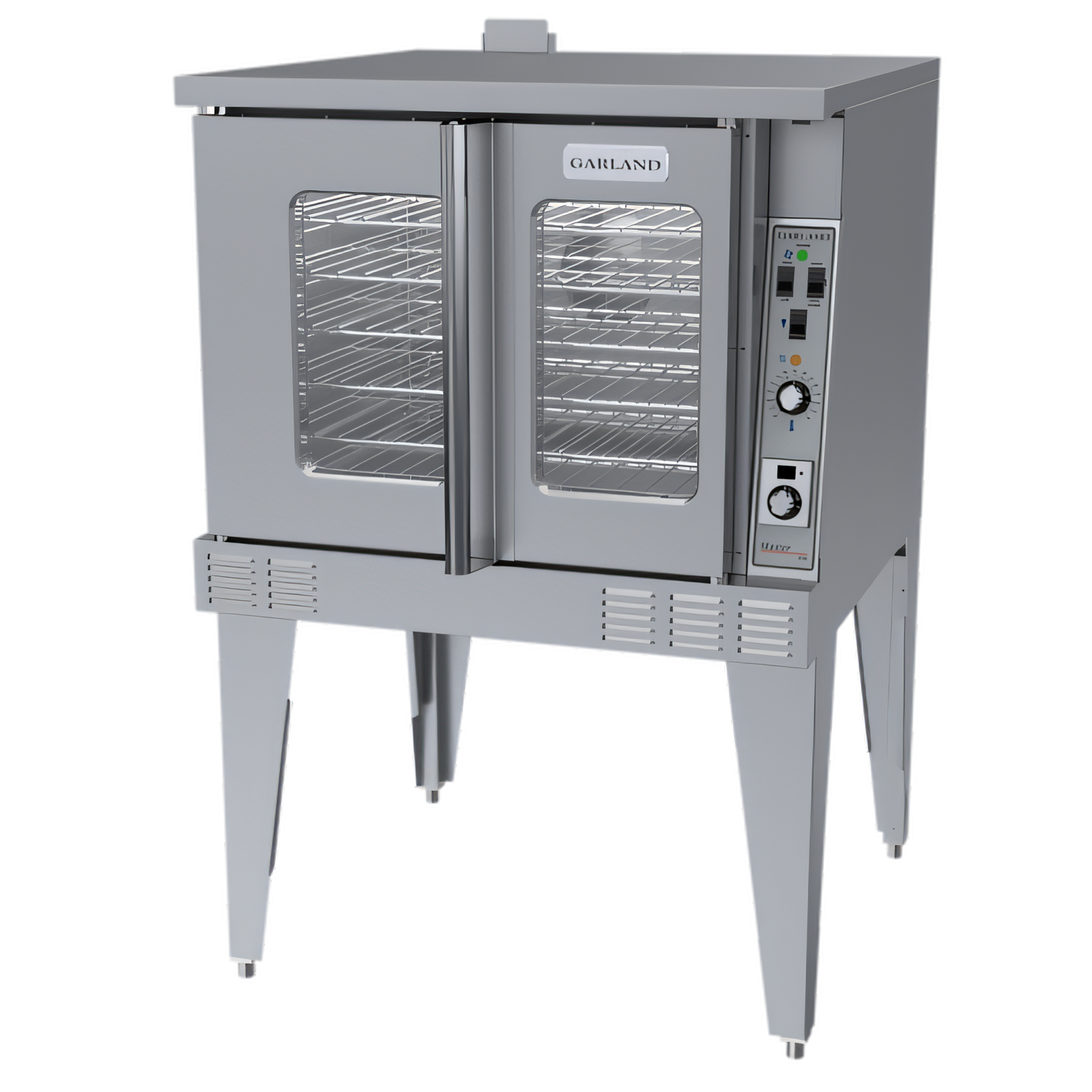

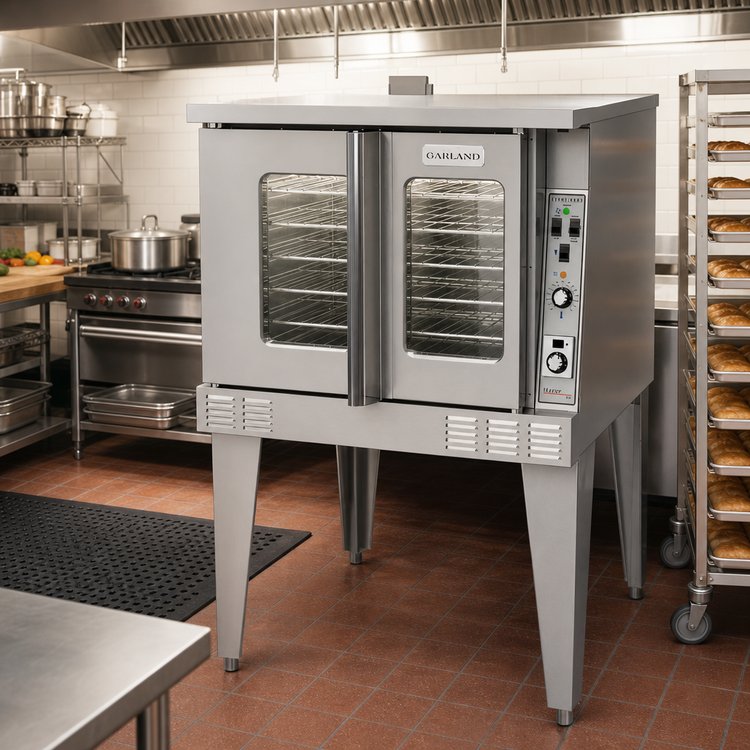

Garland Signature – Master Series Single-Deck Electric Convection Oven
Standard Depth • Master 200 Solid-State Controls • 39" WideEngineered for busy commercial kitchens that demand speed, consistency and durability, the Garland Signature Master Series delivers a true, full-size bake in a compact 39" footprint. A powerful 3⁄4 HP, two-speed fan bathes every rack with uniform heat, while the intuitive Master 200 control lets you dial-in precise temperatures from 150 °F – 500 °F and set a 60-minute timer with ease.
Why You’ll Love It
- 24" high porcelain-enameled cooking cavity – 4" taller than most, for 20 % more production.
- Six chrome-plated racks on 13-position guides adapt to virtually any pan size.
- Stainless steel front, sides & top plus 25-1/2" stainless legs for lasting, easy-clean durability.
- 60/40 dependent doors with double-pane windows and Patented Safety Door System stop the fan when opened.

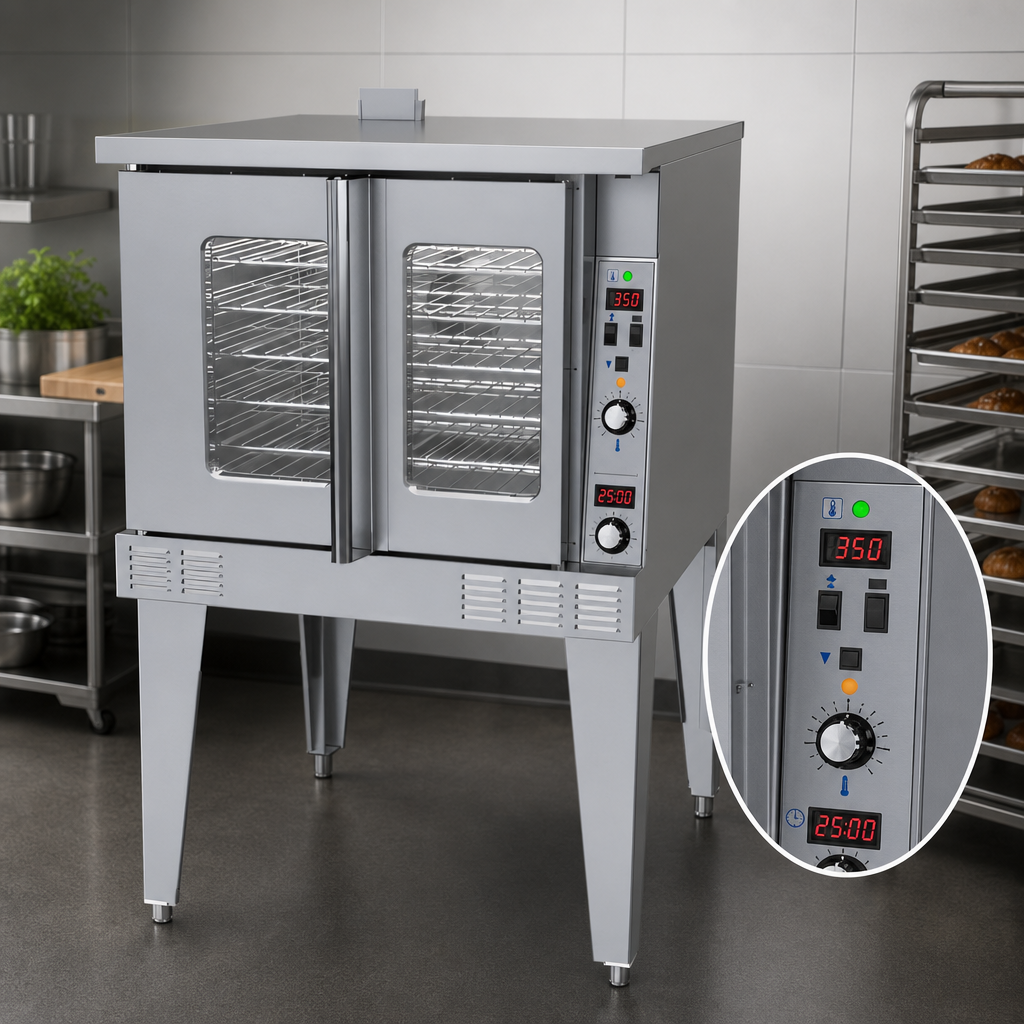

- Master 200 solid-state control: 150 – 500 °F set-point, 1-hour timer, and automatic cooling.

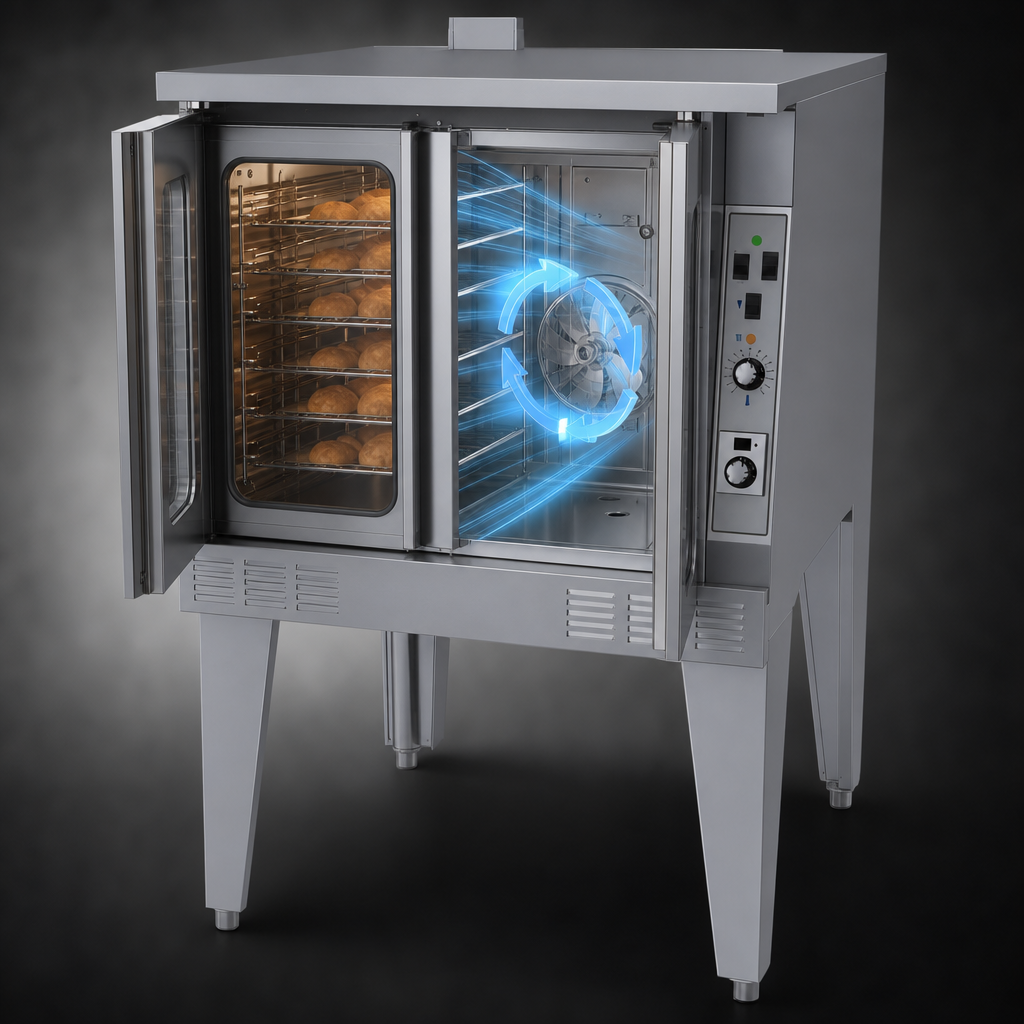

- 10.4 kW heat load and 3⁄4 HP two-speed fan for fast heat-up, quick recovery and even results.
- cULus & NSF listed for commercial safety and sanitation.
At-a-Glance Specs
| Model | Signature Master Series – Single Deck, Standard Depth |
|---|---|
| Oven Cavity (W × H × D) | 29" × 24" × 24" (736 × 610 × 610 mm) |
| External Dimensions (W × H × D) | 39" × 57-1/2" × 41-1/4" (991 × 1 461 × 1 048 mm) |
| Rack Capacity | 6 standard full-size sheet pans (13 rack positions) |
| Controls | Master 200 solid-state, 150–500 °F, 60-minute timer, cool-down & auto-setback |
| Air Circulation | 3⁄4 HP two-speed fan motor (high / low) |
| Electrical Load | 10.4 kW per cavity 208 V/3 Φ: 30 A per line • 240 V/3 Φ: 28 A per line • 240 V/1 Φ: 43 A Alternate voltages available – specify at order |
| Interior Finish | High-gloss porcelain with coved corners for easy wipe-clean sanitation |
| Certifications | cULus, NSF |
| Warranty | 2-year parts & labor • 5-year limited door warranty (excludes glass) |
Ideal Applications
- Scratch bakeries & pastry operations needing uniform, golden bakes
- Full-service restaurants and hotels looking to add capacity without sacrificing floor space
- K-12, college & healthcare cafeterias that value durability and simple controls
- Catering commissaries requiring rapid batch cooking and quick recovery between loads
Clearance: 1" sides, 6" rear to combustible or non-combustible surfaces. Vent connection recommended.
