Garland MCO-ES-10-S-SIGNATURE HIGH VOLTAGE Signature Convection Ovens
Description

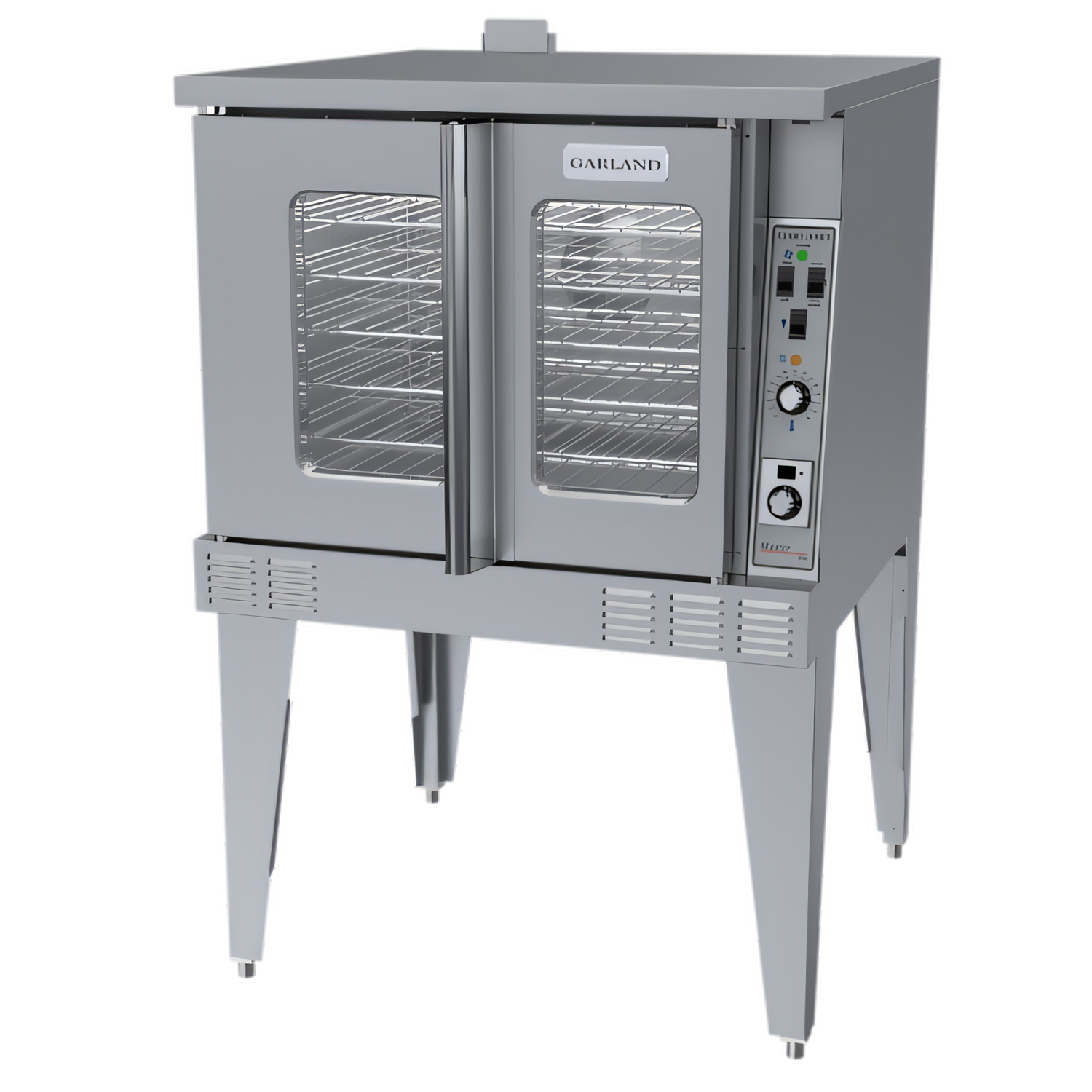

Signature Master Series Electric Convection Oven
Single-deck • Standard-depth • 10.4 kWBuilt for demanding commercial kitchens, the Garland Signature Master Series delivers the even bake, rugged construction and intuitive controls you need to keep service moving. With a high-capacity cavity, Master 200 solid-state controls and a powerful 2-speed fan, this full-size oven turns out perfectly-cooked roasts, baked goods and casseroles tray after tray.
Key features

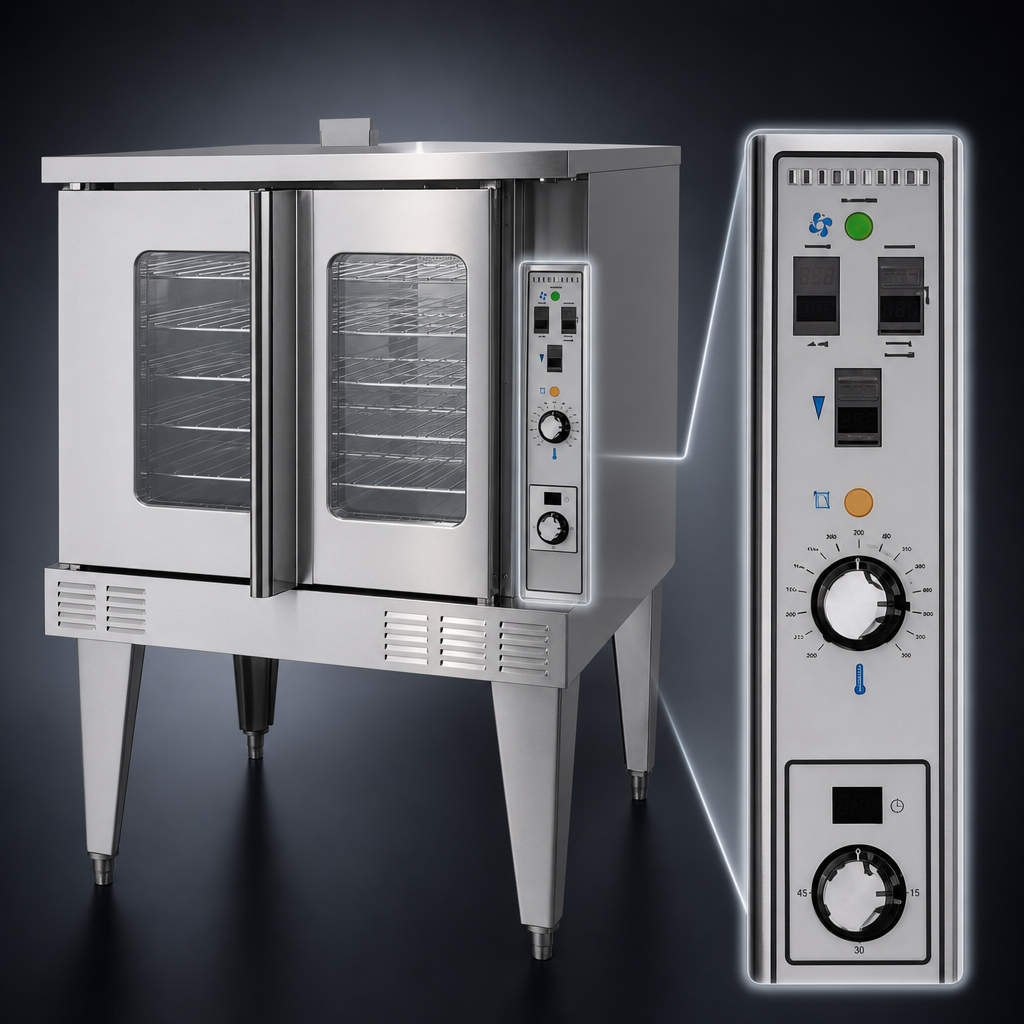

- Master 200 solid-state control – 150 °F to 500 °F temperature range plus 60-minute electromechanical timer.

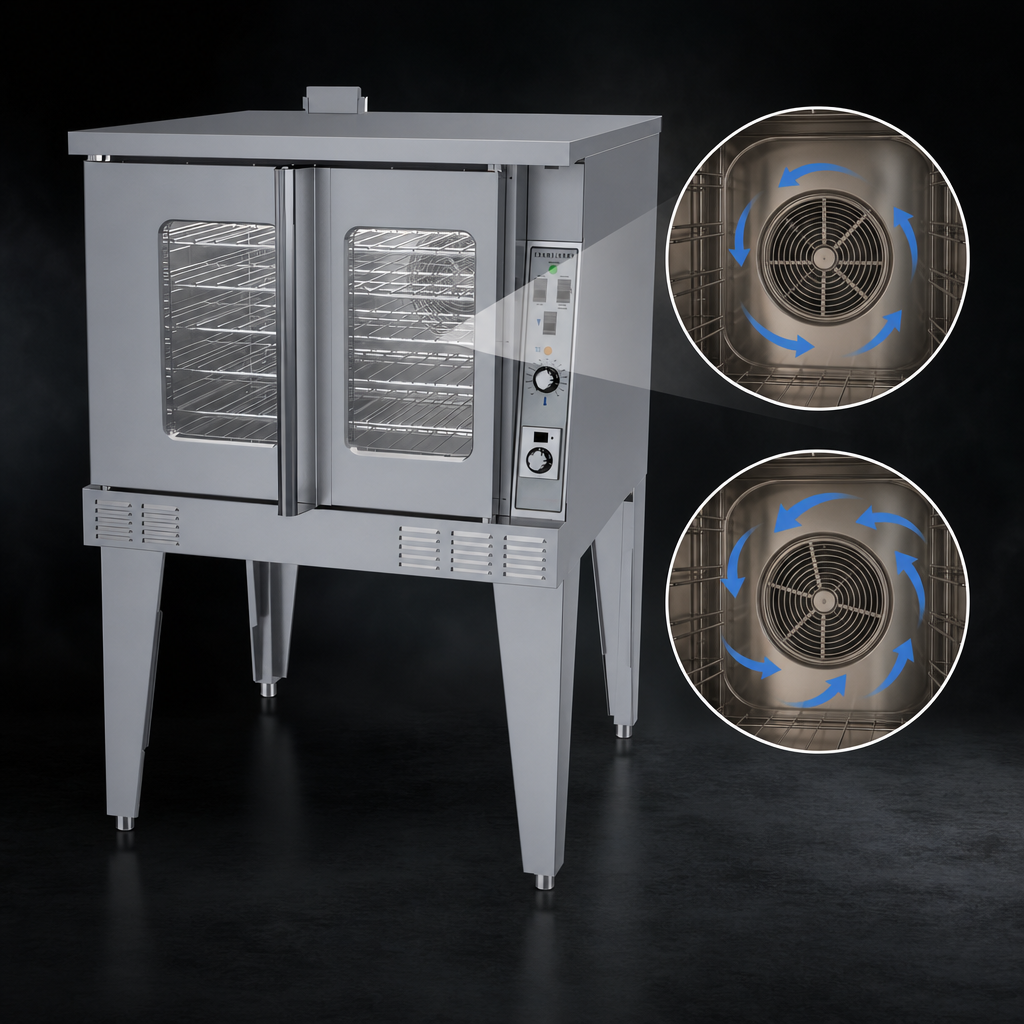

- Two-speed 3/4 HP fan motor for delicate baking on low or high-velocity roasting on high.
- Even-flow air baffle system eliminates pan rotation and ensures uniform browning from corner to corner.
- 6 chrome-plated racks with 13-position guides (1 5/8" spacing) handle a wide variety of pan sizes.
- 24" (610 mm) high porcelain-enameled cooking cavity with coved corners for fast wipe-down cleaning.
- 60/40 dependent doors with double-pane thermal windows, positive-seal gasket and patented Safety Door System that stops the fan when doors open.
- All-stainless-steel front, sides, top and 25-1/2" legs stand up to years of heavy use.
- cUL & NSF listed; 5-year limited door warranty and 2-year parts/1-year labor warranty (USA/Canada).
At-a-glance specifications
| Model | Signature Master Series, single deck, standard depth |
|---|---|
| Power / Heat load | 10.4 kW total |
| Electrical options | 208 V or 240 V / 1-phase or 3-phase (specify when ordering) |
| Fan motor | 3/4 HP, 2-speed |
| Interior (W × H × D) | 29" × 24" × 24" (736 × 610 × 610 mm) |
| Exterior (W × H × D) | 38" × 57-1/2" × 41-1/4" (965 × 1461 × 1048 mm) |
| Rack capacity | 6 full-size (18" × 26") sheet pans provided; 13 positions total |
| Temperature range | 150 °F – 500 °F (66 °C – 260 °C) |
| Door style | 60/40 dependent, double-pane glass windows, full-length stainless hinge rod |
| Certifications | cUL, NSF |
| Warranty | 2-year parts / 1-year labor • 5-year limited door (excludes glass) |
Why it’s a smart investment
- Boost productivity – fast heat recovery and even airflow keep pace with peak periods.
- Protect your team – safety door system stops the fan the moment a door opens.
- Simplify training – intuitive dials and timer mean staff are up to speed in minutes.
- Reduce maintenance – front-serviceable components and porcelain interior cut downtime.
Need a double-deck or deep-depth configuration? Contact us for custom quotes and lead times.
