Garland MCO-ED-10M Master Convection Ovens
Description

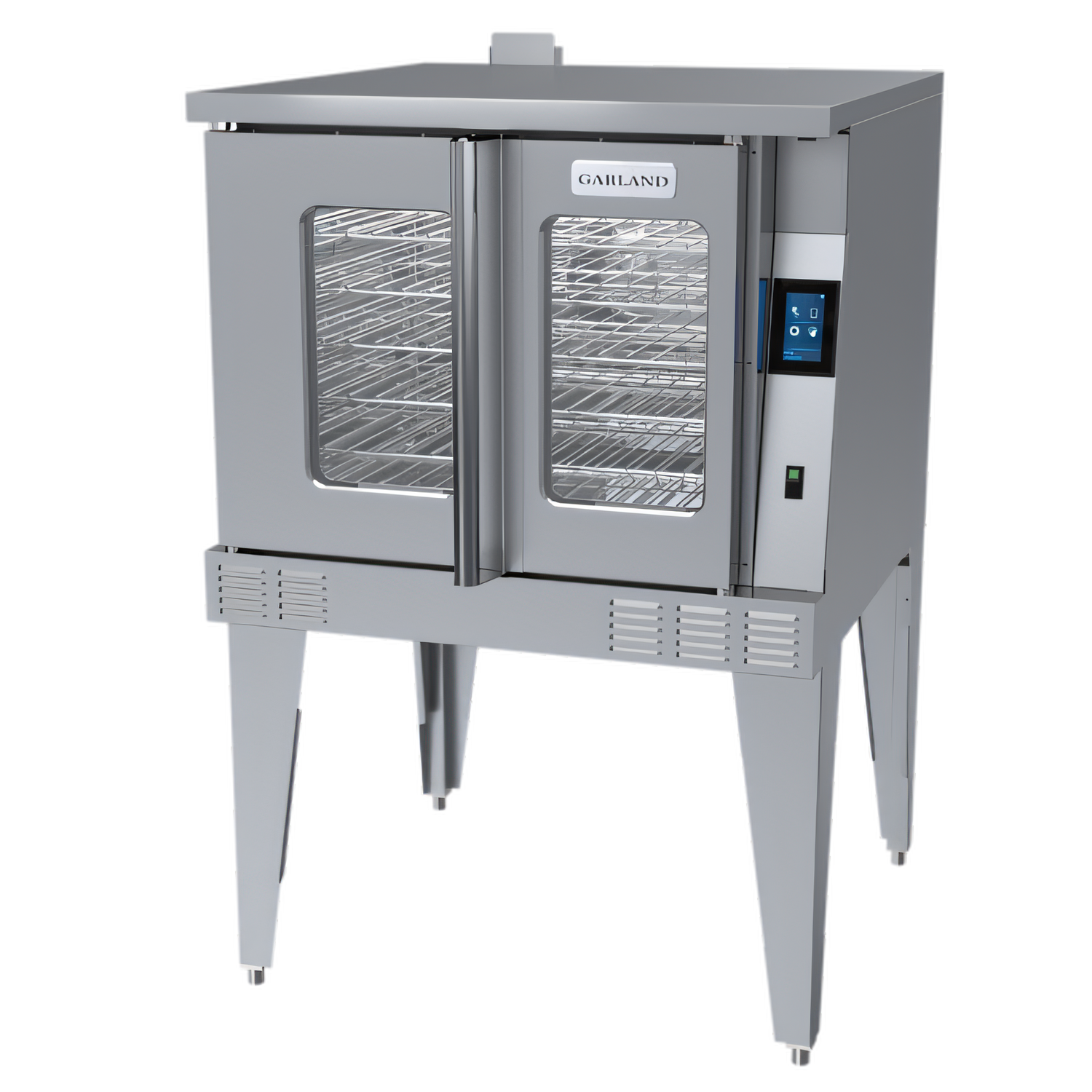

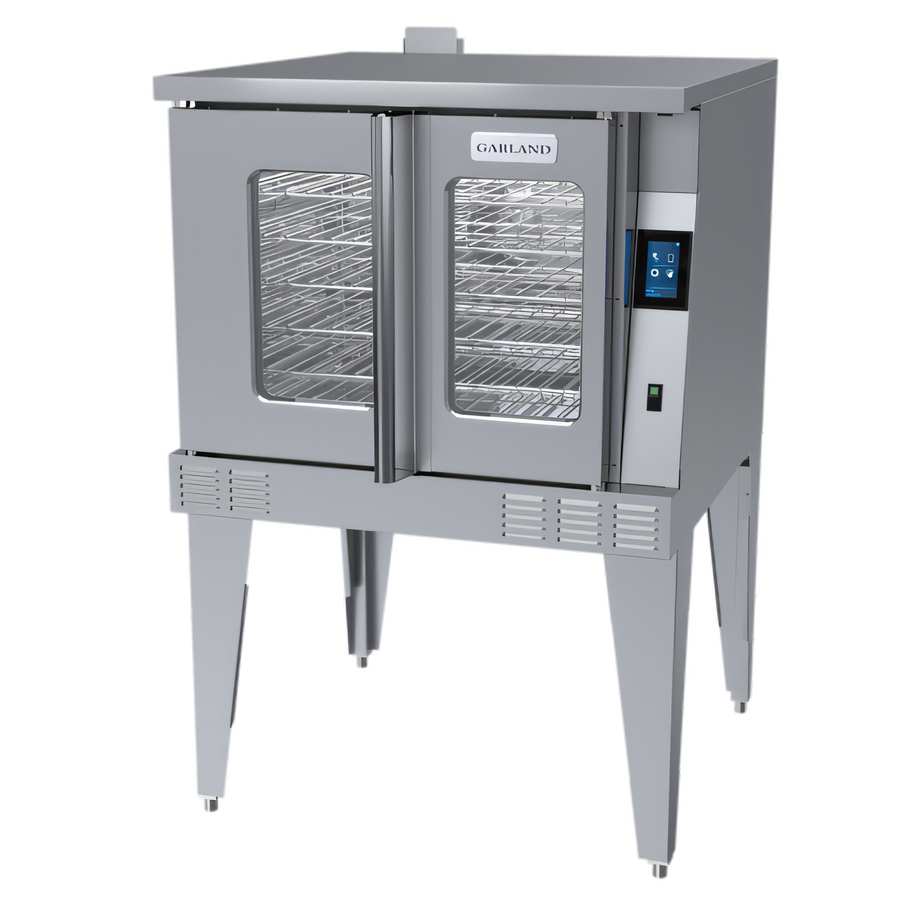

Master Series Deep-Depth Electric Convection Oven
Single-Deck • Garland Model MCO-ED-10M with EasyTouch™ 4.3 in ControllerHarness 10.4 kW of even, consistent heat in a rugged stainless-steel cabinet that’s built for the busiest commercial kitchens. Garland’s Master Series deep-depth oven bakes, roasts, and holds with fingertip simplicity—thanks to the intuitive EasyTouch™ Press & Go interface—while a high-performance 3/4 HP two-speed fan guarantees perfectly uniform results on every rack.
Performance You Can Taste
- EasyTouch™ 4.3 in capacitive screen—tap, swipe, cook. Store & recall recipes, set independent timers, or engage Cook’n’Hold with one press.
- Powerful 10.4 kW heating system paired with a 3/4 HP high/low fan for rapid heat recovery and exceptional air circulation.
- Deep-depth 28 in (711 mm) cavity fits full-size 18 × 26 in sheet pans front-to-back for higher batch yields.
- Six chrome-plated racks on a 13-position guide—load up to 6 pans at once and still enjoy even color, top to bottom.
- Patented Safety Door System stops the fan automatically when doors open more than 3 in (76 mm), protecting both staff and product.
Engineered for the Long Haul
- All-stainless front, sides, top & 25-1/2 in (648 mm) legs resist corrosion in punishing cook-line environments.
- 60/40 dependent doors with double-pane thermal windows and full-length welded hinge rod—backed by a 5-year limited door warranty.*
- Porcelain-enameled interior with seamless coved corners cleans up fast and won’t trap food soil.
- UL, cUL & NSF listed for peace of mind and code compliance.
Technical Specs
| Capacity | 6 full-size 18 × 26 in sheet pans / 24 in (610 mm) usable height |
|---|---|
| Interior (W × H × D) | 29 × 24 × 28 in (736 × 610 × 711 mm) |
| Exterior (W × H × D) | 38 × 57.5 × 43 in (965 × 1461 × 1092 mm) |
| Heat Load | 10.4 kW per cavity |
| Voltage Options | 208 V / 240 V / 460 V, 3-phase (see amp draw below) |
| Nominal Amps (208 V / 240 V) | 50 A / 43 A per line |
| Fan Motor | 0.75 HP, two-speed (high 1670 RPM / low 1430 RPM) |
| Net Weight | ≈ 530 lb (240 kg) |
| Certifications | UL, cUL, NSF |
What’s in the Box
- (6) Chrome-plated racks
- 13-position rack guide system
- 25-1/2 in adjustable legs
- Factory-installed EasyTouch™ controller
- User & installation manual
Popular Factory Options
- Swivel or low-profile locking casters
- Stainless solid doors or window in left door (no charge swap)
- Extra oven racks or stainless drip pan
- Direct-connect vent adapter
- Back enclosure panel
*5-year limited door warranty (excluding glass). 2-year parts / 1-year labor warranty on the complete oven in the U.S. & Canada.
