Garland M8T Master Gas Ranges
Description
Garland Master Series 17" Thermostatic Griddle Module
33,000 BTU Add-A-Unit | Model M8 SeriesExpand your cookline—without expanding its footprint. This 17-inch Master Series griddle attachment drops into any Garland battery or stands alone (with optional base) to deliver the legendary durability, precision, and serviceability chefs expect from Garland.
Key Features

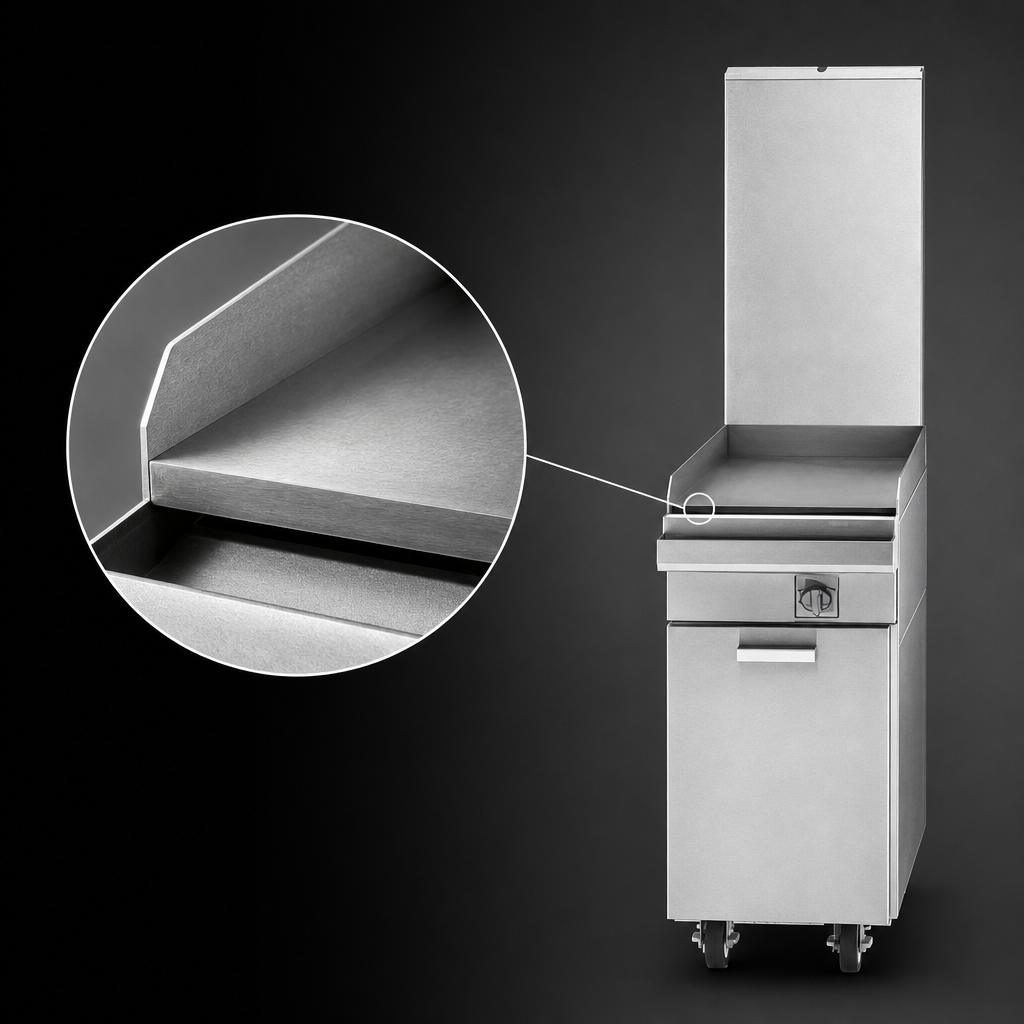

- 1" (25 mm) thick polished steel plate retains heat and recovers fast.
- High-efficiency 33,000 BTU “H” burner distributes heat evenly over the entire 17" × 24-3/4" surface.

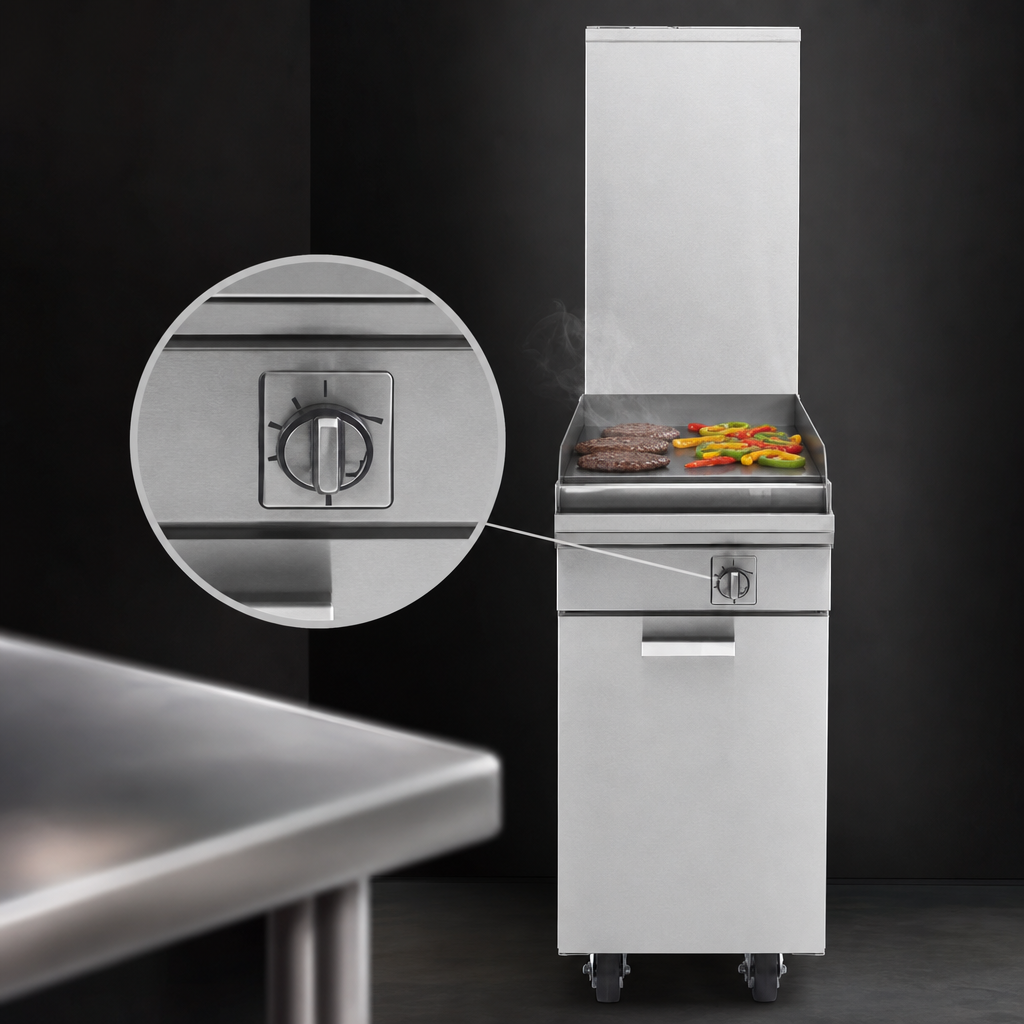

- Snap-action thermostat (200 – 450 °F) with embedded capillary sensor holds set temperature within ±10 °F.
- Continuous-welded 2-5/16" stainless steel side & rear splashguards contain grease and debris.
- Full-width, removable stainless steel grease drawer for quick, safe clean-up.
- Rugged stainless steel front, sides & clip-on backsplash built for heavy commercial use.
- Aluminized steel radiation baffle boosts efficiency—no firebrick to replace.
- Modular “Add-A-Unit” design mates seamlessly with any Master Series range, oven, cabinet or fryer.
- Field convertible for Natural or Propane gas; 1-1/4" NPT front manifold (rear connection optional).
- Certified to CSA Flame, CSA Star and NSF standards for safety & sanitation.
At-a-Glance Specs
| Cooking surface | 17" W × 24-3/4" D (433 mm × 629 mm) |
|---|---|
| Plate thickness | 1" (25 mm) polished steel |
| Total width | 17" (432 mm) |
| Total depth | 38" (965 mm) |
| Height (with NSF legs) | 36-1/4" (924 mm) |
| Gas input | 33,000 BTU/hr (9.67 kW) |
| Gas type | Natural or Propane (specify when ordering) |
| Manifold size | 1-1/4" NPT |
| Operating pressure | 6" WC Natural • 10" WC Propane |
| Combustible clearances | 14" sides • 6" rear |
| Shipping weight | 260 lb (118 kg) with storage base • 155 lb (70 kg) modular top |
| Certifications | CSA Flame, CSA Star, NSF |
Ideal For
- Breakfast & short-order stations
- Burgers, steaks, and sandwich lines
- Hotels, diners, corporate & institutional kitchens
- Adding extra griddle capacity to an existing Master Series lineup
Important: Garland Master Series equipment is intended for commercial use only. Units supplied with casters must be secured with an approved restraining device.
Need help configuring your Master Series battery or selecting the correct backguard? Call Garland Customer Service at 1-800-424-2411 or contact us through the product inquiry form.
