Garland M8S Master Gas Ranges
$3,528.00
Unit price
/
Unavailable
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Garland M8S Master Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Garland M8S Master Gas Ranges
$3,528.00
Unit price
/
Unavailable
Description

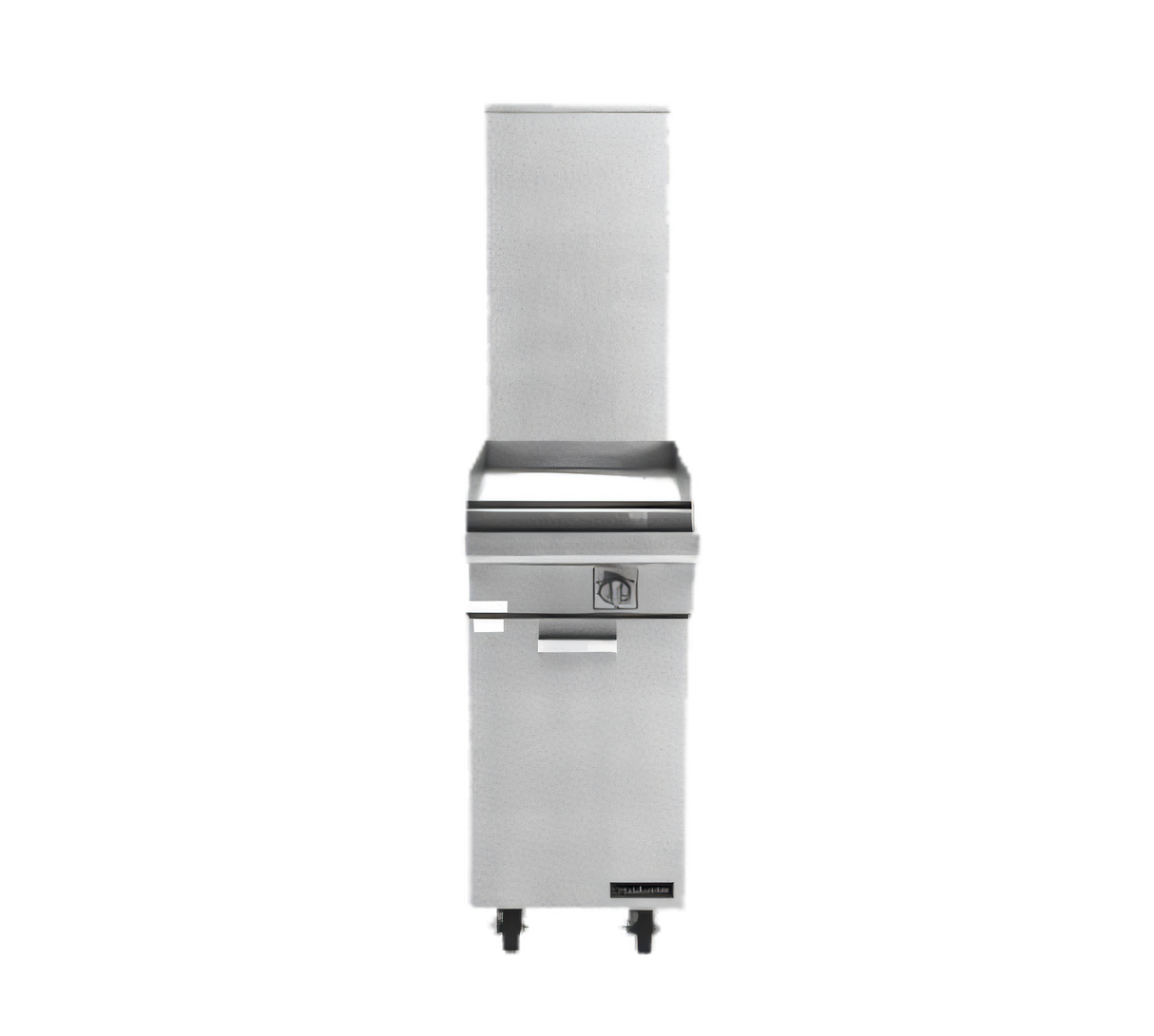

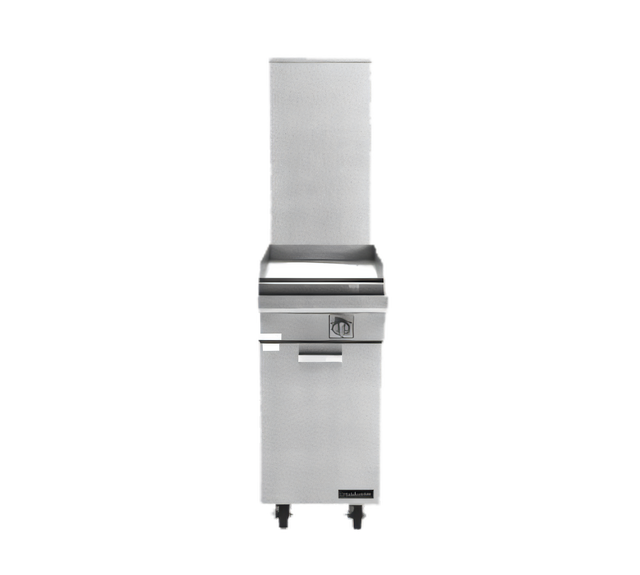

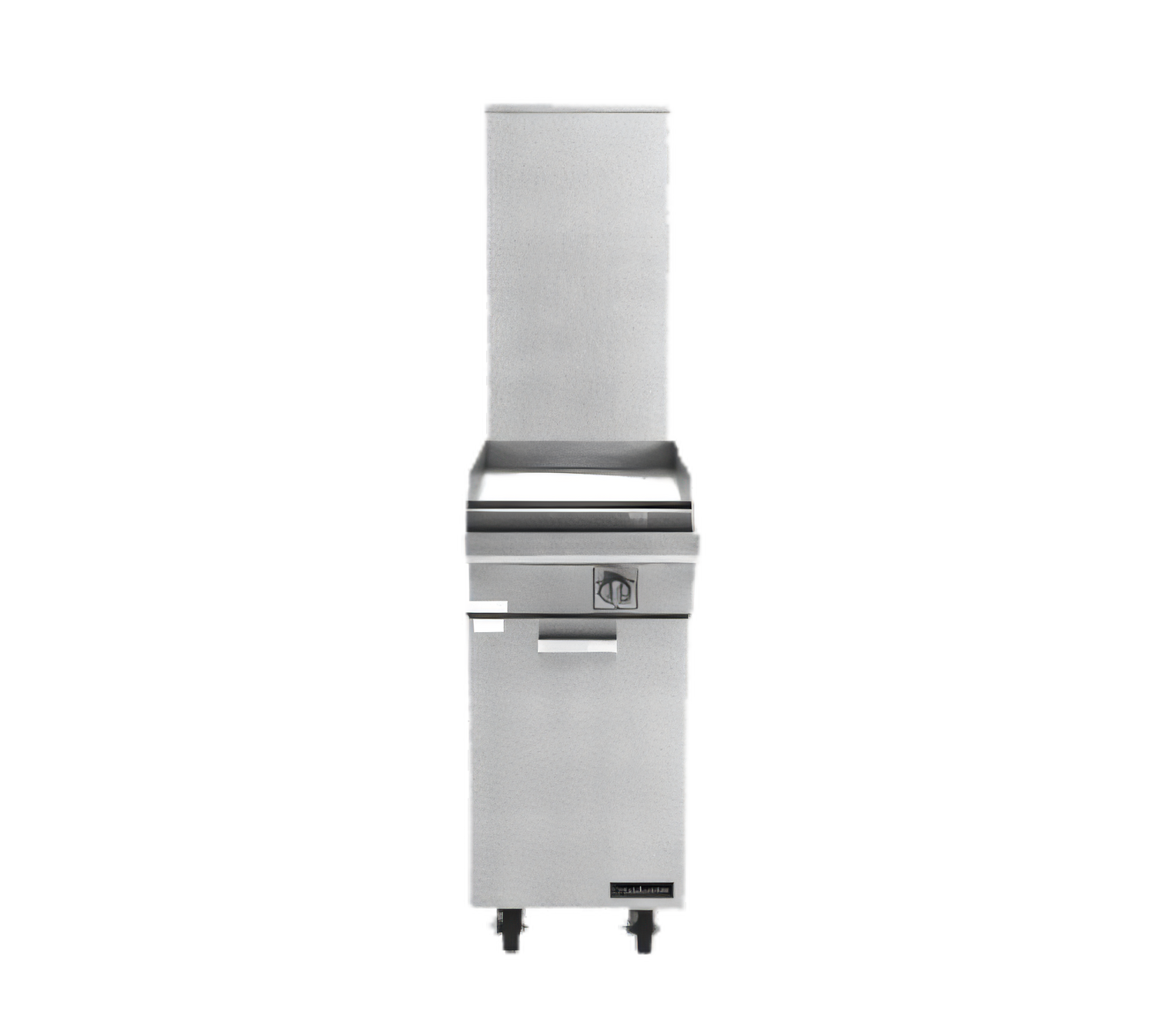

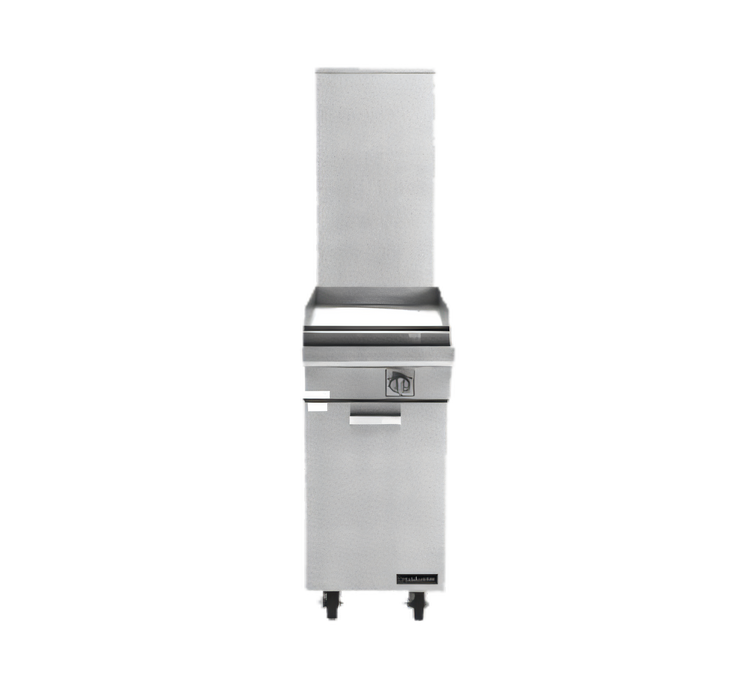

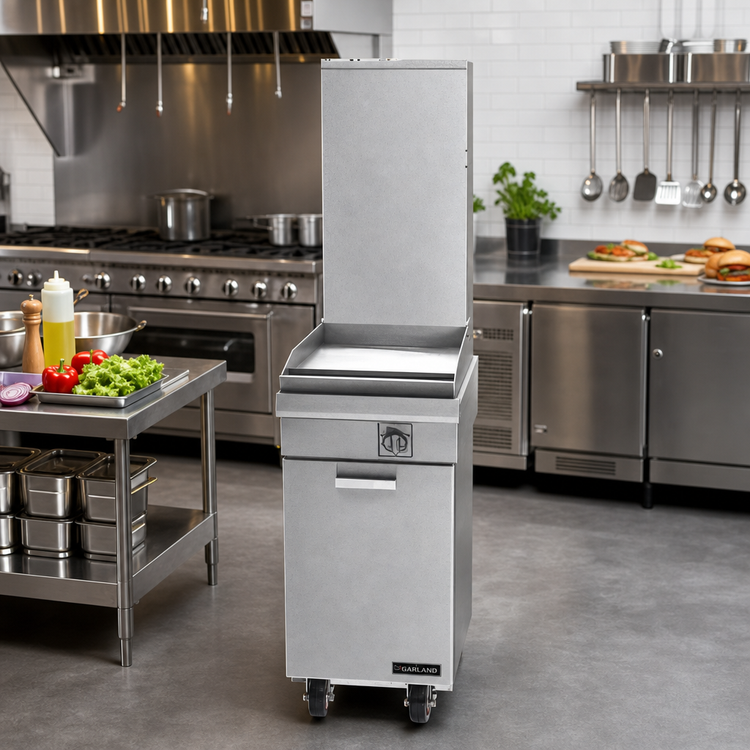

Garland Master Series 17" Thermostatic Griddle Add-A-Unit – Model M8S
33,000 BTU Heavy-Duty Range Attachment with Storage BaseExpand your existing Master Series line-up—or start a new one—with the compact yet uncompromising Model M8S. Packing a full-featured thermostatic griddle and built-in storage into only 17 inches of cook-line, this Add-A-Unit delivers the even heat, rugged construction and serviceability chefs expect from Garland.
Key Features

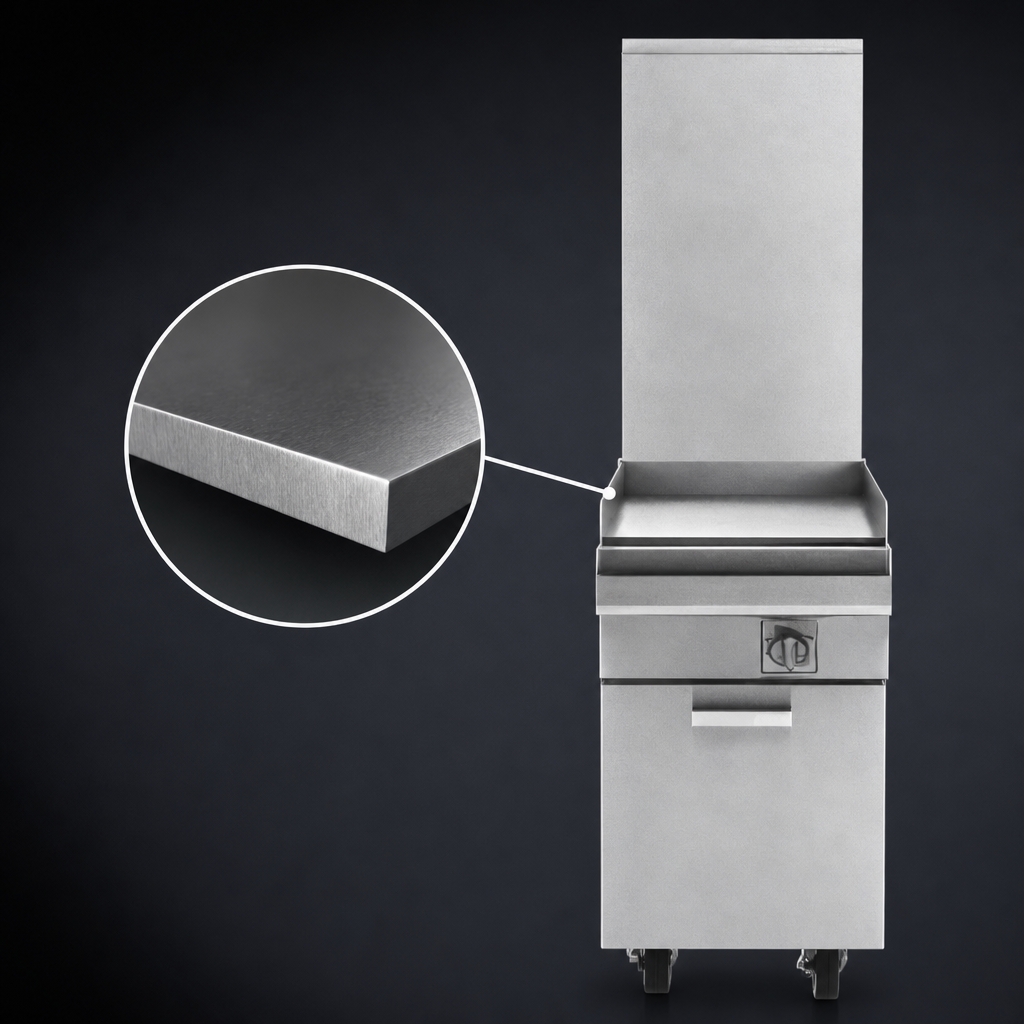

- 1 in (25 mm) thick steel griddle plate retains heat and recovers fast during peak periods.
- Powerful 33,000 BTU (9.67 kW) “H” style burner distributes heat uniformly across the cooking surface.

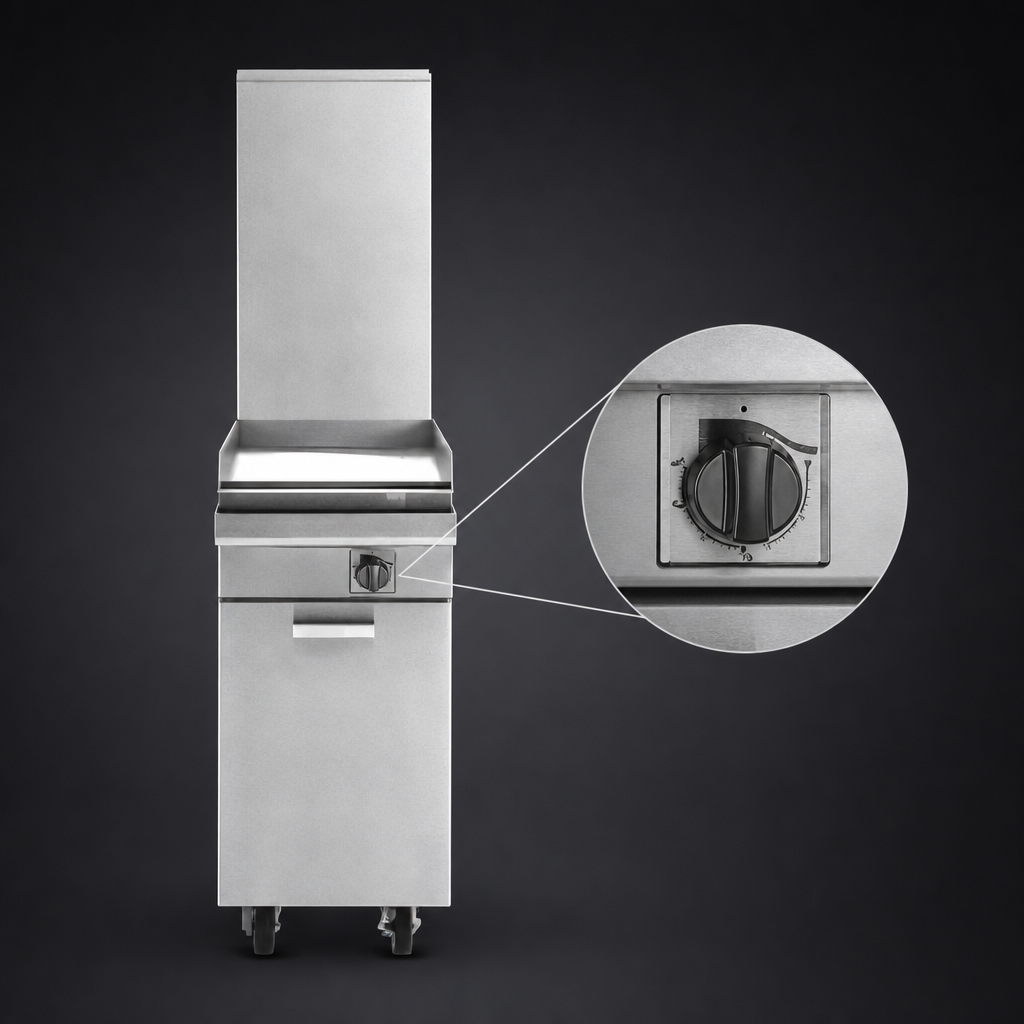

- Dial thermostat with embedded capillary sensor for precise, repeatable temperature control.
- Continuous-welded 2 5⁄16 in (59 mm) stainless steel splashguards plus clip-on rear backsplash keep surrounding equipment clean.
- Full-width, removable stainless steel grease drawer simplifies end-of-shift cleanup.
- Stainless steel front, sides, splashguards and door resist corrosion in the busiest kitchens.
- Built-in storage base with aluminized-steel interior keeps sheet pans, utensils or seasonings right at hand.
- 6 in (152 mm) chrome-plated adjustable legs for fast leveling and NSF clearance.
- Front 1-1⁄4 in NPT gas connection standard; optional rear connection, regulator or shut-off valve available.
- Interlocks seamlessly with other 17 – 102 in Master Series sections to create the exact range battery you need.
- Certified to CSA Flame, CSA Star and NSF standards for gas safety, sanitation and performance.
Specifications
| Model | M8S (Add-A-Unit with storage base) |
|---|---|
| Overall dimensions | 17 in W × 38 in D × 36 1⁄4 in H (432 × 965 × 924 mm) with NSF legs |
| Cooking surface | 17 in W × 24 3⁄4 in D (433 × 629 mm) solid steel plate, 1 in thick |
| Heat input | 33,000 BTU/hr (9.67 kW) – single “H” burner |
| Gas type | Natural 6" WC or Propane 10" WC (specify when ordering) |
| Gas connection | 1 1⁄4 in NPT front manifold (rear connection optional) |
| Construction | Stainless steel front/sides/door/splashguards; aluminized steel under-body & storage cavity |
| Standard legs | 6 in (152 mm) chrome-plated, adjustable |
| Shipping weight | Approx. 260 lb (118 kg) |
| Agency listings | CSA Flame, CSA Star, NSF |
| Combustible clearances | Sides 14 in (356 mm), Rear 6 in (152 mm) |
Popular Options & Accessories
- Rear gas connection (3⁄4 in or 1 in NPT)
- Stainless steel backguards: 10, 17 or 33 in heights
- Single or double-deck tubular high shelves
- Polyurethane swivel caster kit with front brakes (requires restraining device)
- Modular stand (T-model) or dais base
- Grooved or fully-grooved griddle plate
- Celsius thermostat dial
Need a different width or plate style? Master Series griddle attachments are available from 17 in up to 102 in wide. Contact us for a custom battery quote.
Commercial use only: Garland Master Series equipment is designed and certified for professional kitchens.
Installation must conform to local codes, and a backguard is required with every unit.
Attachments mounted on casters must be secured with an approved restraining device.
Features & Specs
Features & Specs
Manufacturer
Garland
Brand_name
Master
Certifications
NSF, CSA Star, CSA Flame
Height
36.38in
Width
17.0in
Depth
38.0in
Shipping Weight
260.0lbs
Top
(1) griddle
Base
cabinet(s)
Exterior Finish
stainless steel front & sides
Plate Thickness
1.000" = 1"
Specifications
Master Series Heavy Duty Range, gas, 17", Add-A-Unit, griddle, 1" thick steel plate, thermostatic controls, storage base, stainless steel front, sides, splashguards & door, 6" adjustable legs, 33,000 BTU, CSA Flame, CSA Star, NSF (Garland)
