Garland M7T Master Gas Ranges
Description
Garland Master Series 17" Add-A-Unit Gas Griddle Attachment
Models M7S / M7T • 33,000 BTU Heavy-Duty Range ModuleDrop powerful, high-efficiency griddle capacity into any Garland Master Series battery without giving up valuable line space. This 17" modular Add-A-Unit delivers the rugged build, precise control and seamless look chefs expect from the Master Series—perfect for finishing sides, searing proteins or handling short-order favourites during the rush.
Key Features

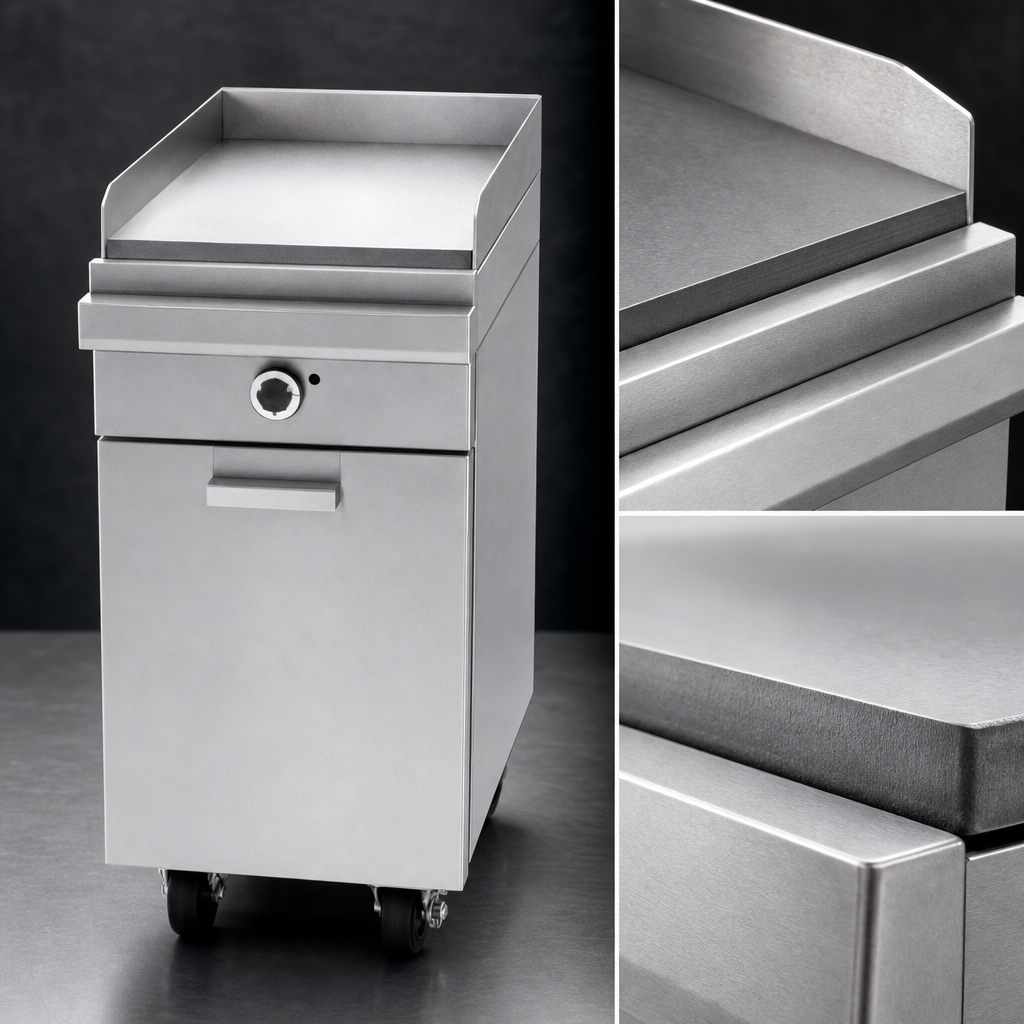

- 1" (25 mm) polished steel plate retains heat for rapid recovery and consistent results.
- Single 33,000 BTU “H”-type burner with aluminized baffle spreads heat evenly edge-to-edge.

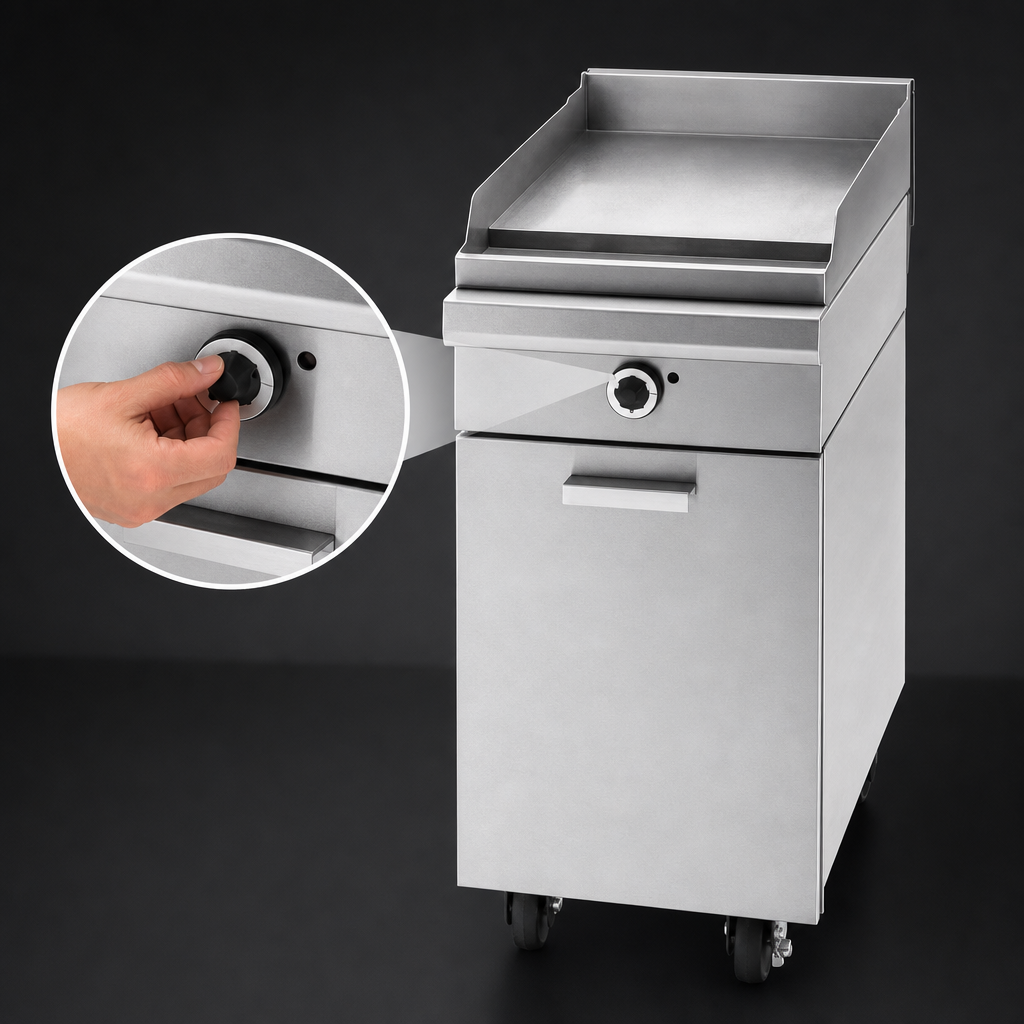

- Manual Hi-Lo valve gives instant, intuitive control over sear or holding temperatures.
- Continuous-welded 2-5/16" stainless-steel splashguards on rear and sides contain mess.
- Clip-on rear backsplash and extra-deep removable grease drawer speed daily clean-up.
- All-stainless front, sides and door match the full Master Series aesthetic and durability.
- Choose M7S (with storage base & NSF legs) or M7T (modular top for counter/stand mounting).
- Front 1-1/4" NPT gas connection with factory shut-off valve simplifies installation.
- Certified to CSA Flame, CSA Star and NSF standards for safety & sanitation.
At-a-Glance Specs
| Cooking surface | 17" W × 24-3/4" D (433 × 629 mm) |
|---|---|
| Plate thickness | 1" (25 mm) ground steel |
| Total BTU | 33,000 BTU/hr (9.67 kW) |
| Control type | Manual Hi-Lo valve |
| Gas type | Natural or Propane (specify) |
| Manifold connection | 1-1/4" NPT (front) |
| Operating pressure | NAT 6" WC • LP 10" WC |
| Overall dimensions (M7S w/ legs) |
17" W × 38" D × 36-3/8" H (432 × 965 × 924 mm) |
| Shipping weight | M7S 260 lb (118 kg) • M7T 155 lb (70 kg) |
| Combustible clearances | Sides 14" (356 mm) • Rear 6" (152 mm) |
| Certifications | CSA Flame • CSA Star • NSF |
Ideal Applications
- Boosting griddle capacity without adding a full range.
- Breakfast service, burgers, paninis, quesadillas and finishing proteins.
- Compact kitchens, kiosks and satellite stations where every inch counts.
Need help configuring your battery? Call Garland at 1-800-424-2411 for expert layout assistance.
