Garland M6S Master Gas Ranges
Description

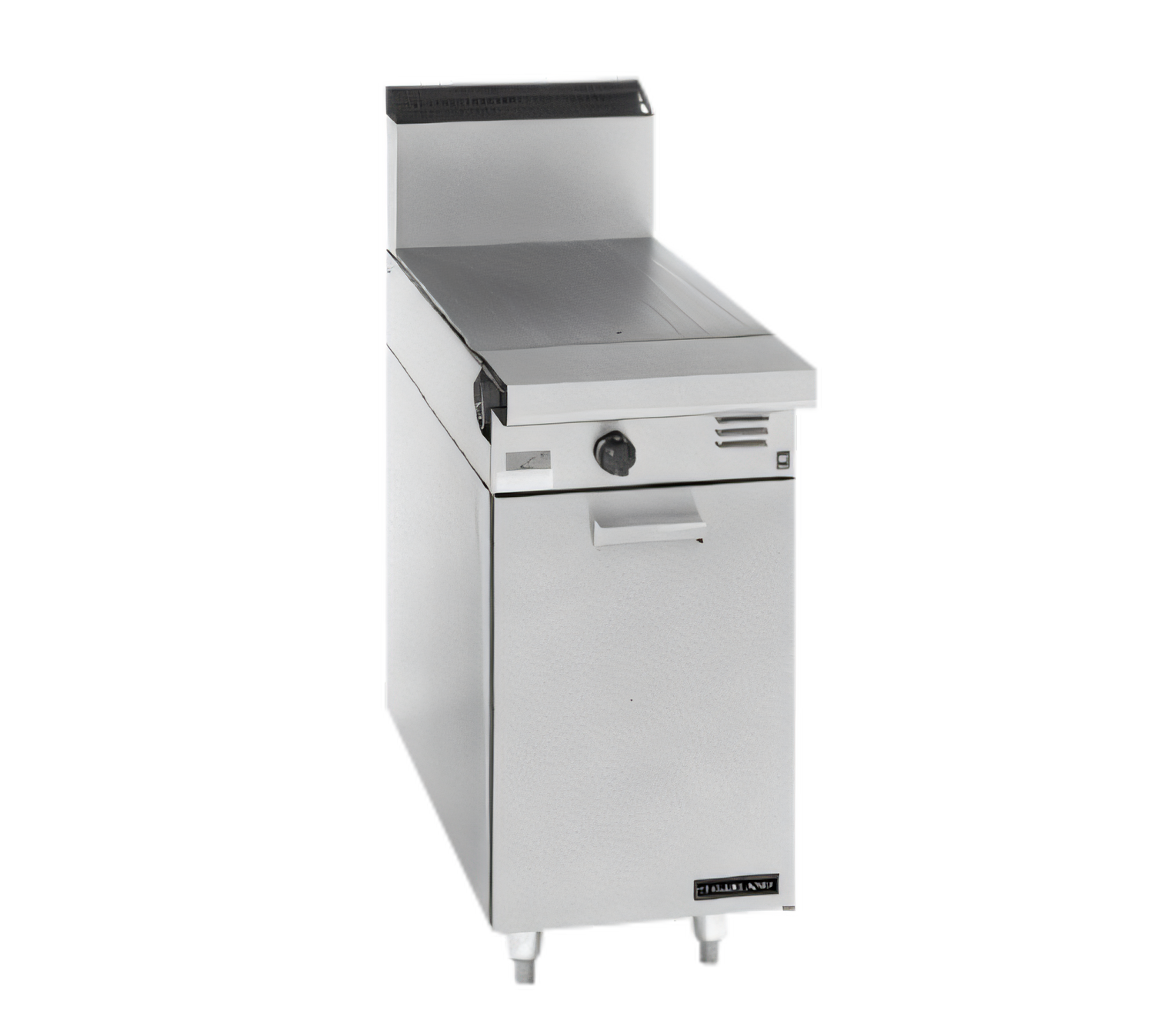

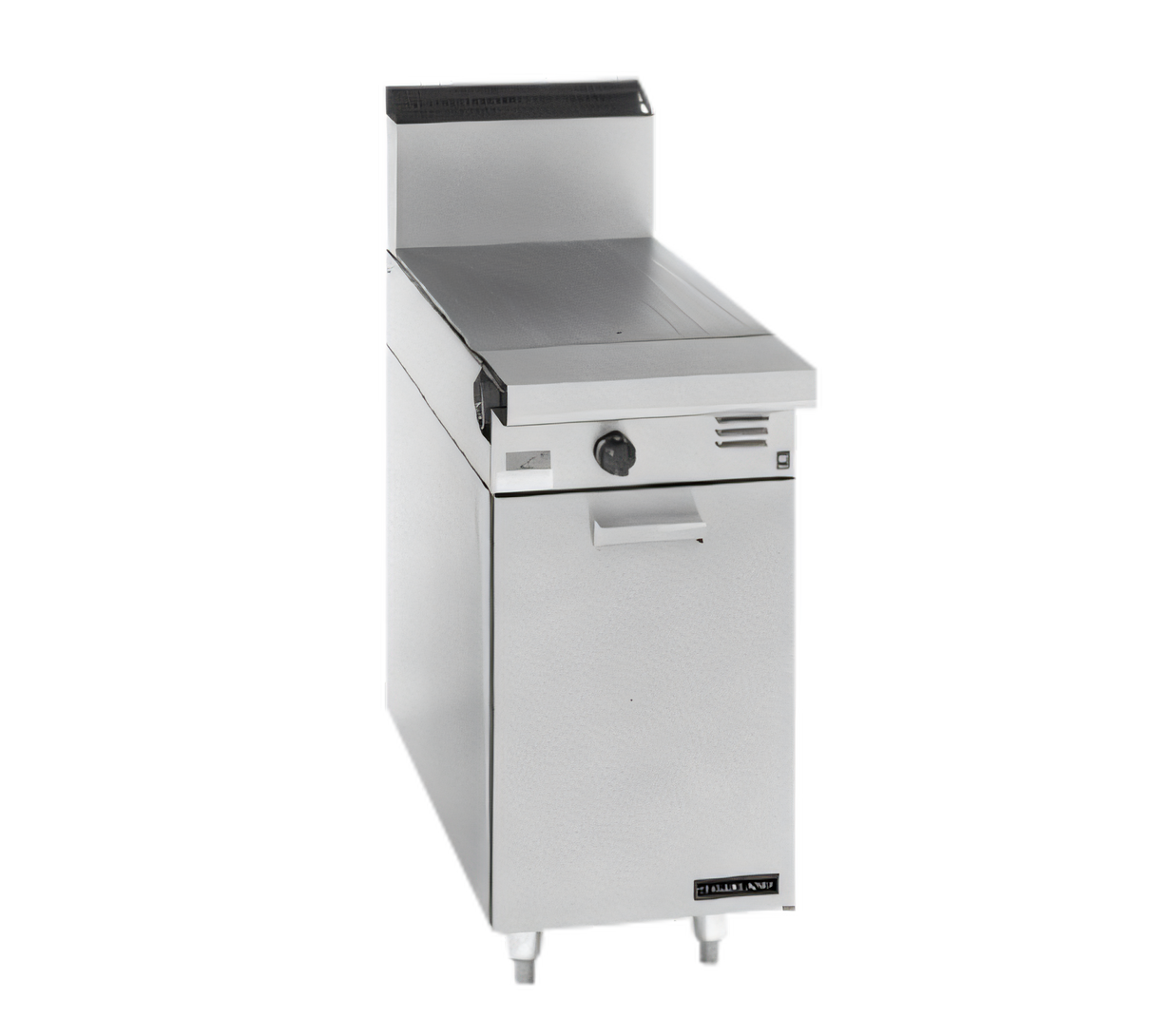

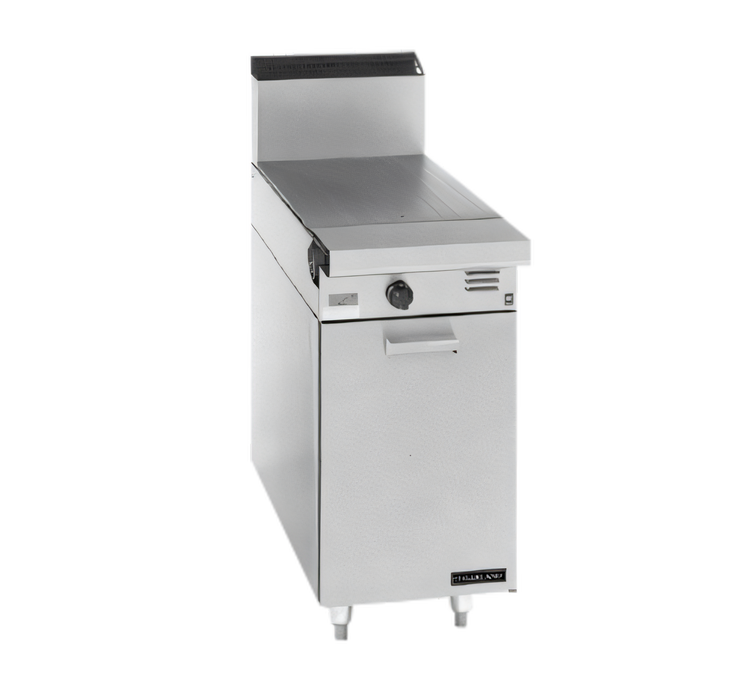

Garland Master Series 17" Even Heat Hot Top Add-A-Unit
Model M6S | 30,000 BTU Gas Range Attachment with Storage BaseSlide extra versatility into any cook-line with just 17 inches of premium Garland power. The Master Series Even Heat Hot Top delivers gentle, edge-to-edge heat for sauté pans, sauce pots or holding vessels, while the built-in storage base keeps essential cookware right where you need it.
Highlights

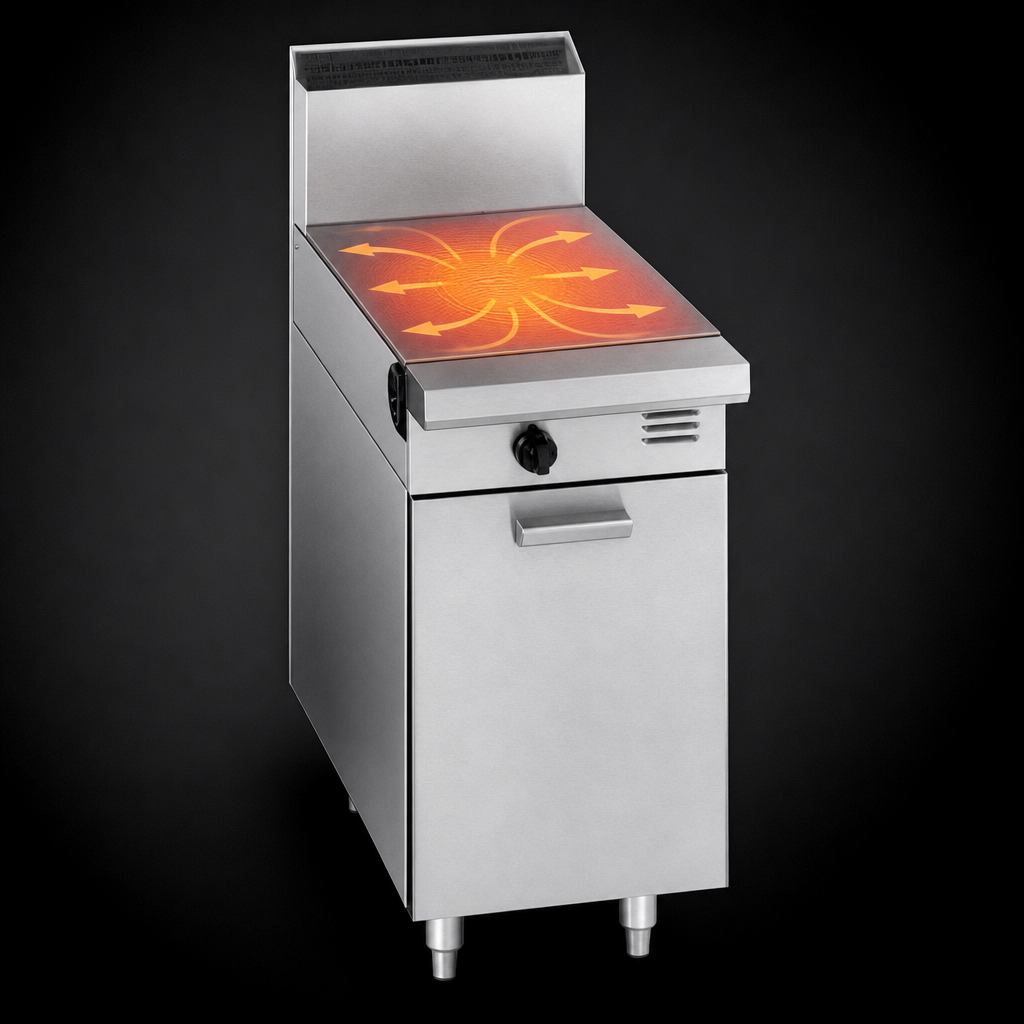

- Even-heat 17" (432 mm) steel hot-top plate—perfect for continuous simmering or low-temp holding.
- One 30,000 BTU cast-iron burner delivers fast recovery and exceptional heat distribution.
- Space-saving Add-A-Unit design mates seamlessly with any Garland Master Series battery, or works as a compact stand-alone station.
- Durable stainless steel front, sides & door with extra-heavy cast-iron top sections built for daily commercial abuse.
- Stainless steel 7-1/2" (191 mm) deep front rail doubles as a landing zone for plates and utensils.
- Full-width storage base (14" × 32-1/2" × 20-1/2" interior) keeps sheet pans and small-wares close at hand.
- 6" (152 mm) chrome-plated adjustable legs for quick leveling on uneven floors; optional locking casters available.
- Front 1-1/4" NPT gas connection for straightforward hook-up; rear connection available.
- Certified to CSA Flame, CSA Star & NSF standards.
Technical Specifications
| Overall width | 17" / 432 mm |
|---|---|
| Overall depth | 38" / 965 mm (including front rail) |
| Overall height | 36-3/8" / 924 mm (with 6" legs) |
| Gas input | 30,000 BTU/hr | 8.79 kW |
| Gas type | Natural or Propane |
| Operating pressure | Natural 6" WC / LP 10" WC |
| Gas inlet (standard) | 1-1/4" NPT (front) |
| Combustible clearances | Sides 14" (356 mm) / Back 6" (152 mm) |
| Shipping weight | 240 lb / 109 kg |
| Certifications | CSA Flame, CSA Star, NSF |
Popular Options & Accessories
- Stainless steel backguard: 10", 17" or 33" heights
- Single or double-deck stainless high shelves
- Common front rail (up to 68" when batterying multiple units)
- Rear gas connection kit (3/4" or 1" NPT)
- Swivel or non-marking casters with front brakes & restraining device
- Gas regulator, flex hose & quick-disconnect kits
- Additional stainless or aluminized interior shelf for storage base
Garland reserves the right to modify design or specifications without notice. For help configuring battery layouts or selecting accessories, call Garland Customer Service at 1-800-424-2411.
