Garland

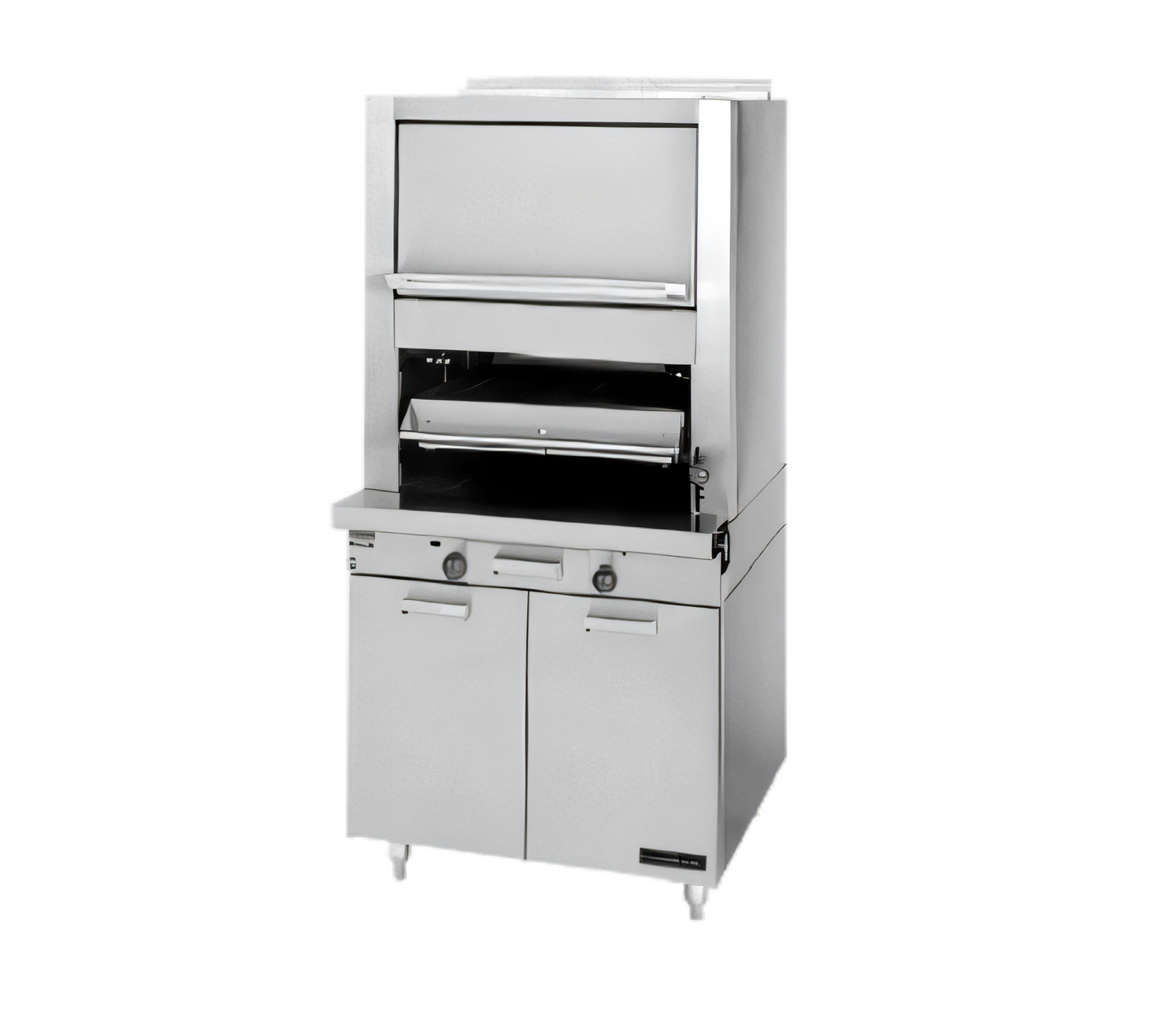

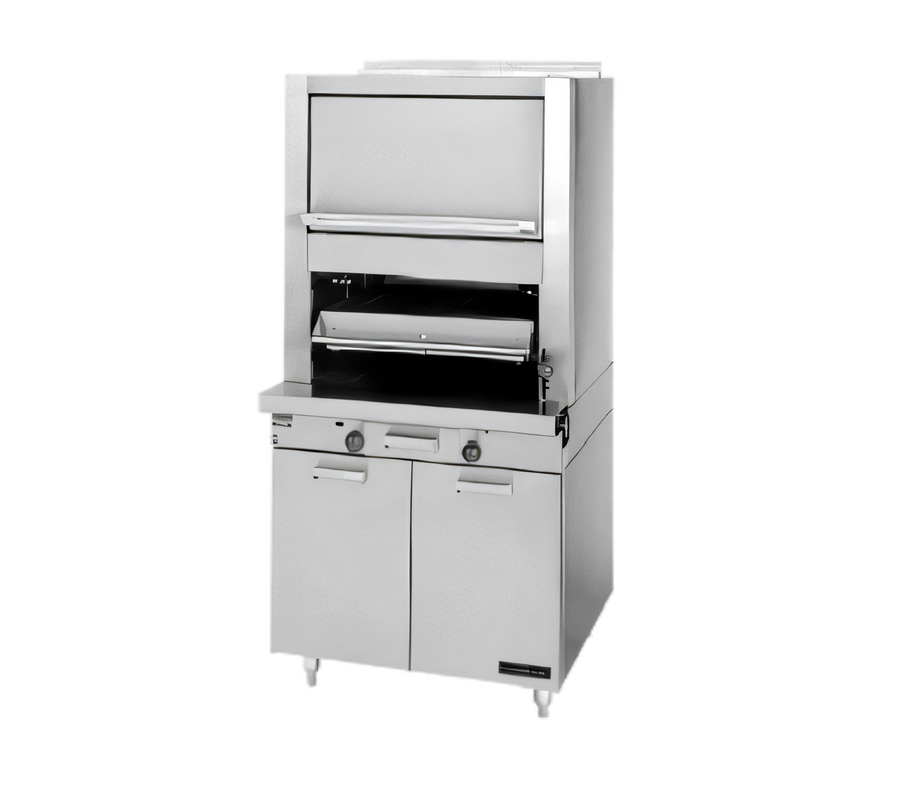

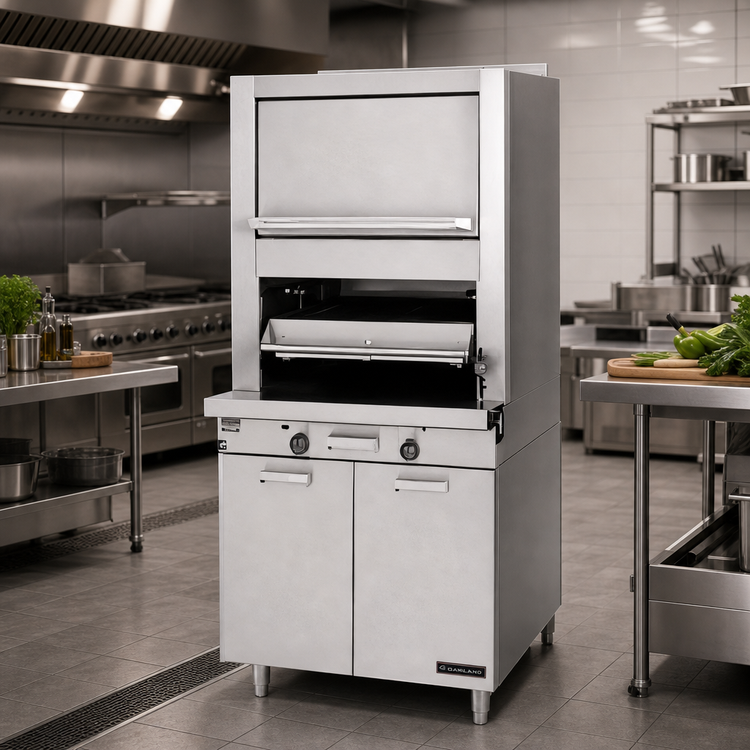

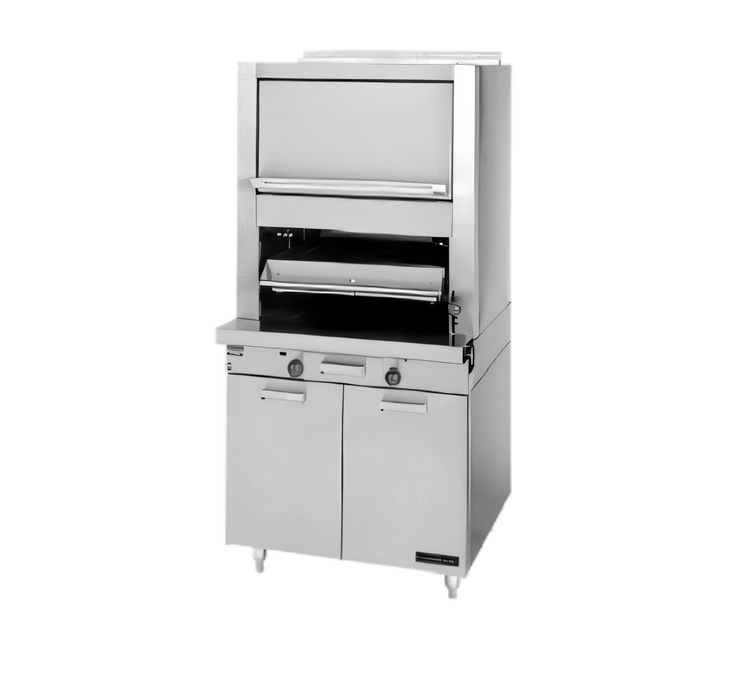

Garland Master Series M60XR Range-Match Upright Gas Ceramic Broiler with Upper Finishing Oven and Standard Oven Base

SKU: M60XR
$9,945.45
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Broilers Deck Ovens Deck Ovens Garland New Arrivals Ovens Restaurant Equipment Upright Broilers

Garland Master Series M60XR Range-Match Upright Gas Ceramic Broiler with Upper Finishing Oven and Standard Oven Base

Single deck, stainless steel front and sides, 6-inch adjustable legs

Built for demanding commercial kitchens, this range-match upright broiler pairs a high-output ceramic broiler with an upper finishing oven and standard oven base in a durable stainless steel body.

  • 120,000 BTU total gas input with an 80,000 BTU broiler and 40,000 BTU standard oven.
  • Upper finishing oven has a porcelain interior and no burners; it is heated by heat rising from the broiler below.
  • Stainless steel front and sides provide durable, easy-to-clean construction for the hot line.
  • Removable broiler grid and 5-position adjustable rack provide a 24 x 22 Inches broiling area.
  • Piezo spark oven ignition and thermostatic control support dependable daily operation.
  • 6-inch adjustable legs and a 7-1/2-inch stainless steel front rail come standard.

Overall Dimensions:

34.0"W x 38.0"D x 72.13"H

Product Weight:

750.0 lb

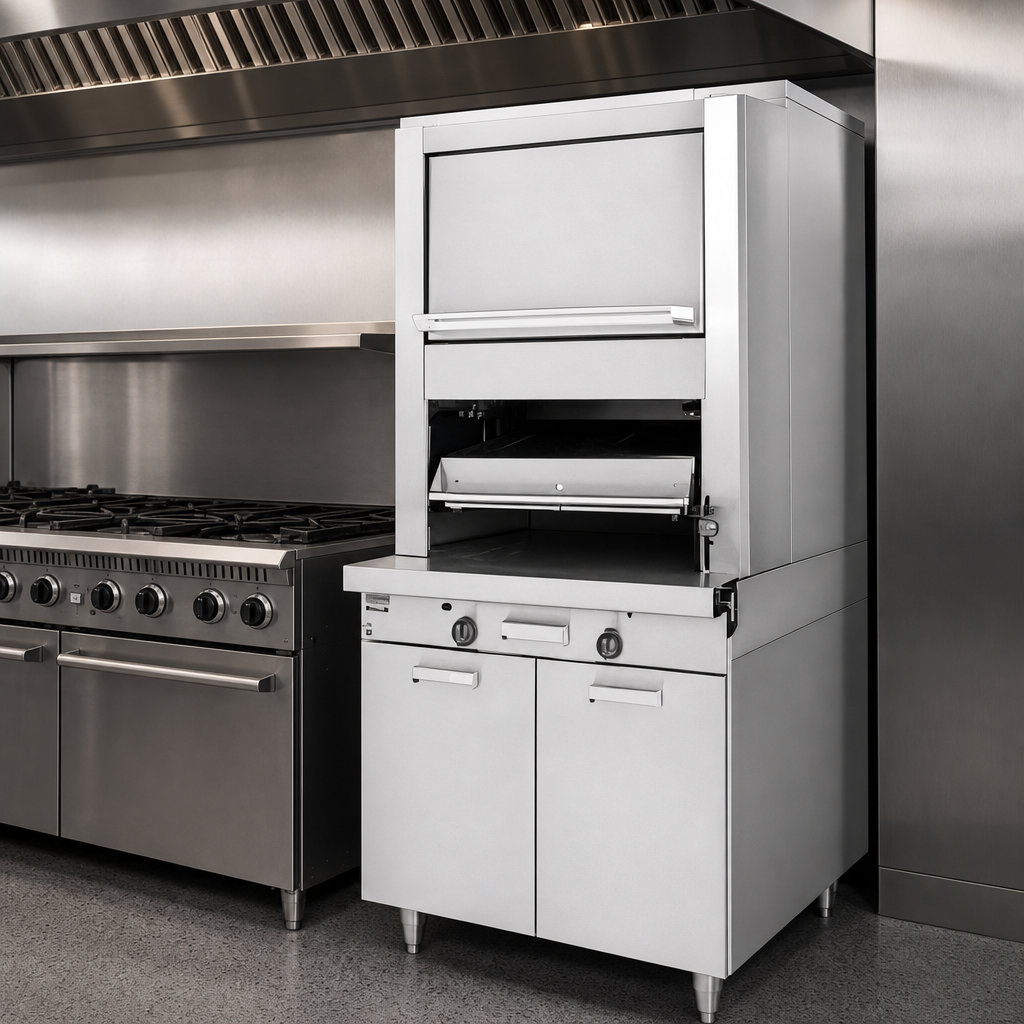

Heavy-Duty Range-Match Construction

Upright broiler design built for commercial kitchens and line-up installations.

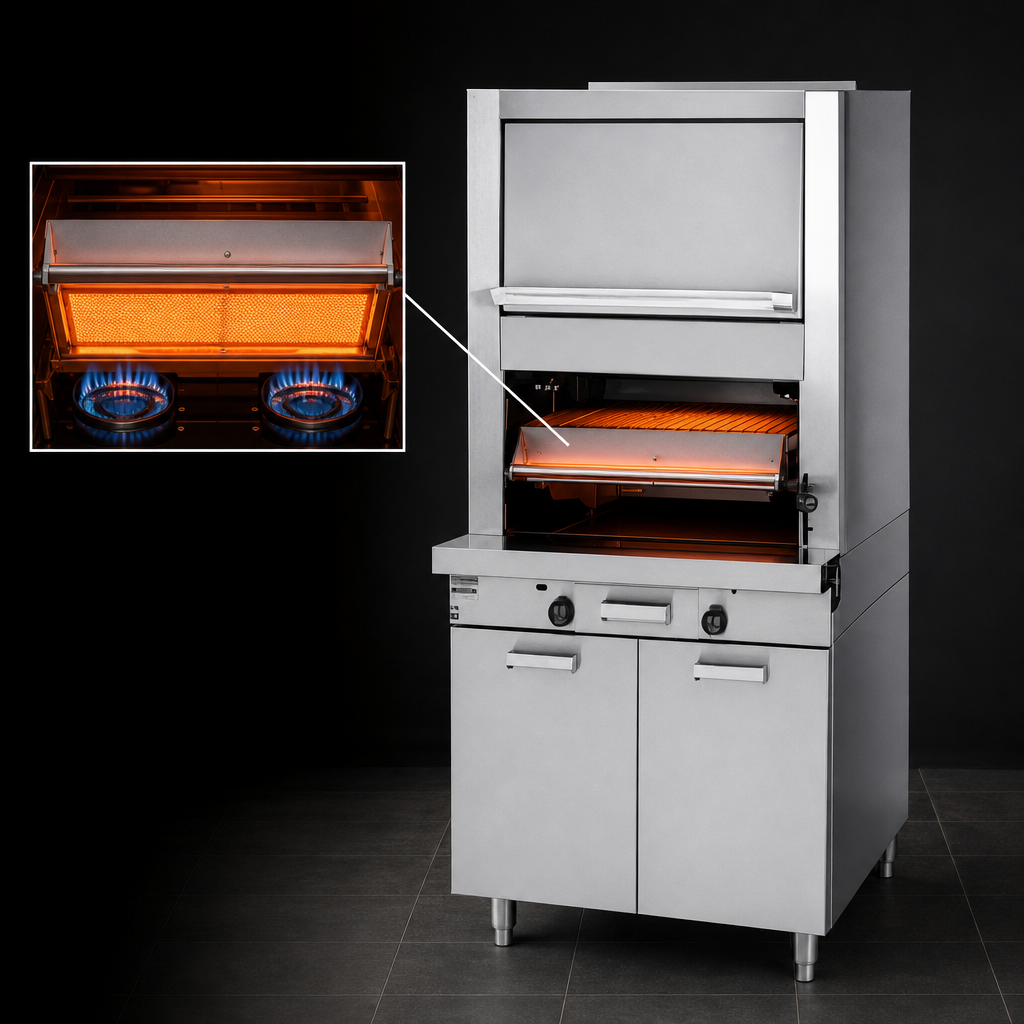

Ceramic Radiant Broiler Deck

Two large cast-iron multi-jet burners deliver 80,000 BTU total for high-output broiling.

Upper Finishing Oven

Porcelain interior with no burners; the oven is heated by rising heat from the broiler below.

Standard Oven Base With Piezo Ignition

The lower oven includes piezo spark ignition, a cast-iron burner, and thermostatic control.

Stainless Steel Front And Sides

Durable stainless steel exterior helps withstand heavy-use kitchen environments and simplifies cleanup.

Adjustable Broiler Rack

Includes a removable broiler grid and 5-position adjustable rack with a 24 x 22 Inches broiling area.

Fuel Options

Order for natural gas or propane; operating pressure is 6 Inches W.C. for natural gas and 11 Inches W.C. for propane.

Type Upright Broiler
Style Range Match
Installation Type Floor Model
Material Stainless Steel
Interior Finish Porcelain Enamel
BTU 120,000 BTU
Cooking Surface Width 24 Inches
Cooking Surface Depth 22 Inches
Gas Inlet Pressure Natural Gas: 6 Inches W.C.; Propane: 11 Inches W.C.
Selling Unit Each
Units Per Case 1
Shipping Width 34 Inches
Shipping Depth 38 Inches
Shipping Height 73 Inches
Shipping Weight 750 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Check list PDF Download

Frequently Asked Questions

No. The upper finishing oven has a porcelain interior and is heated by heat rising from the broiler below.
The unit is rated at 120,000 BTU total.
Order it for natural gas or propane; operating pressure is 6 Inches W.C. for natural gas and 11 Inches W.C. for propane.
The broiler rack area is 24 x 22 Inches and includes a removable grid with a 5-position adjustable rack.
Combustible wall clearances are 6 Inches on the sides and 6 Inches on the back. Crated entry clearance is 39-1/4 Inches, and uncrated entry clearance is 34-1/4 Inches.
Yes. M60XRC is the convection-oven version, and M60XS is the storage-base version.
