Garland M5T Master Gas Ranges
Description

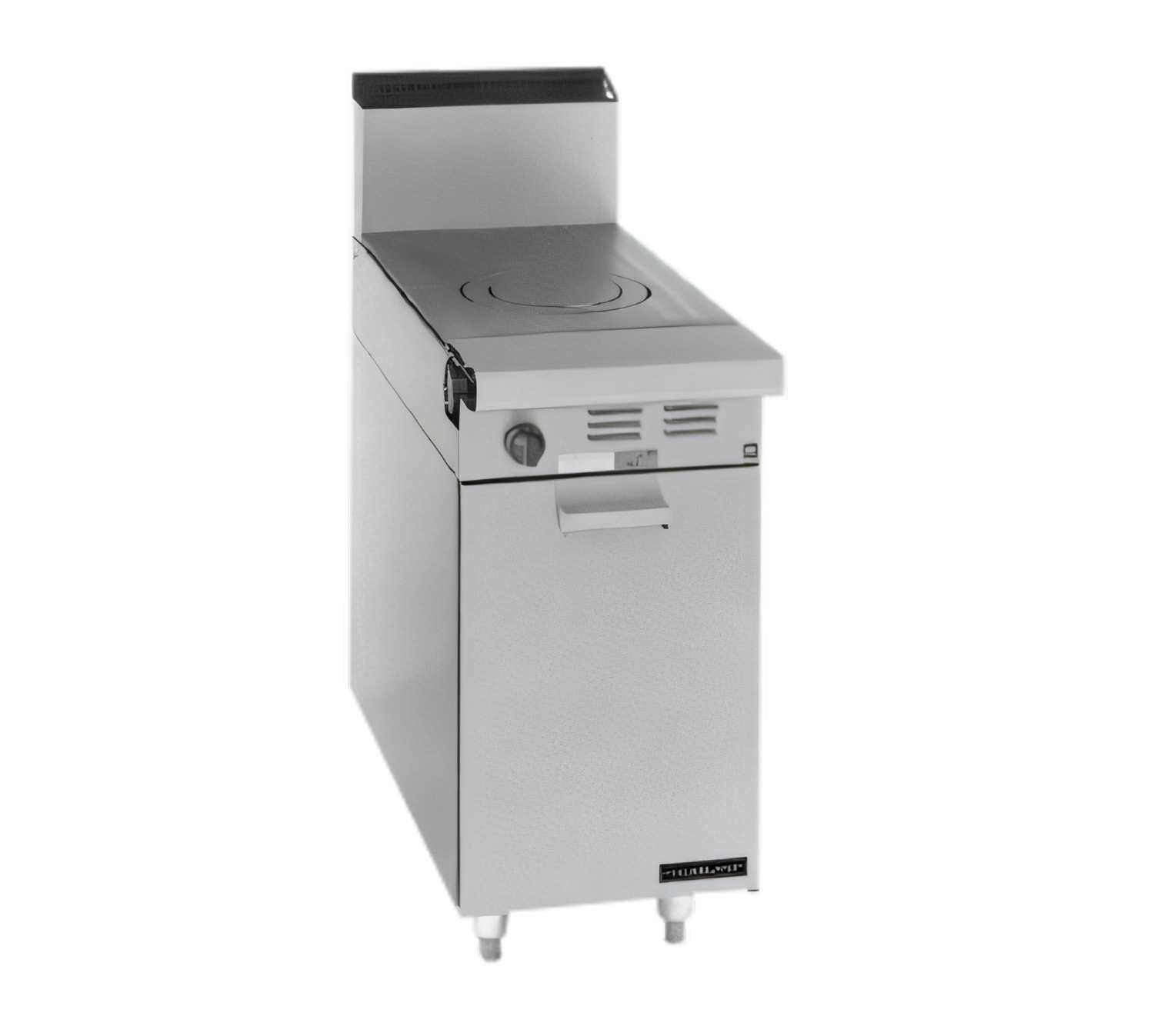

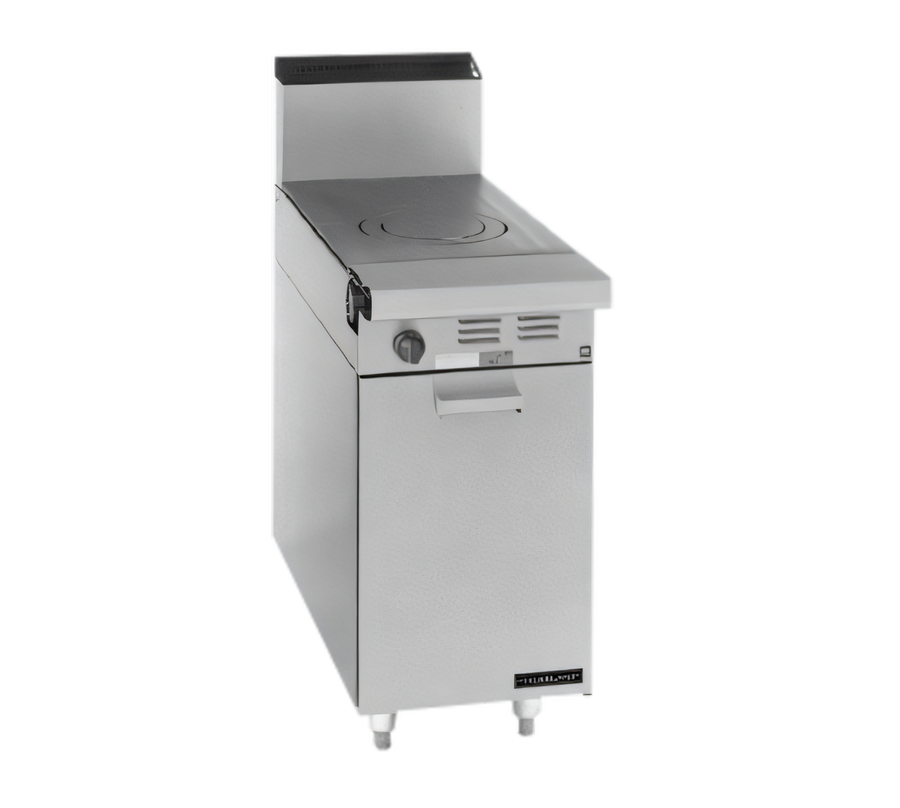

Garland Master Series M5T 17-inch Front-Fired Hot Top Range Attachment
Modular “Add-A-Unit” | 45,000 BTU | Natural or Propane GasBuild the exact cookline your kitchen demands with Garland’s Master Series M5T hot-top module. At just 17 inches wide, this heavy-duty attachment drops a powerful, front-fired hot surface anywhere in your battery—perfect for holding stockpots, roasting pans or sauté pans that need steady, even heat all shift long.
Why you’ll love it

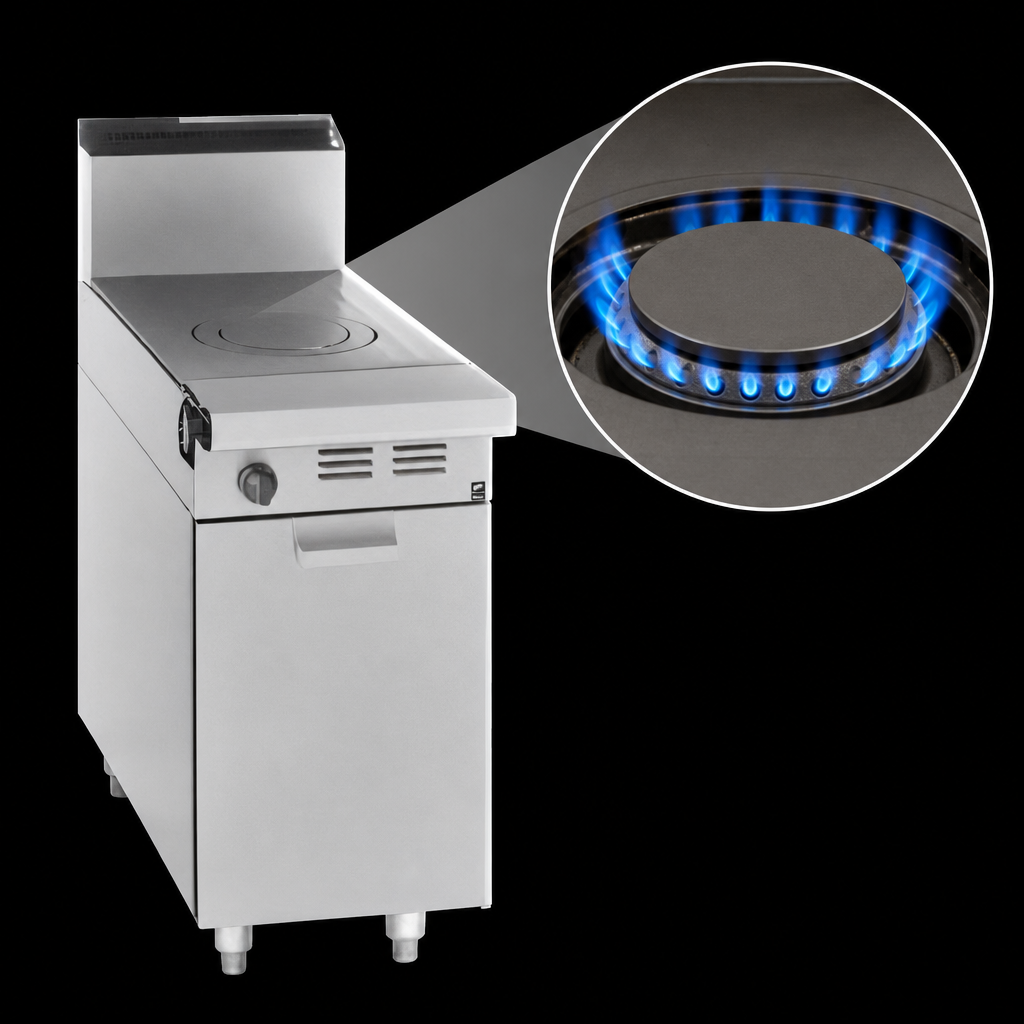

- 45,000 BTU (13.18 kW) from three individually-controlled jet burners for fast recovery and precise zone control

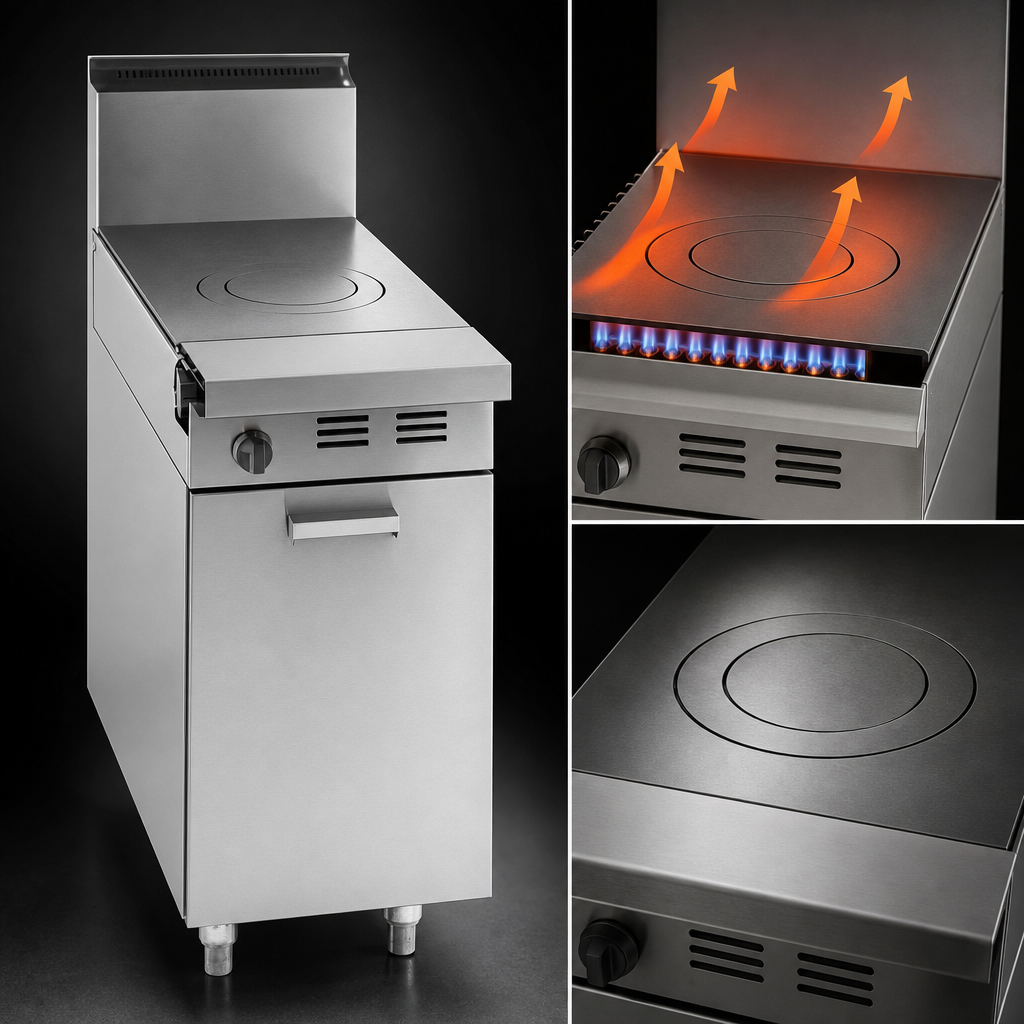

- Front-fired Spectro-Heat hot top delivers uniform heat edge-to-edge, eliminating hot and cold spots
- Extra-heavy, sectional cast-iron surface with removable center ring & lid—ideal for direct-flame wok or stock-pot work
- Modular “Add-A-Unit” design mates flush with other Master Series equipment to expand or refresh an existing line-up
- Durable stainless-steel front & sides stand up to daily commercial abuse and wipe clean fast
- 7 1⁄2-inch deep stainless front rail keeps pans, utensils or plates within easy reach
- Field convertible for Natural or Propane gas; 3⁄4-in to 1-1⁄4-in regulator options available
- Certified safe & sanitary: CSA Flame, CSA Star and NSF
Technical Specifications
| Model | M5T (Modular Top) |
|---|---|
| Overall width | 17 in / 432 mm |
| Overall depth | 38 in / 965 mm (includes 7 1⁄2 in front rail) |
| Height* | 36 3⁄8 in / 924 mm with optional stand 9 1⁄2 in / 241 mm without stand |
| Heat input | 45,000 BTU/hr Natural Gas 33,000 BTU/hr Propane |
| Burners | 3 × front-fired jet burners (individually valved) |
| Gas connection | 1 1⁄4 in NPT front (rear connection optional) |
| Operating pressure | 6" WC Natural Gas | 10" WC Propane |
| Clearances (combustible) | 14 in sides | 6 in back |
| Certifications | CSA Flame • CSA Star • NSF |
*Height shown with NSF-approved legs/stand. Modular top ships without legs unless specified.
Popular factory options
- Modular stand or dais base
- 6-inch adjustable stainless-steel legs or non-marking swivel casters with brakes
- 10", 17" or 33" stainless backguard or tubular high shelf (single/double-deck)
- Common front rail to match multi-unit batteries (up to 102")
- Rear gas connection kit, gas shut-off valve or quick-disconnect hose (3⁄4", 1" or 1-1⁄4")
- End cap & cover for exposed sides
Need help building a full battery or specifying backguards and rails? Call Garland Customer Service at 1-800-424-2411 or speak with your authorized dealer.
