Garland M54S Master Gas Ranges
Description

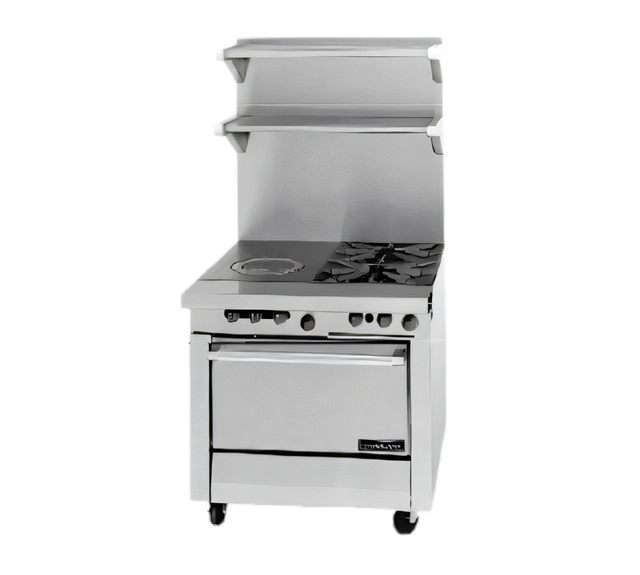

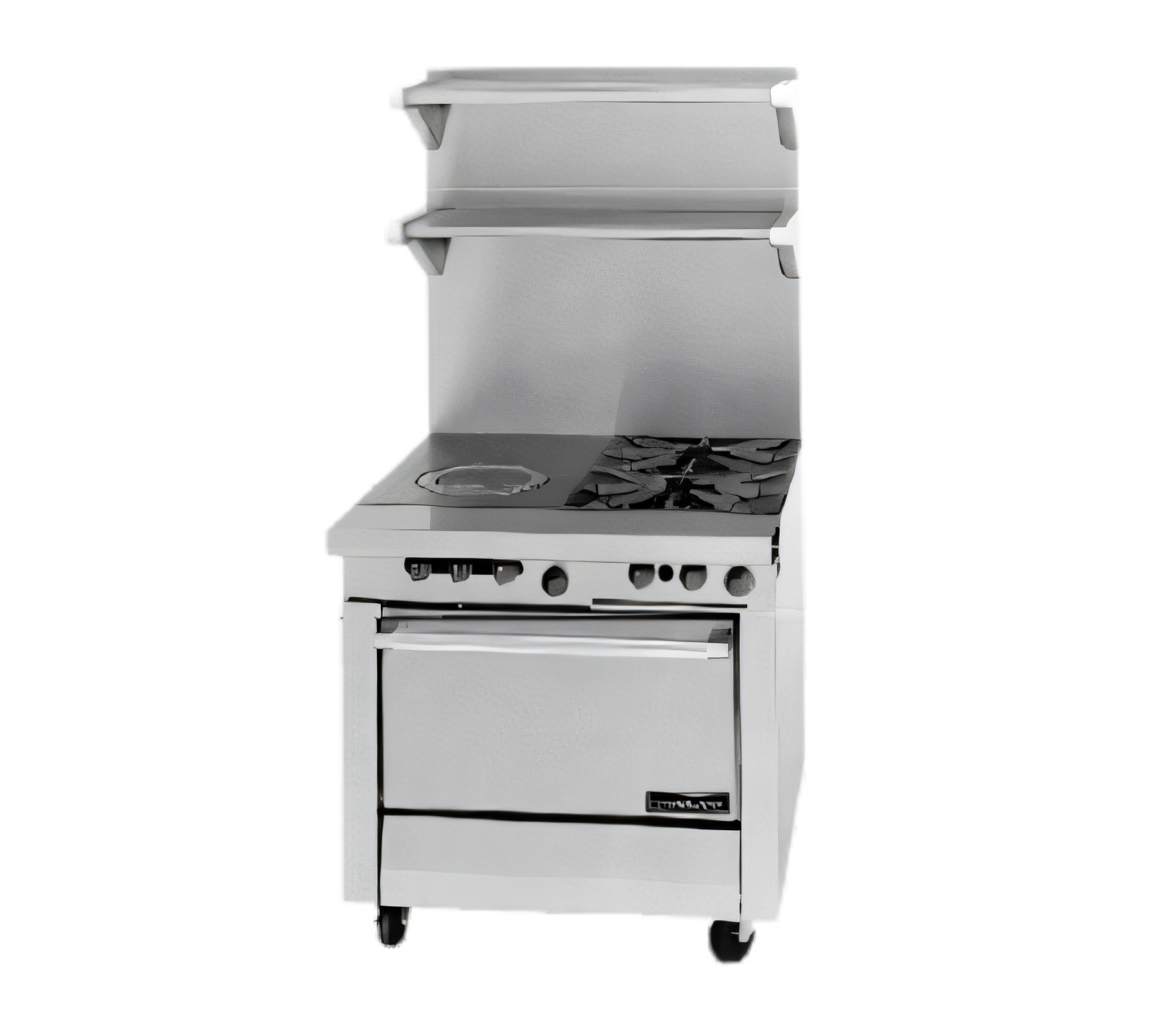

Garland Master Series 34" Heavy Duty Gas Range – Hot Top & Open Burners
Model M54S | 115,000 BTU (Natural) | Storage BaseWhen the rush hits, the Garland Master Series keeps pace. This 34" heavy-duty range combines a high-output front-fired hot top with two powerful Starfire open burners, giving chefs the flexibility to sauté, sear, simmer or hold stock pots—all on a single, space-saving platform. A built-in stainless storage base keeps cookware close and your cookline uncluttered.
Cooktop Configuration
- 17" front-fired cast-iron hot top on the left – 45,000 BTU (Natural) with removable ring & lid for direct or diffused heat.
- (2) 35,000 BTU Starfire two-piece open burners on the right with easy-to-clean, removable heads.
- Heavy-duty cast-iron top & ring grates stand up to continuous high-heat use.
- One-piece stainless steel drip tray spans the full width for quick clean-up.
Built for the Line
- Rugged stainless steel front & sides resist dents, scratches and corrosion.
- 7-1/2" deep stainless front rail acts as a convenient plating and utensil shelf.
- 6" (152 mm) chrome-plated adjustable legs for easy leveling on uneven floors.
- Spacious storage base (26" W × 30-1/2" D × 20-1/2" H) keeps sheet pans, stock pots or smallwares within arm’s reach.
Certifications & Warranty
- CSA Flame & CSA Star certified for gas safety.
- NSF listed for sanitation.
- 1-year parts & labor warranty backed by Garland’s nationwide service network.
Technical Specifications
| Model | M54S – Heavy Duty Range with Storage Base |
|---|---|
| Gas Type | Natural (field convertible to Propane) |
| Total Input |
115,000 BTU/h (33.68 kW) – Natural 97,000 BTU/h (28.50 kW) – Propane |
| Individual Inputs |
Hot Top: 45,000 BTU/h (Natural) Open Burners: 35,000 BTU/h each (Natural) |
| Operating Pressure | 6" W.C. Natural • 10" W.C. Propane |
| Gas Inlet | 1-1/4" NPT front (rear connection optional) |
| Dimensions (W × D × H) | 34" × 38" × 36-3/8" (864 × 965 × 924 mm) — height includes 6" legs |
| Combustible Clearances | Sides 14" (356 mm) • Back 6" (152 mm) |
| Shipping Weight | 375 lb (170 kg) |
Gas ratings are for installations up to 2,000 ft (610 m) above sea level. Contact Garland for high-altitude configurations.
