Garland

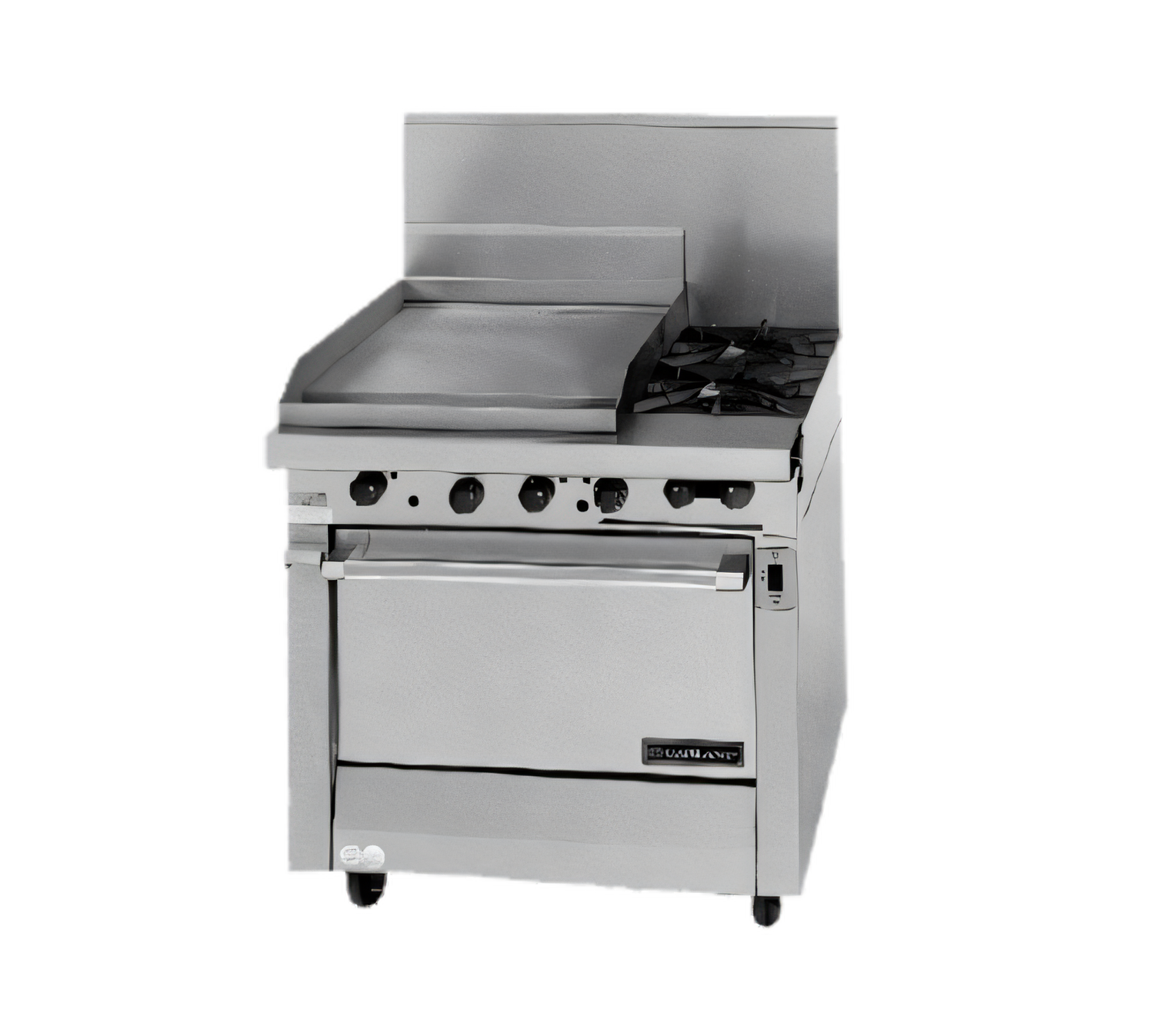

Garland master series heavy duty 34-inch gas modular combination top range with 2 open burners and 23-inch thermostatic griddle

SKU: M48-23T
$6,340.05
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best sellers Commercial ranges Garland Gas ranges New arrivals Ranges Restaurant equipment

Garland Master Series Heavy Duty 34-Inch Gas Modular Combination Top Range with 2 Open Burners and 23-Inch Thermostatic Griddle

Stainless Steel Front and Sides, Modular Top Configuration

Built for high-volume kitchens, this modular gas range top combines two powerful open burners with a thermostatic griddle on a rugged stainless steel chassis.

  • Modular top design with no oven section, ideal for custom lineups and compatible bases.
  • 23-inch thermostatic griddle with a 1-inch steel plate and embedded capillary line sensors.
  • Two 24,000 BTU Starfire open burners provide reliable high-output cooking.
  • Stainless steel front and sides, plus welded splashguards, backsplash, and grease management components.
  • Natural gas or propane capable with a 1-1/4-inch NPT gas inlet.
  • Commercial-grade construction designed for demanding restaurant service.

Overall Dimensions:

34.0"W x 38.0"D x 10.0"H

Product Weight:

295.0 lb

Thermostatic Griddle

Left-side 23-inch griddle features thermostatic control with embedded capillary line sensors and a 450°F maximum.

Two High-Output Open Burners

Includes two 24,000 BTU Starfire open burners with heavy-duty cast iron top grates and ring grates.

1-Inch Steel Griddle Plate

The thick griddle plate provides even heat retention and durability for heavy use.

Stainless Steel Construction

Stainless steel front and sides, along with a stainless front rail and clip-on backsplash, support long-lasting service.

Easy-Clean Front Design

Features a removable front-mounted stainless steel grease receptacle and one-piece stainless steel drip tray.

Modular Top Only

The T configuration is the modular top version and does not include an oven or storage base.

Flexible Gas Setup

Configured for natural gas or propane service with a 1-1/4-inch NPT gas inlet.

Type Combination Top Range
Style Heavy Duty
Installation Type Floor Model
Material Stainless Steel
Controls Thermostatic
Cooking Surface Width 23 Inches
Cooking Surface Depth 25 Inches
BTU 114,000 BTU
Gas Type Natural Gas
Gas Connection Size 1-1/4 Inches NPT
Shipping Weight 800 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Check list PDF Download

Frequently Asked Questions

No. The M48-23T is the modular top configuration and does not include an oven or storage base.
It includes two open burners and one 23-inch thermostatic griddle.
The series is available for natural gas or propane.
The unit uses a 1-1/4-inch NPT gas inlet. Operating pressure is 6 inches W.C. for natural gas and 10 inches W.C. for propane.
Combustible wall clearances are 14 inches on the sides and 6 inches at the back.
