Garland M48-23R Master Gas Ranges
Description

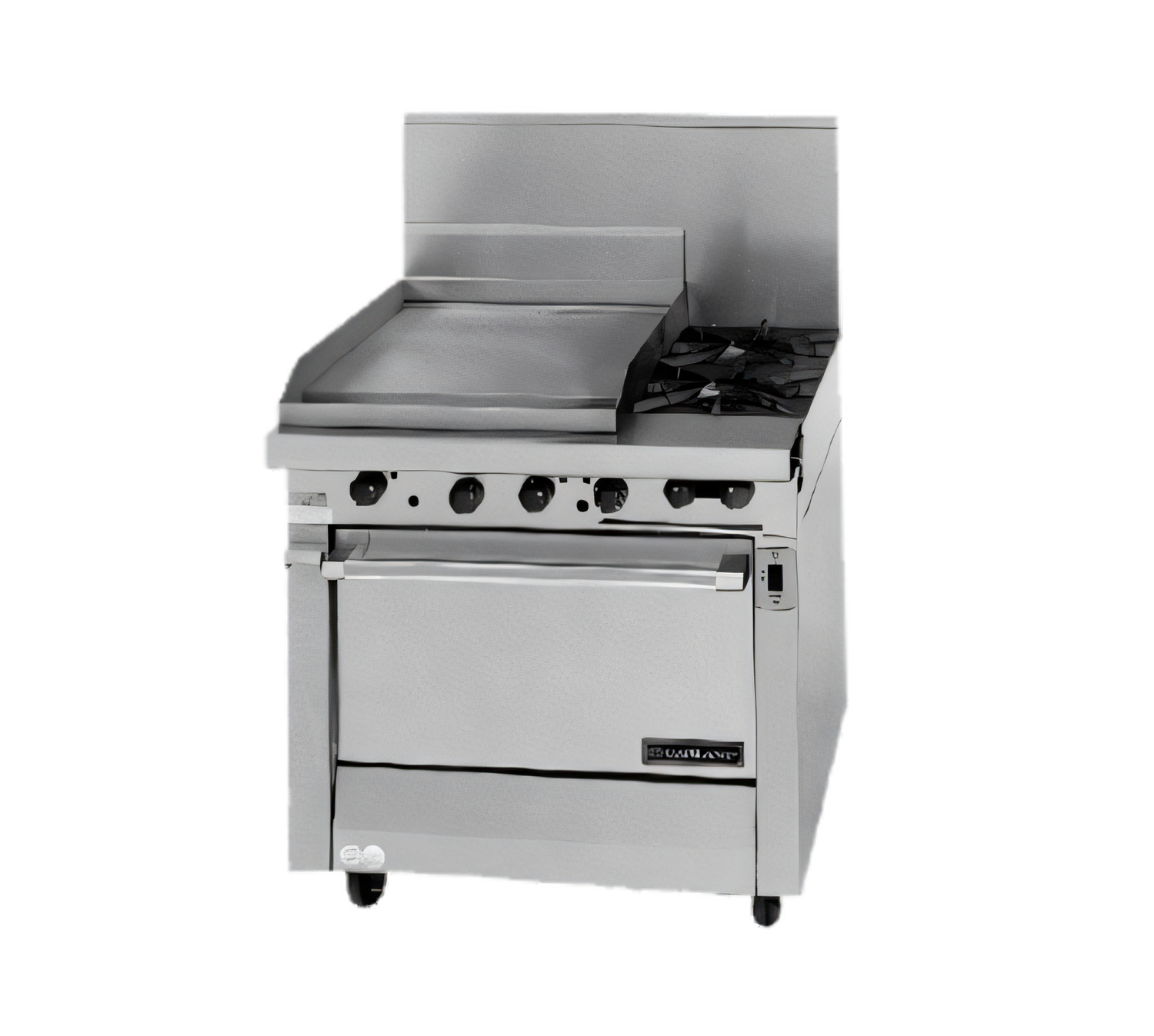

Garland Master Series 34" Heavy-Duty Combination Top Gas Range
Model M48-23R | 2 Open Burners, 23" Thermostatic Griddle & Standard OvenEngineered for kitchens that push hard from breakfast through dinner, Garland’s Master Series M48-23R unites a precision-controlled griddle, two high-performance open burners and a full-size oven in one rock-solid 34" footprint. With 154,000 BTU of total input and the build quality that has made Garland legendary, it keeps service moving—shift after shift, year after year.
Key features
- Two 24,000 BTU Starfire open burners for lightning-fast sautéing, boiling and searing.
- 23" W × 25" D × 1" thick steel griddle on the left, thermostatically controlled 200–450 °F (93–232 °C) for repeatable results.
- Even-heat griddle performance from dual 33,000 BTU cast-iron “H” burners (66,000 BTU total).
- 40,000 BTU standard oven with piezo-spark ignition and fully porcelainized interior for quick preheat and effortless clean-up.
- 7-1/2" (191 mm) deep stainless steel front rail doubles as plating station and splash guard.
- One-piece stainless drip tray plus front-mounted grease drawer speed daily maintenance.
- Stainless steel front & sides, reinforced chassis and 6" chrome-plated adjustable legs withstand heavy commercial use.
- Clip-on back-splash and 2-5/16" welded side & rear splashguards keep surrounding surfaces clean.
- Total input: 154,000 BTU/hr (45.1 kW) – factory-set for Natural gas; Propane configuration available.
- Third-party certified: CSA Flame, CSA Star, NSF.
Performance specifications
| Width | 34" / 864 mm |
|---|---|
| Depth (incl. rail) | 38" / 965 mm |
| Cooking surface height | 36-3/8" / 924 mm (with 6" legs) |
| Open burners | 2 × 24,000 BTU cast-iron Starfire (Natural) |
| Griddle plate | 23" W × 25" D × 1" thick, thermostatic, 66,000 BTU total |
| Oven capacity | Standard, 40,000 BTU cast-iron burner, 150–500 °F thermostat |
| Total input | 154,000 BTU/hr (Natural gas) |
| Gas connection | 1-1/4" NPT front manifold (rear connection optional) |
| Clearances (combustible) | Sides 14" / 356 mm | Rear 6" / 152 mm |
| Certifications | CSA Flame, CSA Star, NSF |
Popular accessories & upgrades
- Locking caster kit for easy mobility
- Fully or partially grooved griddle plate
- Additional oven rack or stainless oven interior
- Common front rail for battery line-ups (up to 102")
- Rear gas connection, regulators, flex hose & quick-disconnect kits
- Single or double-deck tubular stainless steel overshelf
For commercial use only. Installation must comply with local codes and include an approved restraining device when casters are fitted.
