Garland  |  Master  |  SKU: M47T

Garland M47T Master Gas Ranges

$5,904.00
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Cutsheet Cutsheet Owner's manual Check list
Related Searches
Commercial Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

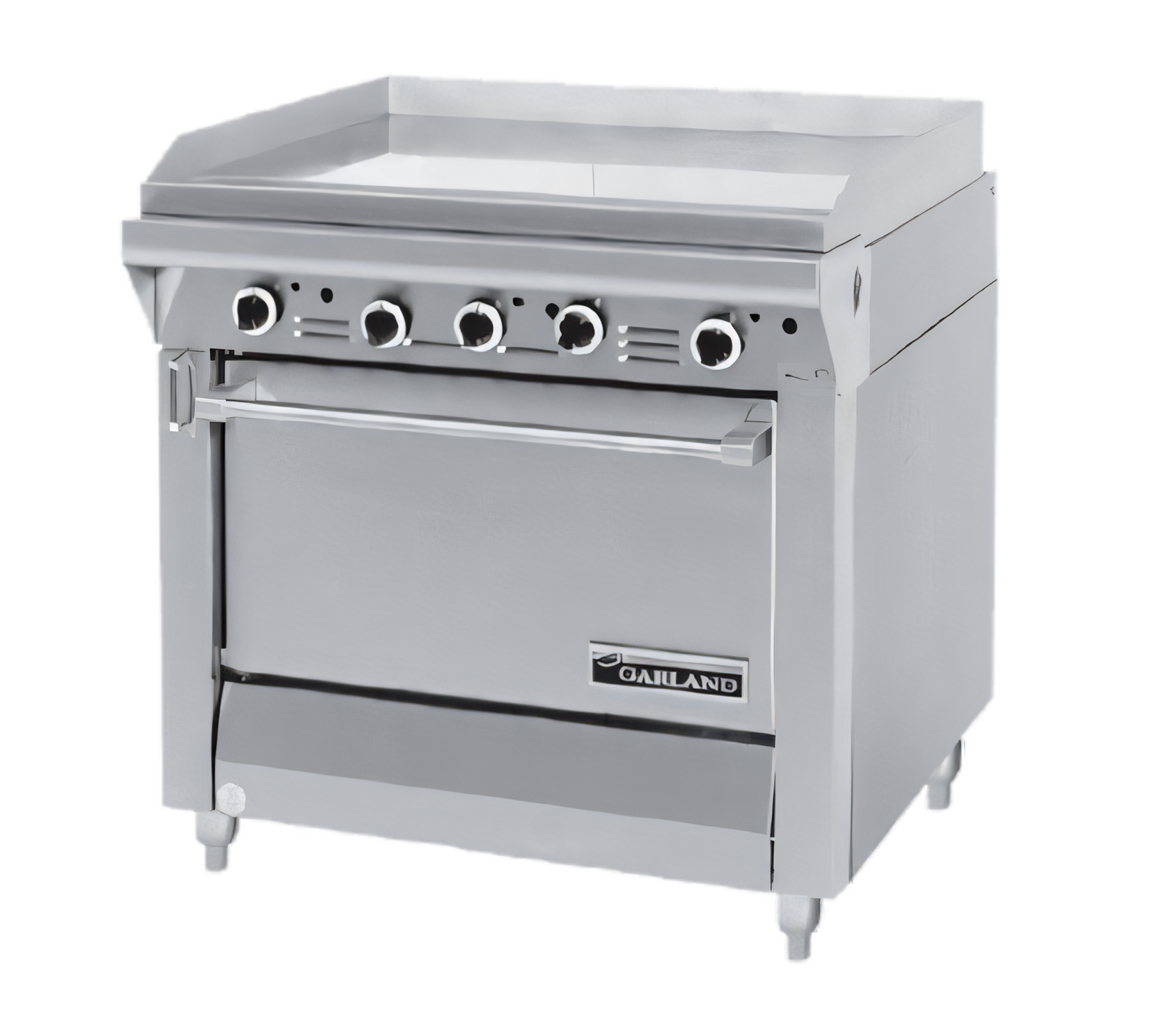

Garland Master Series 34" Modular Heavy-Duty Gas Griddle Range Top

Model M47T • 99,000 BTU Total Output

Drop true searing power into any cook-line with the Garland Master Series M47T. This 34 inch modular griddle top pairs a 1" thick steel plate with three cast-iron “H” burners and individual Hi-Lo valves—giving chefs the even heat, fast recovery and precise zone control they need for breakfast rushes, all-day sautéing and high-volume finish work.

Key features

  • 99,000 BTU/hr from three robust “H” burners for uniform, edge-to-edge heat.

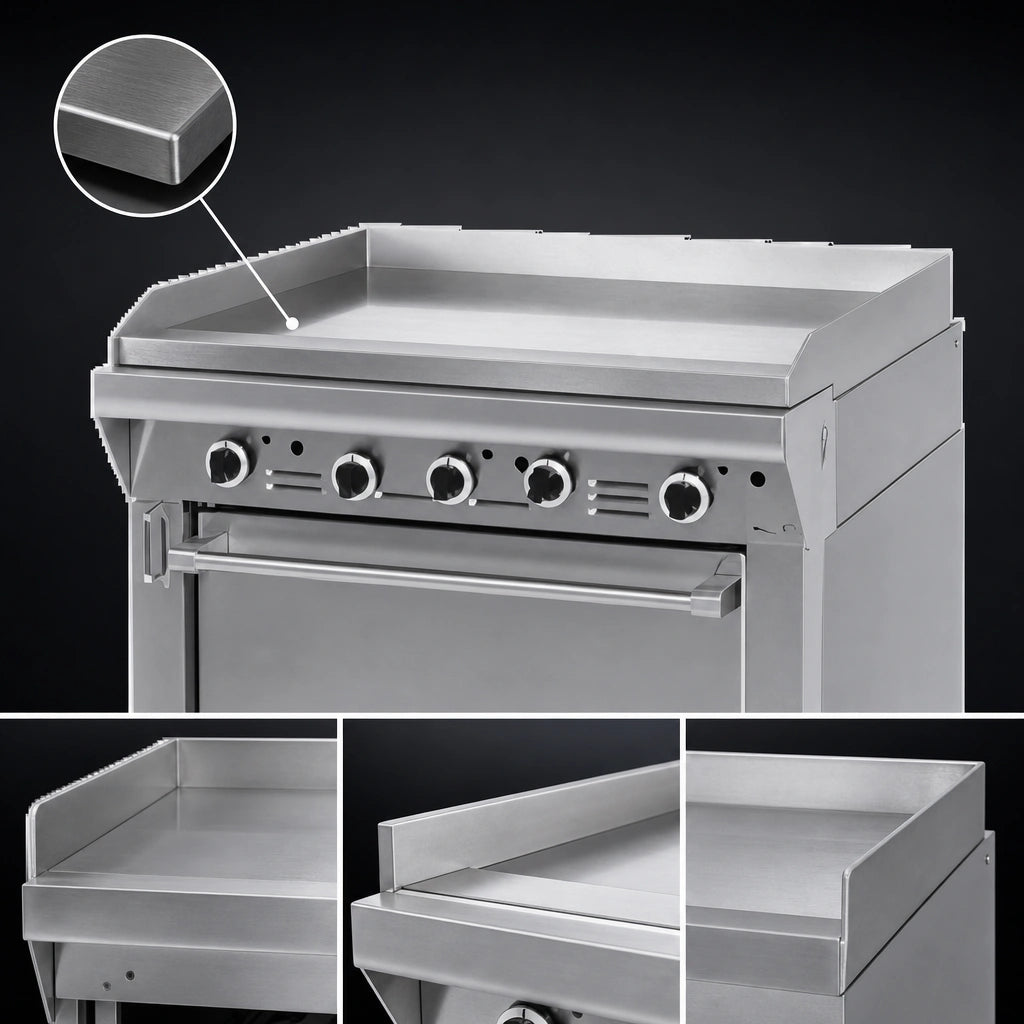

  • 1" (25 mm) machined steel griddle plate stores and radiates heat for consistent results.

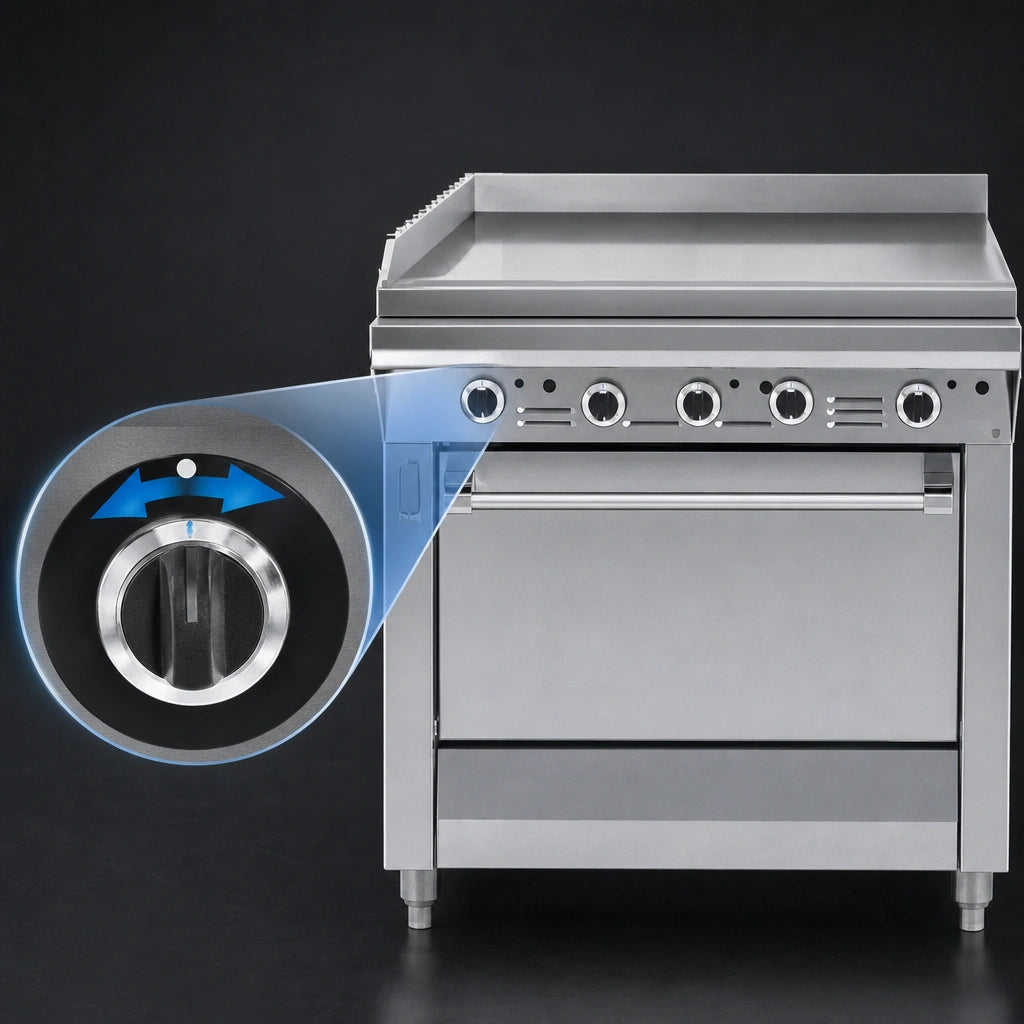

  • Independent Hi-Lo valves create up to three distinct temperature zones.
  • Factory-welded 2-5/16" (59 mm) side & rear splash guards keep surrounding equipment clean.
  • 5" (127 mm) wide front trough plus removable stainless steel grease drawer for fast clean-up.
  • Durable stainless steel front and sides stand up to daily commercial abuse.
  • Piezo ignition—no external power required.
  • Modular “T” design seats directly on a counter, refrigerated base or another Master Series section; no legs needed.

Specifications

Width 34" (864 mm)
Depth (overall) 38" (965 mm)
Height 9-1/2" (241 mm) with optional stand
1-1/2" (38 mm) seating flanges (modular top)
Cooking surface 34" × 25-1/2" (864 mm × 648 mm)
Griddle plate 1" (25 mm) thick polished steel
Total BTU 99,000 BTU/hr (29 kW) – Natural or Propane
Burner type 3 × cast-iron “H” burners
Manifold pressure Natural 6" WC  |  Propane 10" WC
Gas connection (std.) Front 1-1/4" NPT regulator supplied
Shipping weight 410 lb (186 kg)

Popular options & accessories

  • 10", 17" or 33" stainless steel backguards
  • Single or double-deck tubular high shelf
  • Polyurethane non-marking swivel casters with front brakes
  • Stainless or aluminized dais stand
  • Common front rail (multi-unit battery, up to 102")
  • Rear gas connection kit
Commercial use only: This appliance is engineered for professional kitchens and is not approved for residential installation.

Certifications

  • CSA Flame
  • CSA Star
  • NSF Listed

Garland reserves the right to change design or specifications without prior notice. Refer to the installation manual for clearance requirements and local code compliance.

Features & Specs

Manufacturer

Garland

Brand_name

Master

Certifications

NSF, CSA Star, CSA Flame

Height

36.38in

Width

34.0in

Depth

38.0in

Shipping Weight

360.0lbs

Exterior Finish

stainless steel front & sides

Top

(1) griddle

Base

modular

Plate Thickness

1.000" = 1"

Specifications

Master Series Heavy Duty Range, gas, 34", modular, griddle, individual Hi-Lo valve controls, stainless steel front and sides, 99,000 BTU, CSA Flame, CSA Star, NSF (Garland)
