Garland M47R Master Gas Ranges
Description

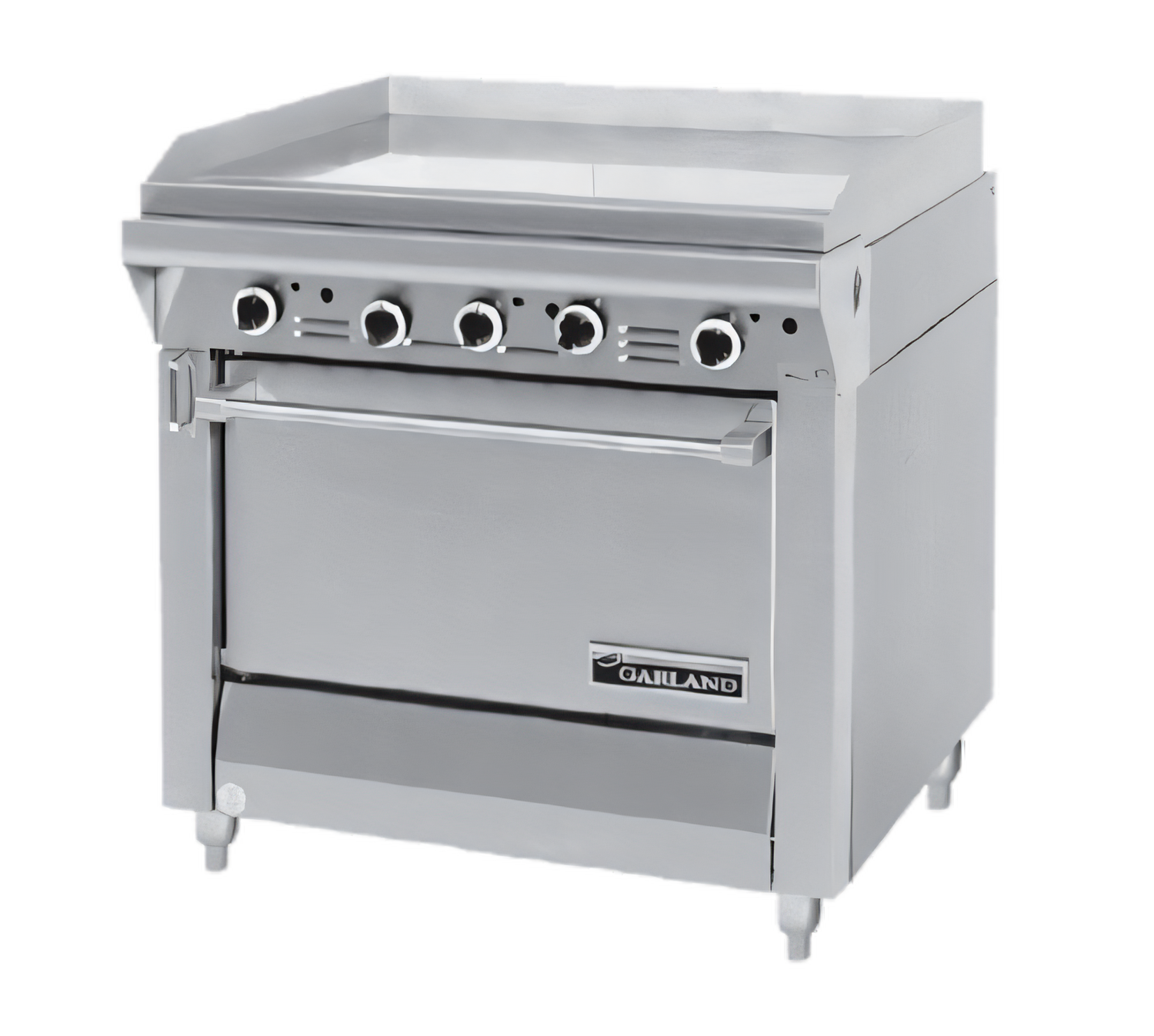

Garland Master Series 34″ Heavy-Duty Gas Griddle Range with Standard Oven
Model M47R | 139,000 BTU Total OutputBuilt for the rigors of high-volume kitchens, the 34″ Master Series Griddle Range puts uncompromising Garland performance in a compact footprint. A 1″ thick steel griddle plate, individual Hi-Lo burner controls, and a fully porcelainized 26¼″ oven team up to deliver unmatched versatility from breakfast rush through dinner service.
Key Features
- 1″ (25 mm) polished steel griddle plate for superior heat retention and even searing.
- Three 33,000 BTU cast-iron “H” burners (99,000 BTU total) with independent Hi-Lo valves.
- 4-side splash protection: 2-5/16″ welded side & rear guards plus clip-on stainless backsplash.
- Front-mounted, removable stainless grease drawer for fast clean-ups.
- 40,000 BTU cast-iron oven burner with piezo-spark ignition—no pilot relighting required.
- Fully porcelainized oven interior fits full-size sheet pans front-to-back.
- Stainless steel front & sides, 7½″ deep rail, and 6″ chrome-plated adjustable legs.
- Front 1-¼″ NPT gas connection; optional rear connection kits available.
At-a-Glance Specs
| Overall Width | 34″ (864 mm) |
|---|---|
| Overall Depth (incl. rail & flue) | 38″ (965 mm) |
| Height w/ NSF legs | 36⅜″ (924 mm) |
| Griddle Cooking Area | 34″ W × 24½″ D (1,225 in²) |
| Oven Cavity (W×D×H) | 26¼″ × 29″ × 13½″ (667 × 737 × 343 mm) |
| Gas Input – Top | 99,000 BTU/h (29 kW) |
| Gas Input – Oven | 40,000 BTU/h (11.72 kW) |
| Total Gas Input | 139,000 BTU/h (40.72 kW) |
| Manifold Pressure | Natural 6″ WC | LP 10″ WC |
| Shipping Weight | 600 lb (273 kg) |
| Clearances to Combustibles | 14″ sides | 6″ rear |
| Certifications | CSA Flame & Star, NSF |
Why Choose Garland Master Series?
- Legendary durability thanks to a reinforced chassis and heavy-gauge stainless construction.
- Modular design allows common rails, shelves, and backguards for seamless battery line-ups.
- Field-convertible natural/propane gas and optional rear gas hookups simplify installation.
- Backed by Garland’s extensive service network for peace-of-mind uptime.
Gas ratings shown are for installations up to 2,000 ft (610 m) above sea level. Specify higher altitudes when ordering.
