Garland M47-23T Master Gas Ranges
Description

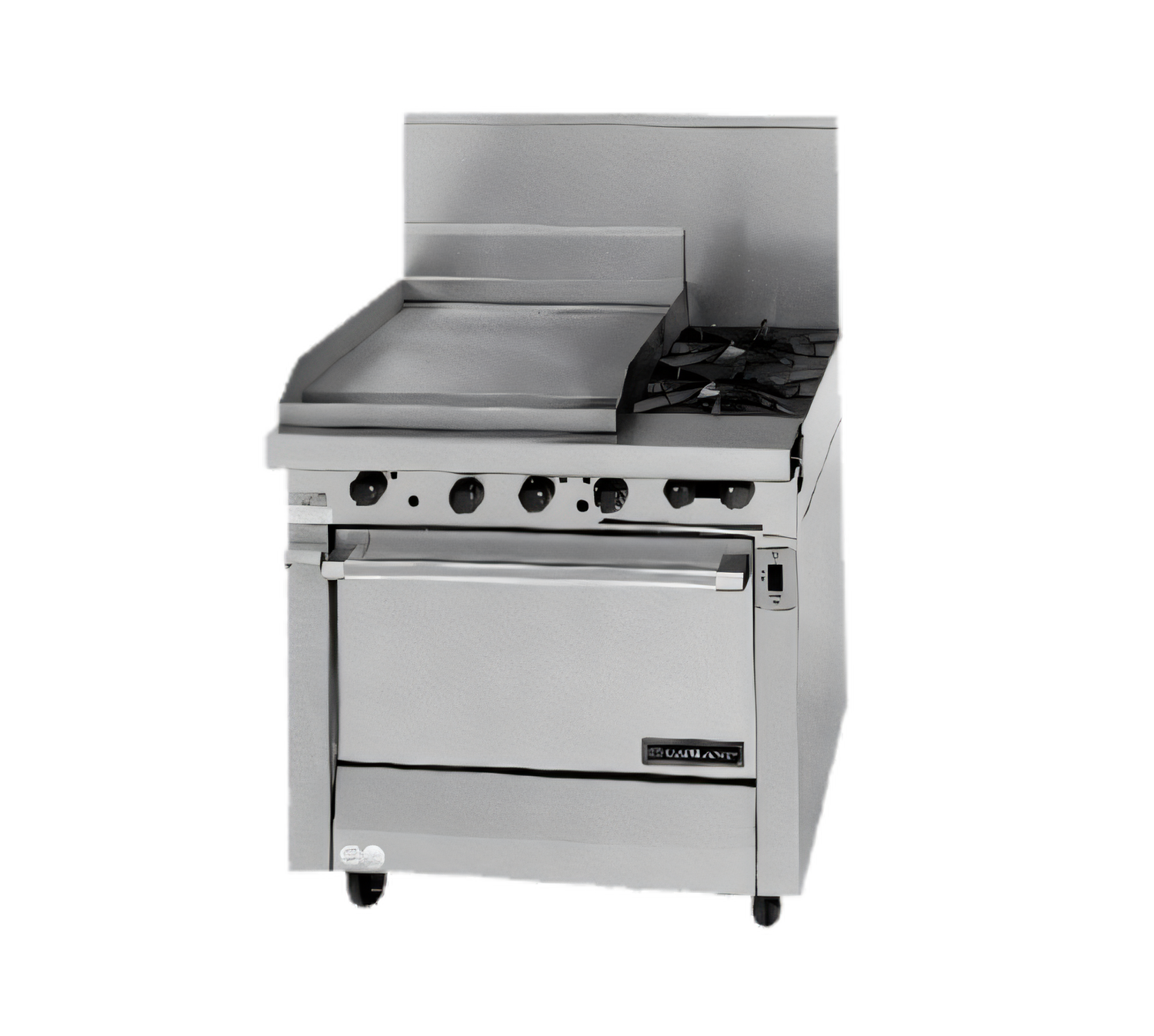

Garland Master Series 34" Heavy-Duty Modular Gas Range
23" Griddle + 2 Open Burners | 104,000 BTUPower, flexibility and Garland’s legendary build-quality come together in this compact 34" Master Series unit. Designed for chefs who need a rugged combination top without giving up precious line space, the M-Series modular range drops onto a refrigerated chef base, equipment stand or counter to create a performance cooking station that stands up to the longest shifts.
Key Features
- Two 24,000 BTU open burners with Starfire™ cast-iron heads and removable ring grates for fast, even heat and easy cleaning.
- Left-side 23" (548 mm) steel griddle – 1" thick plate with manual valve control and twin 28,000 BTU “H” burners (56,000 BTU total) for consistent searing zones.
- Welded 2-5/16" splashguards on three sides plus a clip-on stainless backsplash keep grease where it belongs.
- Front-mounted, removable 4-qt. stainless grease drawer simplifies daily maintenance.
- 7-1/2" deep stainless front rail doubles as a plating shelf and protects knobs from impacts.
- All-stainless front & sides with reinforced chassis built to thrive in high-volume kitchens.
- Modular top includes 1-1/2" seating flanges for easy placement on your choice of base (oven, storage or equipment stand sold separately).
- Factory installed 1-1/4" NPT front gas connection with pressure regulator; rear connection kit available.
- Shipped for Natural gas; easily field-convertible to LP (conversion kit optional).
Benefits at a Glance
- Space saver: 34" width integrates two cooking methods on one footprint.
- Rapid recovery: 104,000 BTU total input keeps up with peak-hour demand.
- Versatile: Sauté, boil or simmer on the right—grill, sear or hold on the left.
- Easy service: Split grates, one-piece drip tray and front-access components cut downtime.
Specifications
| Manufacturer / Series | Garland Master Series Heavy-Duty Range |
|---|---|
| Model | M47-23T (Modular Top) |
| Overall Dimensions (W × D) | 34" × 38" (864 mm × 965 mm) |
| Cook-top Height* | 9-1/2" (241 mm) with equipment stand *Stand / base not included |
| Open Burners | 2 × 24,000 BTU (48,000 BTU total) |
| Griddle Plate | 23" W × 25" D × 1" thick steel, 56,000 BTU (2 × 28,000 BTU “H” burners) |
| Total Input | 104,000 BTU/hr (30.5 kW) |
| Gas Connection | 1-1/4" NPT front (regulator supplied); rear connection optional |
| Clearances (Combustible) | Sides 14" (356 mm) | Back 6" (152 mm) |
| Shipping Weight | ≈ 800 lb (364 kg) |
Popular Options & Accessories
- 10", 17" or 33" stainless backguard or tubular high-shelf
- Convection or standard oven base (adds suffix “C” or “R”)
- Stainless storage base with doors (suffix “S”)
- (4) non-marking swivel casters with front brakes
- Rear gas connection kit, flexible gas hose & quick-disconnect
Need a custom battery configuration or help selecting the right backguard? Contact Garland Customer Service – we’re here to help.
