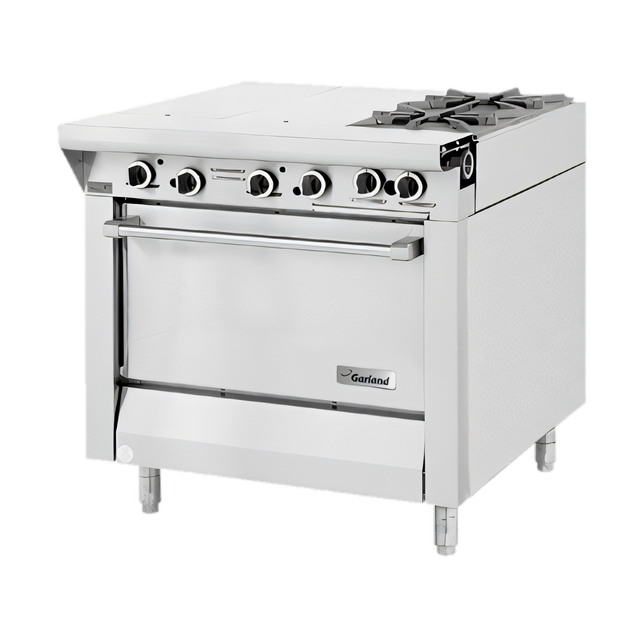

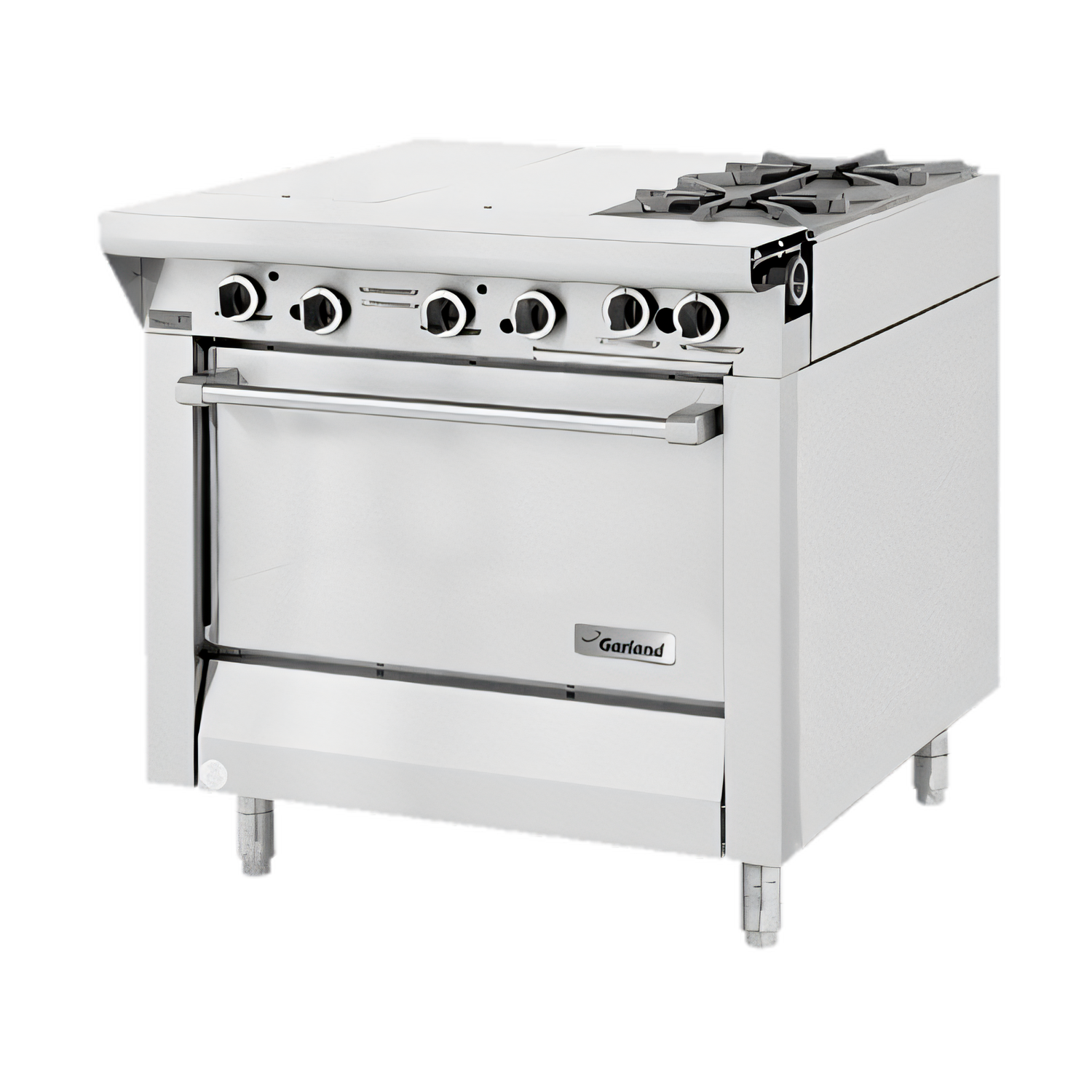

Garland M43-1T Master Gas Ranges
Garland M43-1T Master Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Garland M43-1T Master Gas Ranges
Description
Master Series 34" Modular Combination Top Range
4 x 24,000 BTU Starfire Burners + 12" Even-Heat Hot Top | 118,000 BTU TotalBuilt for chefs who refuse to compromise, Garland’s Master Series modular top delivers uncompromising power in a compact 34" footprint. Four lightning-fast open burners sit beside a precision 12" even-heat hot top, giving you the versatility to sauté, sear, simmer and hold—all on a single, heavy-duty platform that drops straight onto a refrigerated base, oven, or equipment stand.
Why You’ll Love It
- Serious fire power — four 24,000 BTU Starfire burners for instant heat and rapid recovery.
- Even-heat 12" hot top — cast-iron plate with 22,000 BTU “H” burner provides gentle, edge-to-edge heat for stock pots, sauces or holding pans.
- Modular freedom — 9-1/2" low-profile body drops onto counters, chef bases or stands without taking up oven space.
- Rugged construction — stainless-steel front & sides, reinforced chassis corners, and extra-heavy cast-iron grates built to thrive on the cookline.
- Easy clean-up — one-piece stainless drip tray slides out the full width of the unit.
- Independent controls — separate gas valves for every burner plus dedicated hot-top control for precise low-to-high regulation.
- Safety & compliance — CSA Flame, CSA Star & NSF listings meet the toughest codes in North America.
Technical Specifications
| Model | Garland Master Series M43-3T (modular) |
|---|---|
| Gas type | Natural or Propane (specify at order) |
| Total input | 118,000 BTU/hr |
| Open burners | 4 × 24,000 BTU Starfire, cast-iron, lift-off heads |
| Hot top | 1 × 12" even-heat plate, 22,000 BTU cast-iron “H” burner |
| Dimensions (W × D × H) | 34" × 38" × 9-1/2" (864 × 965 × 241 mm) |
| Front gas connection | 1-1/4" NPT, 6" W.C. Natural / 10" W.C. Propane |
| Certifications | CSA Flame, CSA Star, NSF |
| Shipping weight | ≈ 280 lb (128 kg) |
A back-guard is required on all Master Series tops (sold separately). Use only Garland certified casters, stands or restraining devices to maintain certification and warranty.
