Garland M42R Master Gas Ranges
Description

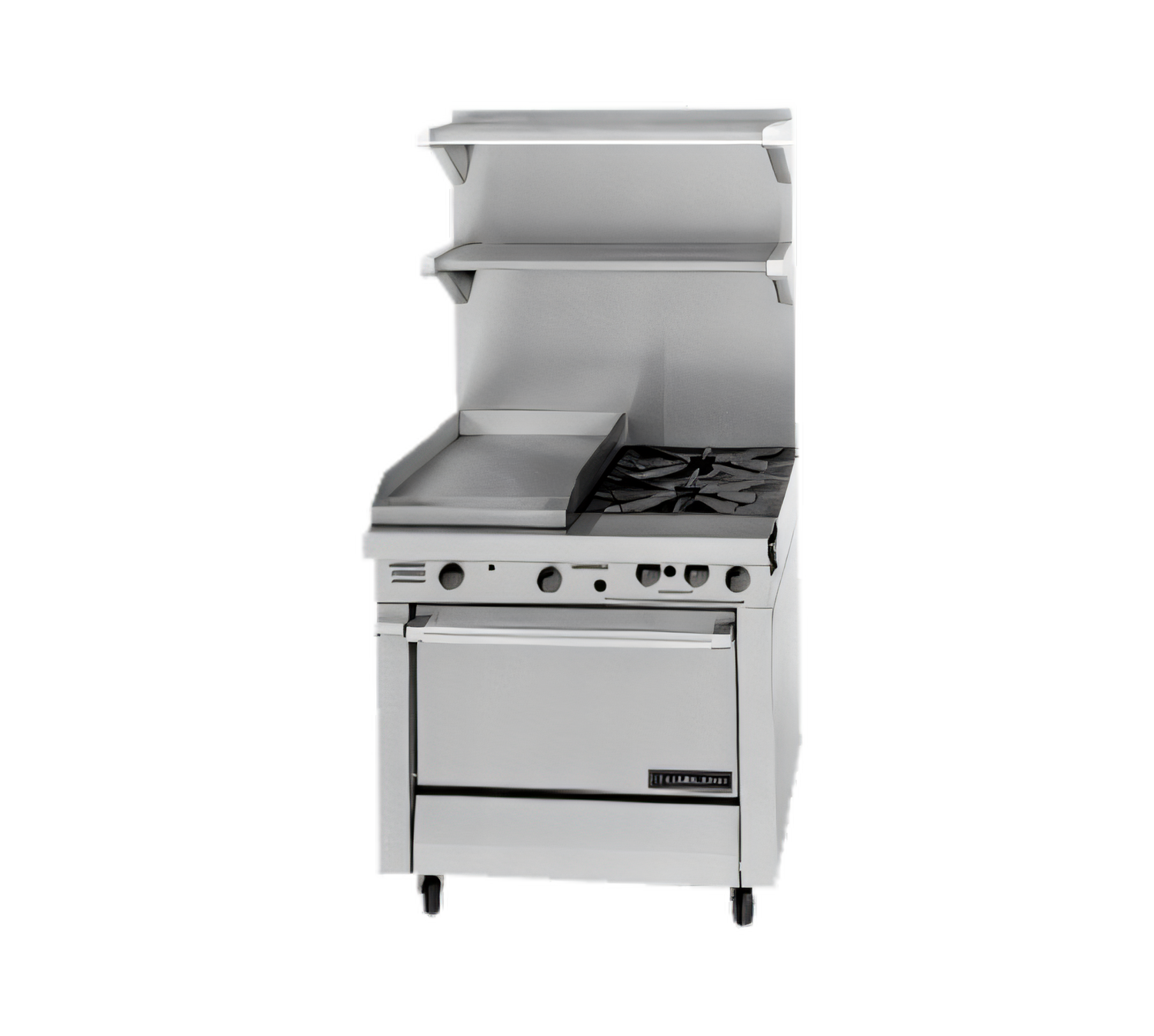

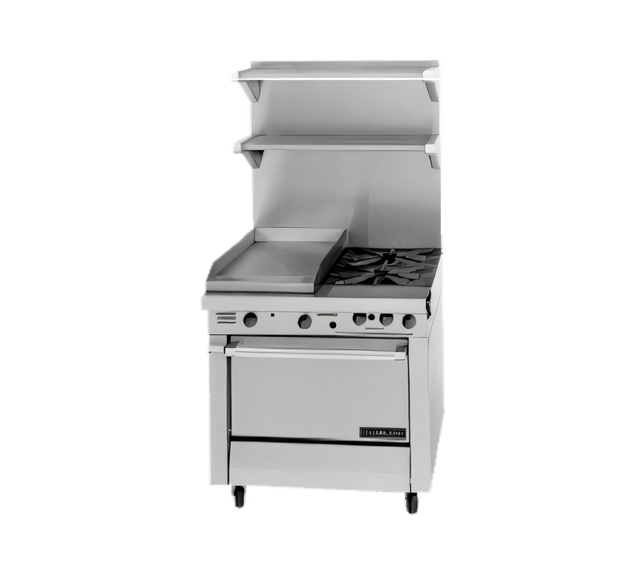

Garland Master Series 34" Heavy-Duty Combination Range
Model M42R – Gas • 2 Open Burners • 17" Griddle • Standard Oven • 143,000 BTUBuilt for kitchens that never slow down, the Garland Master Series M42R packs a total of 143,000 BTU/hr into a space-saving 34" footprint. Two high-output Starfire burners, a precision 17" griddle and a full-size oven deliver the flexibility to sauté, sear, griddle, roast and bake—all on one rugged platform backed by CSA Flame, CSA Star and NSF certifications.
Key Performance & Convenience Features
- Two Starfire 35,000 BTU open burners with removable heads for quick cleaning and consistent flame.
- 1" thick, 17" × 25" (432 × 635 mm) griddle plate heated by a 33,000 BTU “H”-type burner with Hi-Lo valve control.
- Standard oven with 40,000 BTU cast-iron burner and fully porcelainized interior for even heat and easy wipe-down.
- Reliable Piezo spark ignition—no manual lighting required.
- Stainless steel front, sides and 7-1/2" deep rail resist dents, scratches and corrosion.
- Heavy-duty cast-iron top and ring grates handle stock pots up to 15" (381 mm).
- Welded side- and rear-mounted splash guards plus clip-on stainless backsplash keep grease contained.
- Front-mounted, removable stainless steel grease drawer simplifies end-of-shift clean-up.
- 6" chrome-plated adjustable legs allow quick leveling and floor clearance.
At-a-Glance Specifications
| Overall width | 34" / 864 mm |
|---|---|
| Overall depth (incl. rail) | 38" / 965 mm |
| Height (with 6" NSF legs) | 36-3/8" / 924 mm |
| Open burners | 2 × 35,000 BTU Starfire (70,000 BTU total) |
| Griddle section | 17" × 25" × 1" plate, 33,000 BTU, Hi-Lo valve |
| Oven capacity | 26-1/4"W × 29"D × 13-1/2"H porcelain cavity |
| Oven burner | 40,000 BTU cast-iron, Piezo ignition |
| Total input (natural gas) | 143,000 BTU/hr (41.82 kW) |
| Gas connection | 1-1/4" NPT front (rear connection optional) |
| Operating pressure | Natural 6" WC • Propane 10" WC |
| Construction | Stainless steel front & sides, cast-iron grates, 6" chrome legs |
| Certifications | CSA Flame, CSA Star, NSF |
| Shipping weight | Approx. 520 lb (crated) |
Perfect For
- High-volume restaurants that need maximum versatility in minimal space
- Hotel and institutional kitchens standardizing on heavy-duty equipment
- Catering facilities and ghost kitchens switching rapidly between menu items
Need a convection oven base, rear gas connection or fully grooved griddle? Most factory options can be added—contact us for details.
