Garland  |  Master  |  SKU: M34B

Garland M34B Master Gas Ranges

$7,248.00
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Cutsheet Cutsheet Owner's manual Check list Sell sheet
Related Searches
Commercial Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

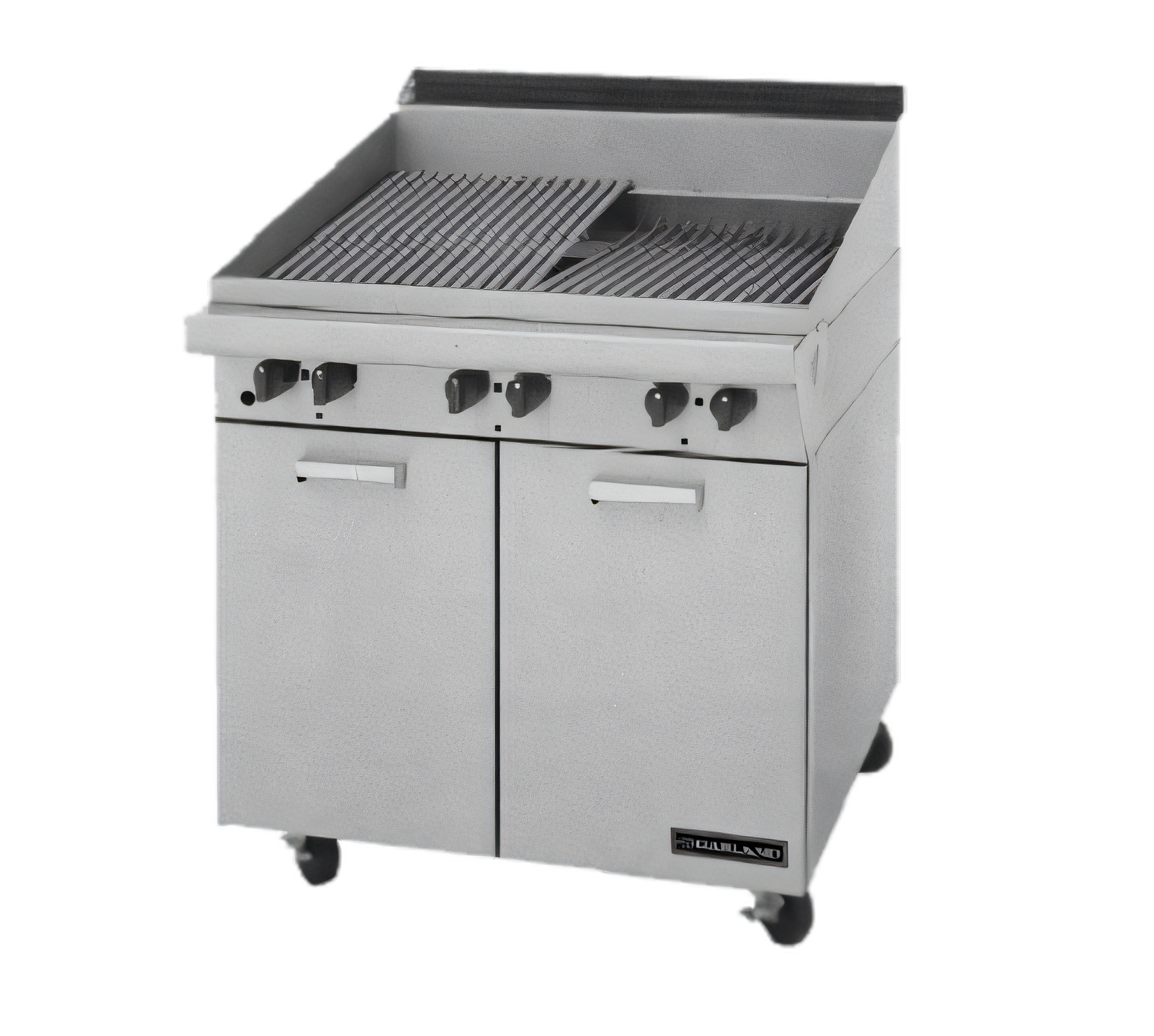

Garland Master Series 34" Heavy-Duty Gas Charbroiler

Model M34B  |  Storage-Base Range-Match Unit

Give steaks, burgers and vegetables unmistakable flame-kissed flavor while keeping your cookline perfectly aligned. The Garland Master Series M34B delivers a full 90,000 BTU of char-grilling muscle, long-life ceramic briquettes and dual-sided cast-iron grates—all wrapped in a stainless-steel body that matches the height and depth of other Master Series ranges and fryers.

Key performance & construction features

  • Six 15,000 BTU burners with individual Hi/Lo valves—instant searing control across the full surface
  • Piezo spark ignition with constant pilots for reliable, match-free lighting
  • Heavy-weight ceramic briquettes ensure even heat, reduce flare-ups and are built to last
  • Reversible cast-iron grates: ½" rounded bar on one side, diamond-fine pattern on the other
  • Quick-change rack sections swivel from flat to sloped positions for perfect marks or grease run-off
  • Full-length, easy-pull grease drawer speeds nightly clean-ups
  • All-stainless front, sides & rail with storage cabinet (aluminized-steel interior) below
  • 6" (152 mm) chrome-plated adjustable legs—optional locking casters available
  • Front 1-1/4" NPT manifold; rear connection kit optional
  • Certified CSA Flame • CSA Star • NSF for gas safety & sanitation

Technical specifications

Model M34B
Total input 90,000 BTU /hr  (26.4 kW)
Gas type Natural 6" WC  |  LP 10" WC (specify when ordering)
Burners 6 × 15,000 BTU cast-iron
Cooking surface (W × D) 34" × 31 ½"  (864 × 800 mm)
Overall width 34" (864 mm)
Overall depth 38" (965 mm)
Overall height 37 ⅞" (962 mm) to grate surface
Manifold / inlet 1-1/4" NPT (front standard)
Shipping weight 510 lb  (231 kg)
Clearances* 0" sides & rear (non-combustible)

Factory options & accessories

  • Stainless-steel backguard – 10", 17" or 33" heights
  • Rear gas connection kit with quick disconnect & restraining device
  • Dual-sided diamond-edge steel rack (fine pattern) for delicate products
  • Split-grid (½ rounded bar, ½ diamond) replacement grates
  • Polyurethane swivel casters with front brakes
  • Dais base for additional under-counter clearance
  • End caps & cover panels for multi-unit battery lines
Commercial use only. Garland Master Series equipment is not approved for residential installation. Units supplied with casters must be secured with an approved restraining device.

*Installation clearances are shown for non-combustible environments; always consult local codes and the installation manual prior to set-up.

Features & Specs

Manufacturer

Garland

Brand_name

Master

Certifications

NSF, CSA Star, CSA Flame

Height

46.25in

Width

34.0in

Depth

38.0in

Shipping Weight

510.0lbs

Top

(1) charbroiler

Base

cabinet(s)

Exterior Finish

stainless steel front & sides

Specifications

Master Series Heavy Duty Range, gas, 34", charbroiler, briquettes, flat/tilt steel grates, spark ignition, storage base, stainless steel front & sides, 6" legs, 90,000 BTU, CSA Flame, CSA Star, NSF (Garland)
