Garland M24ES Master Equipment Stands & Utility Carts
Description
Garland Master Series 24" Spreader Cabinet – Model M24ES
Stainless steel work top with full-door storage base | 1-1/4" front gas manifoldAdd a rugged 24-inch work surface and extra dry storage to your Master Series battery in seconds. The Garland M24ES spreader cabinet drops straight into the line-up, creating a seamless stainless prep zone while keeping cookware, utensils or dry goods within arm’s reach behind a fully enclosed door. Built to the same “cook-line tough” standard as every Master Series range, it’s the easiest way to reclaim space without enlarging your footprint.
Key Features

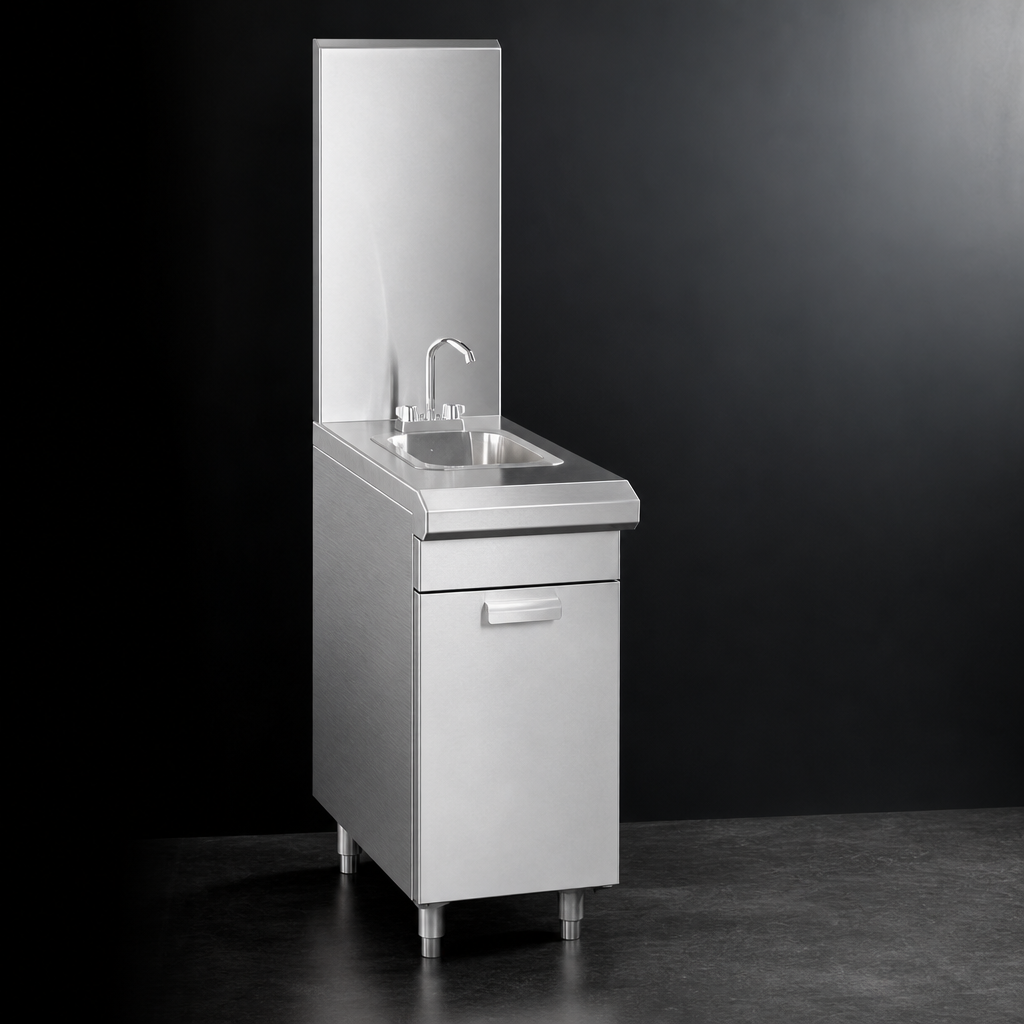

- All-stainless exterior – front, sides, 7-1/2" (191 mm) front rail and heavy-gauge work top.

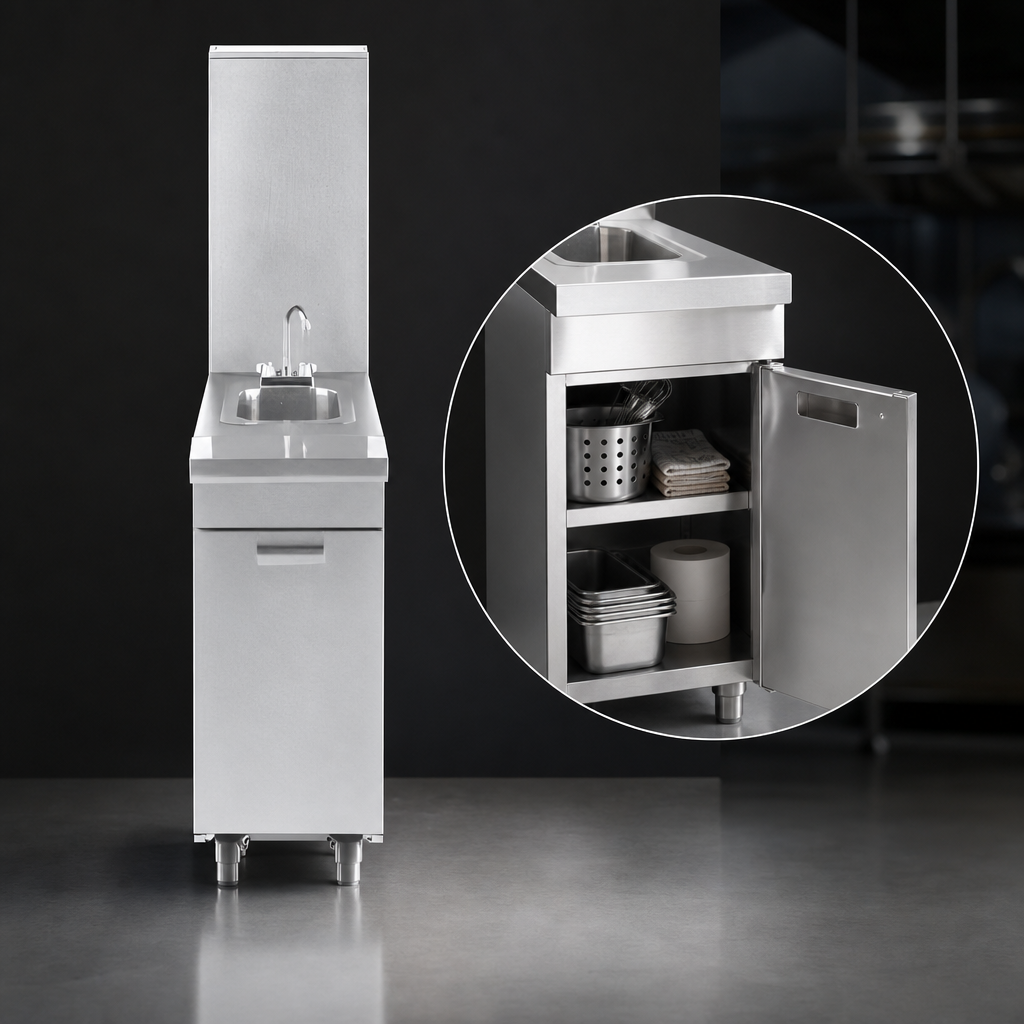

- Full cabinet base with single stainless door; interior is corrosion-resistant aluminized steel.
- 24" (610 mm) wide top plate matches the depth and height of adjoining Master Series sections for a continuous, level cookline.
- 1-1/4" NPT front gas manifold joins adjacent equipment; supplied with stainless steel manifold cover for a clean, safe finish.
- 6" (152 mm) adjustable stainless steel legs let you level the unit and simplify floor sanitation.
- Factory-welded chassis delivers long-term rigidity under the heaviest commercial use.
- NSF listed for food-service applications.
Specifications
| Model | M24ES |
|---|---|
| Work-top width | 24" / 610 mm |
| Overall depth | 26-7/8" / 683 mm (front rail to rear) |
| Overall height | 33-7/8" / 860 mm to work top 37-7/8" / 962 mm to top of cabinet |
| Front rail height | 7-1/2" / 191 mm |
| Legs | 4 × 6" (152 mm) stainless, adjustable |
| Shipping weight | 190 lb / 86 kg |
| Shipping volume | 20 ft³ (approx.) |
| Gas connection | 1-1/4" NPT front manifold (rear optional) |
| Cabinet door swing | 13-1/8" / 333 mm |
| Certifications | NSF |
Popular Options & Accessories
- High shelf or backguard – 10", 17" or 33" heights (mandatory on all Master Series spreaders).
- Rear gas connection, 1-1/4" or 2" NPT.
- Swivel casters with front brakes (poly-non-marking option available).
- Common front rail up to 68" (1728 mm) for multi-unit batteries.
- Interior shelf (aluminized or stainless) for two-tier storage.
Need help building a complete battery? Our team can size manifolds, backguards and common rails for any Master Series configuration. Contact us to get started.
