Garland M24BT Master Gas Ranges
Description

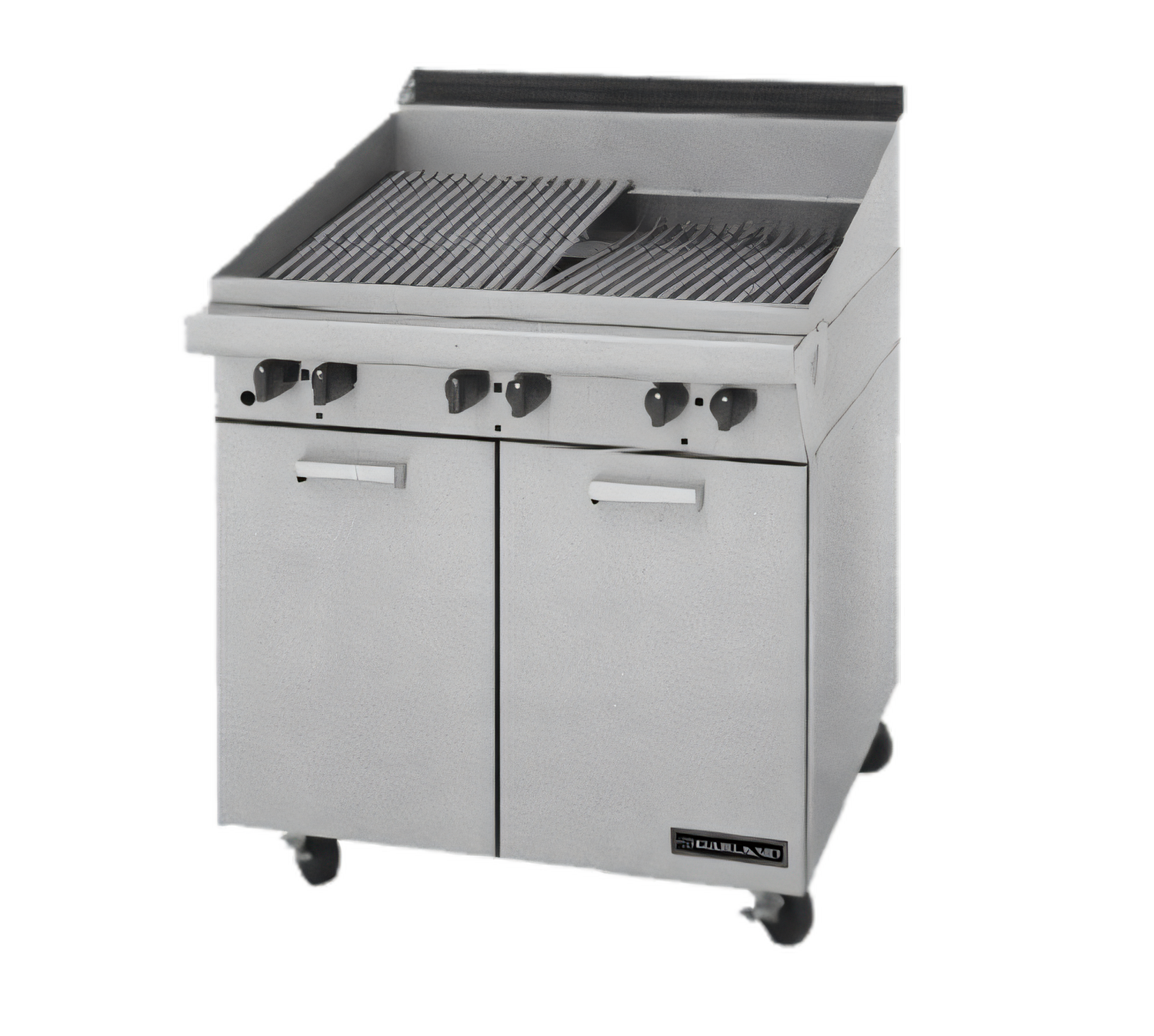

Garland Master Series 24" Modular Gas Charbroiler – 60,000 BTU

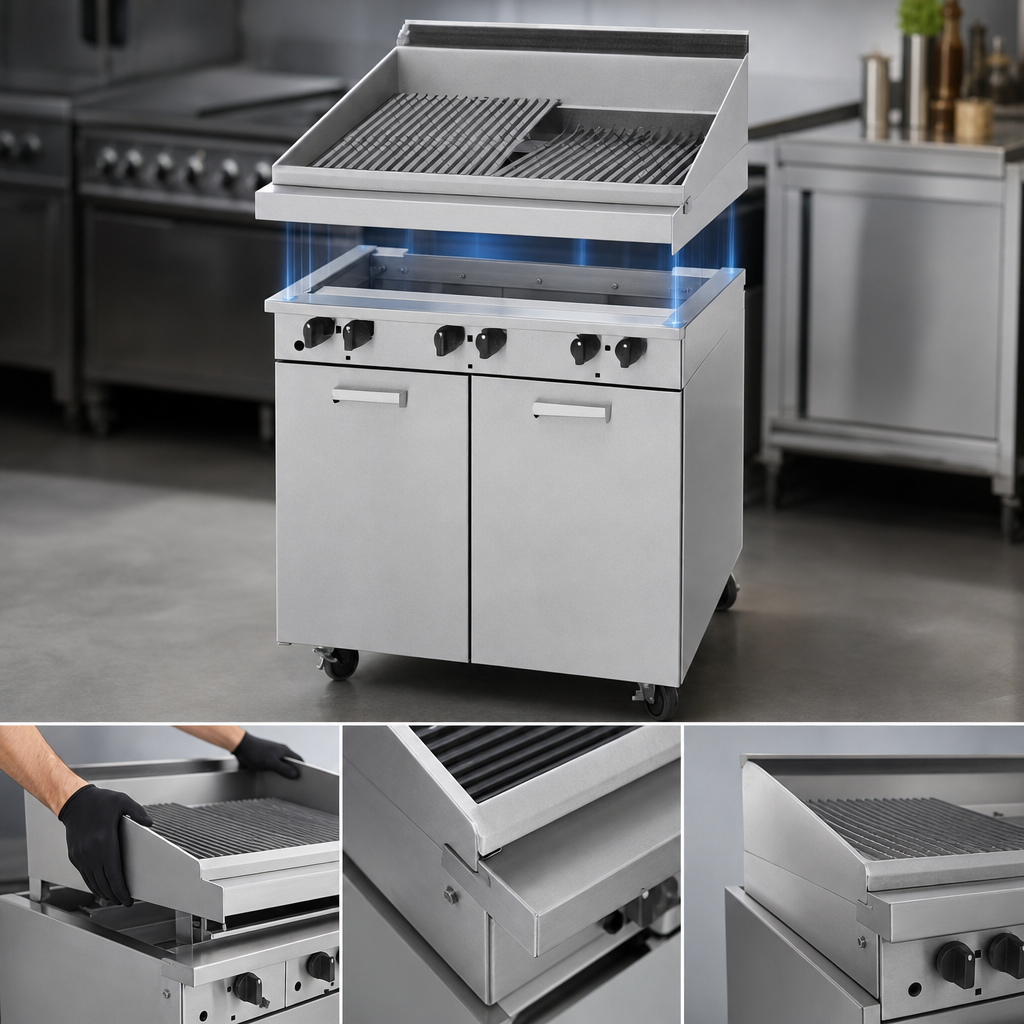

Model M24BT | Range-Match Heavy-Duty Briquette BroilerBuilt to drop straight onto any Master Series base, the 24" Garland M24BT delivers steak-house sear marks, smoky flavor, and day-long reliability in one compact, modular package. Four individually-controlled 15 000 BTU burners, a full bed of long-life ceramic briquettes and flat-or-tilt steel grates give you the fire-power and finesse to handle everything from rare filet to roasted vegetables without sacrificing valuable line space.
Why You’ll Love It
- 60 000 BTU total input (4 × 15 000 BTU) for rapid recovery and consistent branding.
- Piezo spark ignition with constant-burning pilots for fast, reliable start-ups.

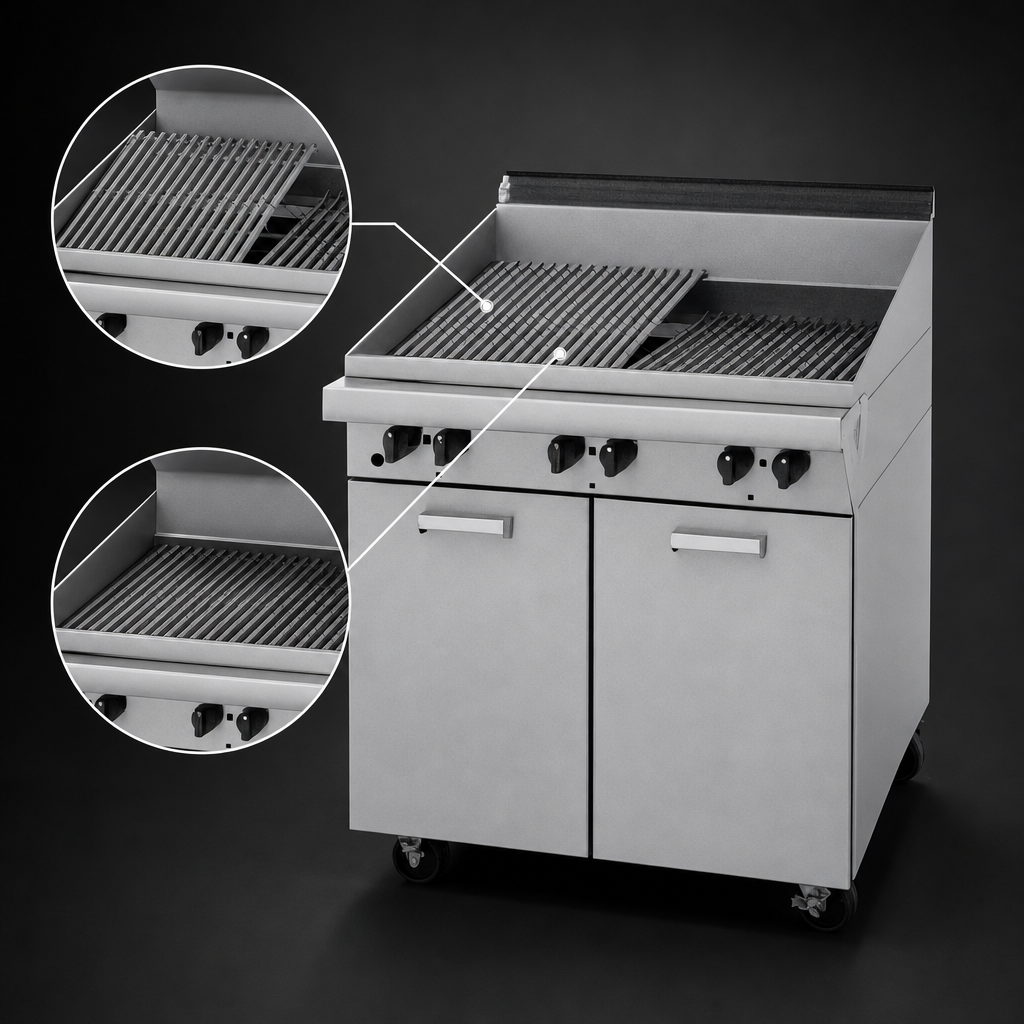

- Flat-or-tilt, dual-sided steel grates (diamond pattern & ½" rounded bar) adapt instantly to menu needs.
- Heavy-weight ceramic briquettes distribute heat evenly and add authentic char-grilled flavor.
- Full-width easy-pull grease drawer keeps the deck clean during peak rushes.
- 1 ¼" NPT front gas manifold aligns perfectly with other Master Series equipment for a seamless cookline.
- Rugged stainless-steel front, sides and rail stand up to daily commercial abuse and wipe clean fast.
- Zero clearance required to non-combustible surfaces – ideal for tight urban kitchens.
- Field convertible to Natural or Propane gas (must be specified when ordering).
- Safety & sanitation assured: CSA Flame, CSA Star and NSF listed.
At-a-Glance Specs
| Model | M24BT – Modular Top Charbroiler |
|---|---|
| Total Input | 60 000 BTU / 17.6 kW |
| Burners | 4 × 15 000 BTU cast-iron, Hi-Lo valves |
| Heat Medium | Ceramic briquettes (included) |
| Grates | Dual-sided steel, adjustable flat or 3-position tilt |
| Gas Connection | 1 ¼" NPT front manifold (rear connection optional) |
| Operating Pressure | Natural 6" WC / Propane 10" WC |
| Dimensions (W × D) | 24" (610 mm) × 38" (965 mm) |
| Working Height* | 14 ½" (368 mm) from base to grate |
| Shipping Weight | ≈ 230 lb / 105 kg |
| Certifications | CSA Flame, CSA Star, NSF |
*Height shown for modular top; overall height will vary when mounted on a Master Series base, cabinet or stand.
Popular Factory Options
- Stainless-steel backguard – 10", 17" or 33" high.
- Rear gas connection kit (¾" NPT) with shut-off valve & regulator.
- Diamond-edge steel grate rack for extra-fine branding.
- Polyurethane swivel casters with front brakes (when installed on storage base).
- End caps & covers for seamless battery installations.
