Garland M17B Master Gas Ranges
Description

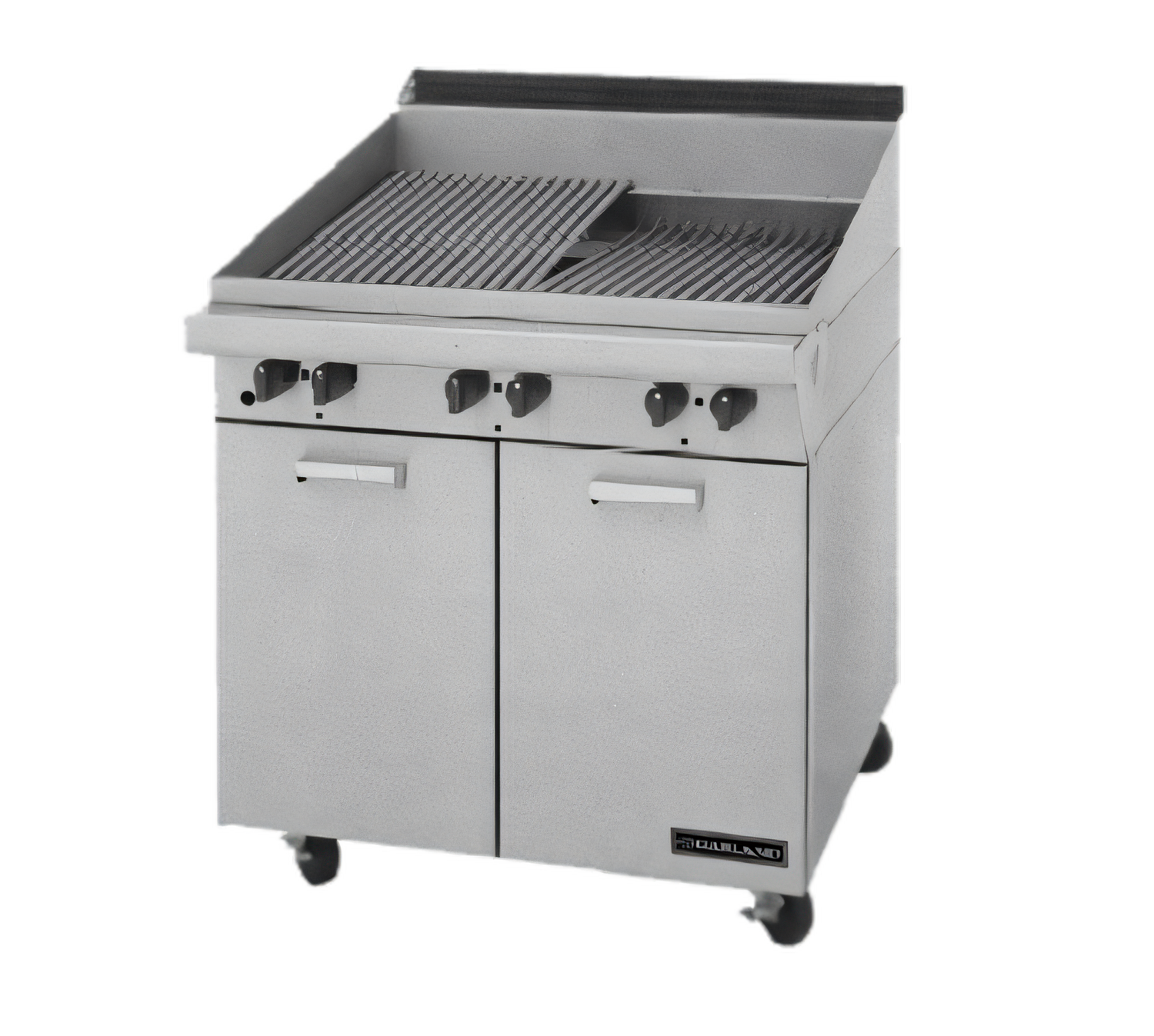

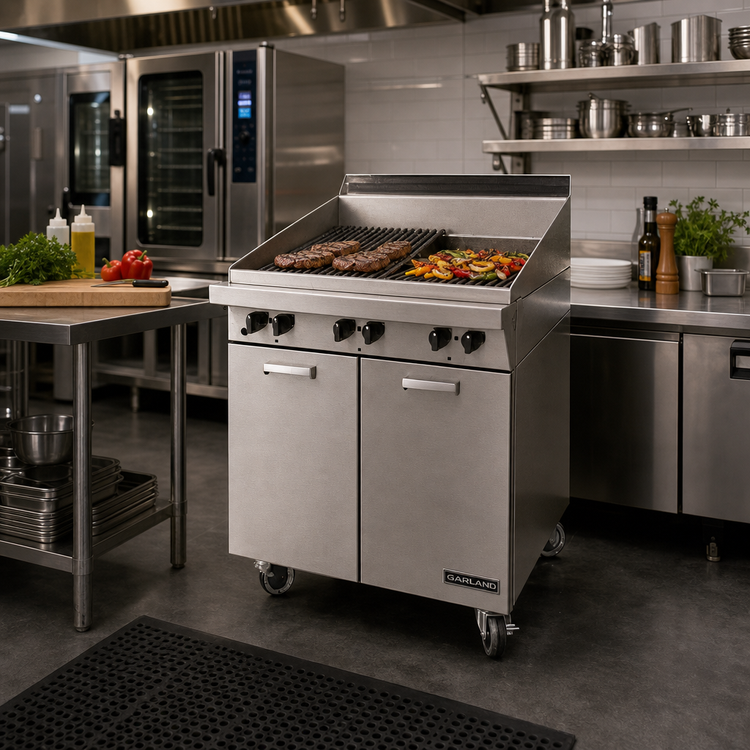

Garland Master Series 17" Heavy-Duty Range-Match Charbroiler

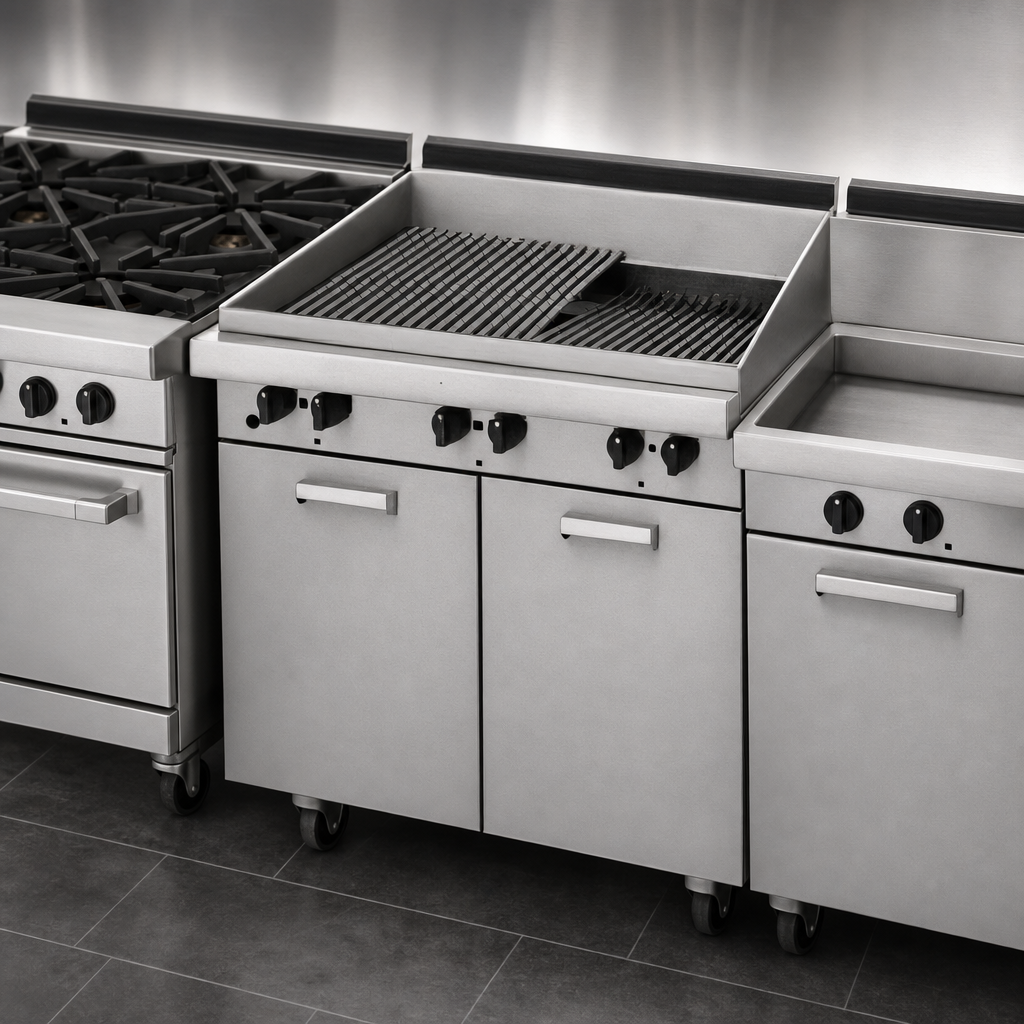

Model M17B – Gas, Storage Base, 45,000 BTUBuilt to slide seamlessly into any Master Series cookline, the 17" Garland M17B delivers the authentic flame-kissed taste diners crave without sacrificing durability or kitchen efficiency. Three powerful burners, heavy ceramic briquettes and reversible cast-iron grates give you the control and presentation you need shift after shift.
Key Benefits at a Glance
- 45,000 BTU total input – three 15,000 BTU cast-iron burners with individual Hi-Lo valves
- Piezo spark ignition with constant pilots for fast, match-free start-ups
- Ceramic briquette bed delivers even heat, quick recovery and reduced flare-ups

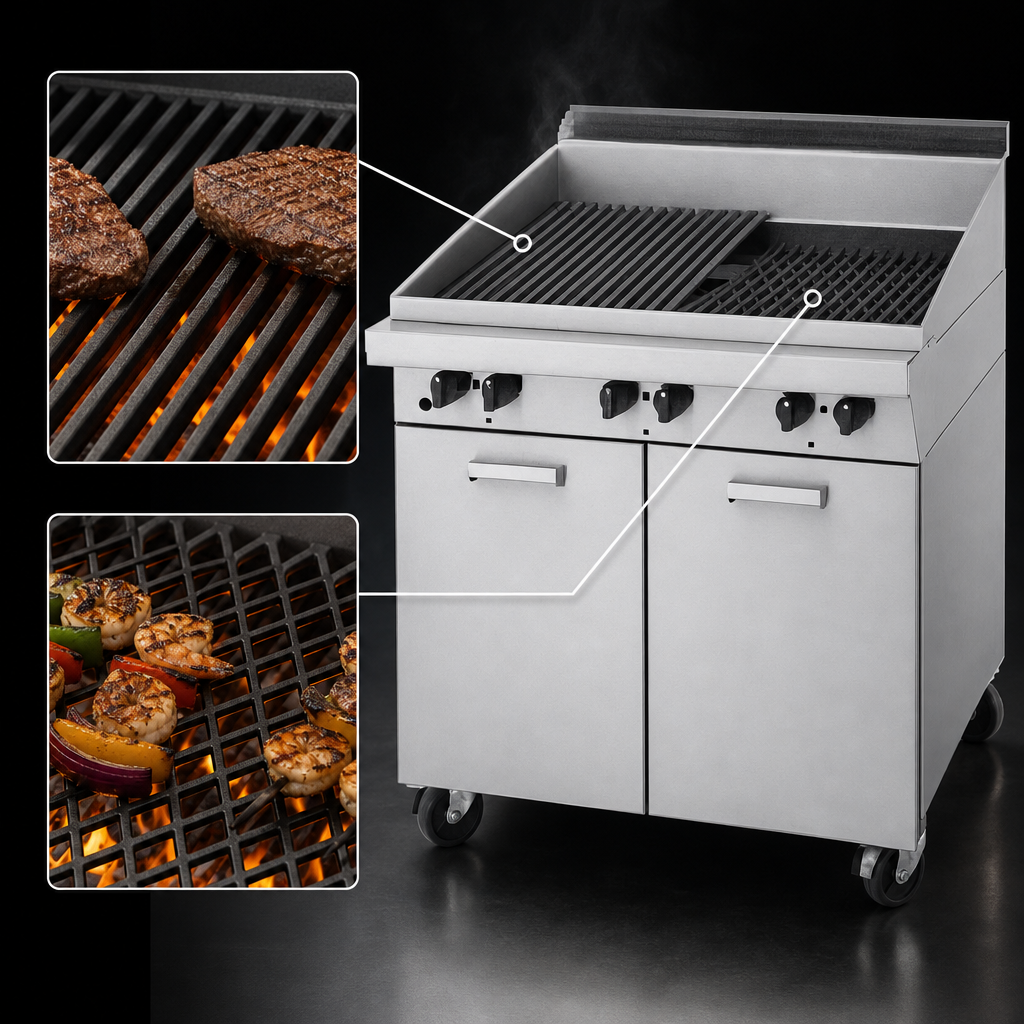

- Dual-sided cast-iron grates
- ½" rounded bar side for classic branding
- Diamond-fine side for delicate proteins & signature grill marks
- Grate sections lift easily into flat or 5° tilt positions to channel grease away from product
- Full-length, extra-deep grease drawer keeps the worktop clear and clean
- Rugged stainless-steel front, sides & backguard resist corrosion and daily abuse
- 17" wide storage base with stainless doors & aluminized interior – perfect for extra grates, pans or tools
- 6" (152 mm) chromed, adjustable legs for easy levelling on uneven floors
- Front 1-1/4" NPT gas manifold with factory-supplied regulator; rear connection kit optional
- CSA Flame, CSA Star and NSF listed – ready for commercial installation
Technical Specifications
| Overall Width | 17" / 432 mm |
|---|---|
| Overall Depth | 38" / 965 mm |
| Overall Height | 40-1/4" / 1,022 mm (to backguard) |
| Total Heat Input | 45,000 BTU hr (13.2 kW) |
| Burners | 3 × 15,000 BTU cast-iron “Hi-Lo” |
| Ignition | Piezo spark with constant pilots |
| Grate Adjustments | Flat or 5° tilt (tool-free) |
| Gas Connection | 1-1/4" NPT front manifold (rear optional) |
| Operating Pressure | Natural 6" WC / Propane 10" WC |
| Shipping Weight | 235 lb / 107 kg |
| Certifications | CSA Flame, CSA Star, NSF |
Perfect For
- Steakhouses & burger concepts needing high-temperature searing
- Hotel banquet kitchens that demand consistent grill marks
- Any operator building a unified Garland Master Series cook suite
Popular Factory Options & Accessories
- Stainless-steel backguards – 10", 17" or 33" heights
- Dual-sided diamond-edge (fine) broiler rack for speciality marking
- Split-grid (½ rounded / ½ diamond) grate set
- Rear gas connection kit with quick-disconnect & restraining device
- Polyurethane swivel casters with front brakes
Need help tailoring the unit to your line? Contact Garland Customer Service at 1-800-424-2411.
