Garland M12T Master Gas Ranges
Garland M12T Master Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Description
Garland Master Series 12" Modular Add-A-Unit – 2 Open Burners
Model M12T | 48,000 BTU Heavy-Duty Gas Range AttachmentBuild the exact cook line your kitchen demands with the Garland Master Series 12" Add-A-Unit. This low-profile, modular section drops into any Master Series battery and adds two high-performance Starfire® open burners—perfect for finishing sauces, flash-sauteing, or keeping stock pots at a rolling boil.
Key Features

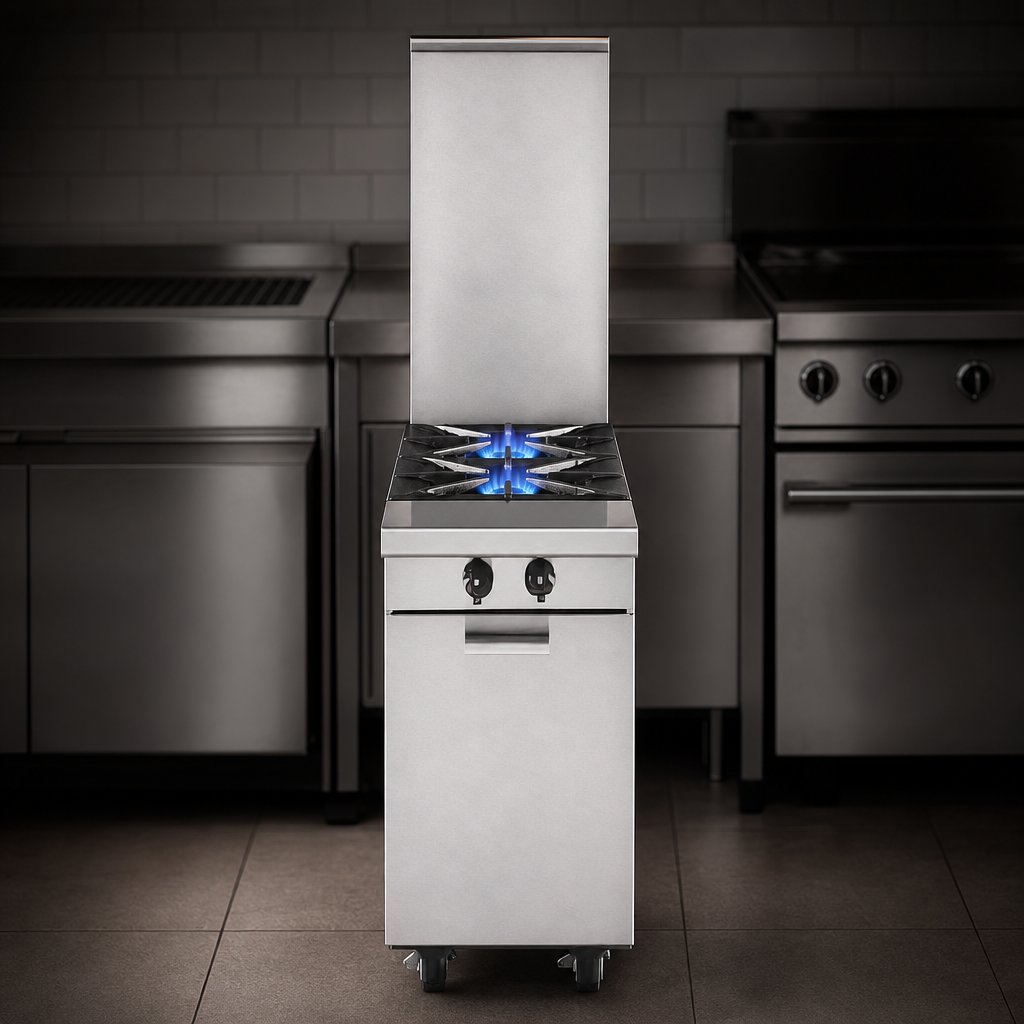

- 48,000 BTU total output – two 24,000 BTU Starfire® burners deliver quick heat-up and rapid recovery.

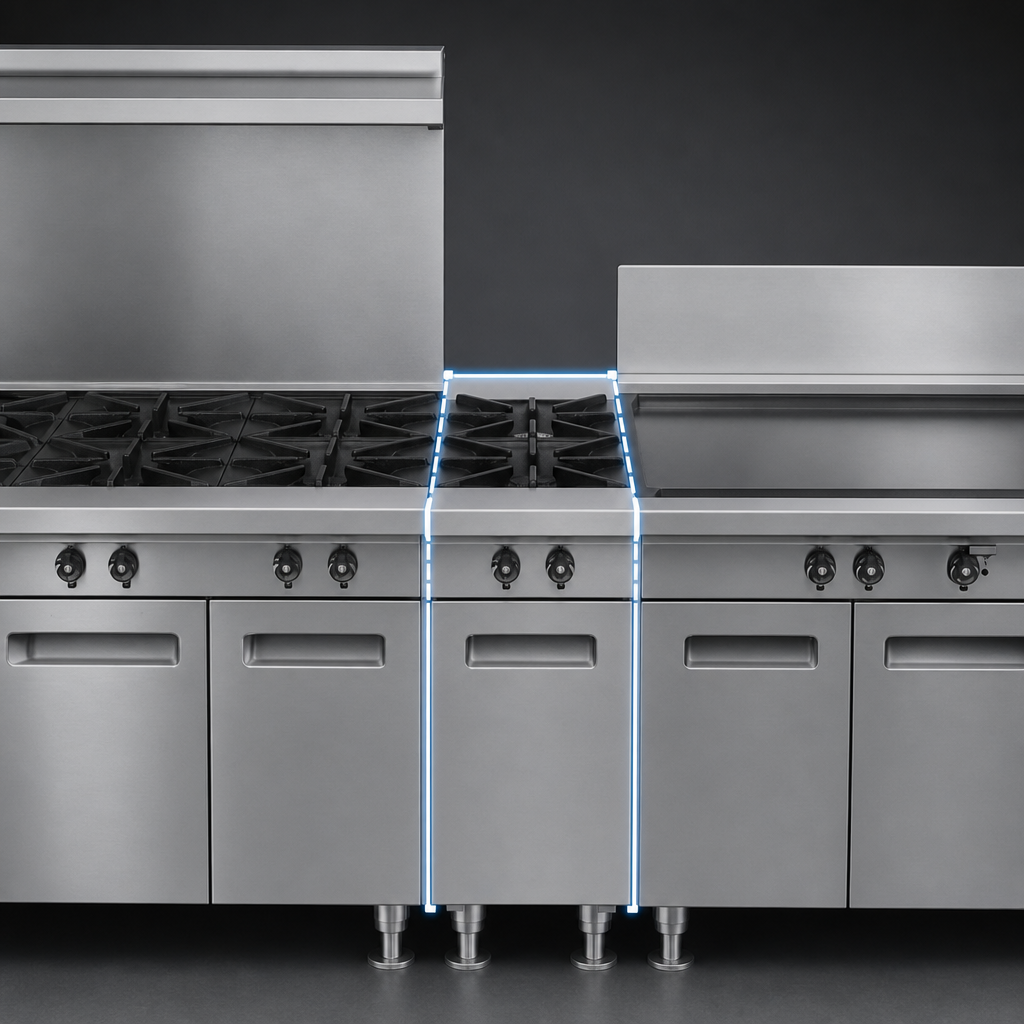

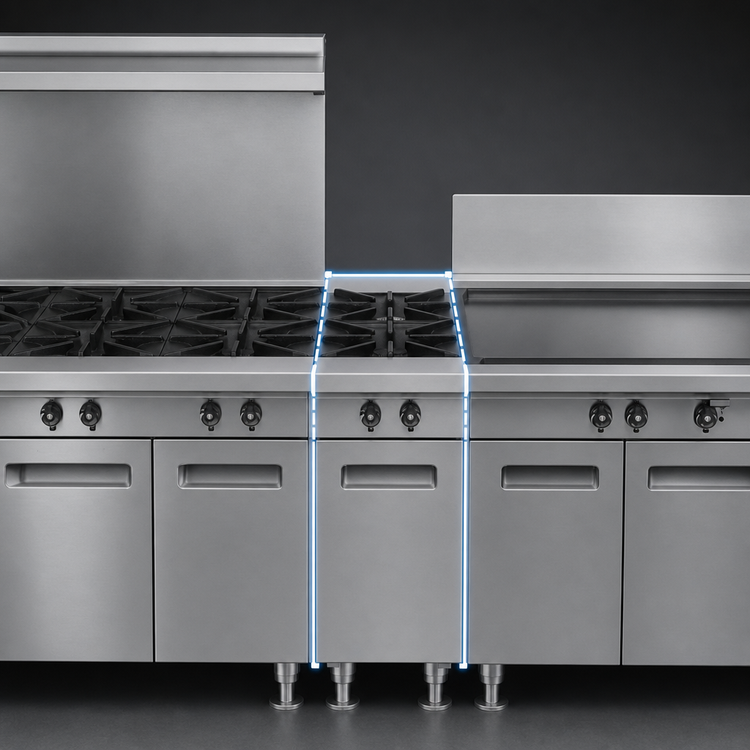

- Modular “Add-A-Unit” design integrates seamlessly with any Master Series range, griddle, fryer, or storage base.
- Continuous cast-iron top grates support heavy stock pots and slide cookware easily across the surface.
- Removable ring grates over each burner let you switch from large pans to woks or small sauce pots in seconds.
- Stainless steel front & sides resist corrosion and wipe clean for a professional, long-lasting finish.
- Total flame-failure protection and electronic ignition (115 V/60 Hz) for safe, reliable starts every time.
- Certified to CSA Flame, CSA Star, and NSF standards for commercial kitchens.
Customize Your Setup
- Optional stainless-steel backguards: 10", 17", or 33" heights.
- Tubular single- or double-deck high shelves for extra pan storage.
- Rear ¾" NPT gas connection, gas regulator, shut-off valve, or quick-disconnect hose kits.
- End caps, common front rails, and deck fasteners create a smooth, fully integrated cook line.
Specifications
Model | M12T (Modular Top) |
---|---|
Burners / Output | 2 open burners | 24,000 BTU each (Natural) | 20,000 BTU each (LP) |
Total Input | 48,000 BTU/hr Natural | 40,000 BTU/hr Propane |
Gas Connection | ¾" NPT (front standard) | Natural 6" WC | LP 10" WC |
Dimensions (W × D × H) | 12" × 38" × 9 ½" (305 × 965 × 241 mm) |
Shipping Weight | 80 lb (36 kg) |
Clearances (combustible) | Sides 11" (280 mm) | Back 6" (152 mm) |
Certifications | CSA Flame & Star, NSF |
Need help designing a full Master Series battery? Contact Garland Customer Service for personalized assistance.
