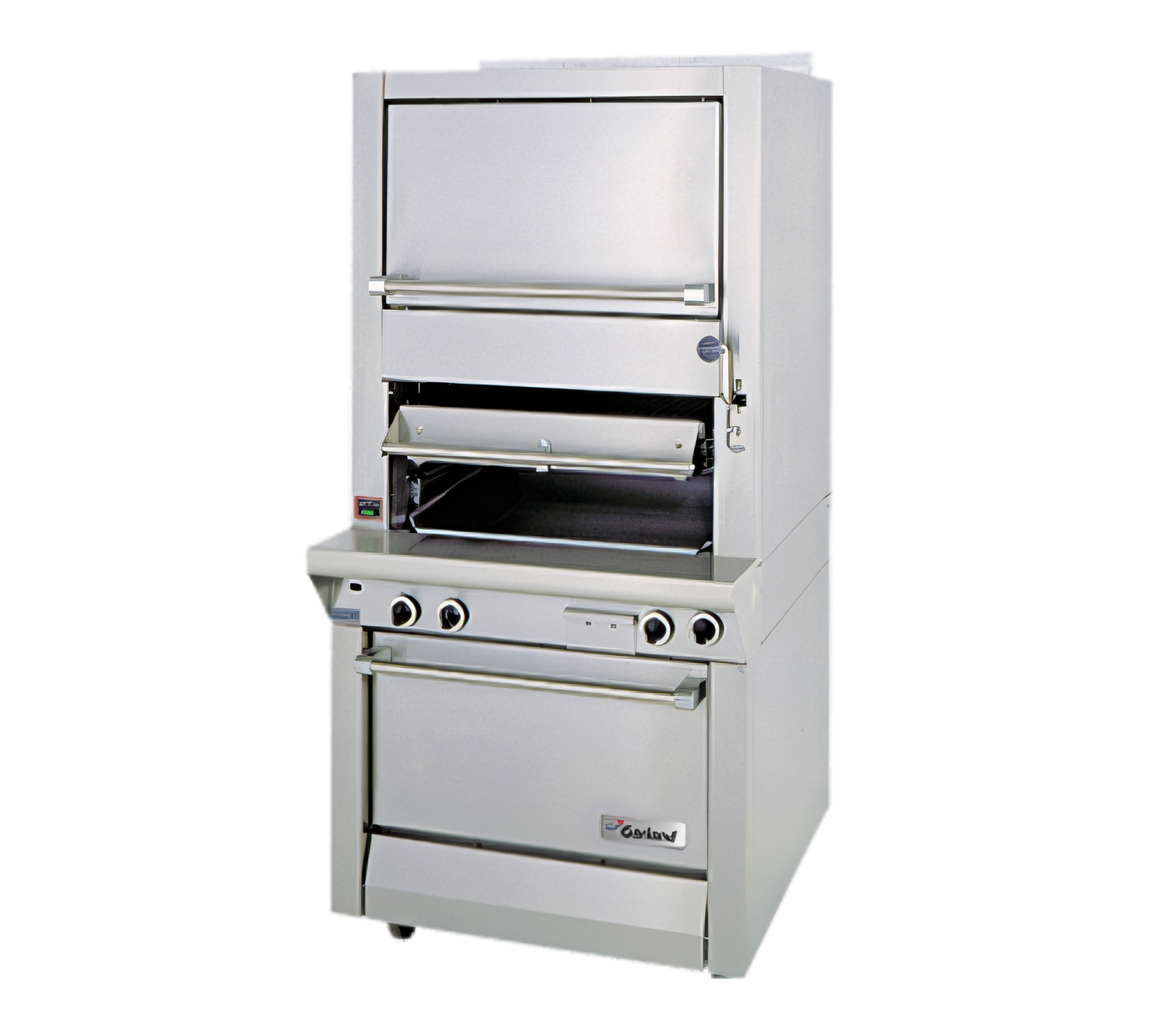

Garland Master Series Heavy-Duty Upright Gas Broiler with Single Infrared Deck, Upper Warming Oven, and Storage Cabinet Base

SKU: M100XSM
$13,913.55
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Broilers Deck Ovens Deck Ovens Garland New Arrivals Ovens Restaurant Equipment Upright Broilers

Garland Master Series Heavy-Duty Upright Gas Broiler with Single Infrared Deck, Upper Warming Oven, and Storage Cabinet Base

34 x 38 Inch Range-Match Floor Model, Stainless Steel Front and Sides, 70,000 BTU

This floor-model upright broiler combines a 70,000 BTU single infrared deck with an upper warming oven and built-in storage base for a compact, high-output cooking station.

  • 70,000 BTU infrared broiler output for intense, responsive cooking performance.
  • Upper warming oven is heated by the broiler below and features a porcelain interior.
  • Storage base with doors provides enclosed underunit storage in place of a lower oven.
  • Stainless steel front and sides are built for demanding commercial kitchen use.
  • Adjustable broiler rack, removable grid sections, and removable grease container help simplify operation and cleanup.

Overall Dimensions:

34.0"W x 38.0"D x 72.13"H

Product Weight:

600.0 lb

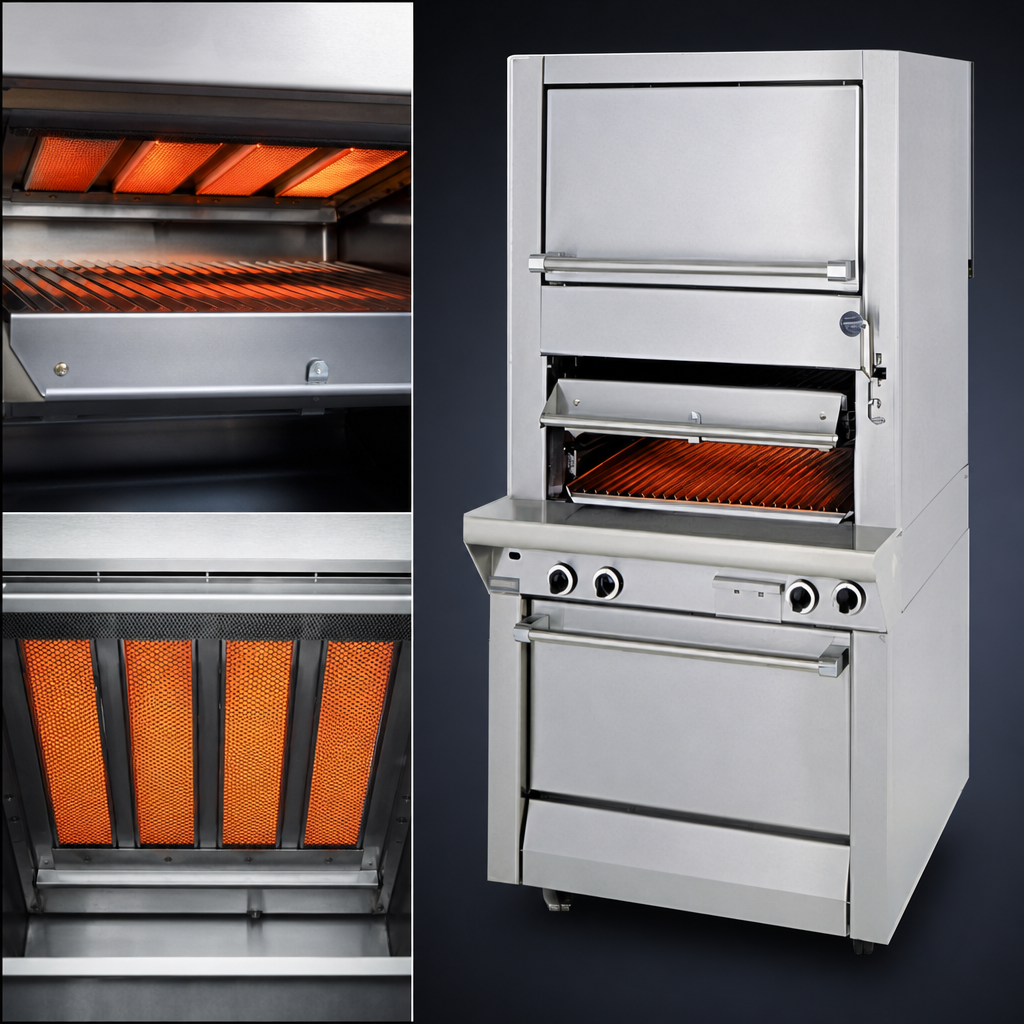

Single Infrared Broiler Deck

Four direct radiant infrared burners provide 17,500 BTU each for a 70,000 BTU broiler section.

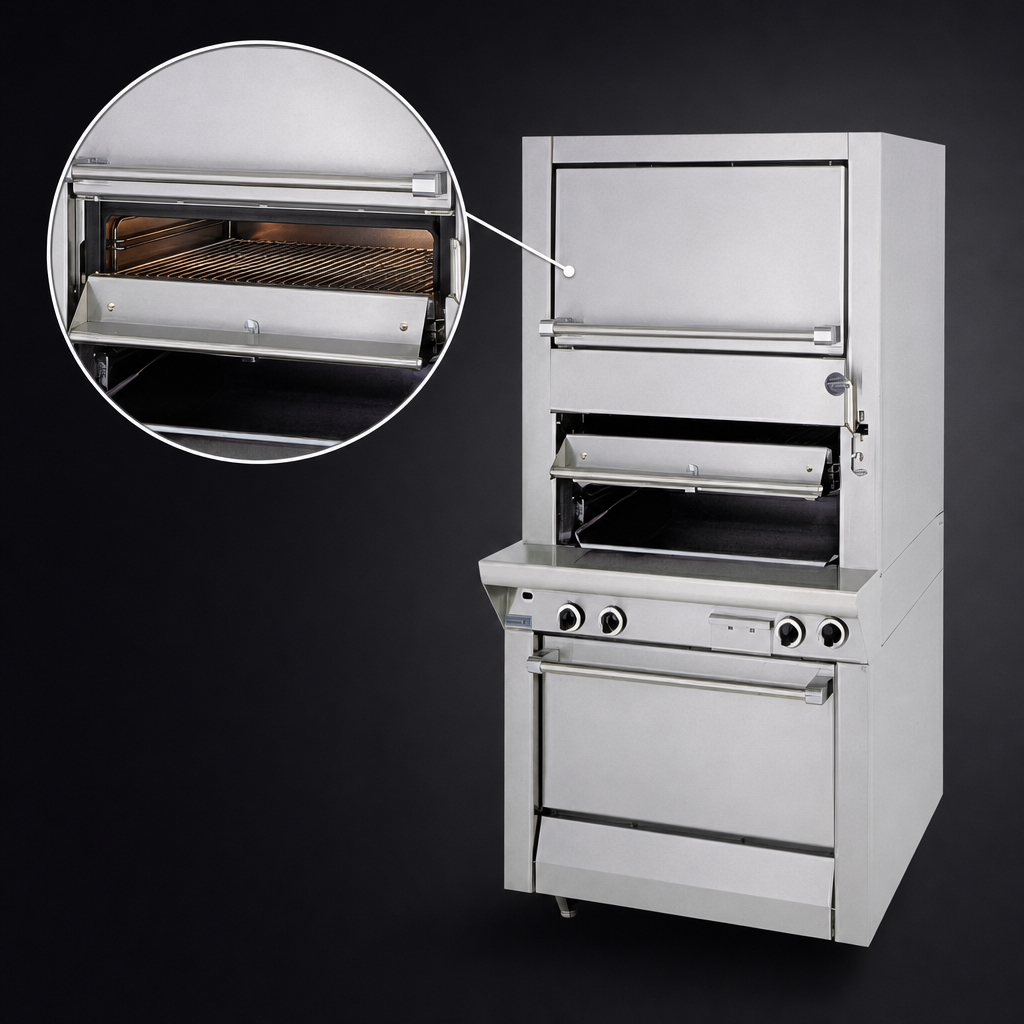

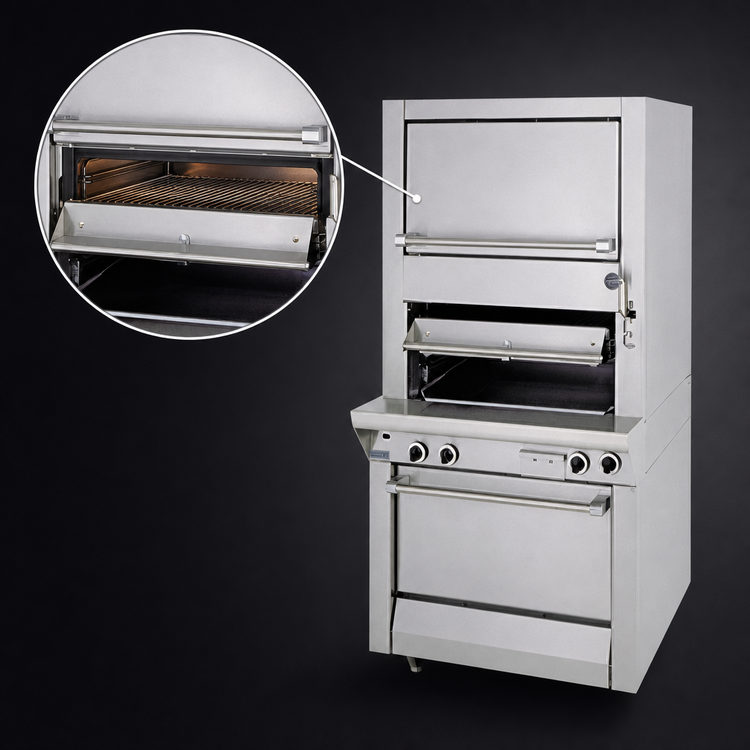

Upper Warming Oven

Porcelain-interior upper warming oven uses heat from the broiler below and does not require separate burners.

Storage Cabinet Base

Lower storage base with doors replaces a standard oven base and adds enclosed storage space.

Adjustable Broiler Rack

Three-position adjustable rack and removable broiler grid sections help control cooking position and simplify service.

Removable Grease Container

Large-capacity grease container is located out of the heat zone for easier cleanup.

Fan-Assisted Air Delivery

Broiler section includes a fan-assisted clean air delivery system with an air-proving safety switch.

Stainless Steel Construction

Stainless steel front and sides provide a durable, easy-to-clean exterior.

Adjustable Legs

6-inch chromed steel adjustable legs help level the unit during installation.

Type Upright Broiler
Style Range Match
Installation Type Floor Model
Material Stainless Steel
Finish Stainless Steel
Interior Finish Porcelain Enamel
BTU 70,000 BTU
Gas Connection Size 3/4 Inch Rear (Stand-Alone); 1-1/4 Inches NPT Rear (Battery Installation)
Shipping Width 34 Inches
Shipping Depth 38 Inches
Shipping Height 73 Inches
Shipping Weight 600 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Check list PDF Download

Frequently Asked Questions

No. The M100XSM uses a storage base with doors instead of a lower oven, but it does include an upper warming oven.
The broiler section is rated at 70,000 BTU total from four 17,500 BTU direct radiant infrared burners.
The unit measures 34 inches wide by 38 inches deep by about 72-1/8 inches high with NSF legs.
The documentation lists natural gas or propane. Operating pressure is 6 inches W.C. for natural gas and 11 inches W.C. for propane.
The broiler includes removable grid sections and a large-capacity grease container positioned out of the heat zone.
