Key specifications
- BTU
- 110,000 BTU
- Gas Type
- Natural Gas or Propane
- Phase
- 1-Phase
- Dimensions
- 34.0"W × 38.0"D × 72.13"H
- Type
- Upright Broiler
- Style
- Range Match
Spec sheet
Garland Master M100XRM Upright Broiler with Warming Oven
- Finishing Oven & Storage Base
- Standard & Finishing Ovens
Questions before you buy?
Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.
Specifications
Description

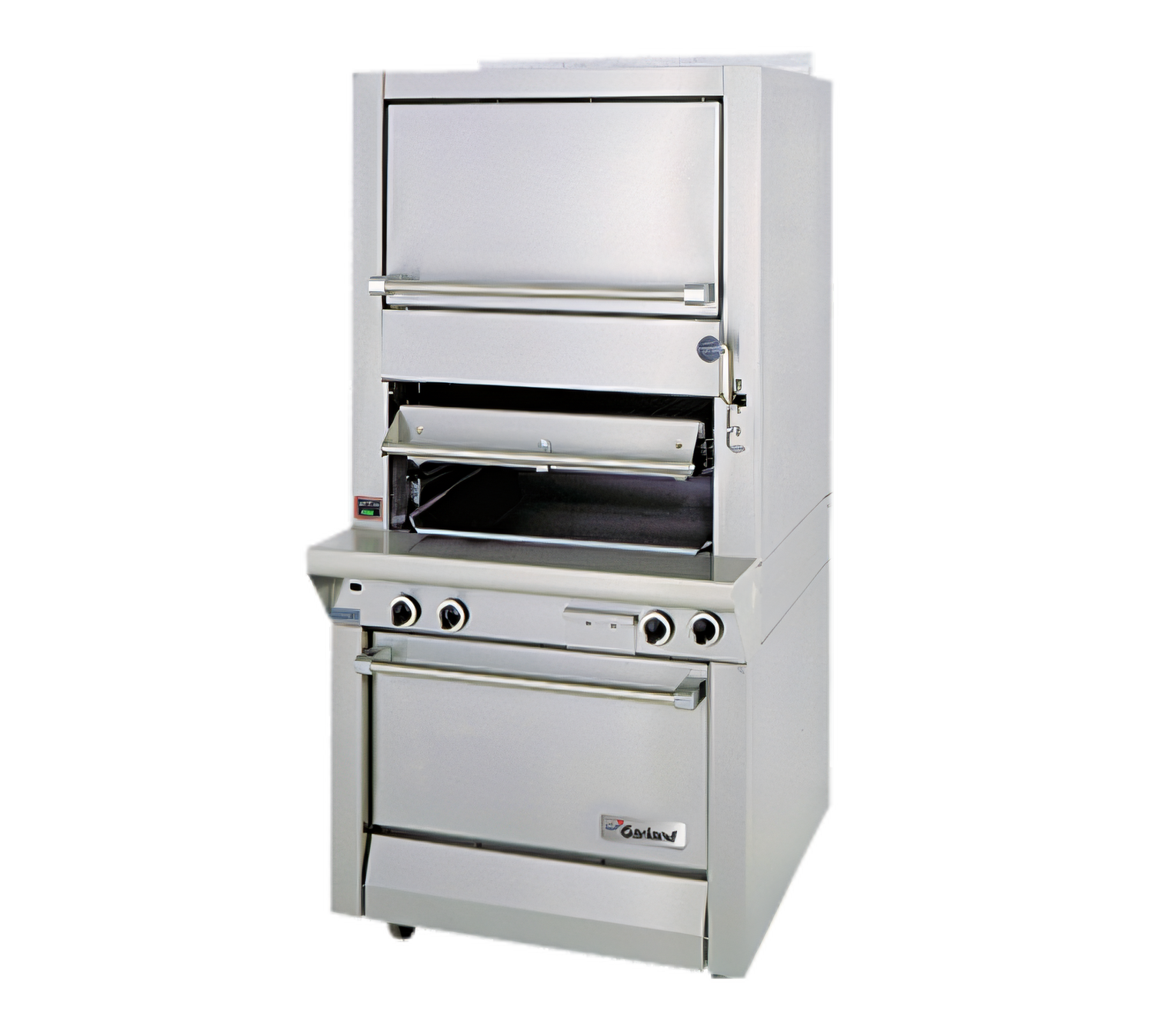

The Garland Master M100XRM is a gas upright broiler with a single infrared broiler deck, an upper warming oven, and a standard oven base.
It features stainless steel front and sides, two independent Hi/Med/Lo broiler heat controls, removable broiler grid rack sections, and a 3-position adjustable rack. The lower oven includes Piezo spark ignition, thermostatic control, and a fully porcelainized interior.
- Upper warming oven with porcelain interior and no burners
- Six-inch chromed steel adjustable legs
- Four direct radiant infrared broiler burners
Overall Dimensions:
34.0"W x 38.0"D x 72.13"HProduct Weight:

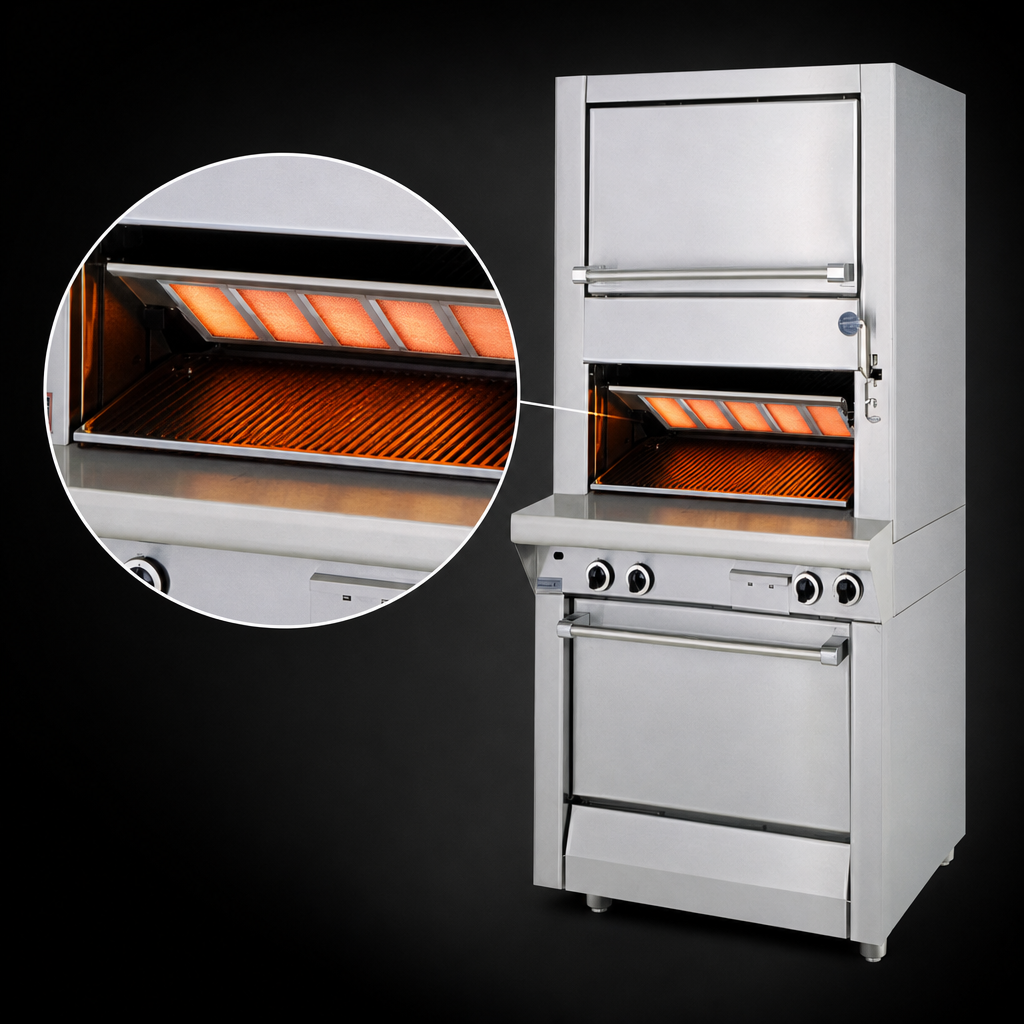

700.0 lbInfrared Broiler Deck
Four direct radiant infrared burners provide heat for the single broiler deck.

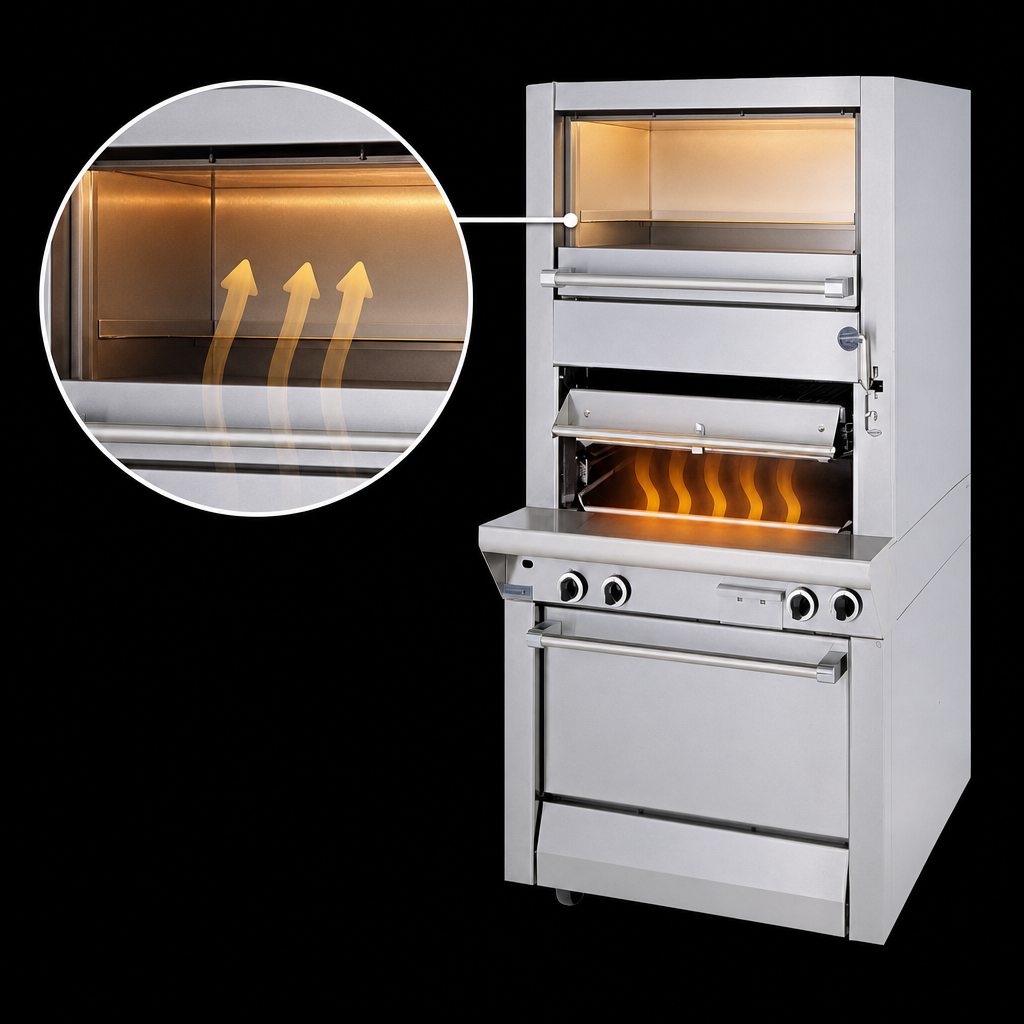

Upper Warming Oven
The upper warming oven has a porcelain interior, no burners, and is heated by rising heat from the broiler below.
Standard Oven Base
The lower oven includes Piezo spark ignition, thermostatic control, and a fully porcelainized interior.
Independent Heat Controls
Two independent Hi/Med/Lo controls regulate the broiling chamber.
Adjustable Broiler Rack
Removable broiler grid rack sections provide three rack positions.
Stainless Steel Exterior
The front and sides are stainless steel.
Adjustable Legs
Six-inch chromed steel adjustable legs are included.
Air Intake Blower Motor
The air intake blower motor is rated at 120 volts, 60 Hz, single phase.
Frequently Asked Questions
This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.
The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.
- Count every piece against the delivery receipt.
- Check every side for crushed corners, torn wrap, punctures, water stains or a tipped unit.
- Photograph the freight on the truck before it’s moved.
- If you see any damage, even cosmetic, write “DAMAGED” and what you see on the receipt before you sign.
Your shipping email has the exact instructions for your order. Questions at the door? Call us at (888) 307-5030.
Keep all the packaging, photograph the damage and the packaging, and tell us within 5 business days of delivery. Reply to your shipping email with the photos or call (888) 307-5030.
If the driver won’t wait while you inspect, write “Received – pending inspection. Driver would not wait.” with the date and time on the receipt, then inspect right away and report any damage within 24 hours.
Book your installer only after the carrier gives you a firm delivery appointment. Freight dates can move, and installer trips lost to a late truck aren’t reimbursable.
