Garland  |  SKU: IRCMA-72

Garland IRCMA-72 Cheese Melters

$6,665.00
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

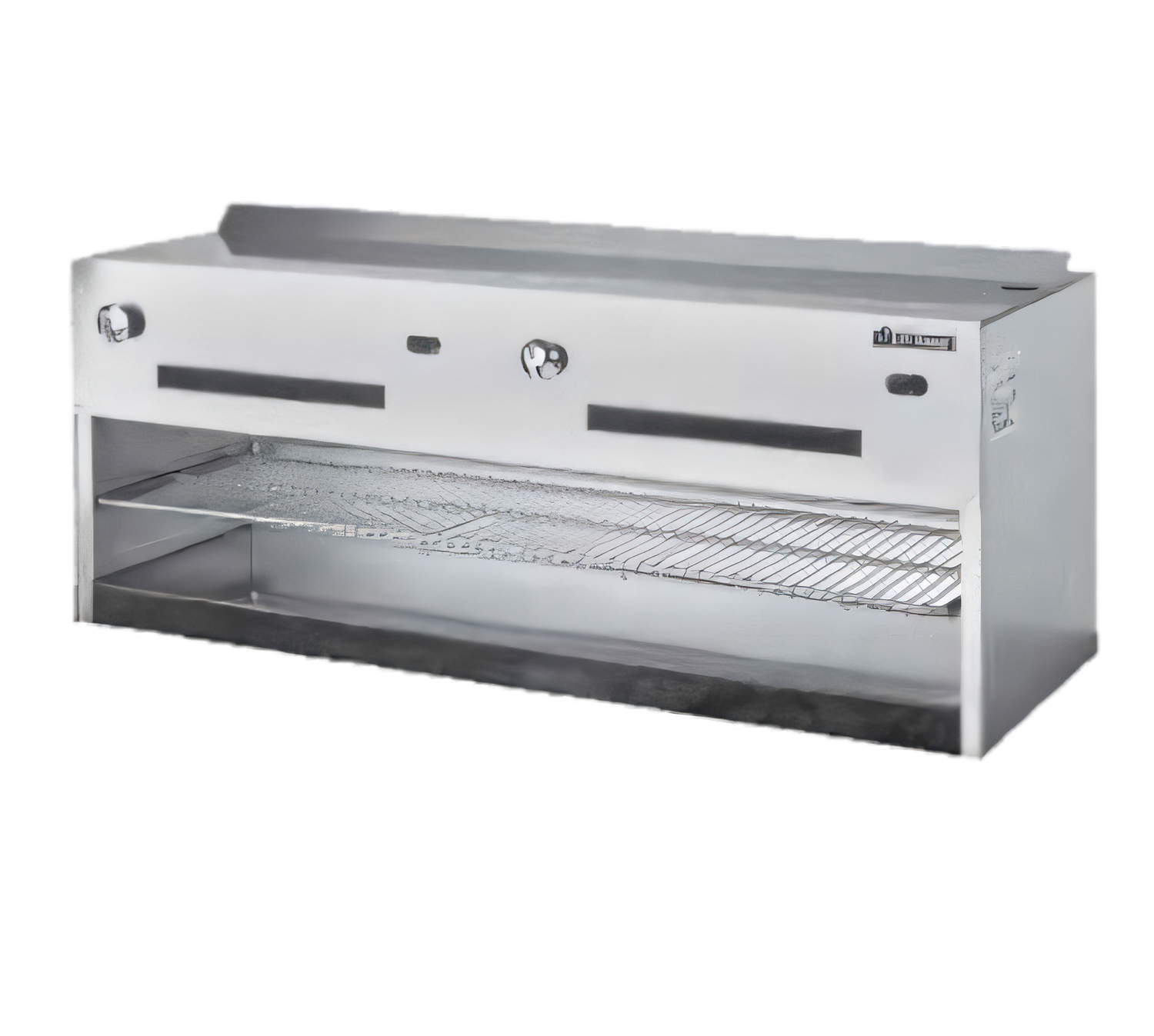

Garland U.S. Range IRCMA-72 Regal Series Infra-Red Cheesemelter – 72"

3 infrared burners • 60,000 BTU • Gas

Give every plated entrée the picture-perfect finish it deserves. The Garland IRCMA-72 melts cheese, glazes desserts, and browns casseroles in seconds thanks to a wall of high-intensity infrared heat. Built entirely from stainless steel and insulated for exceptional efficiency, this 72-inch workhorse is purpose-engineered for busy commercial kitchens that demand speed, consistency, and durability.

Why you’ll love it

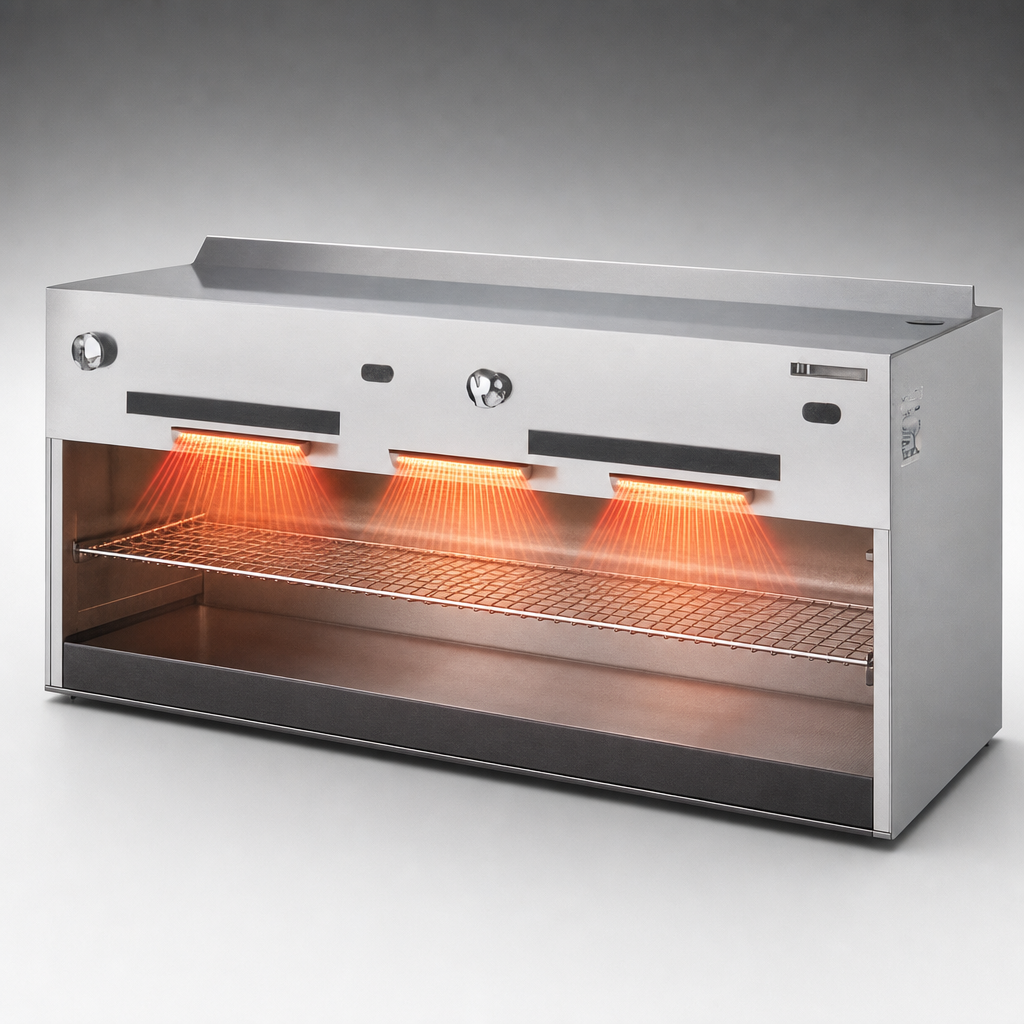

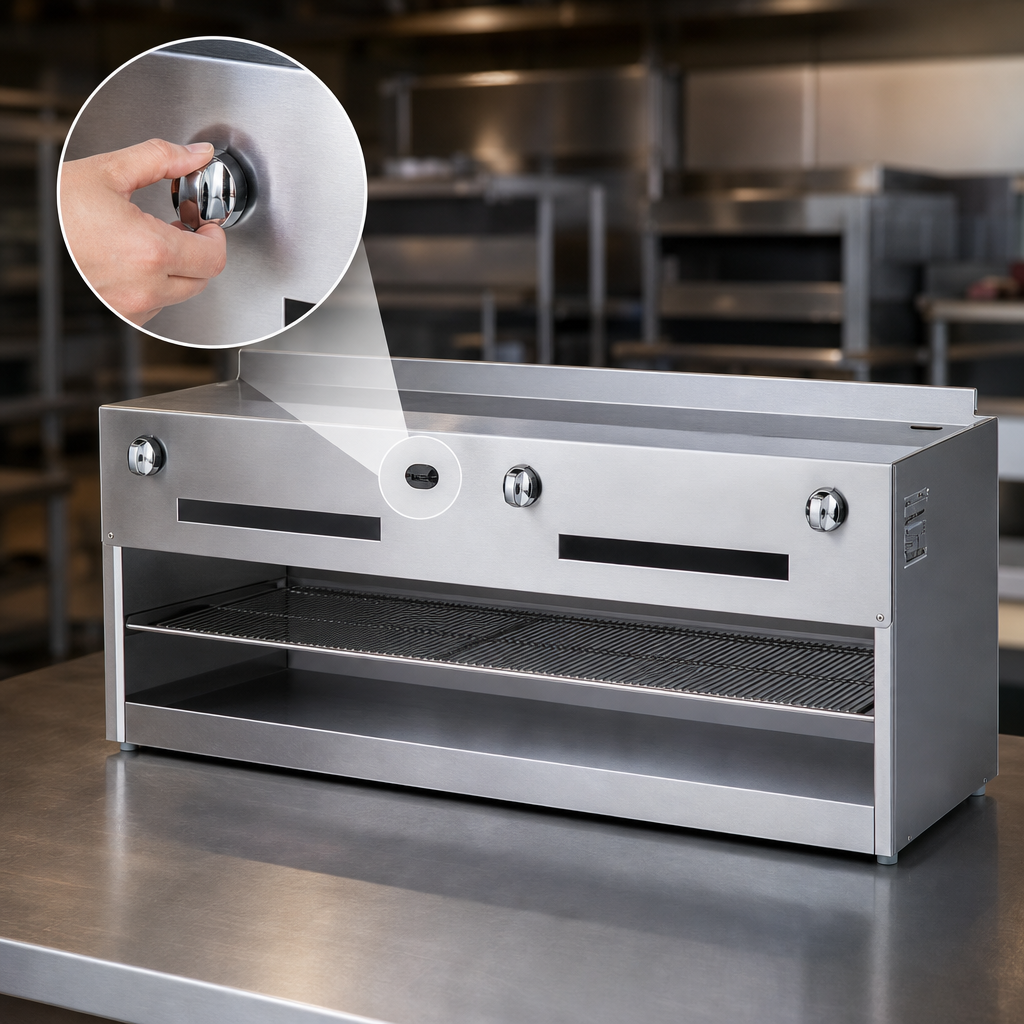

  • Three independent infrared burners with a manual control valve for each zone—fine-tune heat exactly where you need it.
  • 60,000 total BTU delivers instant, even top heat for flawless finishing and melting.
  • Constant pilot system keeps the unit ready for immediate ignition during service peaks.
  • Removable chrome-plated wire rack slides out for rapid loading, unloading, and cleaning.
  • Fully stainless steel exterior and cooking chamber stand up to daily commercial abuse and make wipe-downs effortless.
  • Fiberglass-insulated sides, back, and bottom help retain heat and keep surrounding equipment cooler.

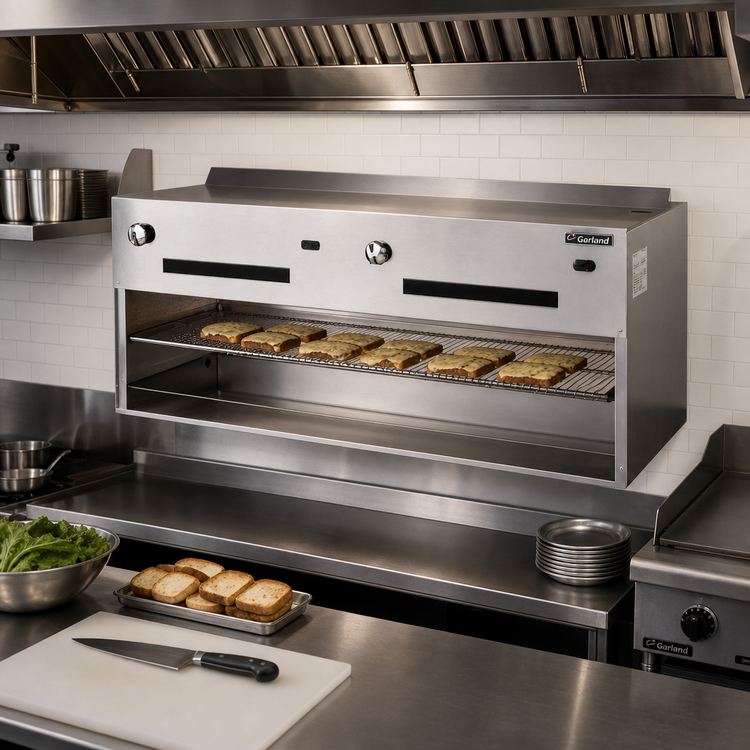

  • Versatile installation – range-mount, wall-mount (optional kit), or countertop.
  • 3/4" NPT top gas inlet simplifies utility connections.
  • CSA & NSF certified for regulated food-service operations.
  • Backed by a 1-year parts & labor warranty from Garland.

Key specifications

Model IRCMA-72
Width 72" / 1829 mm
Depth 17-5/8" / 447 mm
Height 18-3/4" / 476 mm
Number of burners 3 infrared tubes (1 control valve each)
Total BTU input 60,000 BTU/hr
Manifold pressure Natural: 5" WC (12.5 mbar)  |  LP: 10" WC (25 mbar)
Gas connection 3/4" NPT (top)
Clearances – combustible Rear: 3" (76 mm)  |  Sides: 6" (152 mm)
Clearances – non-combustible 0" rear & sides
Shipping weight 300 lb / 136 kg
Certifications CSA, NSF

Wall-mount kit sold separately. Counter installations require a non-combustible base.

Commercial use only: Garland/U.S. Range products are not approved for residential installation, service, or warranty.

Features & Specs

Manufacturer

Garland

Certifications

NSF, CSA

Height

18.75in

Width

72.0in

Depth

17.63in

Shipping Weight

300.0lbs

Rack Positions

1

Width (side - side)

61" - 72"

Exterior Finish

stainless steel front & sides

Mounting

specify

Heat type

infrared

Specifications

Cheesemelter, gas, 72", (3) infrared burners, manual control, removable chrome-plated wire rack, stainless steel front, top & sides, 60,000 BTU, CSA, NSF (U S Range)
